119 Controls in detail
Control system
Control system
The control system is activated as soon as
the SmartKey in the starter switch is
turned to position1. The control system
enables you to

call up information about your vehicle


change vehicle settings
For example, you can use the control
system to find out when your vehicle is
next due for service, to set the language
for messages in the instrument cluster
display, and much more.
The control system relays information to
the multifunction display.
Multifunction display
1Trip odometer
2Main odometer
3Current program mode
4Current gear selector lever
position/gear range
5Digital clock
6Status indicator (outside tempera-
ture/digital speedometer)
iThe displays for the audio systems
(radio, CD player) will appear in English,
regardless of the language selected.
Warning!
G
A driver’s attention to the road and traffic
conditions must always be his/her primary
focus when driving.
For your safety and the safety of others,
selecting features through the multifunction
steering wheel should only be done by the
driver when traffic and road conditions
permit it to be done safely.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.

123 Controls in detail
Control system

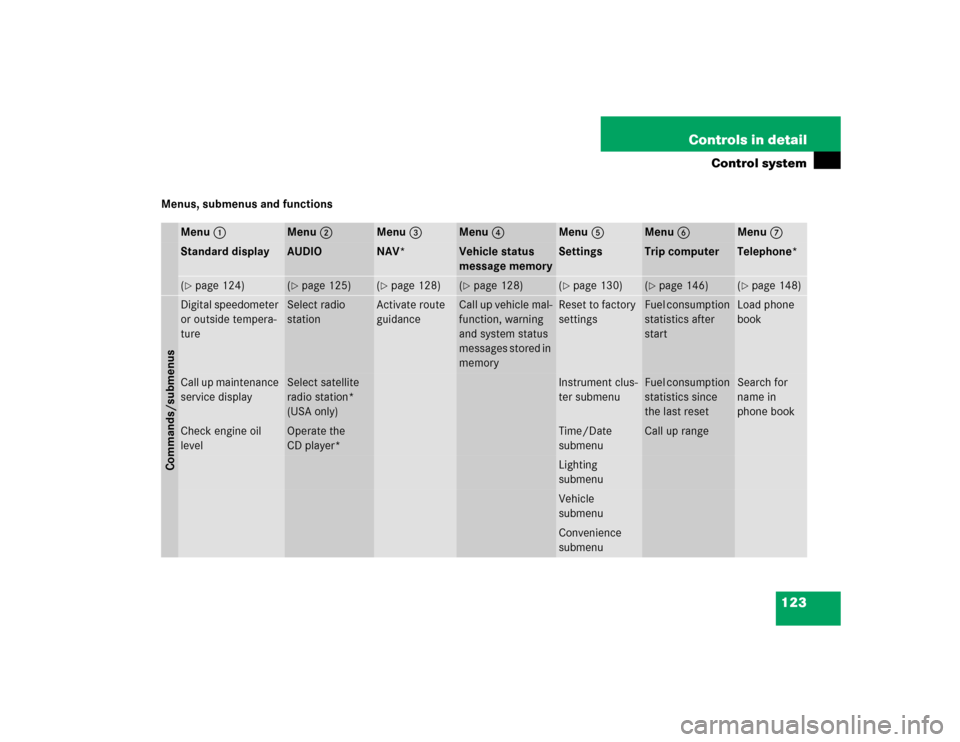

Menus, submenus and functions
Menu1
Menu2
Menu3
Menu4
Menu5
Menu6
Menu7
Standard display
AUDIO
NAV*
Vehicle status
message memory
Settings
Trip computer
Telephone*
(page 124)
(page 125)
(page 128)
(page 128)
(page 130)
(page 146)
(page 148)
Commands/submenusDigital speedometer
or outside tempera-
ture
Select radio
station
Activate route
guidance
Call up vehicle mal-
function, warning
and system status
messages stored in
memory
Reset to factory
settings
Fuel consumption
statistics after
start
Load phone
book
Call up maintenance
service display
Select satellite
radio station*
(USA only)
Instrument clus-
ter submenu
Fuel consumption
statistics since
the last reset
Search for
name in
phone book
Check engine oil
level
Operate the
CD player*
Time/Date
submenu
Call up range
Lighting
submenuVehicle
submenuConvenience
submenu

125 Controls in detail
Control system
Display digital speedometer or outside
temperature
Press buttonj ork repeatedly
until the digital speedometer appears
in the multifunction display.
The current vehicle speed is shown in
the multifunction display.
1Digital speedometer
AUDIO menu
The functions in the
AUDIO
menu operate
the audio equipment which you currently
have turned on.
If no audio equipment is currently turned
on, the message
AUDIO OFF
appears in the
multifunction display.
The following functions are available:
iYou can have the outside temperature
displayed instead of the digital
speedometer. You can select the
setting in the submenu
Instr.Cl.
via
the function
Status line display

(
page 134).
Function
Page
Select radio station
126
Select satellite radio station*
(USA only)
126
Operate CD player*
127

127 Controls in detail
Control system

Press buttonk orj repeatedly
until the desired channel is found.Operate the CD player*

Turn on the radio and select the CD
player (
page 193).
Vehicles with COMAND*:
Refer to separate operating
instructions.

Press buttonè orÿ repeatedly
until the settings for the CD currently
being played appear in the
multifunction display.
1Current CD (for CD changer*)
2Current track

Press buttonk orj repeatedly
until the desired track is selected.
iFeature description is based on
preliminary information available at
time of printing.
For more information on satellite radio
operation, see “Introduction to satellite
radio* (USA only)” (
page 188).
Vehicles with COMAND*:
Refer to separate operating
instructions.
iTo select a CD from the magazine,
press a number on the audio system or
the COMAND* system key pad located
in the center dashboard.

193 Controls in detail
Audio system
Calling up the ESN information menu
Press
INF
soft key.

Press
ESN
soft key.
The twelve-digit electronic serial
number (ESN) of the SAT tuner*
installed in your vehicle is displayed.

Press
RET
soft key to exit the menu.
CD mode
Safety precautions
General notes
The system may not be able to play audio
CDs with copy protection.
Playing copied CDs may cause
malfunctions during playback.Warning!
G
The single CD player and the CD changer*
are Class 1 laser products. There is a danger
of invisible laser radiation if the housing is
opened or damaged.
Do not open the housing. The single CD
player and the CD changer* do not contain
any parts that can be serviced by the user.
For safety reasons, have any service work
which may be necessary performed only by
qualified personnel.
Warning!
G
In order to avoid distraction which could
lead to an accident, the driver should insert
CDs with the vehicle at a standstill and
operate the audio system only if permitted
by road, weather and traffic conditions.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your car covers a
distance of 44 feet (approximately 14 m)
every second.

194 Controls in detailAudio system
D o n o t u s e C D s w i t h a n e i g h t c m d i a m e t e r ,
not even with a CD adapter. Attempting to
play CDs with an eight cm diameter or
playing such CDs with an adapter may
cause damage to the CD drive. Such
damage is not covered by the
Mercedes-Benz Limited Warranty.
Should excessively high or low tempera-
tures occur while in CD changer mode*, CD TEMP
will appear in the display, and the
CD will be muted until the temperature has
reached an acceptable level for the system
to continue operation.
The single CD player and the CD changer*
play audio CDs.Tips on handling CDs


Handle CDs carefully to prevent
interference during playback.


Avoid scratches, fingerprints and dust
on the CDs.


Do not write on CDs or apply any labels
or other material to them.


Clean CDs from time to time with a
commercially available cleaning cloth.
Never wipe the CD in a circular motion;
instead, wipe it in a straight line start-
ing in the center and moving outward.
Do not use solvents, anti-static sprays,
etc. for cleaning.


Replace the CD in its case after use.


Protect CDs from heat and direct
sunlight.
!If you affix stickers to the CDs, they can
become warped due to the heat that
develops in the CD drive or
CD changer.
In certain situations, the CDs can then
no longer be ejected and cause
damage to the drive. Such damage is
not covered by the Mercedes-Benz
Limited Warranty.!Your CD drive or CD changer has been
designed to play CDs which
correspond to the EN 60908 standard.
You can therefore only use CDs with a
maximum thickness of 1.3 mm.
If you insert thicker data carriers, e.g.
ones that have data on both sides (one
side with DVD data, the other side with
audio data), they cannot be ejected and
will damage the drive.

195 Controls in detail
Audio system
Operating the single CD player in the
audio system unit
Loading a CD
The single CD player in the audio system
unit has capacity for one CD. The CD slot
for loading the drive is located underneath
the soft keys.
Make sure the system is switched on.

Insert CD into CD slot. The label side of
the CD must face upwards.
The system automatically pulls the CD
into the CD slot. The audio CD begins
to play.Ejecting a CD

Make sure the system is switched on.

Press EJECTbutton.
The system ejects the CD.
NO CD
will
appear in the display.

Remove CD from slot.Operational readiness of CD changer*
If a CD changer* has been installed in the
vehicle, it can be operated from the front
control panel of the audio system.
A loaded magazine must be installed to
play CDs.
The CD changer is located in the glove box.
Loading/unloading the CD magazine

Slide changer door to the right and
press gbutton.

Magazine will be ejected.
!If a CD is already loaded, it must be
ejected before inserting a new CD.
Inserting a second CD in the slot with
another CD still loaded will cause dam-
age to the CD drive not covered by the
Mercedes-Benz Limited Warranty.
iIf a CD has been inserted incorrectly or
cannot be read,
WRONG CD0
will appear
in the display.
iIf you do not take the CD out of the CD
slot within approx. 15 seconds, the
system automatically pulls the CD back
in and plays it.
If a CD is pulled back in, press
EJECTbutton for five seconds; the CD
will then be ejected.
iThe CD changer* may not be able to
play audio CDs with copy protection.

196 Controls in detailAudio system1CD
2CD changer
3CD tray
4CD magazine
Remove magazine4 and pull
CD tray3 fully out.

Place CD1 i n r e c e s s o f t r a y , l a b e l s i d e
up.

Push tray into magazine in direction of
arrow.

Pus h ma ga zine i nt o CD c hang er*2 in
direction of arrow and close sliding
door.
Playing CDs
Single CD player in the audio unit

Pressi button.CD 0
will appear in the upper left-hand
corner of the display.
The CD will resume playback at the point
where it was switched off.CD changer*

Press Q button.CD and the selected magazine slot
number appear in the upper left-hand
corner of the display.
If you have not removed a CD since the last
time the CD audio source was activated,
the last CD listened to will begin to play at
the point where it was switched off.
After the last track on a CD has finished,
the next CD is automatically played.
iCDs which have been inserted
improperly or are unreadable will not
be played.
