290 OperationAt the gas stationCheck regularly and before a long trip
1Coolant level
2Brake fluid (fuse box cover removed)
3Windshield washer and headlamp
cleaning system*Brake fluid
Remove fuse box cover before checking
brake fluid (
page 410).
Engine oil level
For more information on engine oil, see
“Engine oil” (page 292).
Opening hood, see (
page 291).Coolant
For normal replenishing, use water (pota-
ble water quality). For more information on
coolant, see “Coolant level” (
page 296)
Vehicle lighting
Check function and cleanliness. For infor-
mation on replacing light bulbs, see “Re-
placing bulbs” (
page 384).
Exterior lamp switch, see (
page 110).
Tire inflation pressure
For information on tire inflation pressure,
see “Checking tire inflation pressure”
(
page 311).
Windshield washer and headlamp
cleaning system*
For more information on filling up the
washer reservoir, see “Windshield washer
system and headlamp cleaning system*”
(page 299).
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks immediately. Noti-
fy an authorized Mercedes-Benz Center
immediately. Do not add brake fluid as
this will not solve the problem. For
more information, see “Practical Hints”
(page 341).

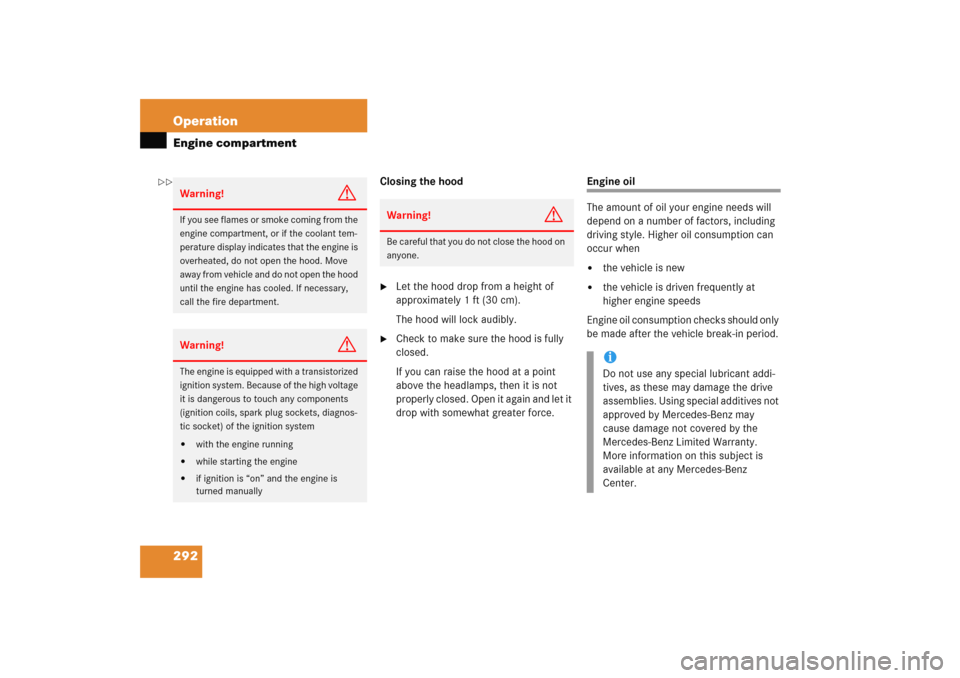

292 OperationEngine compartment
Closing the hood
Let the hood drop from a height of
approximately 1 ft (30 cm).
The hood will lock audibly.

Check to make sure the hood is fully
closed.
If you can raise the hood at a point
above the headlamps, then it is not
properly closed. Open it again and let it
drop with somewhat greater force.
Engine oil
The amount of oil your engine needs will
depend on a number of factors, including
driving style. Higher oil consumption can
occur when

the vehicle is new


the vehicle is driven frequently at
higher engine speeds
Engine oil consumption checks should only
be made after the vehicle break-in period.
Warning!
G
If you see flames or smoke coming from the
engine compartment, or if the coolant tem-
perature display indicates that the engine is
overheated, do not open the hood. Move
away from vehicle and do not open the hood
until the engine has cooled. If necessary,
call the fire department.Warning!
G
The engine is equipped with a transistorized
ignition system. Because of the high voltage
it is dangerous to touch any components
(ignition coils, spark plug sockets, diagnos-
tic socket) of the ignition system

with the engine running


while starting the engine


if ignition is “on” and the engine is
turned manually
Warning!
G
Be careful that you do not close the hood on
anyone.
iDo not use any special lubricant addi-
tives, as these may damage the drive
assemblies. Using special additives not
approved by Mercedes-Benz may
cause damage not covered by the
Mercedes-Benz Limited Warranty.
More information on this subject is
available at any Mercedes-Benz
Center.


293 Operation
Engine compartment
Checking engine oil level with the
control system
When checking the oil level

the vehicle must be parked on level
ground.


with the engine at operating tempera-
ture, the vehicle must have been
stationary for at least five minutes with
the engine turned off.


with the engine not at operating tem-
perature yet, the vehicle must have
been stationary for at least 30 minutes
with the engine turned off.
To check the engine oil level via the
multifunction display, do the following:

Switch on the ignition (
page 33).
The standard display (
page 123) should
appear in the multifunction display.

Press buttonk orj on the
steering wheel until the following
message is seen in the multifunction
display:One of the following messages will
subsequently appear in the indicator:


Engine oil level
OK


Add 1.0 qt engine oil
for max. oil level(Canada:
1.0 l
)


Add 1.5 qts engine oil
for max. oil level(Canada:
1.5 l
)


Add 2.0 qts engine oil
for max. oil level(Canada:
2.0 l
)

If necessary, add engine oil.
For adding engine oil, see (
page 294).
For more information on engine oil, see
“Technical data” section (
page 426) and
(
page 428).
Other display messages
If the SmartKey is not turned to position2
in the starter switch, the following
message will appear:
Switch ignition on to
check engine oil level
Switch on the ignition (
page 33).
iIf you want to interrupt the checking
procedure, press thek orj
button on the multifunction steering
wheel.

294 OperationEngine compartmentIf you see the message:Observe waiting time
If engine is at operating temperature,
wait five minutes before repeating
check procedure.

If engine is not at operating tempera-
ture yet, wait 30 minutes before
repeating check procedure.
If you see the message:
Engine oil level
Not when engine on
Turn off the engine.

If the engine is at operating tempera-
ture, wait five minutes before checking
oil.

If the engine is not at operating temper-
ature yet, you must wait 30 minutes
before checking oil.If there is excess engine oil with the engine
at normal operating temperature, the
following message will appear:
Engine oil level
Reduce oil level
Have excess oil siphoned or drained
off. Contact an authorized
Mercedes-Benz Center.
For more information on messages in the
display concerning engine oil, see “Practi-
cal hints” (
page 363).Adding engine oil
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.
!Only use approved engine oils and oil
filters required for vehicles with
Maintenance System (U.S. vehicles) or
FSS (Canada vehicles). For a listing of
approved engine oils and oil filters,
refer to the Factory Approved Service
Products pamphlet in your vehicle
literature portfolio, or contact an
authorized Mercedes-Benz Center.
Using engine oils and oil filters of spec-
ification other than those expressly
required for the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles), or changing of oil and oil filter at
change intervals longer than those
called for by the Maintenance System
(U.S. vehicles) or FSS (Canada vehi-
cles) will result in engine damage not
covered by the Mercedes-Benz Limited
Warranty.

296 OperationEngine compartmentTransmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.
Coolant level
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
For more information on coolant, see
“Coolants” (
page 432).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature display
indicates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 158°F (70°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


Using a rag, slowly open the cap
approximately
1/2 turn to relieve ex-
cess pressure. If opened immediately,
scalding hot fluid and steam will be
blown out under pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene gly-
col which may ignite and burn if it comes
into contact with hot engine parts.

297 Operation
Engine compartment
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Coolant expansion tank
2Cap

Using a rag, turn the cap2 slowly
approximately one half turn counter-
clockwise to release any excess
pressure.

Continue turning the cap counterclock-
wise and remove it.
The coolant level is correct if the level

for cold coolant: reaches the black
top part of the reservoir


for warm coolant: is approximately
0.6 in (1.5 cm) higher

Add coolant as required.

Replace and tighten cap.
Battery
Your vehicle’s battery is located in the en-
gine compartment on the right hand side.
The battery should always be sufficiently
charged in order to achieve its rated ser-
vice life. Refer to Maintenance Booklet for
battery maintenance intervals.
If you use your vehicle mostly for
short-distance trips, you will need to have
the battery charge checked more
frequently.
When replacing the battery, always use
batteries approved by Mercedes-Benz.
If you do not intend to operate your vehicle
for an extended period of time, consult an
authorized Mercedes-Benz Center about
steps you need to observe.

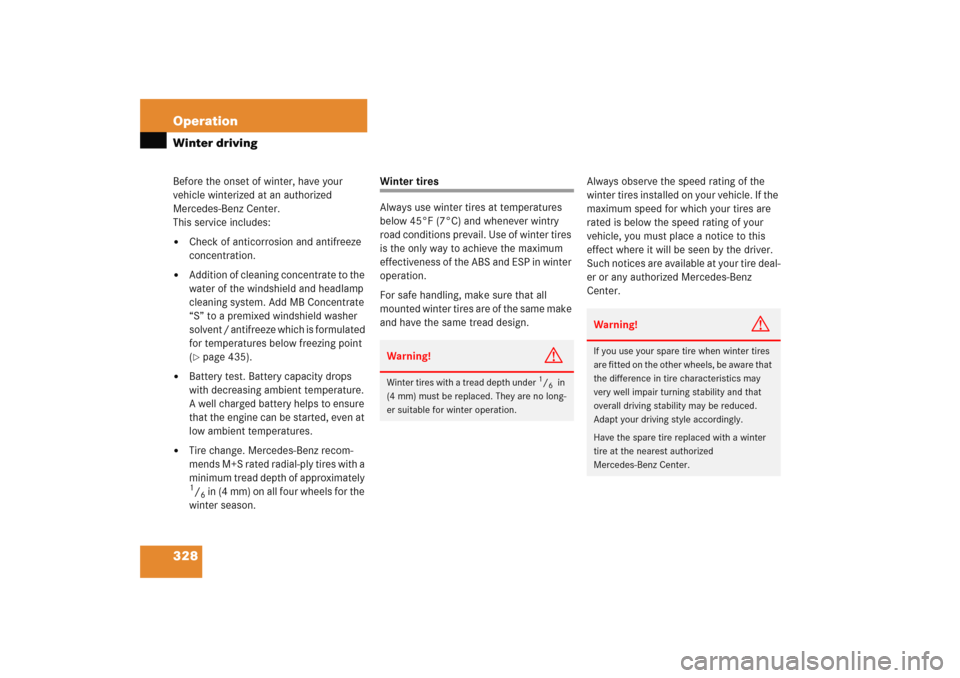

328 OperationWinter drivingBefore the onset of winter, have your
vehicle winterized at an authorized
Mercedes-Benz Center.
This service includes:

Check of anticorrosion and antifreeze
concentration.


Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“S” to a premixed windshield washer
solvent / antifreeze which is formulated
for temperatures below freezing point
(page 435).


Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to ensure
that the engine can be started, even at
low ambient temperatures.


Tire change. Mercedes-Benz recom-
mends M+S rated radial-ply tires with a
minimum tread depth of approximately 1/6 in (4 mm) on all four wheels for the
winter season.
Winter tires
Always use winter tires at temperatures
below 45°F (7°C) and whenever wintry
road conditions prevail. Use of winter tires
is the only way to achieve the maximum
effectiveness of the ABS and ESP in winter
operation.
For safe handling, make sure that all
mounted winter tires are of the same make
and have the same tread design.Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your
vehicle, you must place a notice to this
effect where it will be seen by the driver.
Such notices are available at your tire deal-
er or any authorized Mercedes-Benz
Center.Warning!
G
Winter tires with a tread depth under
1/6 in
(4 mm) must be replaced. They are no long-
er suitable for winter operation.
Warning!
G
If you use your spare tire when winter tires
are fitted on the other wheels, be aware that
the difference in tire characteristics may
very well impair turning stability and that
overall driving stability may be reduced.
Adapt your driving style accordingly.
Have the spare tire replaced with a winter
tire at the nearest authorized
Mercedes-Benz Center.

329 Operation
Winter driving
Block heater (Canada only)
The engine is equipped with a block
heater.
The electrical cable may be installed at
an authorized Mercedes-Benz Center.
Snow chains
Snow chains should only be driven on
snow-covered roads at speeds not to ex-
ceed 30 mph (50 km/h). Remove chains
as soon as possible when driving on roads
without snow.Please observe the following guidelines
when using snow chains:


Use of snow chains is not permissible
with all wheel/tire combinations.


Snow chains should only be used on
the rear wheels. Follow the manufac-
turer's mounting instructions.


Only use snow chains that are
approved by Mercedes-Benz. An autho-
rized Mercedes-Benz Center will be
glad to advise you on this subject.


Use of snow chains may be prohibited
depending on location. Always check
local and state laws before installing
snow chains.
iWhen driving with snow chains, you
may wish to deactivate the ESP
(page 83) before setting the vehicle
in motion. This will improve the vehi-
cle’s traction.
!Use of snow chains is not permissible
with tire sizes:

245/40 R17


165 - 15 89P


165/70 - 16 92P
