2005 MERCEDES-BENZ C COUPE Plate lamp

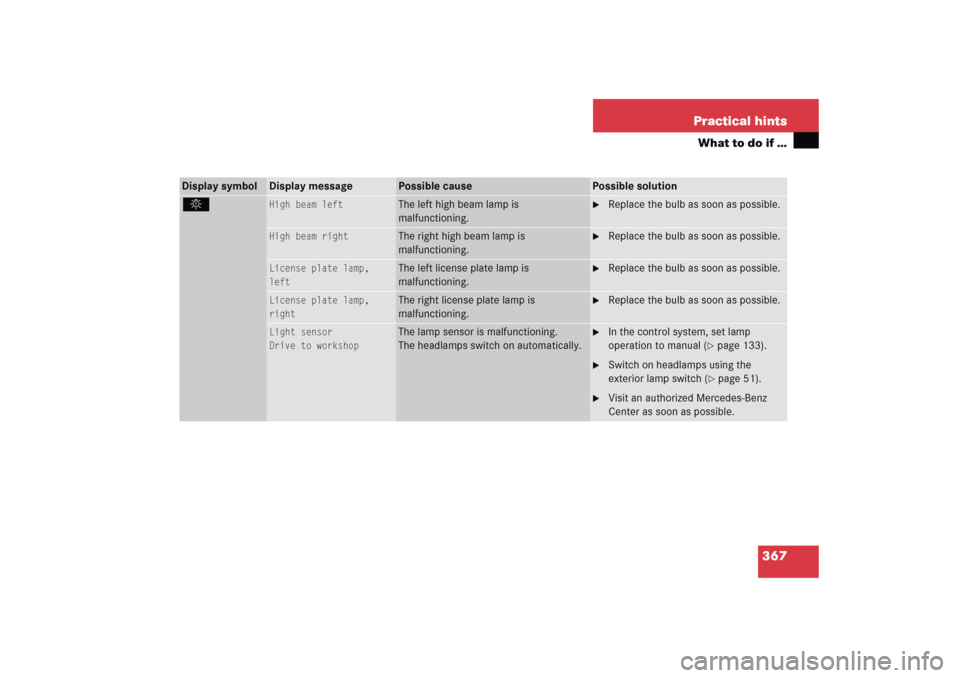

367 Practical hints
What to do if …
Display symbol
Display message
Possible cause
Possible solution
.
High beam left
The left high beam lamp is
malfunctioning.

Replace the bulb as soon as possible.
High beam right
The right high beam lamp is
malfunctioning.

Replace the bulb as soon as possible.
License plate lamp,
left
The left license plate lamp is
malfunctioning.

Replace the bulb as soon as possible.
License plate lamp,
right
The right license plate lamp is
malfunctioning.

Replace the bulb as soon as possible.
Light sensor
Drive to workshop
The lamp sensor is malfunctioning.
The headlamps switch on automatically.

In the control system, set lamp
operation to manual (
page 133).

Switch on headlamps using the
exterior lamp switch (
page 51).

Visit an authorized Mercedes-Benz
Center as soon as possible.

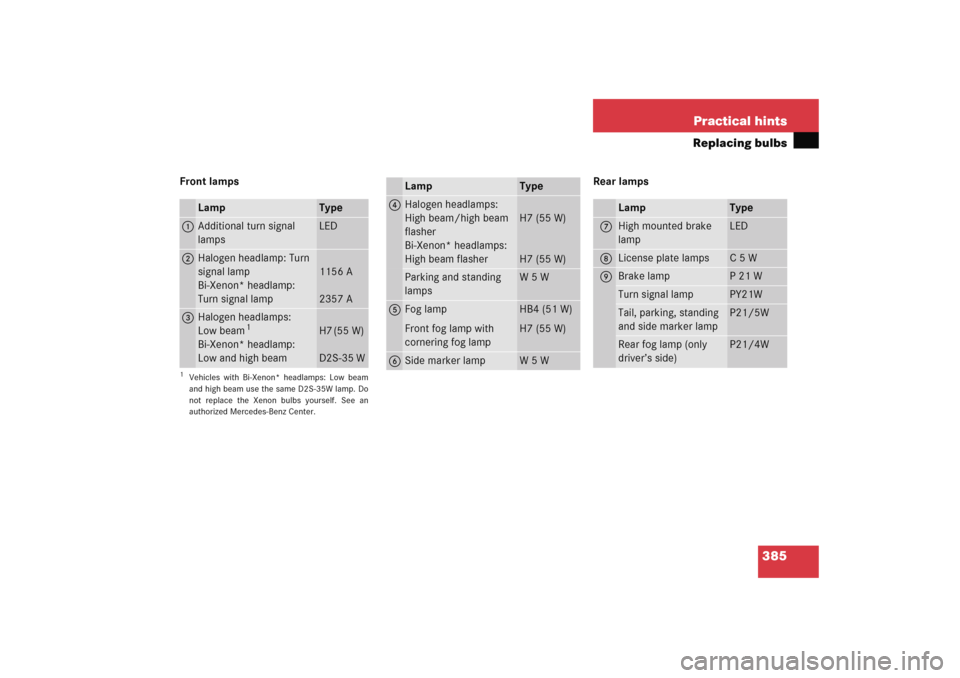

385 Practical hints
Replacing bulbs
Front lamps Rear lamps
Lamp
Type
1
Additional turn signal
lamps
LED
2
Halogen headlamp: Turn
signal lamp
Bi-Xenon* headlamp:
Turn signal lamp
1156 A
2357 A
3
Halogen headlamps:
Low beam
1
Bi-Xenon* headlamp:
Low and high beam
1Vehicles with Bi-Xenon* headlamps: Low beam
and high beam use the same D2S-35W lamp. Do
not replace the Xenon bulbs yourself. See an
authorized Mercedes-Benz Center.
H7 (55 W)
D2S-35 W
Lamp
Type
4
Halogen headlamps:
High beam/high beam
flasher
Bi-Xenon* headlamps:
High beam flasher
H7 (55 W)
H7 (55 W)
Parking and standing
lamps
W5W
5
Fog lamp
Front fog lamp with
cornering fog lamp
HB4 (51 W)
H7 (55 W)
6
Side marker lamp
W5W
Lamp
Type
7
High mounted brake
lamp
LED
8
License plate lamps
C 5 W
9
Brake lamp
P 21 W
Turn signal lamp
PY21W
Tail, parking, standing
and side marker lamp
P21/5W
Rear fog lamp (only
driver’s side)
P21/4W

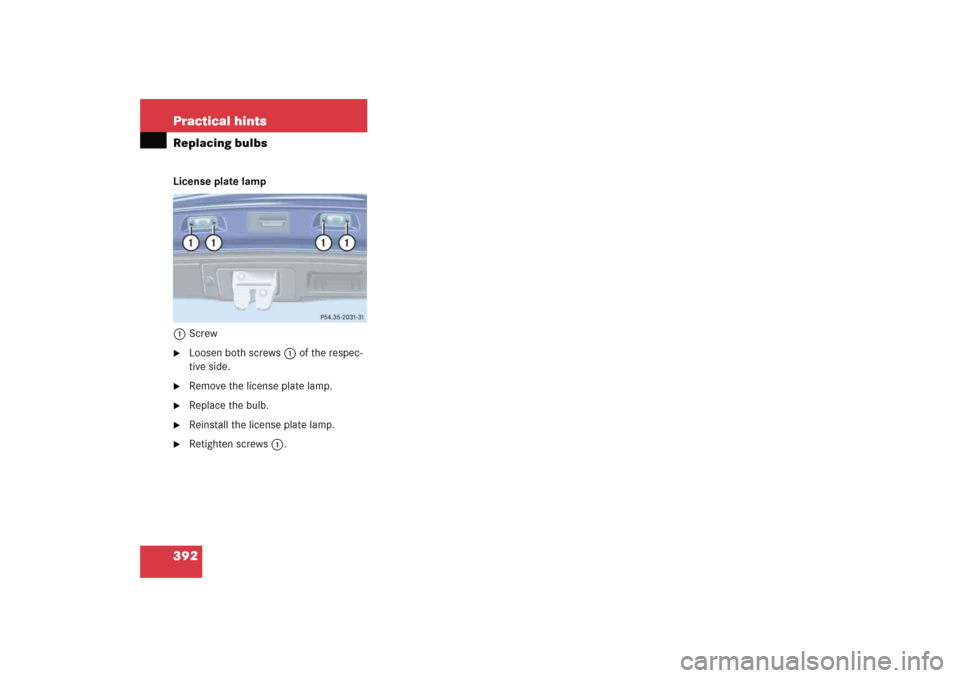

392 Practical hintsReplacing bulbsLicense plate lamp
1Screw
Loosen both screws1 of the respec-
tive side.

Remove the license plate lamp.

Replace the bulb.

Reinstall the license plate lamp.

Retighten screws1.

446 IndexBolts
For spare wheel 376
Brake
Indicator lamp 25
Brake assist system (BAS) 437
Brake fluid 290, 428
Checking 290
Message in display 358
Brake lamp bulbs 385
Brake pads
Message in display 358
Brakes 278
Warning lamp 341
Break-in period 276
Bulbs, replacing 384
Additional turn signals 385
Brake lamps 385
Fog lamps 385
Front lamps 385
High beam 385
High beam flasher 385
License plate lamps 385, 392
Low beam 385
Parking lamps 385, 388, 390
Rear fog lamp 385, 390
Rear lamps 385Side marker lamp 391
Side marker lamps 385, 390
Standing lamps 385, 388, 390
Tail lamp assemblies 385
Tail lamp unit 390
Turn signal lamps 385
Button
Audio system 198
C
CAC (Customer Assistance Center) 437
Calling up
Range (distance to empty) 152
Service indicator 331
CAN system 437
Capacities
Fuels, coolants, lubricants, etc. 426
Cargo compartment
Lighting 118
Tie-down rings 253
Cargo tie-down rings 253
Catalytic converter 285
CD changer* 213
CD changer* operation 215
CD player
Operating 131
CD* operation 213Center console 27
Front passenger front air bag off indica-
tor lamp 27, 76, 345
Lower part 28
Upper part 27
Centigrade
Setting temperature units 137
Central locking
Automatic 97
From inside 98
Switch 98
Switching on/off (control
system) 148
Unlocking from inside 98
Central locking switch 98
Changing
CDs 213
Key setting 148
Charcoal filter 191
Activating 191
Deactivating 192
Charging
Vehicle battery 402
CHECK ENGINE malfunction indicator
lamp 342

455 Index
LATCH child seat anchors 78
Folding back 78, 79
Layout of poly-V-belt drive 417
Leather upholstery
Cleaning 338
License plate lamps
Messages in display 367
Replacing bulbs 385, 392
Light alloy wheels
Cleaning 336
Technical data 420
Light sensor 367
Lighter see Cigarette lighter
Lighting 110
Automatic headlamp mode 111
Combination switch 114
Daytime running lamp mode 112
Exterior lamp switch 110
Front fog lamps 113
High beams 114
Instrument cluster illumination 119
Instruments 119
Interior 117
Interior delayed shut-off (Control
system) 147
Locator lighting 112Low beam 110
Low beam, indicator lamp 25
Manual headlamp mode 111
Night security illumination 112
Parking lamps 110
Rear fog lamp 113
Settings (control system) 144
Limiting the gear range 161
Limp Home Mode 166
Loading 250
Cargo tie-down rings 253
Instructions 252
Roof rack* 250
Split rear bench seat 250
Loading terminology 323
Loading the vehicle 303
Locator lighting 112
Setting 145
Lock buttons 439
Locking 56, 90
Automatic while driving 97
Centrally from inside 98
Fuel filler flap 288
Global, SmartKey 92
Vehicle in an emergency 379
Loss of keys 94Loss of Service and Warranty Information
Booklet 415
Low beam headlamps
Messages in display 368
Replacing bulbs 385, 387
Lowering
Vehicle 400
Lubricants
Technical data 426
Luggage compartment
Closing 95
Closing the lid 95
Opening from inside vehicle 95
Trunk lid emergency release 96
Luggage cover 252

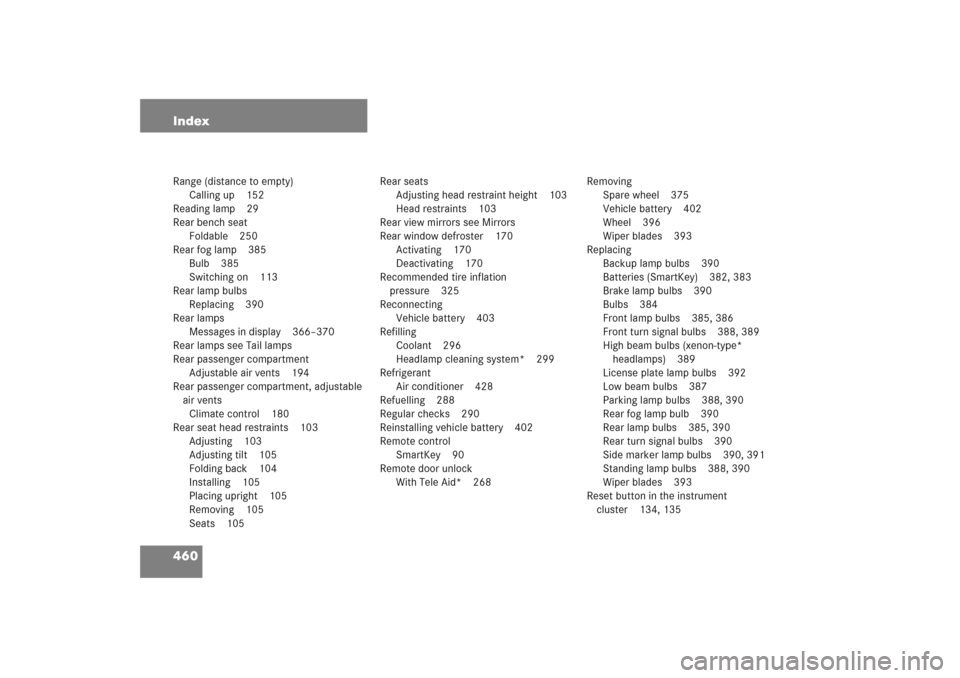

460 IndexRange (distance to empty)
Calling up 152
Reading lamp 29
Rear bench seat
Foldable 250
Rear fog lamp 385
Bulb 385
Switching on 113
Rear lamp bulbs
Replacing 390
Rear lamps
Messages in display 366–370
Rear lamps see Tail lamps
Rear passenger compartment
Adjustable air vents 194
Rear passenger compartment, adjustable
air vents
Climate control 180
Rear seat head restraints 103
Adjusting 103
Adjusting tilt 105
Folding back 104
Installing 105
Placing upright 105
Removing 105
Seats 105Rear seats
Adjusting head restraint height 103
Head restraints 103
Rear view mirrors see Mirrors
Rear window defroster 170
Activating 170
Deactivating 170
Recommended tire inflation
pressure 325
Reconnecting
Vehicle battery 403
Refilling
Coolant 296
Headlamp cleaning system* 299
Refrigerant
Air conditioner 428
Refuelling 288
Regular checks 290
Reinstalling vehicle battery 402
Remote control
SmartKey 90
Remote door unlock
With Tele Aid* 268Removing
Spare wheel 375
Vehicle battery 402
Wheel 396
Wiper blades 393
Replacing
Backup lamp bulbs 390
Batteries (SmartKey) 382, 383
Brake lamp bulbs 390
Bulbs 384
Front lamp bulbs 385, 386
Front turn signal bulbs 388, 389
High beam bulbs (xenon-type*
headlamps) 389
License plate lamp bulbs 392
Low beam bulbs 387
Parking lamp bulbs 388, 390
Rear fog lamp bulb 390
Rear lamp bulbs 385, 390
Rear turn signal bulbs 390
Side marker lamp bulbs 390, 391
Standing lamp bulbs 388, 390
Wiper blades 393
Reset button in the instrument
cluster 134, 135
