23
At a glance
Cockpit
Item
Page
1
Cruise control lever
247
2
Multifunction steering
wheel
26
124
3
Horn
4
Instrument cluster
24
119
5
Overhead control panel
29
6
Glove box lid release
254
Item
Page
7
Glove box lock
254
8
Center console
27
9
Starter switch
33
a
Hood lock release
291
b
Steering wheel adjustment
handle (manual)
41
c
Steering wheel adjustment
stalk (electrical)*
41
d
Parking brake pedal
50, 56
e
Door control panel
30
Item
Page
f
Parking brake release
50
g
Combination switch

Turn signals
52


High beam
52


Windshield wipers
53
h
Exterior lamp switch
51
110
j
Exterior rear view mirror
adjustment
42
k
Headlamp washer switch*
167

30 At a glanceDoor control panel
Item
Page
1
Door handle
94
2
Memory function* (for
storing seat, exterior rear
view mirror and steering
wheel settings)
107
3
Seat adjustment*
38
4
Switches for opening/clos-
ing door windows
237

33
Getting started
Unlocking
Starter switch positions
Starter switch0
For removing SmartKey
The steering is locked when the Smart-
Key is removed from the starter switch.
If necessary, move steering wheel
slightly to allow the locking mechanism
to engage.
1 Power supply to some electrical con-
sumers, such as seat adjustment 2
Ignition (power supply for all electrical
consumers) and driving position. All
lamps (except low beam headlamp in-
dicator lamp, high beam headlamp indi-
cator lamp, and turn signal indicator
lamps unless activated) in the instru-
ment cluster come on. If a lamp in the
instrument cluster fails to come on
when the ignition is switched on, have
it checked and replaced if necessary. If
a lamp in the instrument cluster re-
mains on after starting the engine or
comes on while driving, refer to “Lamps
in instrument cluster” (
page 340).
3 Starting position
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle. Do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.

35
Getting started
Adjusting
 Adjusting
Seats
The seats can be adjusted either manually
or electrically, depending on the vehicle’s
equipment.Warning!
G
All seat, head restraint, steering wheel, and
rear view mirror adjustments, as well as fas-
tening of seat belts, must be done before
the vehicle is put into motion.Warning!
G
Do not adjust the driver’s seat while driving.
Adjusting the seat while driving could cause
the driver to lose control of the vehicle.
Never ride in a moving vehicle with the seat
back in an excessively reclined position as
this can be dangerous. You could slide
under the seat belt in a collision. If you slide
under it, the belt would apply force at the
abdomen or neck.
That could cause serious or fatal injuries.
The seat back and seat belts provide the
best restraint when the wearer is in a nearly
upright position and belts are properly posi-
tioned on the body. Your seat must be
adjusted so that you can correctly fasten
your seat belt (
page 44).
Never place hands under the seat or near
any moving parts while a seat is being ad-
justed.
Warning!
G
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the power seats* can be op-
erated when the respective door is open.
Therefore, do not leave children unattended
in the vehicle, or with access to an unlocked
vehicle. Unsupervised use of vehicle equip-
ment may cause an accident and/or serious
personal injury.
Warning!
G
According to accident statistics, children
are safer when properly restrained in the
rear seating positions than in the front seat-
ing position. Thus, we strongly recommend
that children be placed in the rear seats
whenever possible. Regardless of seating
position, children 12 years old and under
must be seated and properly secured in an
appropriate infant, or toddler restraint, or
booster seat recommended for the size and
weight of the child. For additional
information, see “Children in the vehicle”
(page 70).
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle
and/or the child is not properly secured in
the child restraint.

36 Getting startedAdjustingManual seat adjustment1 Backrest tilt
2 Seat height
3 Seat cushion tilt
4 Seat fore and aft adjustment Seat fore and aft adjustment

Lift handle
4.

Slide seat to the desired position.

Allow handle 4 to reengage.

Check for proper engagement before
driving.
Adjust seat to a comfortable seating posi-
tion that still allows you to reach the accel-
erator/brake pedal safely. The position
should be as far rearward as possible,
consistent with ability to properly operate
controls. Seat cushion tilt

Turn handwheel
3 forward or back-
ward until your upper legs are lightly
supported.
Seat backrest tilt

Turn handwheel 1 forward or back-
ward until your arms are slightly angled
when holding the steering wheel.
Seat height

Pull handle 2 up to r ai se s ea t cus hi on.

Push handle 2 down to lower seat
cushion.
!W h e n m o v i n g t h e s e a t s , m a k e s u r e t h a t
there are no items in the footwell or
behind the seats. Otherwise you could
damage the seats.

38 Getting startedAdjustingPower seat* adjustment
The seat adjustment switches are located
in each door.1 Head restraint height
2 Seat height
3 Seat cushion tilt
4 Seat fore and aft adjustment
5 Backrest tilt
Switch on the ignition (
page 33).
or

Open the respective door. Seat fore and aft adjustment

Press the switch forward or backward
in the direction of arrow
4.
Adjust seat to a comfortable seating
position that still allows you to reach
the accelerator / brake pedal safely.
The position should be as far to the rear
as possible, consistent with ability to
properly operate controls. Seat cushion tilt

Press the switch up or down in the
direction of arrow
3 until your upper
legs are lightly supported.
Seat backrest tilt

Press the switch forward or backward
in the direction of arrow 5 until your
arms are slightly angled when holding
the steering wheel.
Seat height

Press the switch up or down in the
direction of arrow 2.
Head restraint height

Press the switch up or down in the di-
rection of arrow 1.
!W h e n m o v i n g t h e s e a t s , m a k e s u r e t h a t
there are no items in the footwell or
behind the seats. Otherwise you could
damage the seats.iThe memory function* (
page 107)
lets you store the settings for the seat
position together with the setting for
the steering wheel and the exterior rear
view mirrors.
iAdjust the head restraint in such a way
that it is as close to the head as possi-
ble.

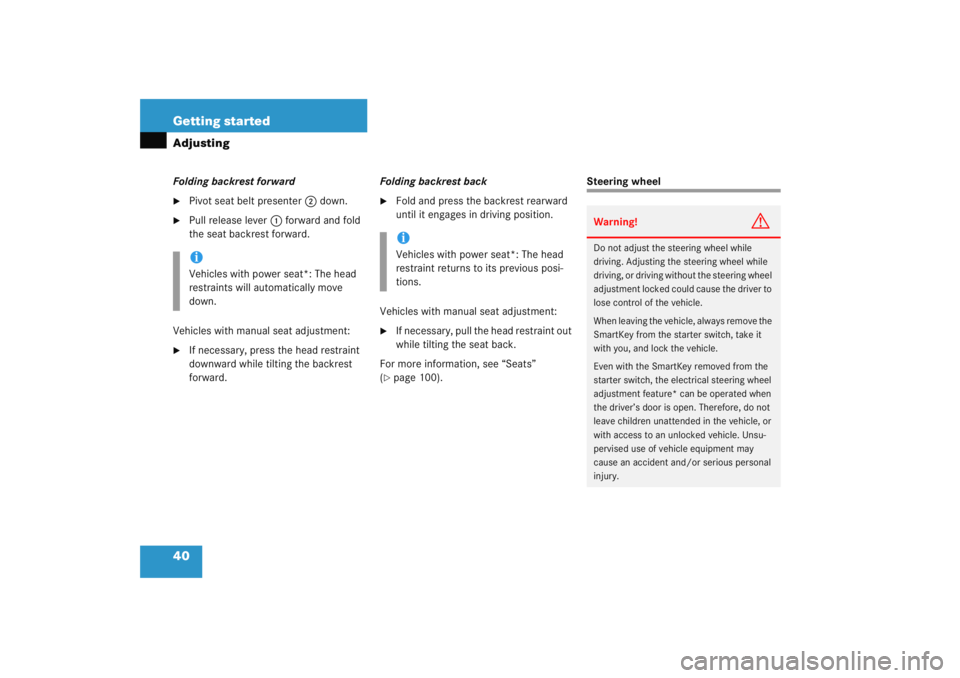

40 Getting startedAdjustingFolding backrest forward
Pivot seat belt presenter2 down.

Pull release lever 1 forward and fold
the seat backrest forward.
Vehicles with manual seat adjustment:

If necessary, press the head restraint
downward while tilting the backrest
forward. Folding backrest back

Fold and press the backrest rearward
until it engages in driving position.
Vehicles with manual seat adjustment:

If necessary, pull the head restraint out
while tilting the seat back.
For more information, see “Seats”
(
page 100).
Steering wheel
iVehicles with power seat*: The head
restraints will automatically move
down.
iVehicles with power seat*: The head
restraint returns to its previous posi-
tions.
Warning!
G
Do not adjust the steering wheel while
driving. Adjusting the steering wheel while
driving, or driving without the steering wheel
adjustment locked could cause the driver to
lose control of the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the electrical steering wheel
adjustment feature* can be operated when
the driver’s door is open. Therefore, do not
leave children unattended in the vehicle, or
with access to an unlocked vehicle. Unsu-
pervised use of vehicle equipment may
cause an accident and/or serious personal
injury.

41
Getting started
Adjusting
Steering wheel adjustment, manual
1 Handle
To unlock the steering column, pull
handle 1 out until its stop limit.

Move steering wheel to the desired
position.

To lock the steering column, push
handle 1 all the way in until it
engages.
The steering wheel is once again
locked into position.

Make sure the steering wheel is
securely locked by trying to move it up
and down, and in and out before driving
off.
Make sure your legs can move freely and
that all the displays (inclusive malfunction
and indicator lamps) on the instrument
cluster are clearly visible. Steering wheel adjustment, electrical*
The stalk for steering wheel adjustment is
located on the steering column (lower left).
1 Adjusting steering column, in or out
2 Adjusting steering column, up or down

Switch on the ignition (
page 33).
or

Open the driver’s door.
Warning!
G
Only adjust the steering wheel with the vehi-
cle at a standstill and make sure the steer-
ing wheel is securely locked in place before
driving off.
Driving without the steering wheel adjust-
ment locked may cause an unexpected
steering wheel movement which could
cause the driver to lose control of the vehi-
cle. Make sure the steering wheel is secure-
ly locked by trying to move it up and down,
and in and out before driving off.
