122 Controls in detailInstrument clusterThe outside temperature is indicated in the
multifunction display (
page 123). For
information on how to select the unit of the
indicated temperature, i.e. degrees
Celsius (°C) or degrees Fahrenheit (°F),
see “Selecting temperature display mode”
(
page 137).
The temperature sensor is located in the
front bumper area. Due to its location, the
sensor can be affected by road or engine
heat during idling or slow driving. This
means that the accuracy of the displayed
temperature can only be verified by com-
parison to a thermometer placed next to
the sensor, not by comparison to external
displays (e.g. bank signs, etc.). When moving the vehicle into colder ambi-
ent temperatures (e.g. when leaving your
garage), you will notice a delay before the
lower temperature is displayed.
A delay also occurs when ambient temper-
atures rise. This prevents inaccurate tem-
perature indications caused by heat
radiated from the engine during idling or
slow driving.

127
Controls in detail
Control system
Menus, submenus and functions
Menu
1
Menu 2
Menu3
Menu4
Menu5
Menu6
Menu7
Standard
display
AUDIO
NAV*
Vehicle status
message memory
Settings
Trip computer
Telephone*
(page 128)
(page 129)
(page 131)
(page 132)
(page 133)
(page 151)
(page 153)
Commands/submenusDigital
speedometer or
outside tempera-
ture
Select radio sta-
tion
Activate route
guidance
Call up vehicle mal-
function, warning
and system status
messages stored
in memory
Reset to factory
settings
Fuel consump-
tion statistics af-
ter start
Load phone
book
Call up mainte-
nance service
display
Select satellite
radio station*
(USA only)
Instrument clus-
ter submenu
Fuel consump-
tion statistics
since the last
reset
Search for name
in phone book
Check engine oil
level
Operate the
CD player*
Time/Date
submenu
Call up range
Lighting
submenuVehicle
submenuConvenience
submenu

128 Controls in detailControl system
Standard display menu
In the standard display, the main odometer
and the trip odometer are shown in the
multifunction display.1 Trip odometer
2 Main odometer If you see another display, press
button
è orÿ repeatedly until the
standard display appears.
You can select the functions in the
standard display menu with button k
or j .
The following functions are available:
iThe headings used in the menus table
are designed to facilitate navigation
within the system and are not neces-
sarily identical to those shown in the
control system displays.
The first function displayed in each
menu will automatically show you
which part of the system you are in.
Function
Page
Display digital speedometer or
outside temperature
129
Call up maintenance service
display
330
Check engine oil level
293

144 Controls in detailControl systemLighting submenu
Access the
Lighting
submenu via the
Settings
menu. Use the
Lighting
submenu to change the lamp and lighting
settings on your vehicle.
The following functions are available:Setting daytime running lamp mode
(USA only)

Move the selection marker with
button
æ orç to the
Lighting

submenu.

Press button j ork repeatedly
until the message
Hdlamp mode
appears
in the multifunction display. The selection marker is on the current
setting.

Press button
æ orç to select
manual operation (
Manual
) or daytime
running lamp mode (
Constant
) activat-
ed.
With daytime running lamp mode activated
and the exterior lamp switch in
position MorU , the low beam
headlamps are switched on when the
engine is running.
Function
Page
Setting daytime running lamp
mode (USA only)
144
Setting locator lighting
145
Setting night security
illumination
146
Setting Interior lighting delayed
shut-off
147
iThis function is not available in coun-
tries where the daytime running lamp
mode is mandatory and therefore in a
constant mode.

146 Controls in detailControl systemSetting night security illumination
(Headlamps delayed shut off)
Use this function to set whether and how
long you would like the exterior lamps to il-
luminate during darkness after exiting the
vehicle and all doors closed.
With the delayed shut-off feature activated
and the exterior lamp switch in
positionU before the engine is turned
off, the following lamps will come on after
you have removed the SmartKey from the
starter switch:

Parking lamps


Tail lamps


License plate lamps


Side marker lamps


Front fog lamps
If you do not open a door after removing
the SmartKey from the starter switch, the
lamps will switch off automatically after
approximately 60 seconds.

Move the selection marker with
button æorç to the
Lighting

submenu.

Press button jork repeatedly
until the message
Hdlamp delay off

appears in the multifunction display.
The selection marker is on the current
setting.

Press button æorç to select
the desired lamp-on period.
You can select:

0sec.
, the delayed shut-off feature
is deactivated.


15 sec.
, 30 sec.
, 45 sec.

or
60 sec.
, select the desired
lamp-on period.

Turn the exterior lamp switch to
position U before turning off the
engine (
page 110).
The headlamps delayed shut-off
feature is activated.
iYou can reactivate this function within
ten minutes by opening a door.

152 Controls in detailControl system
Resetting fuel consumption statistics
Press buttonÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.

Press button j ork repeatedly
until the reading that you want to reset
appears in the multifunction display.

Press and hold the reset button in the
instrument cluster (
page 119) until
the value is reset to0. Call up range (distance to empty)

Press button
ÿ orè repeatedly
until the first function of the trip
computer menu appears in the
multifunction display.

Press button j ork repeatedly
until the message
Distance
appears in
the multifunction display.
The calculated range based on the
current fuel tank level appears in the
multifunction display.
iAll statistics stored since the last
engine start will be reset approximately
four hours after the SmartKey in the
starter switch is turned to position 0 or
removed from the starter switch.
Resetting will not occur if you turn the
SmartKey back to position 1 or 2
within this time period.


153
Controls in detail
Control system

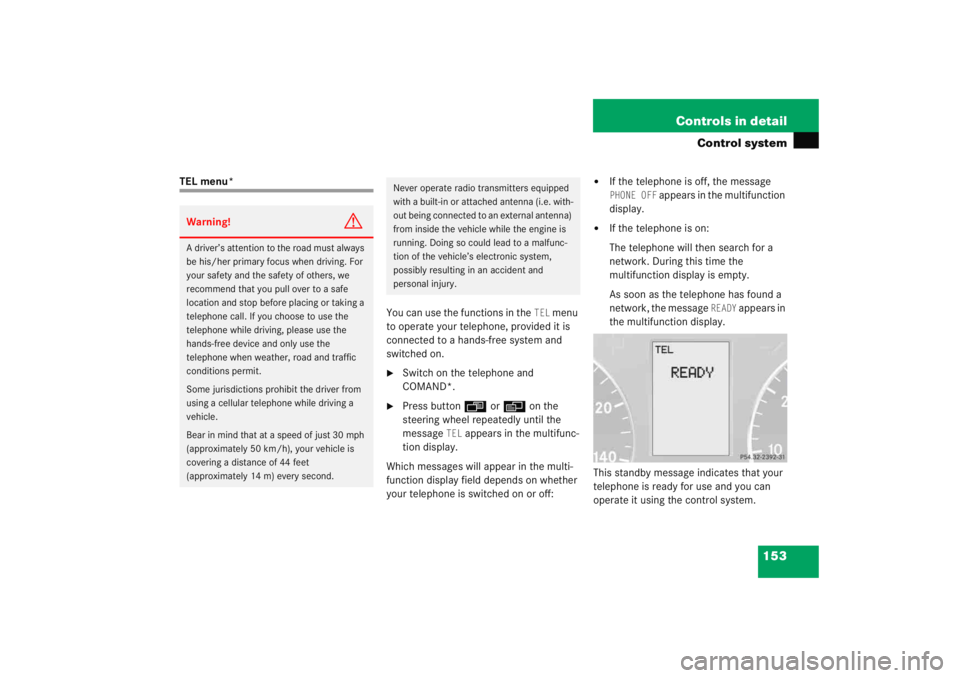

TEL menu*
You can use the functions in the
TEL
menu
to operate your telephone, provided it is
connected to a hands-free system and
switched on.

Switch on the telephone and
COMAND*.

Press button ÿ orè on the
steering wheel repeatedly until the
message
TEL
appears in the multifunc-
tion display.
Which messages will appear in the multi-
function display field depends on whether
your telephone is switched on or off:


If the telephone is off, the message PHONE OFF
appears in the multifunction
display.


If the telephone is on:
The telephone will then search for a
network. During this time the
multifunction display is empty.
As soon as the telephone has found a
network, the message
READY
appears in
the multifunction display.
This standby message indicates that your
telephone is ready for use and you can
operate it using the control system.
Warning!
G
A driver’s attention to the road must always
be his/her primary focus when driving. For
your safety and the safety of others, we
recommend that you pull over to a safe
location and stop before placing or taking a
telephone call. If you choose to use the
telephone while driving, please use the
hands-free device and only use the
telephone when weather, road and traffic
conditions permit.
Some jurisdictions prohibit the driver from
using a cellular telephone while driving a
vehicle.
Bear in mind that at a speed of just 30 mph
(approximately 50 km/h), your vehicle is
covering a distance of 44 feet
(approximately 14 m) every second.
Never operate radio transmitters equipped
with a built-in or attached antenna (i.e. with-
out being connected to an external antenna)
from inside the vehicle while the engine is
running. Doing so could lead to a malfunc-
tion of the vehicle’s electronic system,
possibly resulting in an accident and
personal injury.

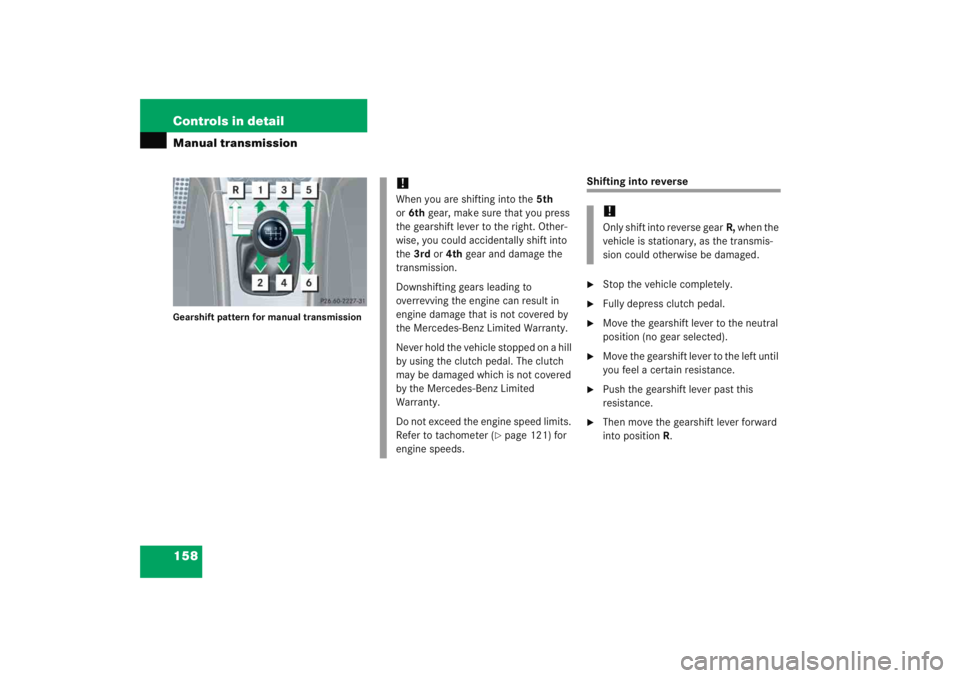

158 Controls in detailManual transmissionGearshift pattern for manual transmission
Shifting into reverse
Stop the vehicle completely.

Fully depress clutch pedal.

Move the gearshift lever to the neutral
position (no gear selected).

Move the gearshift lever to the left until
you feel a certain resistance.

Push the gearshift lever past this
resistance.

Then move the gearshift lever forward
into position R.
!When you are shifting into the 5th
or 6th gear, make sure that you press
the gearshift lever to the right. Other-
wise, you could accidentally shift into
the 3rd or4th gear and damage the
transmission.
Downshifting gears leading to
overrevving the engine can result in
engine damage that is not covered by
the Mercedes-Benz Limited Warranty.
Never hold the vehicle stopped on a hill
by using the clutch pedal. The clutch
may be damaged which is not covered
by the Mercedes-Benz Limited
Warranty.
Do not exceed the engine speed limits.
Refer to tachometer (
page 121) for
engine speeds.
!Only shift into reverse gear R, when the
vehicle is stationary, as the transmis-
sion could otherwise be damaged.
