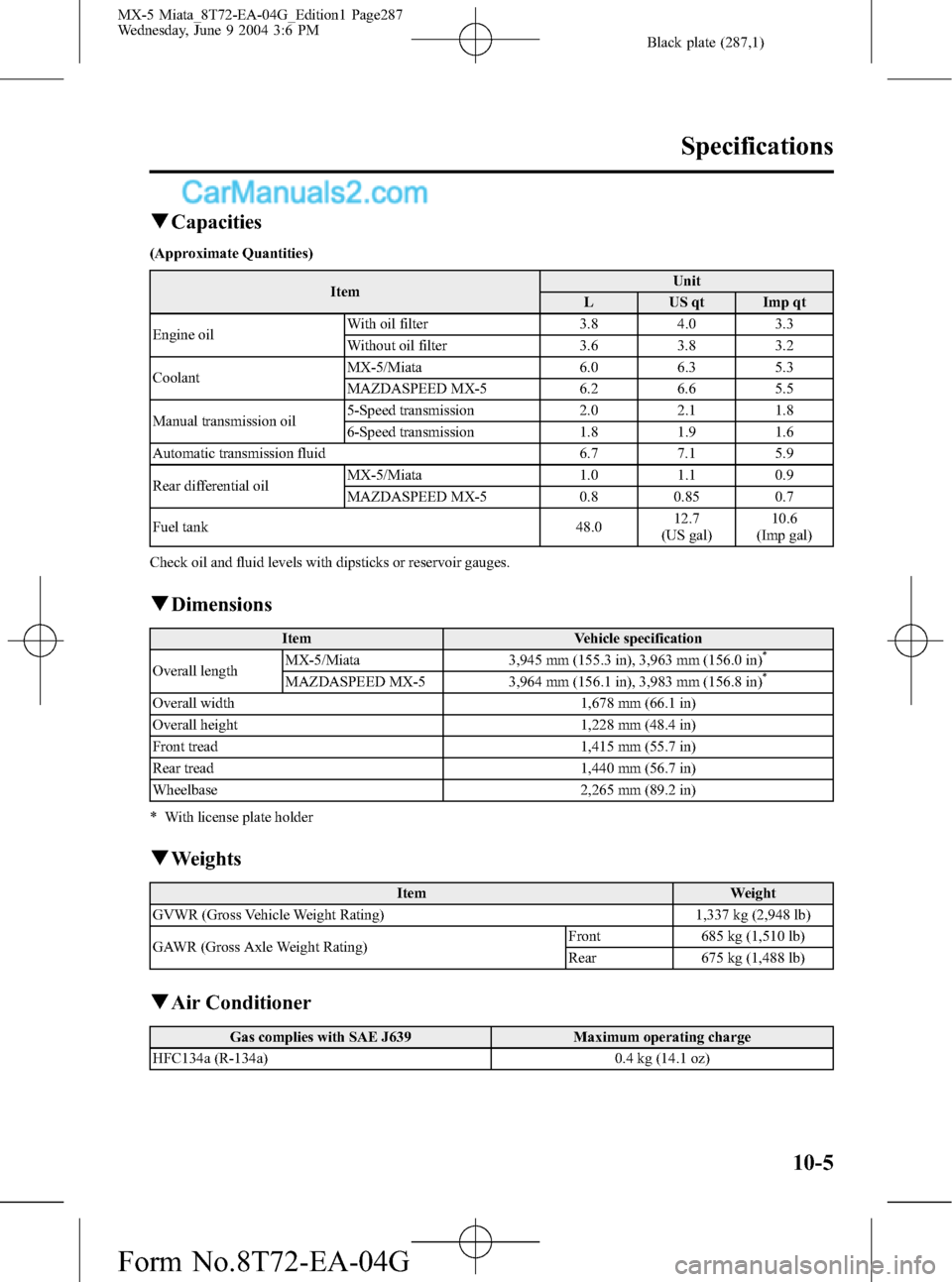

qCapacities
(Approximate Quantities)
ItemUnit
L US qt Imp qt
Engine oilWith oil filter 3.8 4.0 3.3
Without oil filter 3.6 3.8 3.2
CoolantMX-5/Miata 6.0 6.3 5.3
MAZDASPEED MX-5 6.2 6.6 5.5
Manual transmission oil5-Speed transmission 2.0 2.1 1.8
6-Speed transmission 1.8 1.9 1.6
Automatic transmission fluid 6.7 7.1 5.9
Rear differential oilMX-5/Miata 1.0 1.1 0.9
MAZDASPEED MX-5 0.8 0.85 0.7
Fuel tank 48.012.7
(US gal)10.6
(Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
qDimensions
Item Vehicle specification
Overall lengthMX-5/Miata 3,945 mm (155.3 in), 3,963 mm (156.0 in)*
MAZDASPEED MX-5 3,964 mm (156.1 in), 3,983 mm (156.8 in)*
Overall width 1,678 mm (66.1 in)
Overall height 1,228 mm (48.4 in)
Front tread 1,415 mm (55.7 in)
Rear tread 1,440 mm (56.7 in)
Wheelbase 2,265 mm (89.2 in)
* With license plate holder
qWeights
Item Weight
GVWR (Gross Vehicle Weight Rating) 1,337 kg (2,948 lb)
GAWR (Gross Axle Weight Rating)Front 685 kg (1,510 lb)
Rear 675 kg (1,488 lb)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.4 kg (14.1 oz)
Specifications
10-5
MX-5 Miata_8T72-EA-04G_Edition1 Page287
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G
