qJack
To remove the jack
Turn the wing bolt counterclockwise.
To secure the jack
Perform the removal procedure in reverse.
qSpare Tire
Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spares should
NEVER be used for long drives or
extended periods.
WARNING
Driving with a Temporary Spare Tire
on Ice or Snow:
Driving with a spare tire on the rear
(driving) wheels on ice or snow is
dangerous. Handling will be affected.
You could lose control of the vehicle
and have an accident. Put the spare
tire on the front axle and move a
regular tire to the rear.
CAUTION
To avoid damage to the temporary
spare or to the vehicle, observe the
following precautions:
lDon't exceed 80 km/h (50 mph).
lAvoid driving over obstacles.
Also, don't drive through an
automatic car wash. This tire's
diameter is smaller than a
conventional tire's, so the ground
clearance is reduced about 25 mm (1
in).
lDon't use a tire chain on this tire
because it won't fit properly.
lDon't use your temporary spare on
any other vehicle; it has been
designed only for your Mazda.
lUse only one temporary spare tire on
your vehicle at the same time.
(With limited slip differential)
When using the temporary spare tire on
the rear axle, replace it with a standard
tire as soon as possible. The size
difference between the spare and the
standard tire will cause the limited slip
differential to malfunction.
7-4
In Case of an Emergency
Flat Tire
MX-5 Miata_8T72-EA-04G_Edition1 Page202
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (203,1)
To remove the spare tire
Turn the tire hold-down bolt
counterclockwise with the lug wrench.Changing a Flat Tire
NOTE
If the following occurs while driving, it
could indicate a flat tire.
lSteering becomes difficult.
lThe vehicle begins to vibrate
excessively.
lThe vehicle pulls in one direction.
If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.
WARNING
Jacking a Vehicle:
Changing a tire is dangerous if not
done properly. The vehicle can slip off
the jack and seriously injure someone.
Be sure to follow the directions for
changing a tire, and never get under a
vehicle that is supported only by a
jack.
Passenger in Vehicle Supported by a
Jack:
Allowing someone to remain in a
vehicle supported by a jack is
dangerous. The occupant could cause
the vehicle to fall resulting in serious
injury. Never allow anyone inside a
vehicle supported by a jack.
NOTE
Make sure the jack is well lubricated
before using it.
In Case of an Emergency
Flat Tire
7-5
MX-5 Miata_8T72-EA-04G_Edition1 Page203
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (204,1)
1. Park on a level surface off the right-of-
way and firmly set the parking brake.
2. Put a vehicle with an automatic
transmission in Park (P), a manual
transmission in Reverse (R) or 1, and
turn off the engine.
3. Turn on the hazard warning flasher.
4. Have everyone get out of the vehicle
and away from the vehicle and traffic.
5. Remove the jack, tool, and spare tire
(page 7-3).
6. Block the wheel diagonally opposite
the flat tire. When blocking a wheel,
place a block both in front and behind
the tire.
NOTE
When blocking a tire, use rocks or
wood blocks of sufficient size to hold
the tire in place.
qRemoving a Flat Tire
1. Loosen the lug nuts by turning them
counterclockwise one turn each, but
don't remove any lug nuts until the tire
has been raised off the ground.
2. Place the jack under the jacking
position closest to the tire being
changed.
Jacking position
7-6
In Case of an Emergency
Flat Tire
MX-5 Miata_8T72-EA-04G_Edition1 Page204
Wednesday, June 9 2004 3:5 PM
Form No.8T72-EA-04G

Black plate (205,1)
WARNING
Incorrect Jacking Position:
Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even
kill someone. Use only the front and
rear jacking positions recommended
in this manual.
Improper Jack:
Using a jack that isn't designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone. Use only the jack
provided with your Mazda.
Placing Objects Under the Jack:
Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle. Never place objects
under the jack.
3. Insert the jack handle into the jack.4. Turn the jack handle clockwise and
raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.
5. Remove the lug nuts by turning them
counterclockwise; then remove the
wheel.
In Case of an Emergency
Flat Tire
7-7
MX-5 Miata_8T72-EA-04G_Edition1 Page205
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (206,1)
qLocking Lug Nutsí
If your vehicle has optional antitheft
wheel lug nuts, one on each wheel will
lock the tires and you must use a special
key to unlock them. This key is attached
to the lug wrench and is stored with the
spare tire. Register them with the lock
manufacturer by filling out the card
provided in the glove box and mailing it
in the accompanying envelope. If you lose
your key, consult an Authorized Mazda
Dealer or use the lock manufacturer's
order form, which is with the registration
card.
Antitheft lug nut
Special key
To remove an antitheft lug nut
1. Get the key for the locking lug nut.
2. Place it on top of the nut, and be sure
to hold the key square to it. If you hold
the key at an angle, you may damage
both key and nut. Don't use a power
impact wrench.
3. Place the lug wrench on top of the key
and apply pressure. Turn the wrench
counterclockwise.
To replace the nut
1. Place the key on top of the nut.
2. Place the lug wrench on top of the key,
apply pressure, and turn it clockwise.
qMounting the Spare Tire
1. Remove dirt and grime from the
mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.
WARNING
Removing Dirt and Grime from
Wheels, Hubs and Hub Bolts:
When changing or replacing a tire,
not removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident. Make sure the mounting
surfaces of the wheel, hub and lug
nuts are clean before changing or
replacing tires.
2. Mount the spare tire.
7-8
In Case of an Emergency
íSome models.
Flat Tire
MX-5 Miata_8T72-EA-04G_Edition1 Page206
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (207,1)

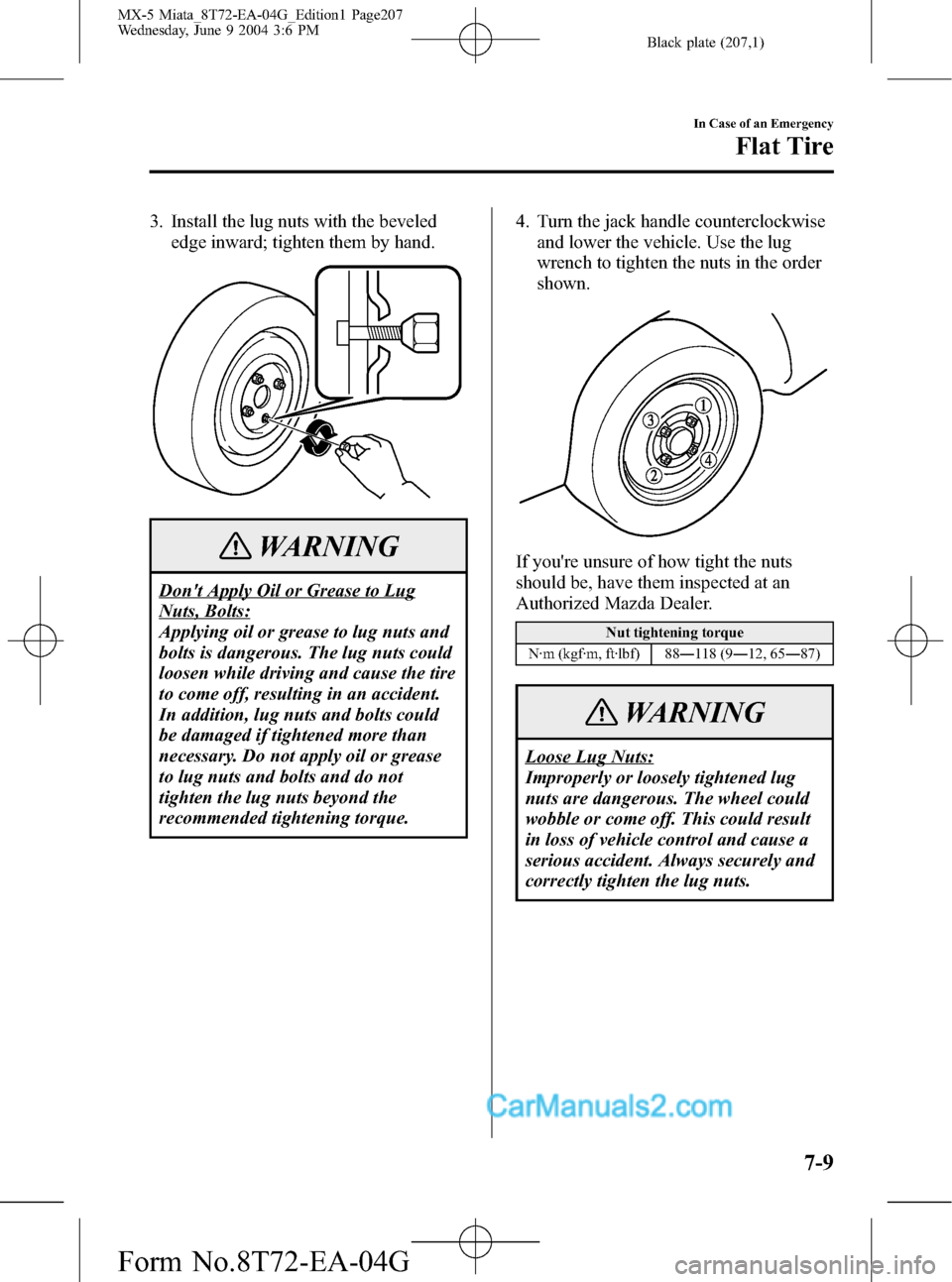

3. Install the lug nuts with the beveled
edge inward; tighten them by hand.
WARNING
Don't Apply Oil or Grease to Lug
Nuts, Bolts:
Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident.
In addition, lug nuts and bolts could
be damaged if tightened more than
necessary. Do not apply oil or grease
to lug nuts and bolts and do not
tighten the lug nuts beyond the
recommended tightening torque.4. Turn the jack handle counterclockwise
and lower the vehicle. Use the lug
wrench to tighten the nuts in the order
shown.
If you're unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.
Nut tightening torque
N·m (kgf·m, ft·lbf) 88―118 (9―12, 65―87)
WARNING
Loose Lug Nuts:
Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result
in loss of vehicle control and cause a
serious accident. Always securely and
correctly tighten the lug nuts.
In Case of an Emergency
Flat Tire
7-9
MX-5 Miata_8T72-EA-04G_Edition1 Page207
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (234,1)
qChanging Coolant
Change coolant according to Scheduled
Maintenance (page 8-3).
CAUTION
lUse only soft (demineralized) water
in the coolant mixture. Water that
contains minerals will cut down on
the coolant's effectiveness.
lDon't add only water. Always add a
proper coolant mixture.
lThe engine has aluminum parts and
must be protected by an ethylene-
glycol-based coolant to prevent
corrosion and freezing.
lDO NOT USE alcohol or methanol
antifreeze. DO NOT MIX alcohol or
methanol with the coolant. This
could damage the cooling system.
lDon't use a solution that contains
more than 60 % antifreeze.
This would reduce effectiveness.
For mixture percentage:
ProtectionVolume
Antifreeze
solutionDemineralizedwater
Above–16°C (3°F) 35% 65%
Above–26°C (–15°F) 45% 55%
Above–40°C (–40°F) 55% 45%
To change coolant
WARNING
Removing the Cooling System Cap:
Removing the cooling system cap
while the engine is running or hot is
dangerous. This might lead to cooling
system and engine damage and could
result in serious injury from escaping
hot coolant or steam. Turn off the
engine and wait until it's cool. Even
then, be very careful when removing
the cap. Wrap a thick cloth around the
cap and slowly turn it
counterclockwise to the first stop.
Step back while the pressure escapes.
When you're sure all the pressure is
gone, press down on the cap―still
using a cloth―turn the cap, and
remove it.
1. Remove the cooling system cap.
Tighten
Loosen
TightenLoosen
2. Only when the engine is cool, remove
the radiator drain plug and drain the
coolant into a suitable container.
Properly dispose of the used coolant.
3. Flush out the system with running
water.
8-18
Maintenance and Care
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page234
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G

Black plate (250,1)
Your Mazda's headlights and fog lights
have replaceable halogen bulbs.
WARNING
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.
qReplacing Exterior Light Bulbs
Replacing a headlight bulb
1. Make sure the ignition switch is turned
off and the headlight switch is off.
2. Lift the hood and find the high and low
beam bulbs in the rear of the headlight
unit.
The outboard bulb is the LOW beam,
and the inboard one is the HIGH beam.
Refer to Light Bulbs (page 8-33).3. Turn the socket and bulb assembly
counterclockwise and remove it while
holding the rubber socket cover in
place. Carefully remove the headlight
bulb from its socket in the reflector by
gently pulling it straight backward out
of the socket.
4. Disconnect the bulb from the electrical
connector by pressing the tab on the
connector with your finger and pulling
the bulb upward.
High beam bulb
Low beam bulb
5. Install the new bulb in the reverse order
of removal.
NOTE
Use the protective cover and carton for
the replacement bulb to dispose of the
old bulb promptly and out of the reach
of children.
Replacing a fog light bulbí
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Front turn signal lights/Parking lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.
8-34
Maintenance and Care
íSome models.
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition1 Page250
Wednesday, June 9 2004 3:6 PM
Form No.8T72-EA-04G
