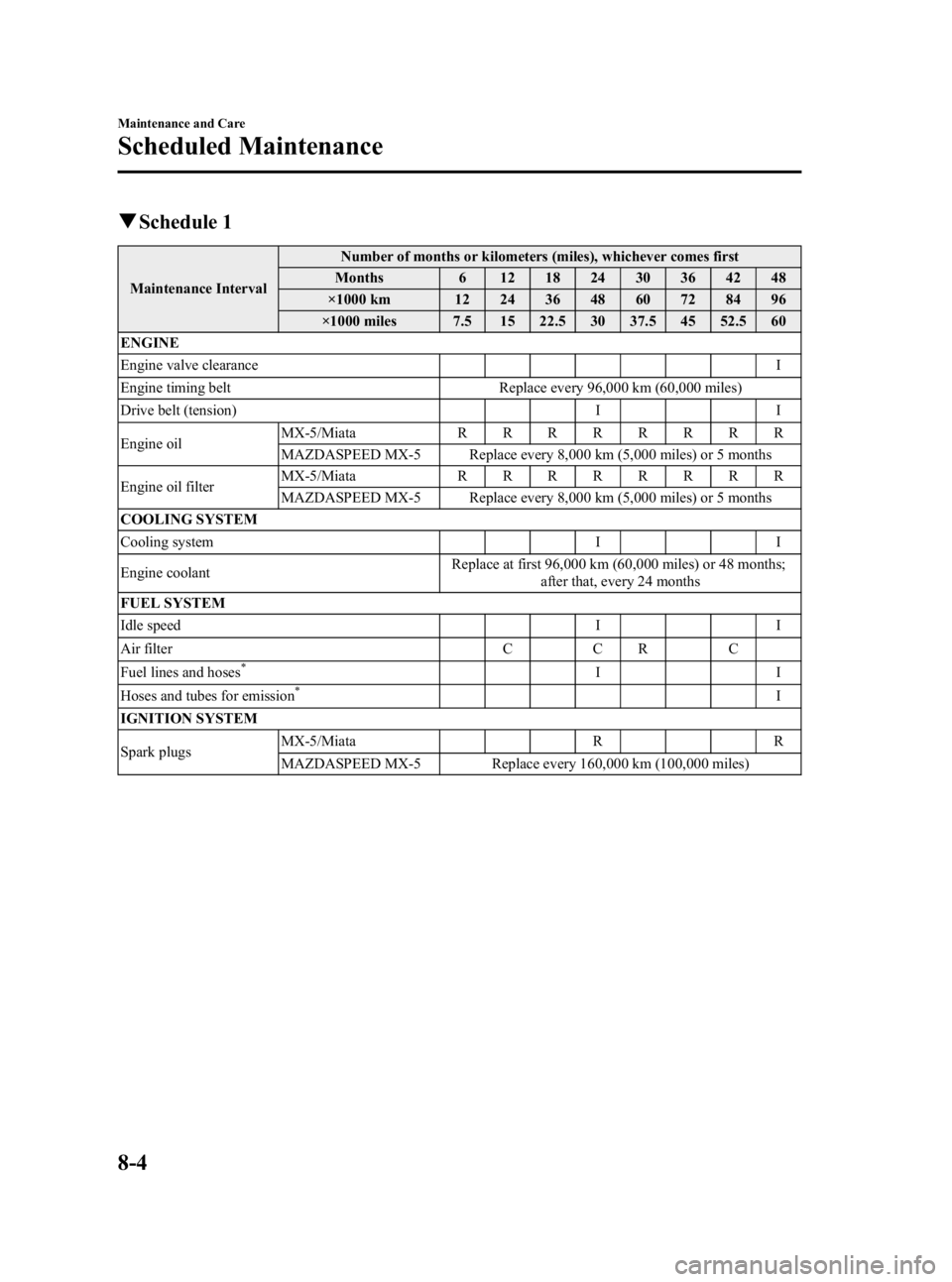

Page 220 of 298
Black plate (220,1)
qSchedule 1
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48
×1000 km 12 24 36 48 60 72 84 96
×1000 miles 7.5 15 22.5 30 37.5 45 52.5 60
ENGINE
Engine valve clearance I
Engine timing belt Replace every 96,000 km (60,000 miles)
Drive belt (tension) I I
Engine oil MX-5/Miata R R R R R R R R
MAZDASPEED MX-5 Replace every 8,000 km (5,000 miles) or 5 months
Engine oil filter MX-5/Miata R R R R R R R R
MAZDASPEED MX-5 Replace every 8,000 km (5,000 miles) or 5 months
COOLING SYSTEM
Cooling system I I
Engine coolant Replace at first 96,000 km (60,000 miles) or 48 months;
after that, every 24 months
FUEL SYSTEM
Idle speed I I
Air filter C C R C
Fuel lines and hoses
*II
Hoses and tubes for emission*I
IGNITION SYSTEM
Spark plugs MX-5/Miata R R
MAZDASPEED MX-5 Replace every 160,000 km (100,000 miles)
8-4
Maintenance and Care
Scheduled Maintenance
MX-5 Miata_8T72-EA-04G_Edition2 Page220
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G
Page 222 of 298
Black plate (222,1)
qSchedule 2
Maintenance Interval Number of months or kilometers (miles), whichever comes first
Months 4 8 12 16 20 24 28 32 36 40 44 48
×1000 km 8 16 24 32 40 48 56 64 72 80 88 96
×1000 miles 5 10 15 20 25 30 35 40 45 50 55 60
ENGINE
Engine valve clearance I
Engine timing belt Replace every 96,000 km (60,000 miles)
Drive belts (tension) I I
Engine oil
(Except Puerto Rico) MX-5/Miata R R R R R R R
RRRRR
MAZDAS-
PEED MX-5 Replace every 5,000 km (3,000 miles) or 3 months
Engine oil (Puerto Rico) Replace every 5,000 km (3,000 miles) or 3 months
Engine oil filter MX-5/Miata R R R R R R R
RRRRR
MAZDAS-
PEED MX-5 Replace every 5,000 km (3,000 miles) or 3 months
COOLING SYSTEM
Cooling system I I
Engine coolant Replace at first 96,000 km (60,000 miles) or
48 months ; after that, every 24 months
Engine coolant level I I I I I I IIIIII
FUEL SYSTEM
Idle speed II
Air filter CC R C
Fuel lines and hoses
*II
Hoses and tubes for emission*I
IGNITION SYSTEM
Spark plugs MX-5/Miata R R
MAZDAS-
PEED MX-5
Replace every 160,000 km (100,000 miles)
ELECTRICAL SYSTEM
Function of all lights I I I I I I I IIIII
8-6
Maintenance and Care
Scheduled Maintenance
MX-5 Miata_8T72-EA-04G_Edition2 Page222
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G
Page 225 of 298
Black plate (225,1)
qSchedule
Maintenance
Interval Number of months or kilometers (miles), whichever comes first
Months 6 12 18 24 30 36 42 48 54 60 66 72 78 84 90 96
×1000 km 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
×1000 miles
6.25 12.5 18.752531.25 37.5 43.755056.25 62.5 68.757581.25 87.5 93.75100
ENGINE
Engine valve clearance Inspect every 100,000 km (62,500 miles) or 60 months
Drive belts
*1IIIIIIIIIIIIIIII
Engine timing belt*2Replace every 100,000 km (62,500 miles)
Engine oil*3RRRRRRRRRRRRRRRR
Engine oil filter*3RRRRRRRRRRRRRRRR
COOLING SYSTEM
Cooling system I I I I I I I I
Engine coolant except Australia
and New Zealand
Replace every 24 months
Australia and New
Zealand Replace at first 80,000 km (50,000 miles) or 48 months ; after that, every 24
months
FUEL SYSTEM
Idle speed I I I I I I I I
Air filter
*4
except Australia
and New Zealand CCRCCRCC
Australia and New
Zealand CRCRC
Fuel filter except Australia
and New Zealand
RRRR
Australia and New
Zealand RRR
Fuel lines and hoses I I I I I I I I
IGNITION SYSTEM
Spark plugs Replace every 40,000 km (25,000 miles)
EMISSION CONTROL SYSTEM
Evaporative system I I I I I I I I
ELECTRICAL SYSTEM
All electrical system
*5IIIIIIII
Maintenance and Care
Scheduled Maintenance
8-9
MX-5 Miata_8T72-EA-04G_Edition2 Page225
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G
