2005 MAZDA MODEL MX-5 MIATA dashboard

Black plate (113,1)
qEngine Oil Pressure Gauge
Engine oil pressure is normal when the
engine oil pressure gauge needle points
halfway between L and H with the engine
running.
If the needle on the gauge doesn't move
after starting the engine, follow steps 1
through 3.
If the engine oil pressure gauge moves to
L (low) while you are driving, drive to the
side of the road and park off the right-of-
way. Set the parking brake. Then follow
steps 1 through 3.
1. Turn off the engine and inspect the
engine oil level (page 8-16). If it's low,
add oil.
2. Start the engine.
3. If the needle still doesn't move, have your vehicle checked at an Authorized
Mazda Dealer.
CAUTION
Don't run the engine if the oil pressure
is low. It could result in extensive
engine damage.
qDashboard Illumination
When the headlight switch is in the
orposition, rotate the thumb-wheel
to adjust the brightness of the dashboard
lights.
Dim Bright
Driving Your Mazda
Instrument Cluster and Indicators
5-21
MX-5 Miata_8T72-EA-04G_Edition2 Page113
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (122,1)
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
OFF
Right lane
change
Left lane
change Right turn
Left turn
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change ―until the
indicator flashes ―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Fog Lightsí
Use this switch to turn on the fog lights.
They help you to see as well as to be seen.
Type A
Type B
To turn on the fog lights, first turn the
headlight switch to the
position.
Then press the fog light switch.
To turn the fog lights off:
(Type A)
Press the fog light switch again or turn the
headlight switch to the
or OFF
position.
(Type B)
Press the left part of the fog light switch
or turn the headlight switch to the
or
OFF position.
NOTE
The fog lights will turn off when the
headlights are set at high beam.
5-30
Driving Your Mazda
íSome models.
Switches and Controls
MX-5 Miata_8T72-EA-04G_Edition2 Page122
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (130,1)
qSelecting the Airflow Mode
Dashboard and Floor Vents Defroster Vents
Floor Vents Dashboard Vents Defroster and Floor Vents
6-4
Interior Comfort
Climate Control System
MX-5 Miata_8T72-EA-04G_Edition2 Page130
Tuesday, August 31 2004 11:24 AM
Form No.8T72-EA-04G

Black plate (256,1)
qFuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 HEAD 40A Headlights, Rear defroster, Auto antenna
2 FUEL INJ 30A Fuel injection
3 MAIN 100A For protection of all circuits
4 IG KEY 60A All ignition related circuits
5 BLOWER 30A Blower motor
6FAN 30A
*1Cooling fan, Additional fan (air conditioner)
40A*2
7 BTN 1 30A Taillights, Dashboard illumination
8 BTN 2 20A Audio ampí, Turn signal lights
9 ABS 20A Antilock brake systemí
10 STOP 15A Brake lights, Horn, Shift lock
*1 MX-5/Miata
*2 MAZDASPEED MX-5
8-40
Maintenance and Care
íSome models.
Owner Maintenance
MX-5 Miata_8T72-EA-04G_Edition2 Page256
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (264,1)

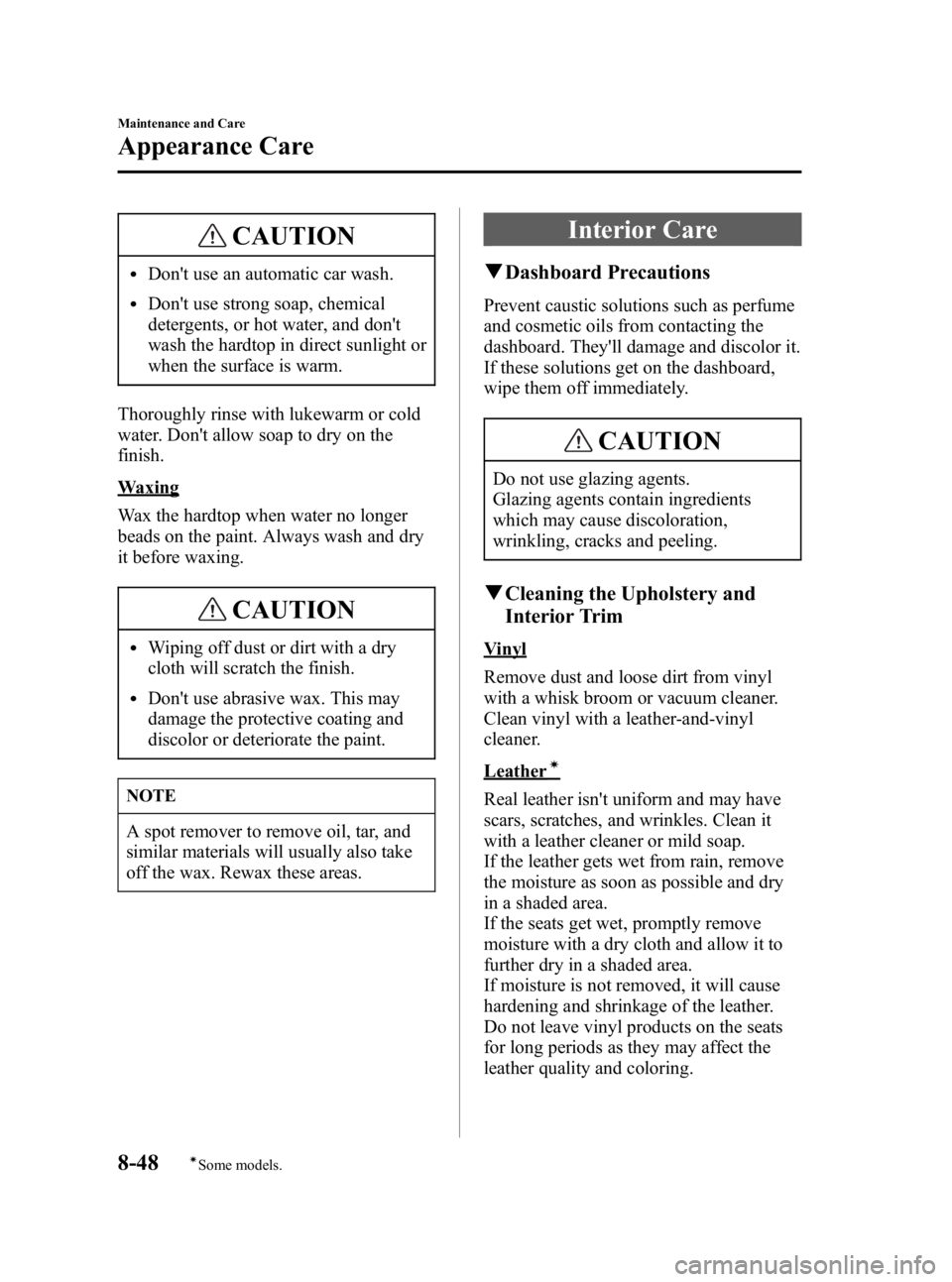

CAUTION
lDon't use an automatic car wash.
lDon't use strong soap, chemical
detergents, or hot water, and don't
wash the hardtop in direct sunlight or
when the surface is warm.
Thoroughly rinse with lukewarm or cold
water. Don't allow soap to dry on the
finish.
Waxing
Wax the hardtop when water no longer
beads on the paint. Always wash and dry
it before waxing.
CAUTION
lWiping off dust or dirt with a dry
cloth will scratch the finish.
lDon't use abrasive wax. This may
damage the protective coating and
discolor or deteriorate the paint.
NOTE
A spot remover to remove oil, tar, and
similar materials will usually also take
off the wax. Rewax these areas.
Interior Care
q Dashboard Precautions
Prevent caustic solutions such as perfume
and cosmetic oils from contacting the
dashboard. They'll damage and discolor it.
If these solutions get on the dashboard,
wipe them off immediately.
CAUTION
Do not use glazing agents.
Glazing agents contain ingredients
which may cause discoloration,
wrinkling, cracks and peeling.
qCleaning the Upholstery and
Interior Trim
Vinyl
Remove dust and loose dirt from vinyl
with a whisk broom or vacuum cleaner.
Clean vinyl with a leather-and-vinyl
cleaner.
Leatherí
Real leather isn't uniform and may have
scars, scratches, and wrinkles. Clean it
with a leather cleaner or mild soap.
If the leather gets wet from rain, remove
the moisture as soon as possible and dry
in a shaded area.
If the seats get wet, promptly remove
moisture with a dry cloth and allow it to
further dry in a shaded area.
If moisture is not removed, it will cause
hardening and shrinkage of the leather.
Do not leave vinyl products on the seats
for long periods as they may affect the
leather quality and coloring.
8-48
Maintenance and Care
íSome models.
Appearance Care
MX-5 Miata_8T72-EA-04G_Edition2 Page264
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (286,1)
Vehicle Information Labels
qVehicle Identification Number
The vehicle identification number legally
identifies your vehicle. The number is on
a plate attached to the left top side of the
dashboard. This plate can easily be seen
through the windshield.
qMotor Vehicle Safety Standard
Label
qChassis Number
qVehicle Emission Control
Information Label
qTire Pressure Label
10-2
Identification Numbers
MX-5 Miata_8T72-EA-04G_Edition2 Page286
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G

Black plate (294,1)
A
Add-On Non-Genuine Parts and
Accessories ....................................... 9-12
Air Bag Systems ............................... 2-20
Air Conditioning SystemGas specifications ...................... 10-5
Air Filter ............................................ 8-26
Antenna ............................................... 6-9
Anti-Lock Brake System (ABS) ......... 5-7 Warning light ............................... 5-7
Appearance Care ............................... 8-42
Ashtray .............................................. 6-68
Audio System ..................................... 6-9 Audio set (Type A) ..................... 6-19
Audio set (Type B) ..................... 6-43
Operating tips for audio system .... 6-9
Safety certification ..................... 6-66
Automatic Transmission Driving tips ................................ 5-13
Fluid ........................................... 8-23
Overdrive ................................... 5-12
Shift-lock override ..................... 5-12
Shift-lock system ........................ 5-11
Transmission ranges ................... 5-10
B
BatteryEmergency starting .................... 7-13
Maintenance ............................... 8-29
Specifications ............................. 10-4
Beep Sounds Ignition key reminder ................. 5-28
Lights-on reminder ..................... 5-28
Seat belt warning beep ............... 5-28
Before Starting the Engine .................. 4-7 After getting in ............................. 4-7
Before getting in .......................... 4-7
Body Lubrication .............................. 8-26
B
Brake Fluid ........................................... 8-20
Brakes Anti-lock brake system (ABS) ..... 5-7
Foot brake .................................... 5-4
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-8
Bulb Replacement ............................. 8-34
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-6
Catalytic Converter ............................. 4-4
Cell Phones ....................................... 9-13
Center Console .................................. 6-70
Child Restraint Child restraint precautions ......... 2-13
LATCH child-restraint
systems ....................................... 2-18
Cigarette Lighter ............................... 6-68
Climate Control System ...................... 6-2
Clutch Fluid ........................................... 8-21
Convertible Top ................................ 3-20
Cruise Control ................................... 5-14
Cup Holder ........................................ 6-69
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-21
Daytime Running Lights ................... 5-31
Defroster Rear window .............................. 5-33
Detachable Hardtop .......................... 3-25
11-2
Index
MX-5 Miata_8T72-EA-04G_Edition2 Page294
Tuesday, August 31 2004 11:25 AM
Form No.8T72-EA-04G
