Black plate (9,1)
Second-row seat ................................................................................................. page 2-12
Third-row seat ................................................................................................... page 2-20
Front seats ............................................................................................................ page 2-3
Power seat switches ............................................................................................. page 2-8
Seat belt ............................................................................................................. page 2-30
Air bags ............................................................................................................. page 2-56
Power door lock switch ..................................................................................... page 3-10
Power sliding door switch ................................................................................. page 3-12
Power window lock switch ................................................................................ page 3-20
Power window switches .................................................................................... page 3-19
Hood release handle .......................................................................................... page 3-23
Tilt wheel release lever ...................................................................................... page 3-31
Outside mirror switch ........................................................................................ page 3-31
Rearview mirror ................................................................................................. page 3-32
Ignition switch ..................................................................................................... page 5-2
Parking brake ....................................................................................................... page 5-4
AT shift lever ........................................................................................................ page 5-9
Cruise control switches ...................................................................................... page 5-13
TCS-OFF switch ................................................................................................ page 5-17
Instrument cluster .............................................................................................. page 5-20
Lighting control/Turn signals ............................................................................ page 5-33
Wiper and washer lever ..................................................................................... page 5-35
Hazard warning flasher switch .......................................................................... page 5-38
Climate control system ........................................................................................ page 6-2
Rear vents .......................................................................................................... page 6-10
Rear climate control panel ................................................................................. page 6-12
Audio system ..................................................................................................... page 6-14
Audio control switch ......................................................................................... page 6-42
Interior light ....................................................................................................... page 6-46
Map light ........................................................................................................... page 6-47
Glove box .......................................................................................................... page 6-54
Front console ..................................................................................................... page 6-54
Sunvisor ............................................................................................................. page 6-45
Vanity mirror ...................................................................................................... page 6-45
Lighter ............................................................................................................... page 6-49
Ashtray ............................................................................................................... page 6-49
Cup holder ......................................................................................................... page 6-51
Your Vehicle at a Glance
Dashboard and Interior Overview
1-3
Mazda MPV_8T50-EA-04G_Edition1 Page9
Monday, June 28 2004 3:58 PM
Form No.8T50-EA-04G

Black plate (11,1)
Doors and keys .................................................................................................... page 3-2
Child safety locks .............................................................................................. page 3-11
Sliding doors ...................................................................................................... page 3-10
Power windows ................................................................................................. page 3-18
Hood .................................................................................................................. page 3-23
Fuel-filler lid ...................................................................................................... page 3-22
Moonroof ........................................................................................................... page 3-25
Liftgate .............................................................................................................. page 3-17
Outside mirror .................................................................................................... page 3-31
Rear window defroster ....................................................................................... page 5-37
Antenna ............................................................................................................. page 6-14
Windshield wiper blades .................................................................................... page 8-21
Rear wiper blade ................................................................................................ page 8-22
Tires ................................................................................................................... page 8-26
Light bulbs ......................................................................................................... page 8-30
Your Vehicle at a Glance
Exterior Overview
1-5
Mazda MPV_8T50-EA-04G_Edition1 Page11
Monday, June 28 2004 3:58 PM
Form No.8T50-EA-04G

Black plate (116,1)
2. Depress the mirror switch in the
appropriate direction.
Mirror switch Selector switch
After adjusting the mirror, lock the control
by moving the selector switch to the
middle position.
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the outside
mirrors to the driving position before
you start driving.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-37).
qRearview Mirror (With Day/
Night Function)
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night DayDay/Night lever
WARNING
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don't stack
things higher than the seatbacks.
3-32
Knowing Your Mazda
íSome models.
Steering Wheel and Mirrors
Mazda MPV_8T50-EA-04G_Edition1 Page116
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (133,1)
qTrailer Towing Tips
lVerify that your Mazda maintains a near-normal attitude when a loaded or unloaded
trailer is connected. Don't drive if it has an abnormal front-up or front-down position.
Inspect for incorrect tongue load, worn suspension parts, and trailer overloading.
lMake sure the trailer is properly loaded and the cargo is secure to prevent it from
shifting.
lMake sure the mirrors conform to all government regulations. If they do not, install
required rear view mirrors appropriate for towing purposes.
The three main causes of vehicle-trailer accidents are driver error, excessive speed, and
improper trailer loading.
Before driving
lHave your cooling and braking system checked by an Authorized Mazda Dealer.
lBefore starting out, inspect the operation of all vehicle and trailer lights and all vehicle-
to-trailer connections. Stop and re-inspect all lights and connections after driving a short
distance.
Driving
lYour Mazda will handle differently with a trailer in tow, so practice turning, backing,
and stopping in a traffic-free area.
lTake time to get accustomed to the extra weight and length.
lAllow more room between your vehicle and the one in front because braking distance
increases with a trailer. For each 16 km/h (10 mph) of speed, allow at least one vehicle
and trailer length between your Mazda and the vehicle ahead.
lAvoid jerky starts or sudden acceleration.
lAvoid sudden braking. It may cause loss of control and result in jackknifing, especially
so on wet or slippery roads.
lUse the following positions when towing a trailer in hilly terrain or when heavily
loaded.
lOD (overdrive) offlShift lever in D
These positions will allow operating the vehicle without frequent shifting.
Lane changes and turning
Avoid quick lane changes, sudden turns, and tight turns. Slow down before turning to
avoid the need of sudden braking.
A turning trailer will make a tighter arc than the tow vehicle. Compensate with turns that
are larger than normal.
Before Driving Your Mazda
Towing
4-17
Mazda MPV_8T50-EA-04G_Edition1 Page133
Monday, June 28 2004 3:59 PM
Form No.8T50-EA-04G

Black plate (219,1)

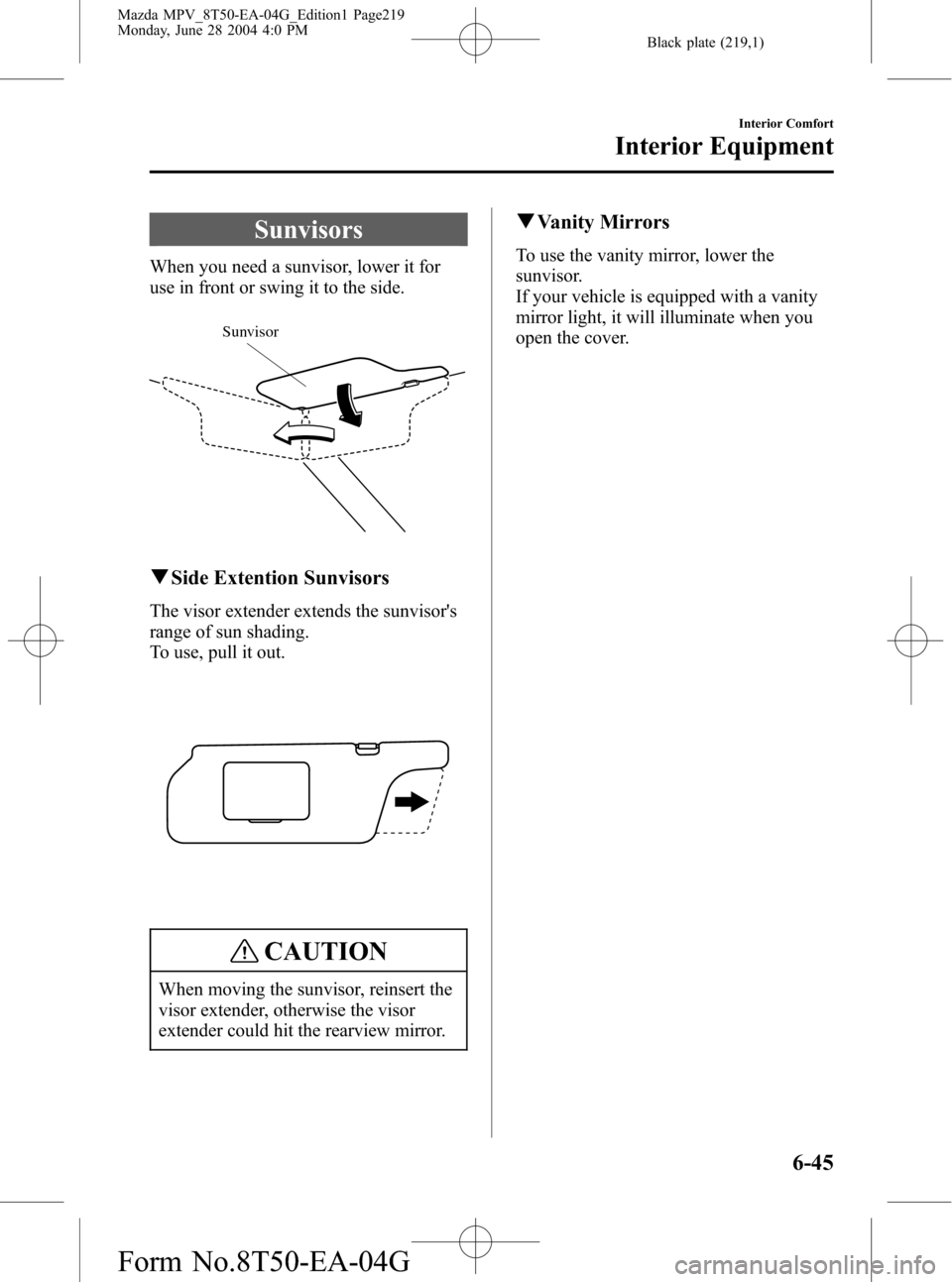

Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qSide Extention Sunvisors
The visor extender extends the sunvisor's
range of sun shading.
To use, pull it out.
CAUTION
When moving the sunvisor, reinsert the
visor extender, otherwise the visor
extender could hit the rearview mirror.
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
If your vehicle is equipped with a vanity
mirror light, it will illuminate when you
open the cover.
Interior Comfort
Interior Equipment
6-45
Mazda MPV_8T50-EA-04G_Edition1 Page219
Monday, June 28 2004 4:0 PM
Form No.8T50-EA-04G

Black plate (334,1)
H
Headlights
Control ....................................... 5-33
Flashing ...................................... 5-33
High-low beam .......................... 5-33
On reminder ............................... 5-33
Hood Release .................................... 3-23
Horn .................................................. 5-38
I
Ignition
Switch .......................................... 5-2
Illuminated Entry System ................. 6-46
Immobilizer System .......................... 3-27
Indicator Lights ................................. 5-24
Cruise Main ................................ 5-31
Cruise set .................................... 5-32
Headlight high-beam .................. 5-30
O/D OFF .................................... 5-30
Security ...................................... 5-30
Shift position .............................. 5-31
TCS ............................................ 5-31
TCS OFF .................................... 5-31
Turn-signal/hazard warning ....... 5-32
Instrument Cluster ............................. 5-20
Interior Care ...................................... 8-47
Interior Lights ................................... 6-46
J
Jump-Starting .................................... 7-19
K
Keyless Entry System ......................... 3-3
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-34
Liftgate .............................................. 3-17
Light Bulbs
Replacement ............................... 8-30
Specifications ............................. 10-6
Lighter ............................................... 6-49
Lighting Control ............................... 5-33
Lubricant Quality .............................. 10-4
Luggage Compartment Light ............ 6-48
M
Maintenance
Introduction .................................. 8-2
Owner maintenance precautions ... 8-8
Owner maintenance schedule ....... 8-7
Scheduled ..................................... 8-3
Map Lights ........................................ 6-47
Mirrors
Outside mirrors .......................... 3-31
Rearview mirror ......................... 3-32
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-24
O
Odometer and Trip Meter .................. 5-21
Outside Mirrors ................................. 3-31
Overhead Console ............................. 6-53
Overhead Lights ................................ 6-46
Overheating ....................................... 7-16
Overloading ...................................... 4-11
P
Paint Damage .................................... 8-42
Parking Brake ..................................... 5-4
11-4
Index
Mazda MPV_8T50-EA-04G_Edition1 Page334
Monday, June 28 2004 4:1 PM
Form No.8T50-EA-04G

Black plate (335,1)
P
Parking in an Emergency .................... 7-2
Power Door Locks ............................ 3-10
Power Sliding Doors ......................... 3-12
Power Steering .................................. 5-13
Fluid ........................................... 8-16
Power Windows ................................ 3-18
Push-Starting ..................................... 7-22
R
Rear Console ..................................... 6-55
Rear Door Child Safety Locks .......... 3-11
Rear Quarter Windows ..................... 3-21
Rear Window Defroster .................... 5-37
Rear Window Washer ....................... 5-37
Rear Window Wiper .......................... 5-37
Rearview Mirror ................................ 3-32
Recreational Towing ......................... 7-24
Registering Your Vehicle in A Foreign
Country ............................................. 9-12
Rocking the Vehicle ............................ 4-8
S
Safety Defects, Reporting ................. 9-17
Seat Belt System
2-point type ................................ 2-37
3-point type ................................ 2-33
Automatic locking ...................... 2-32
Emergency locking .................... 2-32
Extender ..................................... 2-38
Pregnant women ........................ 2-32
Pretensioner and load limiting .... 2-35
Seat belt precautions .................. 2-30
Warning beep ............................. 2-40
Warning light ............................. 2-39
S
Seats
Flat folding ................................. 2-28
Front seat
(Electrically operated seats) ......... 2-8
Front seat
(Manually operated seats) ............ 2-3
Second-row seats ....................... 2-12
Third-Row Seat .......................... 2-20
Second-row seats .............................. 2-12
Security System
Immobilizer system .................... 3-27
Theft-deterrent system ............... 3-29
Service Publications .......................... 9-18
Shopping Bag Hooks ........................ 6-56
Side Extention Sunvisors .................. 6-45
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-4
Speedometer ...................................... 5-21
SRS Air Bags
How the Air Bags Work ............. 2-63
Supplemental restraint systems
precautions ................................. 2-56
Starting the Engine .............................. 5-3
Steering Wheel .................................. 3-31
Horn ........................................... 5-38
Storage Box ...................................... 6-55
Storage Compartments ...................... 6-53
Cargo securing loops .................. 6-56
Eyeglass holder .......................... 6-54
Front console .............................. 6-54
Glove box ................................... 6-54
Overhead console ....................... 6-53
Rear console ............................... 6-55
Shopping bag hooks ................... 6-56
Storage box ................................ 6-55
Under seat tray ........................... 6-55
Sunshade ........................................... 3-26
Sunvisors .......................................... 6-45
Index
11-5
Mazda MPV_8T50-EA-04G_Edition1 Page335
Monday, June 28 2004 4:1 PM
Form No.8T50-EA-04G
