2005 MAZDA MODEL 3 HATCHBACK tow

Black plate (154,1)
qHeadlight High-Low Beam
Push the lever forward for high beam.
Pull it back for low.
High beam
Low beam
qFlashing the Headlights
To flash the headlights, pull the lever fully
toward you. The headlight switch need
not be on, and the lever will return to the
normal position when released.
qHeadlight Levelingí
The number of riders and weight of cargo
in the luggage compartment change the
angle of the headlights.
The headlight leveling switch adjusts this
angle.
Select the proper setting from the following chart.
Front seat
Rear
seatLoadSwitch
Position
Driver Passenger
×―――0
××――0
×× ×―1
×× ×× 2
×――×3
×: Yes
―:No
qDaytime Running Lights
(Canada)
In Canada, vehicles must be driven with
the headlights on during daytime
operation.
For that reason, the daytime running lights
automatically turn on when the ignition
switch is turned to the ON position.
5-44
Driving Your Mazda
íSome models.
Switches and Controls
Mazda3_8T97-EC-04J_Edition1 Page154
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (155,1)
NOTE
The Daytime Running Lights turn off
when the parking brake is applied.
Turn and Lane-Change
Signals
qTurn Signal
Move the signal lever down (for a left
turn) or up (for a right turn) to the stop
position. The signal will self-cancel after
the turn is completed.
If the indicator light continues to flash
after a turn, manually return the lever to
its original position.
Right turn
Left turnOFFRight lane
change
Left lane
change
Green indicators on the dashboard show
which signal is working.
Lane-change signals
Move the lever slightly toward the
direction of the change―until the
indicator flashes―and hold it there. It
will return to the off position when
released.
NOTE
If an indicator light stays on without
flashing or if it flashes abnormally, the
turn signal bulb may be burned out.
Driving Your Mazda
Switches and Controls
5-45
Mazda3_8T97-EC-04J_Edition1 Page155
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (157,1)
qWindshield Wipers
Type A (With INT position)
1
2
Turn the wipers on by pulling the lever
down.
INT―Intermittent
1―Low speed
2―High speed
Type B (With AUTO position,
CANADA)í
Turn the wipers on by pulling the lever
down.
AUTO―Auto control
1―Low speed
2―High speedAUTO (Auto-wiper control)
When the wiper lever is in the AUTO
position, the rain sensor senses the
amount of rainfall on the windshield and
turns the wiper on or off automatically
(off―intermittent―low speed―high
speed).
The sensitivity of the rain sensor can be
adjusted by turning the switch on the
wiper lever.
From the center position (normal), turn
the switch towards (+) for higher
sensitivity (faster response) or turn the
switch towards (_
) for less sensitivity
(slower response).
Switch
Higher sensitivity Less sensitivity
Center
position
Driving Your Mazda
Switches and Controls
5-47íSome models. Mazda3_8T97-EC-04J_Edition1 Page157
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (159,1)
qWindshield Washer
Pull the lever toward you and hold it to
spray washer fluid.
OFF
Washer
NOTE
With the wiper lever in the OFF or INT
(Type A)/AUTO (Type B) position, the
wipers will operate continuously until
the lever is released.
If the washer doesn't work, inspect the
fluid level (page 8-21). If it's OK, consult
an Authorized Mazda Dealer.
Rear Window Wiper and
Washer (5 Door)
The ignition switch must be in the ON
position.
qRear Window Wiper
Turn the wiper on by turning the rear
wiper/washer switch.
ON―Normal
INT―Intermittent
qRear Window Washer
To spray washer fluid, turn the rear wiper/
washer switch to the
position. After
the switch is released, the washer will
stop.
NOTE
There are two washer positions: up and
down. In the down washer position, the
wiper will not be activated.
If the washer doesn't work, inspect the
fluid level (page 8-21). If it's OK and the
washer still doesn't work, consult an
Authorized Mazda Dealer.
Driving Your Mazda
Switches and Controls
5-49
Mazda3_8T97-EC-04J_Edition1 Page159
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (161,1)

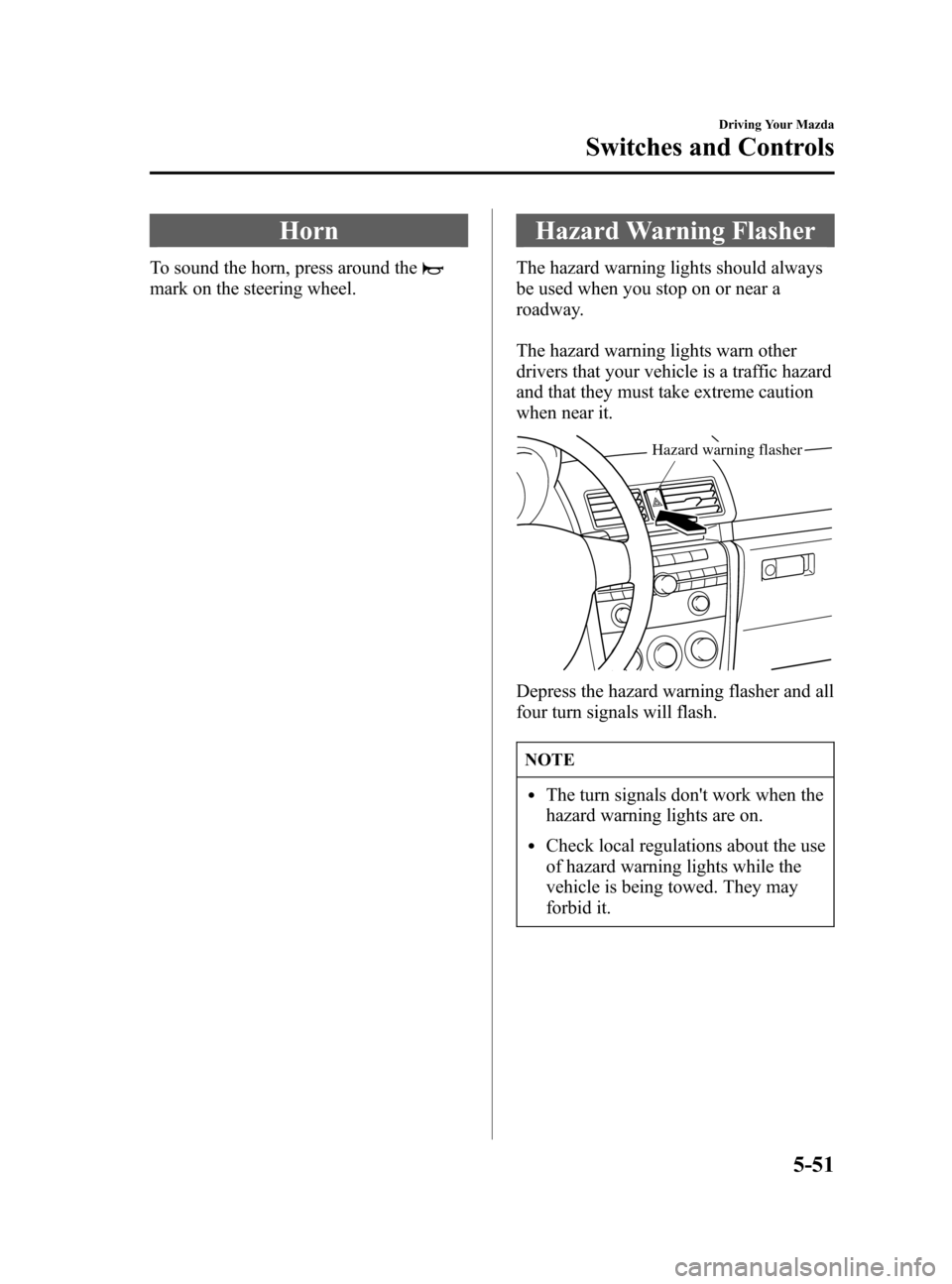

Horn
To sound the horn, press around the
mark on the steering wheel.
Hazard Warning Flasher
The hazard warning lights should always
be used when you stop on or near a
roadway.
The hazard warning lights warn other
drivers that your vehicle is a traffic hazard
and that they must take extreme caution
when near it.
Hazard warning flasher
Depress the hazard warning flasher and all
four turn signals will flash.
NOTE
lThe turn signals don't work when the
hazard warning lights are on.
lCheck local regulations about the use
of hazard warning lights while the
vehicle is being towed. They may
forbid it.
Driving Your Mazda
Switches and Controls
5-51
Mazda3_8T97-EC-04J_Edition1 Page161
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (174,1)
Flutter/Skip noise
Signals from an FM transmitter move in
straight lines and become weak in valleys
between tall buildings, mountains, and
other obstacles. When a vehicle passes
through such an area, the reception
conditions may change suddenly, resulting
in annoying noise.
Weak signal noise
In suburban areas, broadcast signals
become weak because of distance from
the transmitter. Reception in such fringe
areas is characterized by sound breakup.
Strong signal noise
This occurs very close to a transmitter
tower. The broadcast signals are
extremely strong, so the result is noise and
sound breakup at the radio receiver.
Station drift noise
When a vehicle reaches the area of two
strong stations broadcasting at similar
frequencies, the original station may be
temporarily lost and the second station
picked up. At this time there will be some
noise from this disturbance.
Station 2
88.3 MHz Station 1
88.1 MHz
6-12
Interior Comfort
Audio System
Mazda3_8T97-EC-04J_Edition1 Page174
Saturday, September 25 2004 2:13 PM
Form No.8T97-EC-04J

Black plate (204,1)
Bottle Holder
Bottle holders are on the inside of the
doors.
Bottle holder
CAUTION
Don't use the bottle holders for
containers without caps. The contents
may spill when the door is opened or
closed.
Storage Compartments
WARNING
Open Storage Boxes:
Driving with the storage boxes open is
dangerous. To reduce the possibility of
injury in an accident or a sudden stop,
keep the storage boxes closed when
driving.
CAUTION
Don't leave eyeglasses or lighters in the
storage boxes while parked under the
sun. A lighter could explode or the
plastic material in eyeglasses could
deform and crack from high
temperature.
qGlove Box
To open the glove box, pull the latch
toward you.
If the glove box has a lock, insert the key
and turn it clockwise to lock,
counterclockwise to unlock.
Unlock
Lock
6-42
Interior Comfort
Interior Equipment
Mazda3_8T97-EC-04J_Edition1 Page204
Saturday, September 25 2004 2:14 PM
Form No.8T97-EC-04J

Black plate (209,1)
7In Case of an Emergency
Helpful information on what to do in an emergency.
Parking in an Emergency ............................................................. 7-2
Parking in an Emergency .......................................................... 7-2
Flat Tire ......................................................................................... 7-3
Spare Tire and Tool Storage ...................................................... 7-3
Changing a Flat Tire ................................................................. 7-6
Overheating ................................................................................. 7-12
Overheating ............................................................................. 7-12
Emergency Starting .................................................................... 7-14
Starting a Flooded Engine ....................................................... 7-14
Jump-Starting .......................................................................... 7-15
Push-Starting ........................................................................... 7-18
Emergency Towing ..................................................................... 7-19
Towing Description ................................................................. 7-19
Tiedown Hook ........................................................................ 7-20
Recreational Towing ............................................................... 7-22
7-1
Mazda3_8T97-EC-04J_Edition1 Page209
Saturday, September 25 2004 2:15 PM
Form No.8T97-EC-04J
