2005 LOTUS ELISE Owners Manual

Improper Maintenance and Usea) An emission performance warranty claim may be denied on the basis of non-compliance by a car owner with the Service
Schedule or Owner’s Handbook instructions for proper use.
b) When determining whether an owner has complied with the written instructions for proper maintenance and use, Lotus may require an owner to submit evidence of compliance with
those written maintenance instructions for which Lotus has an objective reason for believing:
1. were not performed; and
2. if not performed could be the cause of the particular car’s
exceeding applicable emission standards.
c) Evidence of compliance with a maintenance instruction may
consist of:
1. a maintenance log book which has been validated at the appropriate time or mileage intervals specified for service by
someone who regularly engages in the business of servicing automobiles for the relevant maintenance instruction(s);or
2. a showing that the car has been submitted for scheduled maintenance servicing at the approximate time or mileage
intervals specified for service to someone who regularly en
-
gages in the business of servicing automobiles for the purpose
of performing the relevant maintenance; or
3. a statement by the car owner that he or she performed the maintenance at the appropriate time or mileage interval specified, including a showing i) that the owner purchased and used proper parts, and
ii) upon request by Lotus, that the owner is able to perform
the maintenance properly.
d) The time/mileage interval for scheduled maintenance serv
-
ices shall be the service interval specified for that part in the Maintenance Schedule or Owner’s Handbook.
e) For certified parts having a maintenance or replacement inter
-
val different from that specified in the written instructions for proper maintenance and use, the time/mileage interval shall
be the service interval for which the part was certified.
Federal Emission Warranty
175

oh_croft_InD.indd 17520/05/2004 07:59:23ProCarManuals.com

f) The owner may perform maintenance or have maintenance performed more frequently than required in the maintenance
instructions.
g) Lotus may deny an emission performance warranty claim on the basis of non-compliance with the written instructions for
proper maintenance and use only if:
1. an owner is not able to comply with a request by Lotus for
evidence pursuant to paragraph (c) of this section; or
2. notwithstanding the evidence presented pursuant to para
-
graph (c) of this section, Lotus is able to prove that the car
failed an emission short test because
i) the car was abused; or
ii) an instruction for the proper maintenance and use was performed in a manner resulting in a component’s being
improperly installed or a component or related parameter’s
being adjusted substantially outside of the manufacturer’s
specifications; or
iii) unscheduled maintenance was performed on a vehicle which resulted in the removing or rendering inoperative of any component affecting the car’s emissions.
Warranty Claim Procedure a) A claim under the emission performance warranty may be raised immediately upon the failure of an EPA approved
emission short test, if as a result of that failure, an owner is required to take action of any kind in order to avoid imposition
of a penalty or sanction. An owner need not suffer the loss
of the right to use a car, be fined, incur repair expenses, or
actually bear any penalty or sanction to satisfy the requirement
(see ‘Emissions Performance Warranty’ paragraph (3)). That requirement shall be met if a test failure sets a procedure in
motion under which the owner will bear a penalty or sanction
if a car is not brought into conformity or repaired to some
specified extent within some specified period of time.
b) A warranty claim may be submitted by bringing a car and a copy of the EPA approved emission test report to
1. any repair facility authorized by Lotus to service that model car, or
2. any repair facility authorized by Lotus to perform emission performance warranty repairs for that model car.
Federal Emission Warranty
176

oh_croft_InD.indd 17620/05/2004 07:59:23ProCarManuals.com

c) To the extent required by any Federal or State Law, whether statutory or common law: if an authorized repair facility is not reasonably available, Lotus will provide means for a suitably
competent non-franchised repair facility to perform emission
performance warranty repairs.
d) 1. Lotus will make a final decision on an emission performance warranty claim within a maximum time limit of 30 days from the time at which the car is initially presented for repair or within
the time during which an owner is required by local, state or
federal law to have the car repaired without incurring further
penalties or sanctions (whichever is shorter), unless a delay
i) is requested by the car owner, or
ii) is caused by an event not attributable to Lotus or the

warranty repair facility.
2. If the facility at which the car is initially presented for repair
is unable for any reason to honour the particular claim, then,
unless this requirement is waived in writing by the car owner,
the repair facility shall forward the claim to; Lotus Cars U.S.A.
Inc., 2236 Northmont Parkway, Duluth, Georgia 30096, in
order for a decision to be made.
e) Within the time period specified in paragraph (d) of this sec
-
tion, Lotus shall:
1. notify the owner that it will honour the claim; or
2. provide the owner, in writing, with an explanation of the
basis upon which the claim is being denied.
f) Failure to notify an owner within the required time period (as determined under paragraph (d) of this section) for reasons
that are not attributable to the car owner or events which are not beyond the control of Lotus or the repair facility, shall result
in Lotus being responsible for repairing the car free of charge
to the car owner.
g) Lotus shall incur all costs associated with a determination that
an emission performance warranty claim is valid.
Federal Emission Warranty
177

oh_croft_InD.indd 17720/05/2004 07:59:23ProCarManuals.com

FURTHER INFORMATIONFu r t h e r i nf o r m a t i o n c o n c e r n i n g t h e e m i s si o n p e r
-
formance warranty is available from the Director Field Operation & Suppor t Division (6406 J), Environmental
Protection Agency, 401 ‘M’ Street, SW, Washington DC
20460 (attention: Warranty Claim). Violations of the Emis
-
sion Performance Warranty may also be reported to this
office. Also contact Lotus Cars U.S.A. Inc., 2236 Northmont
Parkway, Duluth, Georgia 30096.
EMISSIONS WARRANTY PARTS LIST
Air Induction System
- air inlet trunking
- intake manifold
Fuel Injection System
- fuel pressure regulator
- fuel injectors
- fuel delivery line
- throttle body
Ignition System
- spark plugs
- direct ignition coils
Positive Crankcase Ventilation System
- non return valve
- oil filler cap
Evaporative Emissions Control System (EECS)
- charcoal canister assembly
- fuel tank
- fuel level sender and seal
- fuel filler neck and hose
- fuel filler cap
- roll over valve assembly
- fuel lines
- fill level vent valve & pipe assy.
- canister close valve
- vapour management valve (VMV)
Federal Emission Warranty
178

oh_croft_InD.indd 17820/05/2004 07:59:24ProCarManuals.com

- fuel vapour pressure sensor
Exhaust System
- exhaust manifold
- catalytic converter, heat shields, gaskets and fasteners*
Engine Emission Control System Sensors
- electronic control module (ECM)*
- engine coolant temperature sensor (ECTS)
- air flow meter
- crankshaft sensor
- idle air control valve (IACV)
- wheel speed sensors
- throttle position sensor (TPS)
- knock sensor
- oxygen sensors
- oil control valves for VVTL-i
- oil pressure switch for VVTL-i
- camshaft position sensor
- coolant thermostat
On Board Diagnostics (OBD)
- malfunction indicator lamp (MIL)
- data link connector and harness
Miscellaneous Parts used in the Above Systems
- hoses
- switches, sensors and solenoids
- gaskets and seals
- wires, harnesses and connectors
* major emission control components - see page 171
Federal Emission Warranty
179

oh_croft_InD.indd 17920/05/2004 07:59:24ProCarManuals.com

CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT
YOUR WARRANTY RIGHTS AND OBLIGATIONS The California Air Resources Board and Lotus Cars
Limited are pleased to explain the emission control system
warranty on your new, USA specification, Lotus Elise. In
California, new motor cars must be designed, built and equipped to meet the State’s stringent anti-smog standards.
Lotus must warrant the emission control system on your
Elise for the periods of time listed below provided there has been no abuse, neglect or improper maintenance of
your car. Your emission control system may include parts such as the carburettor or fuel injection system, the igni
-
tion system, catalytic conver tor, and engine computer.
Also included may be hoses, belts, connectors and other
emission-related assemblies. Where a warrantable condition exists, Lotus will repair
your car at no cost to you including diagnosis, parts and labour.
MANUFACTURER’S WARRANTY COVERAGE
- For
3 years or 50,000 miles (whichever first occurs):
1) If your car fails a Smog Check inspection, all necessary repairs and adjustments will be made by Lotus to ensure that
your car passes the inspection. This is your emission control
system PERFORMANCE WARRANTY.
2 ) I f a n y e m i s s i o n r e l a t e d p a r t o n y o u r c a r i s d e f e c-
t i v e , t h e p a r t w i l l b e r e p a i r e d o r r e p l a c e d b y L o t u s .

This is your short-term emission control system
DEFECTS
WARRANTY.
- For
7 years or 70,000 miles (whichever first occurs):
1) If an emission related part listed in this warranty booklet specially noted with coverage for 7 years or 70,000 miles
is defective, the part will be repaired or replaced by Lotus.

This is your long term emission control system DEFECTS
WARRANTY.
California Emission Warranty
180

oh_croft_InD.indd 18020/05/2004 07:59:24ProCarManuals.com

OWNER’S WARRANTY RESPONSIBILITIES:
- As the car owner, you are responsible for the performance of the required maintenance listed in your owner’s manual. Lotus recommends that you retain all receipts covering maintenance
on your car, but Lotus cannot deny warranty solely for the lack
of receipts or for your failure to ensure the performance of all
scheduled maintenance.
- You are responsible for presenting your car to a Lotus dealer as soon as a problem exists. The warranty repairs should be
completed in a reasonable amount of time, not to exceed 30
days.
- As the car owner, you should also be aware that Lotus may deny you warranty coverage if your car or a part has failed
due to abuse, neglect, improper maintenance or unapproved
modifications.
If you have any questions regarding your warranty rights
and responsibilities, you should contact: Lotus Cars U.S.A.
Inc., at 2236 Northmont Parkway, Duluth, Georgia 30096, or
the California Air Resources Board at 9528 Telstar Avenue, El Monte CA 91731.
Califo rnia Emission Warranty
181

oh_croft_InD.indd 18120/05/2004 07:59:24ProCarManuals.com

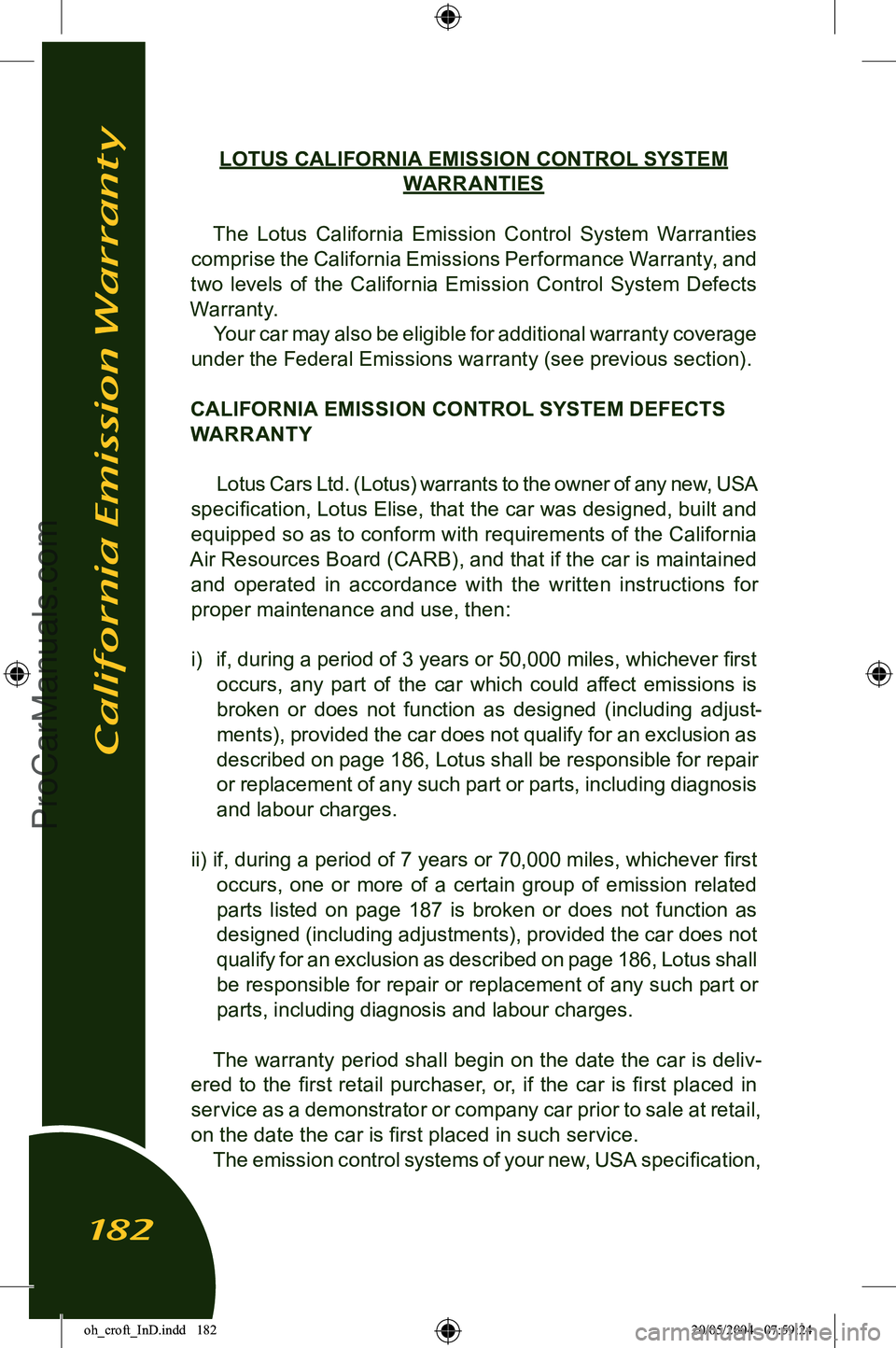

LOTUS CALIFORNIA EMISSION CONTROL SYSTEMWARRANTIES
The Lotus California Emission Control System Warranties
comprise the California Emissions Performance Warranty, and
two levels of the California Emission Control System Defects
Warranty.
Your car may also be eligible for additional warranty coverage
under the Federal Emissions warranty (see previous section).
CALIFORNIA EMISSION CONTROL SYSTEM DEFECTS
WARRANTY
Lotus Cars Ltd. (Lotus) warrants to the owner of any new, USA
specification, Lotus Elise, that the car was designed, built and equipped so as to conform with requirements of the California
Air Resources Board (CARB), and that if the car is maintained and operated in accordance with the written instructions for proper maintenance and use, then:
i) if, during a period of 3 years or 50,000 miles, whichever first occurs, any part of the car which could affect emissions is broken or does not function as designed (including adjust
-
ments), provided the car does not qualify for an exclusion as described on page 186, Lotus shall be responsible for repair
or replacement of any such part or parts, including diagnosis
and labour charges.
ii) if, during a period of 7 years or 70,000 miles, whichever first occurs, one or more of a certain group of emission related parts listed on page 187 is broken or does not function as
designed (including adjustments), provided the car does not
qualify for an exclusion as described on page 186, Lotus shall
be responsible for repair or replacement of any such part or
parts, including diagnosis and labour charges.
The warranty period shall begin on the date the car is deliv
-
ered to the first retail purchaser, or, if the car is first placed in
service as a demonstrator or company car prior to sale at retail,
on the date the car is first placed in such service. The emission control systems of your new, USA specification,
Califo rnia Emission Warranty
182
