2005 LOTUS ELISE technical data

Geometry specification - Sport option:Mid-laden ride height (reference height for geometry check)
- front 130 mm below front end
of chassis siderail
- rear 130 mm below rear end
of chassis siderail
Castor - optimum + 3.8°
- tolerance range + 3.5° to + 4.1°;
max. side/side 0.35°
Camber - optimum - 0.3°
- tolerance range - 0.1° to - 0.5°
max. side/side 0.2°
Alignment - optimum Zero - tolerance range 0.5 mm toe-out, to
0.5 mm toe-in overall
Rear Suspension
Type Independent. Upper and
lower wishbone; co-axial
coil spring/telescopic
damper.
Geometry specification - Standard: Mid-laden ride height (reference height for geometry check)
- front 135 mm below front end
of chassis siderail
- rear 135 mm below rear end
of chassis siderail
Camber - optimum - 1.8°
- tolerance range - 1.6° to - 2.0°
max.side/side 0.2°
Alignment - optimum 1.2 mm toe-in each side - tolerance range 1.2 to 1.8mm toe-in each
side
max.side/side 0.3 mm
Geometry specification - Sport option: Mid-laden ride height (reference height for geometry check)
- front 130 mm below front end
of chassis siderail
- rear 130 mm below rear end
of chassis siderail
Technical Data
157

oh_croft_InD.indd 15720/05/2004 07:59:20ProCarManuals.com

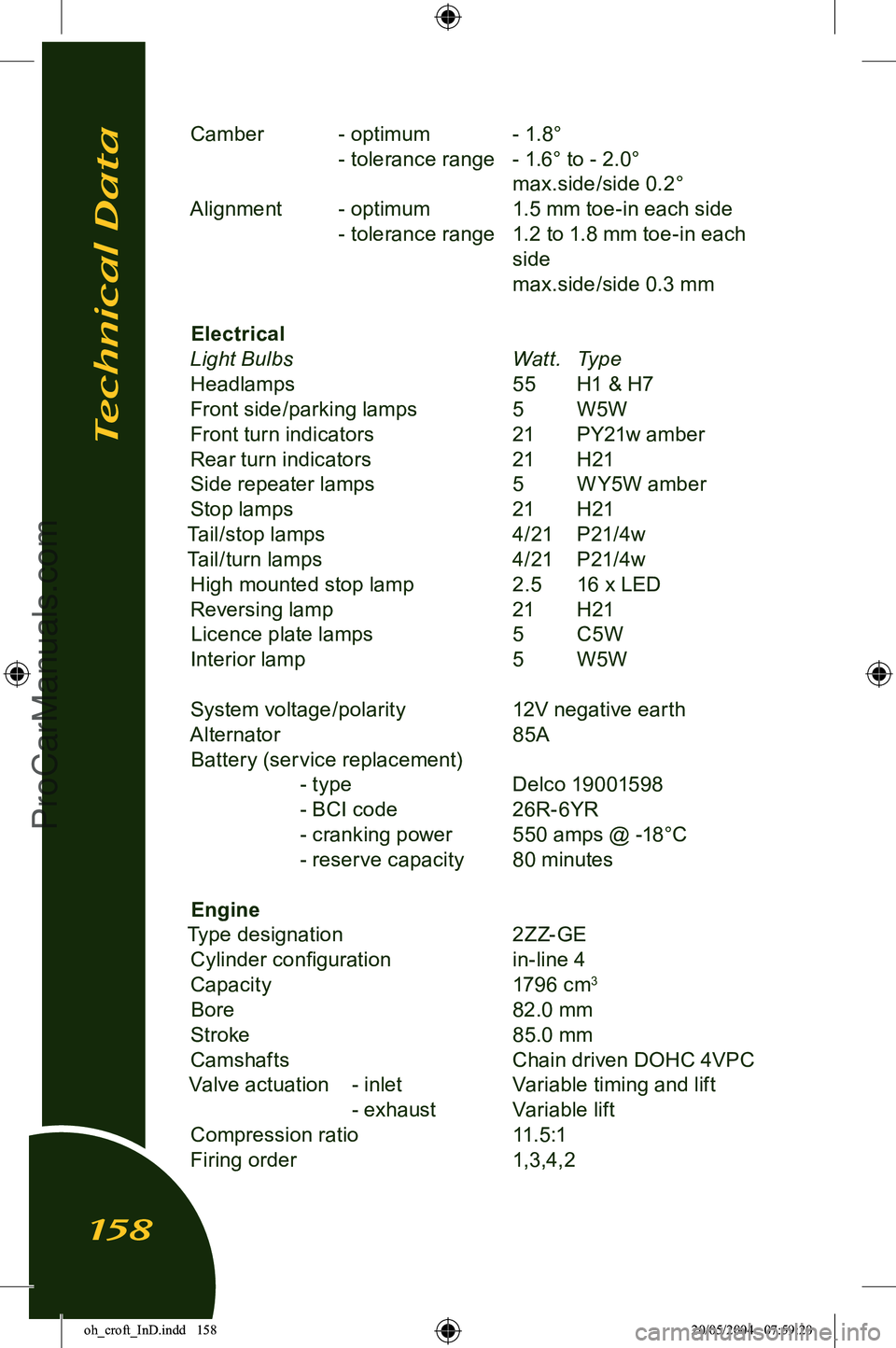

Camber - optimum - 1.8°
- tolerance range - 1.6° to - 2.0°
max.side/side 0.2°
Alignment - optimum 1.5 mm toe-in each side - tolerance range 1.2 to 1.8 mm toe-in each
side
max.side/side 0.3 mm
Electrical
Light Bulbs Watt. Type
Headlamps 55 H1 & H7
Front side/parking lamps 5 W5W
Front turn indicators 21 PY21w amber
Rear turn indicators 21 H21
Side repeater lamps 5 W Y5W amber
Stop lamps 21 H21
Tail/stop lamps 4/21 P21/4w
Tail/turn lamps 4/21 P21/4w
High mounted stop lamp 2.5 16 x LED
Reversing lamp 21 H21
Licence plate lamps 5 C5W
Interior lamp 5 W5W
System voltage/polarity 12V negative earth
Alternator 85A
Battery (service replacement)
- type Delco 19001598
- BCI code 26R- 6YR
- cranking power 550 amps @ -18°C
- reserve capacity 80 minutes
Engine
Type designation 2ZZ-GE
Cylinder configuration in-line 4
Capacity 1796 cm
3
Bore 82.0 mm
Stroke 85.0 mm
Camshafts Chain driven DOHC 4VPC
Valve actuation - inlet Variable timing and lift
- exhaust Variable lift
Compression ratio 11.5:1
Firing order 1,3,4,2
Technical Data
158

oh_croft_InD.indd 15820/05/2004 07:59:20ProCarManuals.com

Spark plugs NGK IFR6A11
DensoSK20R11
Spark plug gap 1.1 mm
Max. continuous engine speed 8000 rpm (8500 transient)
Fuel requirement Unleaded
Minimum octane 91 (RON+MON)/2
Fuel system Multi-point fully sequential
fuel injection with Lotus T4
controller.
Peak power (SAE DIN 70020) 190 bhp (141.7 kW) @
7,800 rpm
Peak torque (SAE DIN 70020) 138 lbf.ft (187 Nm) @
6,800 rpm
Transmission
Type 6 speed manual transaxle.
Bevel gear differential.
Gear Ratio Final Drive mph/1000 rpm First 3.17:1 ) 5.1
Second 2.05:1 ) 7.7
Third 1.48:1 ) 4.53:1 10.7
Fourth 1.17:1 ) 13.6
Fifth 0.92:1 ) 17.3
Sixth 0.81:1 ) 19.4
Reverse 3.25:1 )
Brakes
Type Front and rear discs with
curved vane ventilation
and cross drilling.
AP Racing aluminium op
posed piston front calipers.
Single piston sliding rear
calipers.
Disc Size - front and rear 288mm
Operation Tandem master cylinder
with vacuum servo and
ABS
Parking Brake Cable operation of rear
calipers, self adjusting for
pad wear.
Technical Data
159

oh_croft_InD.indd 15920/05/2004 07:59:20ProCarManuals.com
