2005 Lexus IS300 engine

INTRODUCTION
320
NOTICE

Remember that battery and ignition cables carry high
currents or voltages. Be careful of accidentally causing a short circuit.

Add only ªT oyota Super Long Life Coolantº or similar
high quality ethylene glycol based non±silicate, non± amine, non±nitrite, and non±borate coolant withlong±life hybrid organic acid technology to fill theradiator. ªToyota Super Long Life Coolantº is a mix-ture of 50% coolant and 50% deionized water (for the
U.S.A.) or 55% coolant and 45% deionized water (forCanada).

If you spill some of the coolant, be sure to wash it offwith water to prevent it from damaging the parts orpaint.

Before closing the engine hood, check to see that you
have not forgotten any tools, rags, etc.

Do not drive with the air cleaner removed, or excessive engine wear could result. Also backfiringcould cause a fire in the engine compartment.

Do not overfill automatic transmission fluid, or thetransmission could be damaged.

Be careful not to scratch the glass surface with thewiper frame.
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
do±it±yourself maintenance. Remember all Lexus parts are
designed in metric sizes, so your tools must be metric.
CHECKING THE ENGINE OIL LEVEL
Parts (if level is low):

ªToyota Genuine Motor Oilº or equivalent
Oil grade: API grade SL ªEnergy±Conservingº or ILSAC
multigrade engine oil. For recommended oil viscosity, see page 335.
Tools:

Rag or paper towel

Funnel (only for adding oil)
CHECKING THE ENGINE COOLANT LEVEL
Parts (if level is low):

ªToyota Super Long Life Coolantº or similar high quality
ethylene glycol based non±silicate, non±amine, non±nitrite,
and non±borate coolant with long±life hybrid organic acid technology.
ªToyota Super Long Life Coolantº is a mixture of 50%
coolant and 50% deionized water (for the U.S.A.) or 55% coolant and 45% deionized water (for Canada).
Tools:

Funnel (only for adding coolant)
04 06.30

INTRODUCTION
322
POSITIONING THE JACK
SV61006
Front of vehicle
When jacking up your vehicle with the jack, position the
jack correctly as shown in the illustration.
Jack position
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Front± Front crossmember
Rear± Rear differential
Support position and Pantograph jack position
. . . .
CAUTION
When jacking, be sure to observe the following to
reduce the possibility of personal injury:

Follow jacking instructions.

Do not put any part of your body under the vehicle
supported by a jack. Personal injury may occur.

Do not start or run the engine while your vehicle is
supported by the jack.

Stop the vehicle on a level firm ground, firmly set the
parking brake and put the transmission in ªPº
(automatic) or reverse (manual). Block the wheel
diagonally opposite to the one being changed if
necessary.

Make sure to set the jack properly in the jack point.
Raising the vehicle with jack improperly positioned
will damage the vehicle or may allow the vehicle to fall
off the jack and cause personal injury.

Never get under the vehicle when the vehicle is
supported by the jack alone; use vehicle support
stands.

Do not raise the vehicle with someone in the vehicle.

When ra ising the vehicle, do not place any objects on
top of or underneath the jack.
04 06.30

SECTION 6 ± 2
325
SERVICE PROCEDURES AND
SPECIFICATIONS
Engine
Specifications326
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel 329
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel pump shut off system 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . .
Facts about engine oil consumption 331
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . .
Used engine oil 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking the engine oil level 333
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . .
Checking the engine coolant level 337
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . .
Checking the radiator and condenser 338
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . .
Spark plugs 339
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
04 06.30

ENGINE
326
SPECIFICATIONS
± GENERALModel
2JZ±GE
Type6 cylinder in line, 4 cycle, gasoline
Bore and stroke86.0 X 86.0 mm (3.39 X 3.39 in.)
Displacement2997 cm3 (182.9 cu.in.)
Valve clearance (engine cold) Intake
Exhaust0.15 ± 0.25 mm (0.006 ± 0.010 in.)
0.25 ± 0.35 mm (0.010 ± 0.014 in.)
Drive belt tensionAutomatic adjustment
04 06.30

ENGINE
327
± LUBRICATION SYSTEM
Oil capacity Drain and refillwith filter
without filter
5.4 L (5.7 qt., 4.8 lmp.qt.)
5.1 L (5.4 qt., 4.5 lmp.qt.)
Oil gradeAPI grade SL ªEnergy±Conservingº or ILSAC multigrade engine oil\

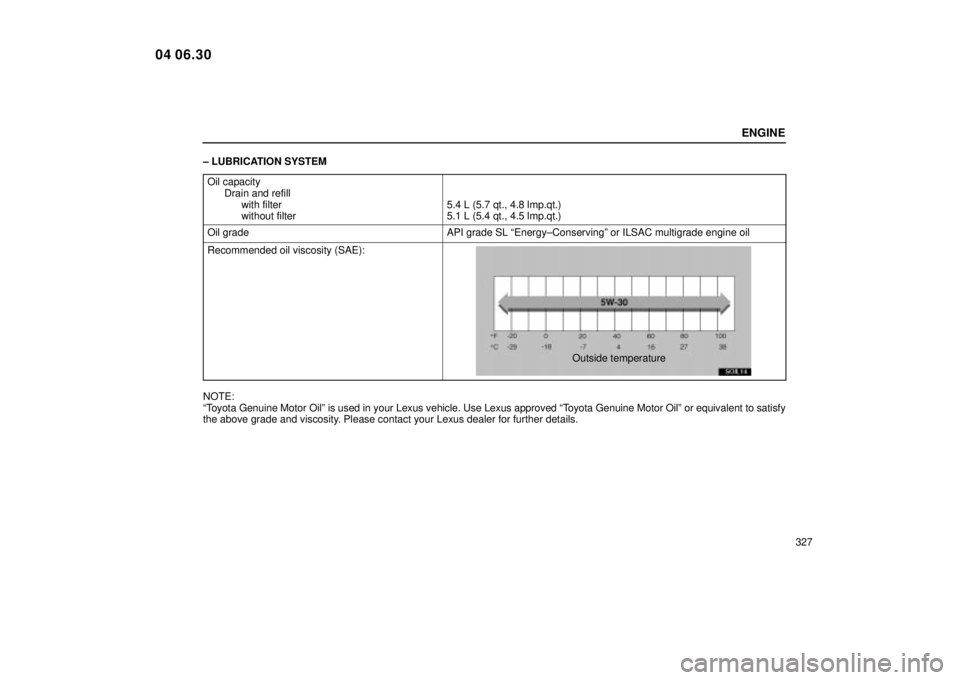

Recommended oil viscosity (SAE):
62L005±1S
OIL14
Outside temperature
NOTE:
ªToyota Genuine Motor Oilº is used in your Lexus vehicle. Use Lexus app\
roved ªToyota Genuine Motor Oilº or equivalent to satisf y
the above grade and viscosity. Please contact your Lexus dealer for further details.
04 06.30

ENGINE
328± COOLING SYSTEM
Capacity
7.5 L (7.9 qt., 6.6 lmp.qt.)
Coolant typeªToyota Super Long Life Coolantº or similar high quality ethylene glyco\
l
based non±silicate, non±amine, non±nitrite, and non±borate c\
oolant with
long±life hybrid organic acid technology. (Coolant with long±life hybrid
organic acid technology is a combination of low phosphates and organic
acids.)
Do not use plain water alone.
NOTE:
ªToyota Super Long Life Coolantº is used in your Lexus vehicle at facto\
ry fill. In order to avoid technical problems, only use ªToyota
Super Long Life Coolantº or similar high quality ethylene glycol based non±\
silicate, non±amine, non±nitrite, and non±borate coolant
with long±life hybrid organic acid technology. (Coolant with long±life hybrid organic acid technology is a combin\
ation of low
phosphates and organic acids.) Do not use plain water alone. Please con\
tact your Lexus dealer for further details.
± FUEL
Fuel type
Unleaded gasoline only
Octane rating91 (Research octane number 96) or higher
± IGNITION SYSTEMSpark plug ± Make DENSO ± Gap
SK16R±P11
1.1 mm (0.043 in.)
± ELECTRICAL SYSTEM
Battery ± Open voltage at 20 C (68F):
Charging rates
12.7 V Fully charged
12.3 V Half charged
11.9 V Discharged
[Voltage that is checked 20 minutes after the key is removed with all the
lights turned off]
5A max.
04 06.30

ENGINE
329
FUEL
Fuel type
Your vehicle must use only unleaded gasoline.
To help prevent gas station mixups, your Lexus has a smaller
fuel tank opening. The special nozzle on pumps with unleaded
fuel will fit it, but the larger standard nozzle on pumps with
leaded gas will not.
At a minimum, the gasoline you use should meet the
specifications of ASTM D4814 in the U.S.A. and CGSB
3.5±M93 in Canada.
NOTICE
Do not use leaded gasoline. Use of leaded gasoline will cause the three±way catalytic converter to lose itseffectiveness and the emission control system tofunction improperly. Also, this can increasemaintenance costs.
Octane rating
Select premium unleaded gasoline with an Octane Rating
of 91 (Research Octane Number 96) or higher for optimum
engine performance. However, if such premium type
cannot be obtained, you may temporarily use unleaded
gasoline with an Octane Rating as low as 87 (Research
Octane Number 91). Use of unleaded fuel with an octane number or rating lower
than stated above will cause persistent heavy knocking. If
severe, this will lead to engine damage.
If your engine knocks ...
If you detect heavy knocking even when using the
recommended fuel, or if you hear steady knocking while
holding a steady speed on level roads, consult your Lexus
dealer.
However, occasionally, you may notice light knocking for a
short time while accelerating or driving up hills. This is normal
and there is no need for concern.
Gasoline containing detergent additives
Lexus recommends the use of gasoline that contains
detergent additives to avoid build±up of engine deposits.
However, all gasoline sold in the U.S. contains detergent
additives to keep clean and/or clean intake systems.
Quality gasoline
Automotive manufacturers in the U.S., Europe and Japan
have developed a specification for quality fuel named
World±Wide Fuel Charter (WWFC) that is expected to be
applied world wide. The WWFC consists of four
categories
that depend on required emission levels. In the
U.S., category 3 has been adopted. The WWFC improves
air quality by providing for better emissions in vehicle
fleets, and customer satisfaction through better vehicle
performance.
04 06.30

ENGINE
330
Cleaner burning gasoline
Cleaner burning gasoline, including reformulated
gasoline that contains oxygenates such as ethanol or
MTBE is available in many areas.
Lexus recommends the use of cleaner burning gasoline and
appropriately blended reformulated gasoline. These types of
gasoline provide excellent vehicle performance, reduce
vehicle emissions, and improve air quality.
Oxygenates in gasoline
Lexus allows the use of oxygenate blended gasoline
where the oxygenate content is up to 10% ethanol or 15%
MTBE. If you use gasohol in your Lexus, be sure that it has
an octane rating no lower than 87.
Lexus does not recommend the use of gasoline containing
methanol.
Gasoline containing MMT
Some gasoline contain an octane enhancing additive
called MMT (Methylcyclopentadienyl Manganese
Tricarbonyl).
Lexus does not recommend the use of gasoline that contains
MMT. If fuel containing MMT is used, your emission control
system may be adversely affected. The Malfunction Indicator
Lamp on the instrument cluster may come on. If this happens,
contact your Lexus dealer for service.
Gasoline quality
In a very few cases, you may experience driveability problems
caused by the particular gasoline that you are using. If you
continue to have unacceptable driveability, try changing
gasoline brands. If this does not rectify your problem, then
consult your Lexus dealer.
NOTICE
Do not use gasohol other than stated above. It will cause fuel system damage or vehicle performanceproblems.
If driveability problems are encountered (poor hotstarting, vaporizing, engine knock, etc.), discontinueits use.
Take care not to spill gasohol during refueling.Gasohol may cause paint damage.
Fuel tank capacity
66 L (17.5 gal., 14.5 lmp.gal.)
