2005 Lexus GX470 child restraint

OCCUPANT RESTRAINT SYSTEMS
217

Align both third seatbacks at the same angle
When installing a child restraint system in the third
center position, align both seatbacks at the same
angle. Otherwise, the child restraint system cannot
be securely restrained and this may cause death or
serious injuries in a collision.
1. Sit the child on a booster seat. Run the lap and shoulder belt
through or around the booster seat and child following the
instructions provided by its manufacturer and insert the tab into
the buckle taking care not to twist the belt.
Make sure the shoulder belt is correctly across the child's
shoulder and that the lap belt is positioned as low as possible
on the child's hips. See ªSeat beltsº on page 151 for details.
CAUTION
 Always make sure the shoulder belt is positioned
across the center of child's shoulder. The b elt should
be kept away from child's neck, but not falling off
child's shoulder. Otherwise, the child may be killed
or seriously injured in case of sudden braking or a
collision.

OCCUPANT RESTRAINT SYSTEMS
218
Both high±positioned lap belts and loose±fitting
belts could cause death or serious injuries due to
sliding under the lap belt during a collision or other
unintended event. Keep the lap belt positioned as
low on a child's hips as possible.
 For child's safety, do not place the shoulder belt
under child's arm.
 After inserting the tab, make sure the tab and buckle
are locked and that the lap and shoulder portions of
the belt are not twisted.
 Do not insert coins, clips, etc. in the buckle as this
may prevent your child from properly latching the tab
and buckle.
 If the seat belt does not function normally, it cannot
protect your child from death or serious injury.
Contact your Lexus dealer immediately. Do not
install the child restraint system on the seat until the
seat belt is fixed.

OCCUPANT RESTRAINT SYSTEMS
219

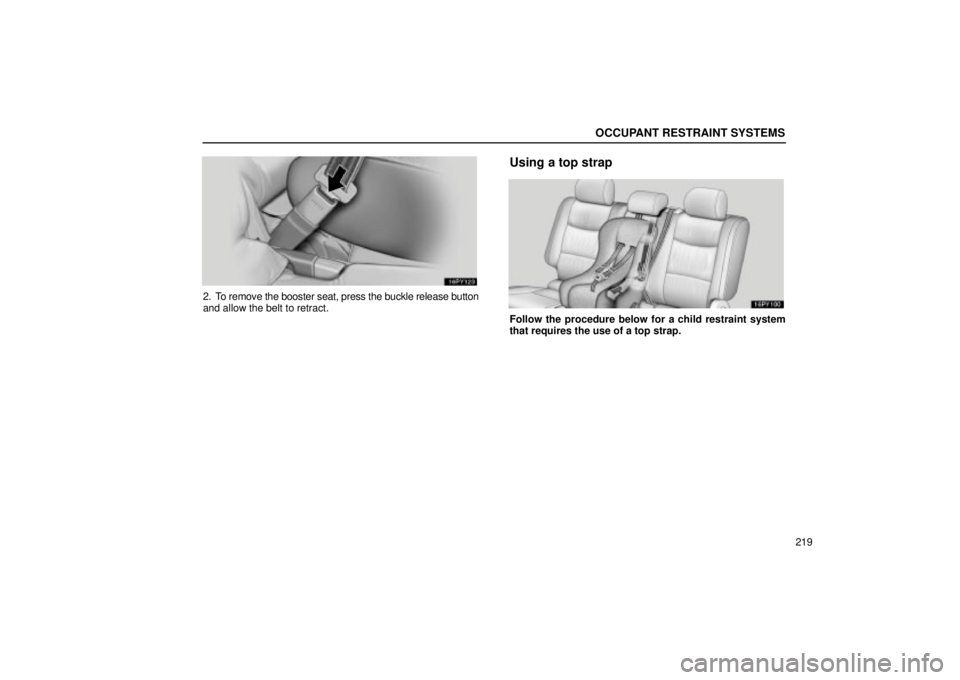

2. To remove the booster seat, press the buckle release button
and allow the belt to retract.
Using a top strap
Follow the procedure below for a child restraint system
that requires the use of a top strap.

OCCUPANT RESTRAINT SYSTEMS
221
3. Fix the child restraint system with the seat belt.
4. Latch the hook onto the anchor bracket and tighten the
top strap.
For instructions to install the child restraint system, see ªChild
restraint systemº on page 202.
CAUTION
Make sure the top strap is securely latched, and check
that the child restraint system is securely by pushing
and pulling it in different directions. Follow all the
installation instructions provided by its manufacturer.
5. Replace the head restraint.
Be sure to close the cover when the anchor bracket is not in
use.

OCCUPANT RESTRAINT SYSTEMS
222
Installation with child restraint lower
anchorages
The lower anchorages for the child restraint system
interfaced with the FMVSS225 or CMVSS210.2
specification are installed in the second seat.
The anchorages are installed in the seat cushion of the right
side seating position and between the center and left side
seating position.
Child restraint system interfaced with the FMVSS213 or
CMVSS213 specification can be fixed with these anchorages.
In this case, it is not necessary to fix the child restraint system
with a seat belt on the vehicle.
11st look position
25th look position
CHILD RESTRAINT SYSTEM INSTALLATION
1. Fold down the seatback. Make sure the rear seat legs
are relocked into place (folding down the seatback will
disengage them) by pushing downward on the back of the
seat. Adjust the seatback to the 1st lock position (most
upright position) and then to the 5th lock position.
Make sure the seat and seatback is locked securely.

OCCUPANT RESTRAINT SYSTEMS
2242. Take off the cover on the seat cushion.
3. Widen the slits of the seat cushion a little and confirm
the position of the lower anchorages near the buttons on
the seatback.
4. Type A Ð Latch the hooks of lower straps onto the
anchorages and tighten the lower straps.
4. Type B Ð Latch the buckles onto the anchorages.
For owners in Canada Ð
The symbol on a child restraint
system indicates the presence of a lower connector system.
If your child restraint system has a top strap, it should be
anchored. (For the installation of the top strap, see ªUsing a top
strapº on page 219.)
For installation details, refer to the instruction manual equipped
with each product.
CAUTION
 When using the lower anchorages for the child
restraint system, be sure that there are no irregular
objects around the anchorages or that the seat belt is
not caught.
 Push and pull the child restraint system in different
directions to be sure it is secure. Follow all the
installation instructions provided by its
manufacturer.
 Do not install a child restraint system on the second
seat if it interferes with the lock mechanism of the
front seats. This can cause death or serious injury to
the child and front passenger in case of sudden
braking or a collision.

OCCUPANT RESTRAINT SYSTEMS
225
When using the left side lower anchorages for the
child restraint system, do not sit in the center seat.
The performance of the center seat belt cannot be
brought out sufficiently because the belt may be
high±positioned or the seat belt may be loose±fitting,
posing the risk of serious injury in the case of
collision.
DRIVING POSITION MEMORY
SYSTEM
A microcomputer will memorize the position of the driver's
seat, and the positions of the tilt and telescopic steering, and
outside rear view mirrors. Two dif ferent driving position profiles
can be entered into the computer's memory.
Recording the driving position in the computer's memory can
only be done when the ignition key is in the ªONº position and
the selector lever is in the ªPº position.
Setting the driving position
1. Adjust the driver's seat, tilt and telescopic steering and
outside rear view mirrors to the desired position.
2. While pushing the ªSETº button, push button ª1º or ª2º
until the signal beeps.
