STARTING AND DRIVING
457
LIMITED±SLIP DIFFERENTIAL
Your Lexus is equipped with a limited±slip center differential
(transfer).
If one wheel Ð either front or rear Ð begins to spin, the transfer
(limited±slip center differential) is designed to aid traction by
automatically transmitting driving force to the wheels on the
other drive axle. It transmits driving force to the front wheels
if a rear wheel spins, and to the rear wheels if a front wheel
spins.
CAUTION
Do not start or run the engine while your vehicle is
supported by a jack. The vehicle could be driven off the
jack and could pose a danger or result in serious injury.
NOTICE
Use only a spare tire of the same size, construction and
load capacity as the original tires on your Lexusbecause damage to the limited±slip differential couldpossibly occur with another tire type.

DRIVING TIPS
483

Keep your vehicle tuned±up and in top shape. A dirty air
cleaner, improper valve clearance, dirty plugs, dirty oil and
grease, brakes not adjusted, etc. all lower engine
performance and contribute to poor fuel economy. For
longer life of all parts and lower operating costs, keep all
maintenance work on schedule, and if you often drive under
severe conditions, see that your vehicle receives more
frequent maintenance. (For scheduled maintenance
information, please refer to the ªOwner's Manual
Supplement/Scheduled Maintenanceº.)
CAUTION
Never turn off the engine to coast down hills. Your
power steering and brake booster will not function
without the engine running. Also, the emission control
system operates properly only when the engine is
running.
VEHICLE LOAD LIMITS
Vehicle load limits include total load capacity, seating
capacity, towing capacity and cargo capacity. Follow
the load limits shown below. Total load capacity and
seating capacity are also described on the tire and
loading information label. For location of the tire and
loading information label, see ªChecking tire inflation
pressureº on page 574.
Total load capacity:
With third seats 544 kg (1200 lb.)
Without third seats 454 kg (1000 lb.)
Total load capacity means combined weight of
occupants, cargo and luggage. Tongue load is
included when trailer towing.
Seating capacity: With third seats Total 8 (Front 2, Rear 6)
Without third seats Total 5 (Front 2, Rear 3)

DRIVING TIPS
484
Seating capacity means the maximum number of
occupants whose estimated weight is 68 kg (150 lb.)
per person. Depending on the weight of each person,
the seating capacity given may exceed the total load
capacity.
NOTICE
Even if the number of occupants are within theseating capacity, do not exceed the total load
capacity.
Towing capacity: 2948 kg (6500 lb.)
Towing capacity means the maximum gross trailer
weight (trailer weight plus its cargo weight) that your
vehicle is able to tow. Cargo capacity
Cargo capacity may increase or decrease depending
on the size (weight) and the number of occupants.
For details, see ªCapacity and distributionº that
follows.
CAUTION
Do not apply the load more than each load limit.
That may cause not only damage to the tires,
but also deterioration to the steering ability and
braking ability, which may cause an accident.

DRIVING TIPS
486
Capacity and distribution
Cargo capacity depends on the total weight of the
occupants.
(Cargo capacity) = (Total load capacity) ± (Total weight
of occupants)
Steps for determining correct load limit
1. Locate the statement ªThe combined weight of
occupants and cargo should never exceed XXX
poundsº on your vehicle's placard.
2. Determine the combined weight of the driver and
passengers that will be riding in your vehicle.
3. Subtract the combined weight of the driver and
passengers from XXX kilograms or XXX pounds.
4. The resulting figure equals the available amount of
cargo and luggage load capacity. For example, if the
ªXXXº amount equals 1400 lbs. and there will be five
150 lb. passengers in your vehicle, the amount of
available cargo and luggage load capacity is 650 lbs.
(1400 ± 750 (5 x 150) = 650 lbs).
5. Determine the combined weight of luggage and
cargo being loaded on the vehicle. That weight may
not safely exceed the available cargo and luggage
load capacity calculated in Step 4.6. If your vehicle will be towing a trailer, load from your
trailer will be transferred to your vehicle. Consult this
manual to determine how this reduces the available
cargo and luggage load capacity of your vehicle.
For details about trailer towing, see page 470.

DRIVING TIPS
487
Example on your vehicle

1Cargo capacity
2Total load capacity
In case that 2 people with the combined weight of
166 kg (366 lb.) are riding in your vehicle, the
available amount of cargo and luggage load capacity
will be as follows:
With third seatsTotal load capacity: 544 kg (1200 lb.)
544 kg ± 166 kg = 378 kg.
(1200 lb. ± 366 lb. = 834 lb.)
Without third seats Total load capacity: 454 kg (1000 lb.)
454 kg ± 166 kg = 288 kg.
(1000 lb. ± 366 lb. = 634 lb.) From this condition, if 3 more passengers with the
combined weight of 176 kg (388 lb.) get on, the
available cargo and luggage load will be reduced as
follows:
With third seats
378 kg ± 176 kg = 202 kg.
(834 lb. ± 388 lb. = 446 lb.)
Without third seats 288 kg ± 176 kg = 112 kg.
(634 lb. ± 388 lb. = 246 lb.)
As shown in the above example, if the number of
occupants increases, the cargo and luggage load
equaling the combined weight of occupants who got
on later must be reduced. In other words, if the
increase in the number of occupants causes the
excess of the total load capacity (combined weight
of occupants plus cargo and luggage load), you have
to reduce the cargo and luggage on your vehicle.
For details about total load capacity, see ªVehicle load
limitsº on page 483.

DRIVING TIPS
488

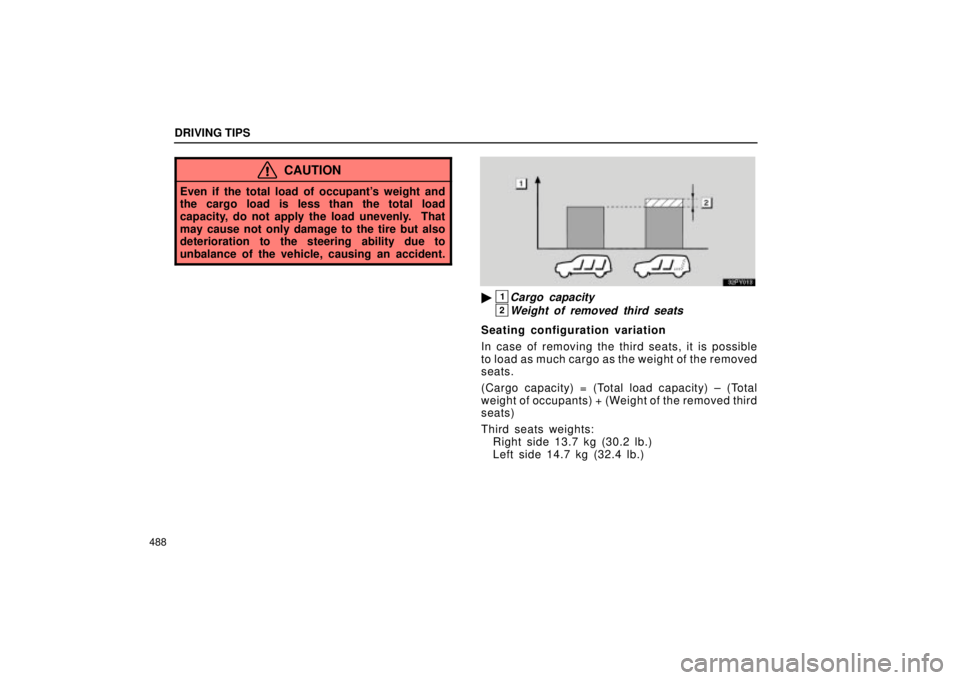

CAUTION
Even if the total load of occupant's weight and
the cargo load is less than the total load
capacity, do not apply the load unevenly. That
may cause not only damage to the tire but also
deterioration to the steering ability due to
unbalance of the vehicle, causing an accident.

1Cargo capacity
2Weight of removed third seats
Seating configuration variation
In case of removing the third seats, it is possible
to load as much cargo as the weight of the removed
seats.
(Cargo capacity) = (Total load capacity) ± (Total
weight of occupants) + (Weight of the removed third
seats)
Third seats weights: Right side 13.7 kg (30.2 lb.)
Left side 14.7 kg (32.4 lb.)

CHASSIS
574
CHECKING TIRE INFLATIONPRESSURE
63PY020

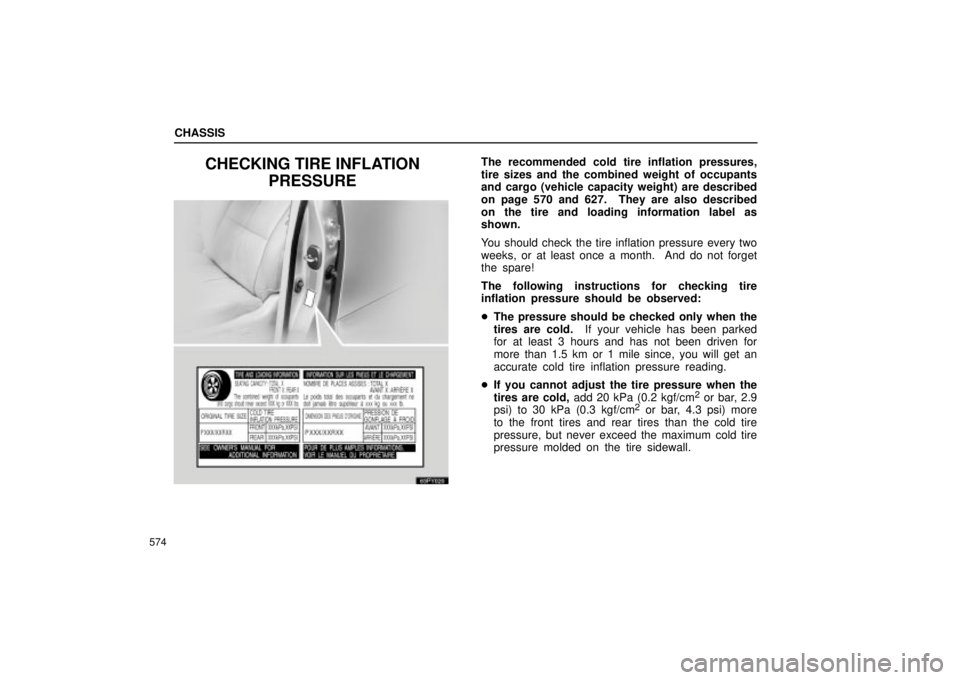

The recommended cold tire inflation pressures,
tire sizes and the combined weight of occupants
and cargo (vehicle capacity weight) are described
on page 570 and 627. They are also described
on the tire and loading information label as
shown.
You should check the tire inflation pressure every two
weeks, or at least once a month. And do not forget
the spare!
The following instructions for checking tire
inflation pressure should be observed:
The pressure should be checked only when the
tires are cold. If your vehicle has been parked
for at least 3 hours and has not been driven for
more than 1.5 km or 1 mile since, you will get an
accurate cold tire inflation pressure reading.
 If you cannot adjust the tire pressure when the
tires are cold, add 20 kPa (0.2 kgf/cm
2 or bar, 2.9
psi) to 30 kPa (0.3 kgf/cm2 or bar, 4.3 psi) more
to the front tires and rear tires than the cold tire
pressure, but never exceed the maximum cold tire
pressure molded on the tire sidewall.

CHASSIS
584
Glossary of tire terminology
Tire related termMeaning
Accessory weightthe combined weight (in excess of those standard items which may be rep\
laced)
of automatic transmission, power steering, power brakes, power windows, \
power
seats, radio, and heater, to the extent that these items are available as
factory±installed equipment (whether installed or not)
Cold tire inflation
pressuretire inflation pressure when the vehicle has been parked for at least 3 \
hours or
more, or it has not been driven more than 1.5 km or 1 mile under that co\
ndition
Curb weightthe weight of a motor vehicle with standard equipment including the maxi\
mum
capacity of fuel, oil, and coolant, and, if so equipped, air conditionin\
g and
additional weight optional engine
Intended outboard
sidewall(a) the sidewall that contains a whitewall, bears white lettering or bearsmanufacturer, brand, and/or model name molding that is higher or deeper
than the same molding on the other sidewall of the tire, or
(b) the outward facing sidewall of an asymmetrical tire that has a particula\
r side that must always face outward when mounted on a vehicle
Maximum inflation
pressurethe maximum cold inflation pressure to which a tire may be inflated and \
it is
shown on the sidewall of the tire
Maximum loaded
vehicle weightthe sum of Ð
(a) curb weight;
(b) accessory weight;
(c) vehicle capacity weight; and
(d) production options weight
Normal occupant
weight68 kg (150 lb.) times the number of occupants specified in the second \
column of
Table 1 that follows
