OCCUPANT RESTRAINT SYSTEM
11 8
CAUTION
Do not modify, remove, strike or open the seat belt
pretensioner assemblies, airbag sensor or surrounding
area or wiring. Failure to follow these instruction may
prevent the seat belt pretensioners from activating
correctly, cause sudden operation of the system or
disable the system, which could result in death or
serious injury. Consult your Lexus dealer about any
repairs and modifications.
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the seat belt
pretensioners in some cases.
 Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player
 Repairs on or near the seat belt retractor assemblies
 Modification of the suspension system
 Modification of the front end structure
 Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end
 Repair made on or near the front fenders, front end
structure or console
This indicator comes on when the ignition key is turned to
the “ON” position. It goes off after about 6 seconds. This
means the seat belt pretensioners are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
front passenger occupant classification system, “AIRBAG
OFF” indicator light, “AIRBAG ON” indicator light, front
passenger’s seat belt buckle switch, seat belt pretensioner
assemblies, inflators, warning light, interconnecting wiring and
power sources. (For details, see “Service reminder indicators
and warning buzzers” on page 57 for instructions.)

OCCUPANT RESTRAINT SYSTEM
128
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS front airbag
system in some cases.
Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player
 Modification of the suspension system
 Modification of the front end structure
 Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end
 Repairs made on or near the front fenders, front end
structure, console, steering column, steering wheel
or dashboard near the front passenger airbag
The indicator comes on when the ignition key is turned to
the “ON” position. It goes off after about 6 seconds. This
means the SRS front airbags are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
front passenger occupant classification system, “AIRBAG
OFF” indicator light, “AIRBAG ON” indicator light, front
passenger’s seat belt buckle switch, seat belt pretensioner
assemblies, inflators, warning light, interconnecting wiring and
power sources. (For details, see “Service reminder indicators
and warning buzzers” on page 57 for instructions.)

OCCUPANT RESTRAINT SYSTEM
138
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS side airbag
and curtain shield airbag system in some cases.
Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player
 Modification of the suspension system
 Modification of the structure of the passenger
compartment
 Repairs made on or near the console or front seat
The indicator comes on when the ignition key is turned to
the “ON” position. It goes off after about 6 seconds. This
means the SRS side airbags and curtain shield airbags are
operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
front passenger occupant classification system, “AIRBAG
OFF” indicator light, “AIRBAG ON” indicator light, front
passenger’s seat belt buckle switch, seat belt pretensioner
assemblies, inflators, warning light, interconnecting wiring and
power sources. (For details, see “Service reminder indicators
and warning buzzers” on page 57 for instructions.)

SECTION 2 – 2
197
AIR CONDITIONING AND AUDIO
Audio
Audio system (with single−CD player) 198
. . . . . . . . . . . . . . . . . . . . . .
Audio system (with six −CD changer) 222
. . . . . . . . . . . . . . . . . . . . . . .
For vehicles equipped with Navigation System,
please refer to the separate “Navigation System
Owner’s Manual”.

AUDIO
198
AUDIO SYSTEM (with singleCD player)

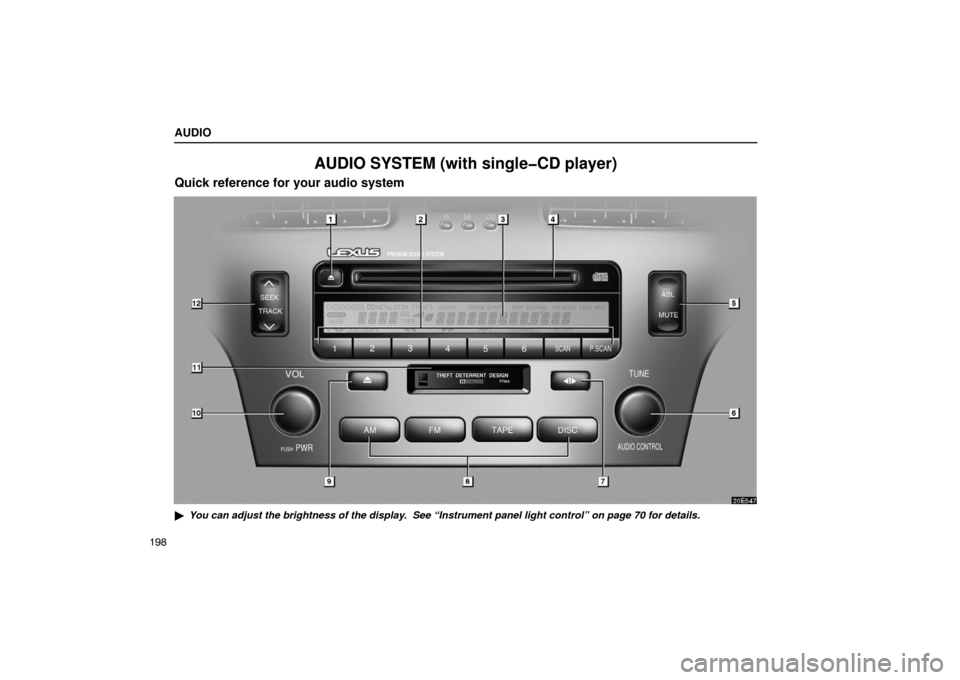

Quick reference for your audio system
You can adjust the brightness of the display. See “Instrument panel light control” on page 70 for details.

AUDIO
201
Push the “MUTE” button to decrease the volume
momentarily.
To return to its original volume, push the same button again.
When the audio system is turned on, the mute is always off
regardless of the previous mode.Push the “AM”, “FM”, “TAPE” or “DISC” button to turn on
that mode. The selected mode turns on directly.
Push these buttons if you want to switch from one mode to
another.
If the tape or CD is not set, the cassette player or CD player
does not turn on.
You can turn off each player by ejecting the cassette tape or
CD. If the audio system was previously off, then the entire
audio system will be turned off when you eject the cassette
tape or CD. If the another function was previously playing, it
will come on again.

AUDIO
203
(c) Automatic Sound Levelizer (ASL)
When the audio sound becomes difficult to be heard due to
road noise,
wind noise, etc. during driving, the system adjusts
to the optimum volume and tone quality according to the noise
level. While the Automatic Sound Levelizer is on, “ASL”
appears on the display.
(d) Your radio antennas
The wire antenna is mounted inside the rear window.
NOTICE
 When cleaning the inside of the rear window, be
careful not to scratch or damage the wire antenna.
 Putting a window tint (especially, conductive or
metallic type) on the rear window may affect the
reception of radio or mobile telephone. For the
installation of the window tint, consult with your
Lexus dealer.
(e) Your cassette player
When you insert a cassette, the exposed tape should face to
the right.
NOTICE
Do not oil any part of the cassette player, and do not
insert anything except a cassette tape into the slot.
(f) Your CD player
When you insert a CD, gently push it in with the label face up.
(The player will automatically eject a CD if the label face is
down.) The CD player will play from track 1 through the end
of the CD. Then it will play from track 1 again. On models with
the CD changer, next CD will be played from track 1.
NOTICE
 Never try to disassemble or oil any part of the CD
player. Do not insert anything other than CD’s into
the slot.
 Do not insert a CD upon another one.
The player is intended for use with 12 cm (4.7 in.) CD’s only.

AUDIO
206
To scan all the frequencies: Push the “SCAN” button briefly.
“SCAN” appears on the display. The radio will find the next
station up the band, stay there for a few seconds, and then
scan again. To select a station, push the “SCAN” button a
second time.
To scan the preset stations: Push the “P.SCAN” button.
“P.SCAN” appears on the display. The radio will tune in the
next preset station up the band, stay there for a few seconds,
and then move to the next preset station. To select a station,
push the “P.SCAN” button a second time.
Cassette tape player operation
(a) Playing a cassette tape
When you insert a cassette tape, the exposed tape should
face to the right.
The player will automatically start when you insert a cassette
tape. At this time, “TAPE” appears on the display.
If a metal or chrome equivalent cassette tape is put in the
cassette player, the player will automatically recognize it and
“METAL” appears on the display.
To stop or eject the cassette tape, push the “EJECT” button.
Autoreverse feature: After the cassette player reaches the
end of a tape, it automatically reverses and begins to play the
other side, regardless of whether the cassette was playing or
fast forwarding.
