MAINTENANCE
328Battery
Check the battery condition by the indicator color. See page
396 for additional information.
Brake fluid level
Make sure the brake fluid level is correct. See page 364 for
additional information.
Engine oil level
Check the level on the dipstick with the engine turned off and
the vehicle parked on a level spot. See page 351 for
additional
information.
Power steering fluid level
Check the level through the reservoir. The level should be in
the “HOT” or “COLD” range depending on the fluid
temperature. See page 365 for additional information.
Exhaust system
If you notice any change in the sound of the exhaust or smell
exhaust fumes, have the cause located and corrected
immediately. (See “Engine exhaust caution” on page 255.)
Vehicle interior
Items listed below should be checked regularly, e.g. while
performing periodic services, cleaning the vehicle, etc.
Lights
Make sure the headlight, stop lights, tail lights, turn signal
lights, and other lights are working. Check headlight aim.
Service reminder indicators and warning buzzers
Check that all service reminder indicators and warning buzzers
function properly.
Steering wheel
Check that it has the specified freeplay. Be alert for changes
in steering condition, such as hard steering, excessive freeplay
or strange noise.
Seats
Check that all front seat controls such as seat adjusters,
seatback recliner, etc. operate smoothly. Check that the head
restraints move up and down smoothly and that the locks hold
securely in any latched position.
Seat belts
Check that the seat belt system such as buckles, retractors
and anchors operate properly and smoothly. Make sure the
belt webbing is not cut, frayed, worn or damaged.

MAINTENANCE
329
Accelerator pedal
Check
the pedal for smooth operation and uneven pedal ef fort
or catching.
Brake pedal
Check the pedal for smooth operation and the proper
clearance and freeplay. Check the brake booster function.
Brakes
In a safe place, check that the brakes do not pull to one side
when applied.
Parking brake
Check that the pedal has the proper travel and that, on a safe
incline, your vehicle is held securely with only the parking brake
applied.
Automatic transmission “Park” mechanism
On a safe incline, check that your vehicle is held securely with
the selector lever in “P” position and all brakes released.
Vehicle exterior
Items listed below should be performed from time to time,
unless otherwise specified.
Wheel nuts
When checking the tires, make sure to check the nuts for
looseness. Tighten them if necessary.
Fluid leaks
Check underneath for leaking fuel, oil, water or other fluid after
the vehicle has been parked for a while. If you smell fuel fumes
or notice any leak, have the cause found and corrected
immediately.
Doors and engine hood
Check that all doors, including trunk lid, operate smoothly and
all latches lock securely. Make sure the engine hood
secondary latch secures the hood when the primary latch is
released.

MAINTENANCE
330
Tire inflation pressure
Check the tire inflation pressure with a gauge every
two weeks, or at least once a month and adjust as
shown on the tire and loading information label. See
page 366 for additional information.
Tire surface
Check the tires carefully for cuts, damage or
excessive wear. See page 381 for additional
information.
Tire rotation
Rotate the tires according to the maintenance
schedule. (For scheduled maintenance information,
please refer to the “Owner’s Manual
Supplement/Scheduled Maintenance”.) See page 380
for additional information.DOES YOUR VEHICLE NEEDREPAIRING?
Be on the alert for changes in performance and sounds, and
visual tip −offs that indicate service is needed. Some important
clues are:
 Engine missing, stumbling, or pinging
 Appreciable loss of power
 Strange engine noises
 A fluid leak under the vehicle (However, water dripping from
the air conditioning after use is normal.)
 Change in exhaust sound (This may indicate a dangerous
carbon monoxide leak. Drive with the windows open and
have the exhaust system checked immediately.)
 Flat−looking tires, excessive tire squeal when cornering,
uneven tire wear
 Vehicle pulls to one side when driving straight on a level
road
 Strange noises related to suspension movement
 Loss of brake effectiveness, spongy feeling brake pedal,
pedal almost touches floors, vehicle pulls to one side when
braking
 Engine coolant temperature continually higher than normal

SECTION 6 – 1
333
SERVICE PROCEDURES AND
SPECIFICATIONS
Introduction
Vehicle identification334
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Theft prevention labels 335
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Engine compartment overview 336
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Do−it−yourself service precautions 337
. . . . . . . . . . . . . . . . . . . . . . . . .
Parts and tools 338
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
Positioning the jack 340
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.

INTRODUCTION
334
VEHICLE IDENTIFICATION
The vehicle identification number (VIN) is the legal
identifier for your vehicle. This number is on the left top
of the instrument panel and can be seen through the
windshield from outside.
This is the primary identification number for your Lexus. It is
used in registering the ownership of your vehicle.
The vehicle identification number (VIN) is also on the
Certification Label.
The engine number is stamped on the engine block as
shown.

INTRODUCTION
336

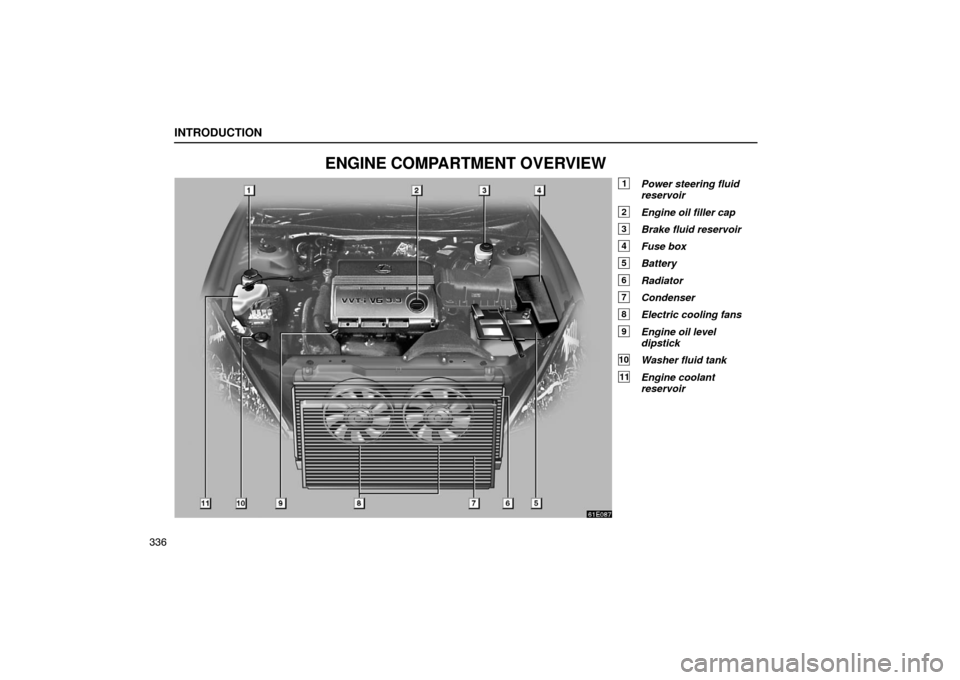

ENGINE COMPARTMENT OVERVIEW
1Power steering fluid
reservoir
2Engine oil filler cap
3Brake fluid reservoir
4Fuse box
5Battery
6Radiator
7Condenser
8Electric cooling fans
9Engine oil level
dipstick
10Washer fluid tank
11Engine coolant
reservoir

INTRODUCTION
337
DOITYOURSELF SERVICEPRECAUTIONS
If you perform maintenance yourself, be sure to follow the
correct procedure given in this Section.
You should be aware that improper or incomplete servicing
may result in operating problems.
Performing do −it−yourself maintenance during the warranty
period may affect your warranty coverage. Read the separate
Lexus Warranty statement for details and suggestions.
This Section gives instructions only for those items that are
relatively easy for an owner to perform. As explained in
Section 5, there are still a number of items that must be
performed by a qualified technician with special tools.
For information on tools and parts for do−it−yourself
maintenance, see “Parts and tools” on page 338.
Utmost care should be taken when working on your vehicle to
prevent accidental injury. Here are a few precautions that you
should be especially careful to observe:
CAUTION
 When the engine is running, keep hands, clothing,
and tools away from the moving fan and engine drive
belt. (Removing rings, watches, and ties is
advisable.)
 Right after driving, the engine compartment — the
engine, radiator, exhaust manifold and power
steering fluid reservoir, etc. — will be hot. So be
careful not to touch them. Oil and other fluids may
also be hot.
 Do not leave anything that may burn easily, such as
paper or rags, in the engine compartment.
 Do not smoke, cause sparks or allow open flames
around fuel or the battery. Their fumes are
flammable.
 Do not get under your vehicle with just the body jack
supporting it. Always use automotive jack stands or
other solid supports.
 Be sure that the ignition is off if you work near the
electric cooling fans or radiator grille. With the
ignition on, the electric cooling fans will
automatically start to run if the engine coolant
temperature is high and/or the air conditioning is on.

INTRODUCTION
338
Use eye protection whenever you work on or under
your vehicle where you may be exposed to flying or
falling material, fluid spray, etc.
 Be extremely cautious when working on the battery.
It contains poisonous and corrosive sulfuric acid.
NOTICE
Remember that battery and ignition cables carry high
currents or voltages. Be careful of accidentally
causing a short circuit.
 Before closing the engine hood, check to see that you
have not forgotten any tools, rags, etc.
 Do not drive with the air cleaner removed, or
excessive engine wear could result. Also backfiring
could cause a fire in the engine compartment.
 Do not overfill automatic transmission fluid, or the
transmission could be damaged.
 Be careful not to scratch the glass surface with the
wiper frame.
PARTS AND TOOLS
Here is a list of parts and tools you will need to perform
do−it−yourself maintenance. Remember all Lexus parts are
designed in metric sizes, so your tools must be metric.
Checking the engine oil level
Parts (if level is low):
“Toyota Genuine Motor Oil” or equivalent
See page 353 for details about engine oil selection.
Tools:
 Rag or paper towel
 Funnel (only for adding oil)
