2005 KIA Rio maintenance schedule

Suggestions for Economical
OperationYour vehicle’s fuel economy is mainly dependent on
your style of driving, how you drive, where you drive
and when you drive.
Each of these factors has an effect on how many miles
(kilometers) you can get from a gallon (liter) of fuel.
To operate your vehicle as economically as possible,
use the following driving suggestions to help save
money in both fuel and repairs:
 Avoid lengthy warm-up idling. Once the engine
is running smoothly, begin driving. Remember,
though, that on cold days, engine warm-up may take
a little longer.
 Save fuel by accelerating slowly after stopping.
 Keep the engine in tune and follow the
recommended periodic maintenance schedule.
This will increase the life of all parts and lower your
operating costs.
 Do not use the air conditioner unnecessarily.
 Slow down when driving on rough roads. For longer tire life and better fuel economy, always
keep the tires inflated to the recommended
pressures.
 Maintain a safe distance from other vehicles to
avoid sudden stops. This will reduce wear on brake
linings and pads and save fuel because extra fuel is
required to accelerate back to driving speed.
 Do not carry unnecessary weight in the vehicle.
 Do not rest your foot on the brake pedal while
driving. This can cause needless wear, possible
damage to the brakes, and poor fuel economy.
 Improper wheel alignment causes the tires to roll
at excessive angles, which results in faster tire wear.
It takes more power to overcome this improper
alignment, which wastes fuel.
 Open windows at high speeds can reduce fuel
economy.
 Crosswinds and headwinds reduce fuel economy. To
help offset some of this loss, slow down when
driving in these conditions.Driving Tips5-6
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 6

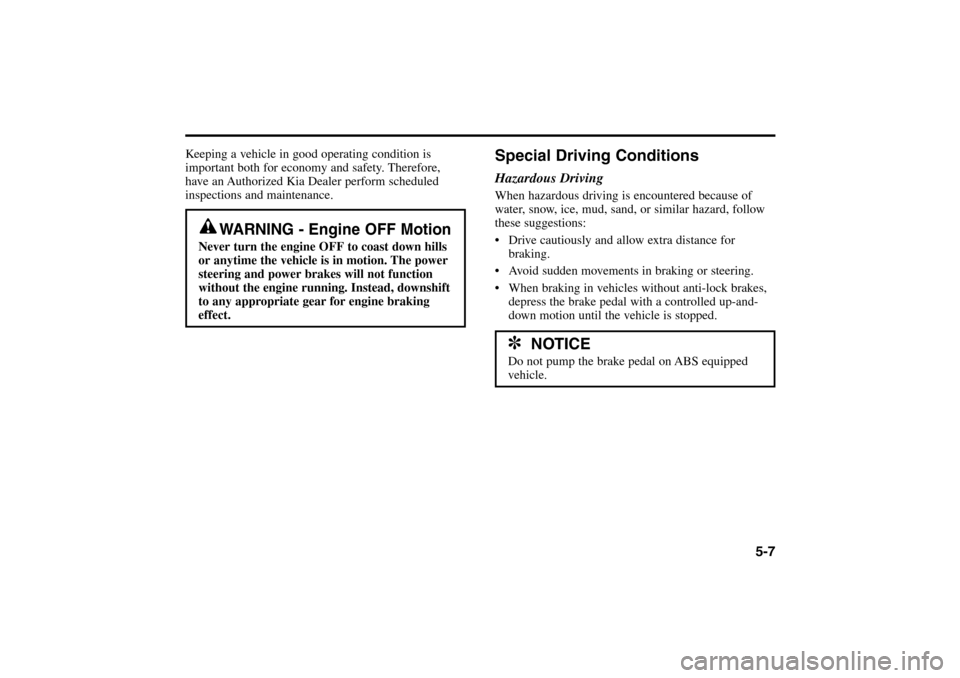

Keeping a vehicle in good operating condition is
important both for economy and safety. Therefore,
have an Authorized Kia Dealer perform scheduled
inspections and maintenance.
Special Driving ConditionsHazardous DrivingWhen hazardous driving is encountered because of
water, snow, ice, mud, sand, or similar hazard, follow
these suggestions:
 Drive cautiously and allow extra distance for
braking.
 Avoid sudden movements in braking or steering.
 When braking in vehicles without anti-lock brakes,
depress the brake pedal with a controlled up-and-
down motion until the vehicle is stopped.
5-7
WARNING - Engine OFF Motion
Never turn the engine OFF to coast down hills
or anytime the vehicle is in motion. The power
steering and power brakes will not function
without the engine running. Instead, downshift
to any appropriate gear for engine braking
effect.
✽
NOTICE
Do not pump the brake pedal on ABS equipped
vehicle.
RIO ENG CNA 5.qxd 7/29/05 5:07 PM Page 7

7-1
MAINTENANCEMaintenance Services . . . . . . . . . . . . . . . . . . . . . . . . .7-3
Maintenance Schedule . . . . . . . . . . . . . . . . . . . . . . . .7-5
Owner Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . .7-10
Engine Compartment . . . . . . . . . . . . . . . . . . . . . . . . .7-13
Engine Oil and Oil Filter . . . . . . . . . . . . . . . . . . . . . . .7-14
Engine Cooling System . . . . . . . . . . . . . . . . . . . . . . .7-16
Brakes and Clutch . . . . . . . . . . . . . . . . . . . . . . . . . . .7-20
Parking Brake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-21
Power Steering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-22
Automatic Transaxle . . . . . . . . . . . . . . . . . . . . . . . . . .7-23
Lubricants and Fluids . . . . . . . . . . . . . . . . . . . . . . . . .7-26
Air Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-27
Wiper Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-28
Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-31
Tires and Wheels . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-34
Bulb Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . .7-42
Lubricant Specifications . . . . . . . . . . . . . . . . . . . . . . .7-47
7
RIO ENG CNA 7-1.qxd 7/29/05 5:16 PM Page 1

Maintenance ServicesYou should exercise the utmost care to prevent damage
to your vehicle and/or injury to yourself whenever
performing any maintenance or inspection procedures.
Should you have any doubts concerning the inspection
or servicing of your vehicle, we strongly recommend
that you have an Authorized Kia Dealer perform this
work.
An Authorized Kia Dealer has factory-trained
technicians and genuine Kia parts to service your
vehicle properly. For expert advice and quality service,
see an Authorized Kia Dealer.
Inadequate, incomplete or insufficient servicing may
result in operational problems with your vehicle that
could lead to vehicle damage, an accident or personal
injury.
Owner’s ResponsibilityMaintenance Service and Record Retention are the
owner’s responsibility.
You should retain documents to show that proper
maintenance has been performed on your vehicle in
accordance with the scheduled maintenance service
charts shown on the following pages. You need this
information to be able to establish your compliance
with the servicing and maintenance requirements of
your Kia warranties.
Detailed warranty information is provided in your
Warranty and Consumer Information Manual. Repairs
and adjustments required as a result of improper
maintenance or a lack of required maintenance are not
covered.
We recommend that such maintenance be performed
by an Authorized Kia Dealer using genuine Kia parts.
7-3
RIO ENG CNA 7-1.qxd 7/29/05 5:16 PM Page 3

Scheduled Maintenance ServiceAfter 96 months or 192,000 km (60,000 miles)
continue to follow the prescribed maintenance
intervals.Maintenance7-4
RIO ENG CNA 7-1.qxd 7/29/05 5:16 PM Page 4

MAINTENANCE SCHEDULEEngine Control systemI: Inspect these items and their related parts. If necessary,
Check the engine oil and coolant levels every week.
R: Replace or change.
NOTE :
Check the engine oil and coolant levels every week.
7-5
(1) Refer to the lubricant and coolant specifications in the Owner’s Manual.
(2) More frequent maintenance is required if driving under dusty conditions.
Kilometers or Time in Months, Whichever Comes First
km 8 16 24 32 40 48 56 64 72 80 88 96 104 112 120 128Months 4 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64
Engine oil & engine oil filter RR RRRRRRRRRR RRRR
Drive belts (tension)III I
Cooling system hoses & connectionsIIII I
Engine coolant II IIIRIIIIIRIIII
Fuel filterR
Fuel tank cap, lines and hosesII
Fuel tank air filterIRIR I
Air cleaner element II IIIRIIIIIRIIII
MAINTENANCE
INTERVALS
MAINTENANCE
ITEM
x 1,000
(1)
(1)
(2)
RIO ENG CNA 7-1.qxd 7/29/05 5:16 PM Page 5

Maintenance7-10Owner MaintenanceOwner Maintenance ScheduleA qualified service technician should perform these
vehicle inspections at the indicated intervals to ensure
safe and dependable operation.
Bring any problem to the attention of an Authorized
Kia Dealer as soon as possible.
When refueling, check:
 Engine oil level
 Engine coolant level
 Brake and clutch fluid level
 Washer fluid level
CAUTION
Be careful when checking your engine coolant
level. The engine compartment will be hot and
you could be burned.
At least monthly:
 Tire inflation pressures (cold)
 Coolant level in reservoir (cold engine)
Every 6 months, check:
 Power steering fluid level
 Automatic transaxle fluid level
You can do the following scheduled maintenance items
if you have some mechanical ability, a few basic tools
and if you closely follow the directions in this manual.
RIO ENG CNA 7-1.qxd 7/29/05 5:16 PM Page 10

Changing the Engine Oil and FilterChange engine oil and filter according to the
Scheduled Maintenance earlier in this section.
1. Warm the engine up for a few minutes and then
turn it off. Remove the oil filler cap.
2. Drain the oil into a suitable container after
removing the oil filler cap and drain plug.
3. Remove the engine oil filter with an oil filter
wrench.4. Use a clean rag to clean the oil filter mounting
surface on the engine.
5. Apply a small amount of engine oil to the new oil
filter O-ring seal.
6. Install the oil filter and tighten it. (Refer to
the oil filter caution label for tightening
instructions.)
7. Replace the drain plug tightly after the oil has
thoroughly drained.
8. Refill the engine with new oil to the F mark on the
dipstick. Do not overfill.
7-15
WARNING - Engine Oil
 Continuous contact with USED engine oil
has caused skin cancer in laboratory mice.
Protect your skin by washing with soap and
water.
 Keep all engine oil out of the reach of
children.
CAUTION
Both the oil and engine are hot. Do not burn
yourself.
✻ ✻
NOTICE
When installing the replacement oil filter, do not
allow the oil filter gasket to remain on the oil
filter mounting surface. This will cause oil
leakage and engine damage. Remove the old
gasket completely so that a new gasket will
properly seat and seal.
RIO ENG CNA 7-1.qxd 7/29/05 5:16 PM Page 15
