1- 55
CONTROLS AND EQUIPMENT
B710A01Y-EAT Heating and Cooling Control (Not all models)
1. Side Ventilator
2. Centre Ventilator
3. Windscreen defrost Ventilator B710B01A-DAT
Centre Ventilator The centre ventilators are located in the middle
of the dashboard.
To change the direction of the air flow, turn
the control knob on the middle of the ventilator as desired. B710C01Y-AAT Side VentilatorThe side vent knobs control the amount of outside air entering the vehicle through theside vents. These vents can also be closed,so no air enters through the side vents. Tochange the direction of the air flow, turn thecontrol knobs as desired.
1 1
2
3 B710A01S-AAT VENTILATION To operate the ventilation system:
o Set the air intake control to "Fresh" mode
(
).
o To direct all intake air to the dashboard vents, set the air flow control to "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
HFC002-D

1- 57
CONTROLS AND EQUIPMENT
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents.
NOTE:
o It should be noted that prolonged op- eration of the heating in "Recirculation" mode will increase fogging of thewindscreen and side windows and theair within the passenger compartmentwill become stale. In addition, prolongeduse of the air conditioning with the"Recirculation" mode selected may re-sult in the air within the passenger com-partment becoming excessively dry.
o When the ignition switch is turned "ON" the air intake control will change to "
"
mode (regardless of switch position). This is normal operation.
B670D05A-AAT
Air Flow Control
HFC2068
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, orwindscreen. Five symbols are used to repre-sent Face, Bi-Level, Floor, Floor-Defrost andDefrost air position.
HFC2046-D
HFC2047-D
HFC2048-D
HFC2049-D
Bi-Level
Air is discharged through the face vents and
the floor vents. This makes it possible to have cooler air from the dashboard vents and warmerair from the floor outlets at the same time. Floor-Level
Air is discharged through the floor vents.
Floor-Defrost Level
Air is discharged through the windscreen de-frost vents and the floor vents. If the "Floor-Defrost" mode is selected, the A/C
will turn on automatically and "Fresh" mode willbe activated.

CONTROLS AND EQUIPMENT
1- 58
Defrost-Level
Air is discharged through the windscreen de- frost vents. If the "Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode willbe activated.
HFC2050-D
B700A01S-AAT BI-LEVEL HEATING
This is used to turn the heating system on and
off and to select the degree of heating de- sired. B690A02S-AAT HEATING CONTROLS
For normal heating operation, set the air in-
take control to the "Fresh" position and the air flow control to "Floor".
For faster heating, the air intake control should
be in the "Recirculation" position.
If the windows fog up, move the air flow
control to the "Def" (defroster) position. (TheA/C will turn on automatically and "Fresh"mode will be activated.)
For maximum heat, move the temperature
control to "Warm". HFC2066B670E01A-AAT Temperature Control
Your Hyundai is equipped with bi-level heating controls. This makes it possible to have coolerair from the dashboard vents and warmer airfrom the floor outlets at the same time. To usethis feature:
o Set the air intake control to "Fresh" mode(
).
o Set the air flow control at the "Bi-Level" position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
Cool
Warm
HFC2111

1FEATURES OF YOUR HYUNDAI
82HEATING AND COOLING CONTROL

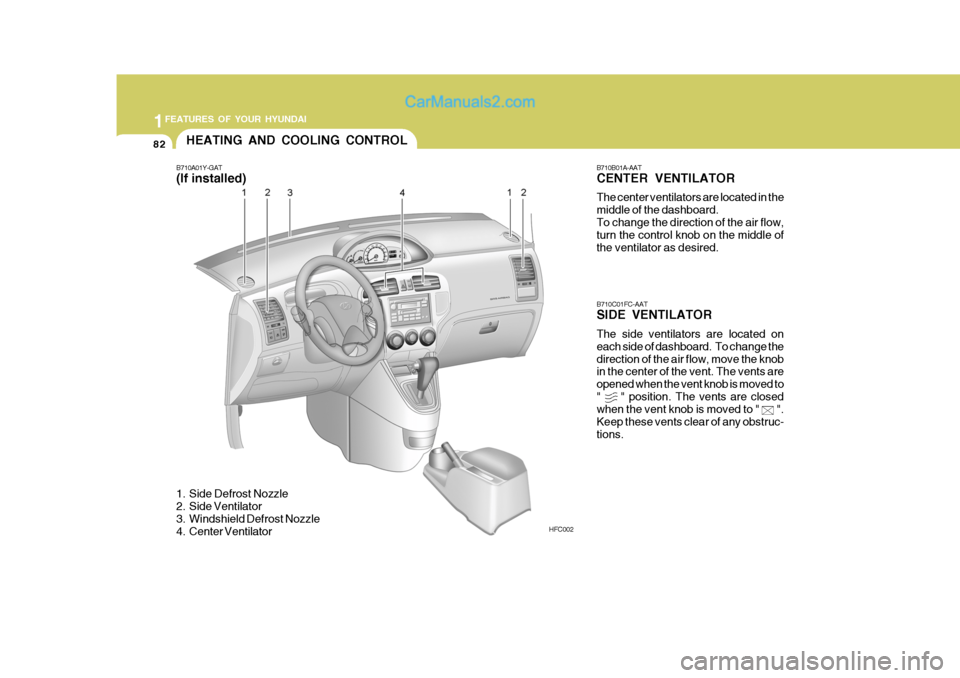

B710A01Y-GAT (If installed)
HFC002B710B01A-AATCENTER VENTILATOR The center ventilators are located in the middle of the dashboard.To change the direction of the air flow, turn the control knob on the middle of the ventilator as desired.
1. Side Defrost Nozzle
2. Side Ventilator
3. Windshield Defrost Nozzle
4. Center Ventilator B710C01FC-AAT SIDE VENTILATOR The side ventilators are located on each side of dashboard. To change thedirection of the air flow, move the knob in the center of the vent. The vents are opened when the vent knob is moved to" " position. The vents are closed when the vent knob is moved to " ". Keep these vents clear of any obstruc-tions.

1FEATURES OF YOUR HYUNDAI
84
HFC2068
B670D05A-AAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, or windshield. Five symbols are used to represent Face, Bi-Level,Floor, Floor-Defrost and Defrost air po- sition.Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents. HFC2046
HFC2047
Bi-Level
Air is discharged through the face vents and the floor vents. This makes it pos- sible to have cooler air from the dash- board vents and warmer air from thefloor outlets at the same time.
