FEATURES OF YOUR HYUNDAI
75
o When the distance to empty is less than 50 km (30 miles), the distance to empty digits (----) will blink untilmore fuel is added.
NOTE:
o The distance to empty can differ from the actual tripmeter accord- ing to driving conditions.
o The distance to empty can vary
according to the driving condi-tions, driving pattern or vehicle speed.
B400B07TG
Conventional TypeB400B08TG
3. Average Speed
o This mode indicates the average
speed from the starting of the engine to the ignition key "OFF".
o Average speed is reset to zero if the battery is disconnected.
o To reset the average speed to zero (-
--), press the RESET switch for more than 1 second.
o When you drive 0.5 km (0.5 mile)
and less after resetting, the averagespeed will be displayed to '---'.
Conventional Type Supervision Type
Supervision Type
2. Distance to Empty
o This mode indicates the estimated
distance to empty from the current fuel level in the fuel tank.
o The trip computer may not register additional fuel if less than 6 liters(1.36 gallons) of fuel are added to thevehicle.
o When the battery has been rein-
stalled after being discharged or dis-connected, drive more than 64km (40 miles) for an accurate distance to empty.B400B06TG
Conventional Type Supervision Type

1FEATURES OF YOUR HYUNDAI
76
o To reset the average fuel consump-tion to zero (--), press the RESET switch for more than 1 second.
o When you drive 0.5 km (0.5 mile) and
less after resetting, the average fuelconsumption will be displayed to '--'.
5. Average Fuel Consumption
B400B10TG
o This mode calculates the average fuel consumption from the total fuel used and the distance since the last average consumption reset.
o The total fuel used is calculated from the fuel consumption input.
o Average fuel consumption is reset to
zero (--) if the battery is discon- nected.
Conventional Type Supervision Type
B400B09TG
4. Drive Time
o This mode indicates the total time
from the starting of the engine to the ignition key "OFF" after resetting. When the RESET switch is pushed,it will be initialized to '0:00'.
o The drive time will be initialized to
'0:00' after being displayed to '99:59'.
Conventional Type Supervision Type

1
FEATURES OF YOUR HYUNDAI
85CIGARETTE LIGHTER
B420A02A-AAT For the cigarette lighter to work, the key must be in the "ACC" position or the "ON" position.To use the cigarette lighter, push it all the way into its socket. When the element has heated, the lighter willpop out to the "ready" position. Do not hold the cigarette lighter pressed in. This can damage the heating ele-ment and create a fire hazard. If it is necessary to replace the ciga- rette lighter, use only a genuine Hyundaireplacement or its approved equiva- lent. B420A01TGINSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)
B410A01A-AAT The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob. B410A01TG
B410A01TG-R
Left-Hand Drive type
Right-Hand Drive type
DIGITAL CLOCK
B400A01TG-GAT There are three control buttons for the digital clock. Their functions are: H - Push "H" to advance the hour indi-
cated. M - Push "M" to advance the minute
indicated. R - Push "R" to reset minutes to ":00"
to facilitate resetting the clock to the correct time. When this is done: Pressing "R" between 11 : 01 and 11 :29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 11 : 59 changes the readout to 12 : 00.Push the "R" button for 4 seconds to display a 12 or 24-hour clock. B400A01TG

1FEATURES OF YOUR HYUNDAI
112
2. TAPE mode
o Pressing the SEEK ( ) will play thebeginning of the next music seg- ment.
o Pressing the SEEK ( ) will start
replay at the beginning of the musicjust listened to.
3. CD (Compact Disc)/CDC (Compact Disc Changer) mode
o Press the SEEK ( ) once to skip forward to the beginning of the next track.
o Press the SEEK ( ) once to skip back to the beginning of the track.
MUTE Switch
o Press the MUTE switch to disap- pear the sound.
o Press the MUTE switch again to
reproduce the sound.
VOL ( / ) Switch
o Press the VOL ( ) switch to in- crease volume.
o Press the VOL ( ) switch to de-
cease volume.
RADIO (FM1 FM2 AM) TAPE CD CDC
SEEK ( / ) Switch Press the SEEK switch 1 sec. or more.
1. RADIO mode When the SEEK ( ) is pressed, the unit will automatically tune to the next higher frequency and when the SEEK ( ) switch is pressed, it will automati-cally tune to the next lower frequency.

NOTE: Do not operate audio remote con- trol switches simultaneously. MODE Switch Press the MODE switch to select Ra- dio, Tape, CD (Compact Disc) andCDC (Compact Disc Changer). Each press of the switch changes the display as follows:
AUDIO REMOTE CONTROL SWITCH
B610A01L-GAT (If Installed) The steering wheel audio remote con- trol switch is installed to promote safe driving. B610A02TG
Without Cruise Control System
B610A03TG
With Cruise Control System

1
FEATURES OF YOUR HYUNDAI

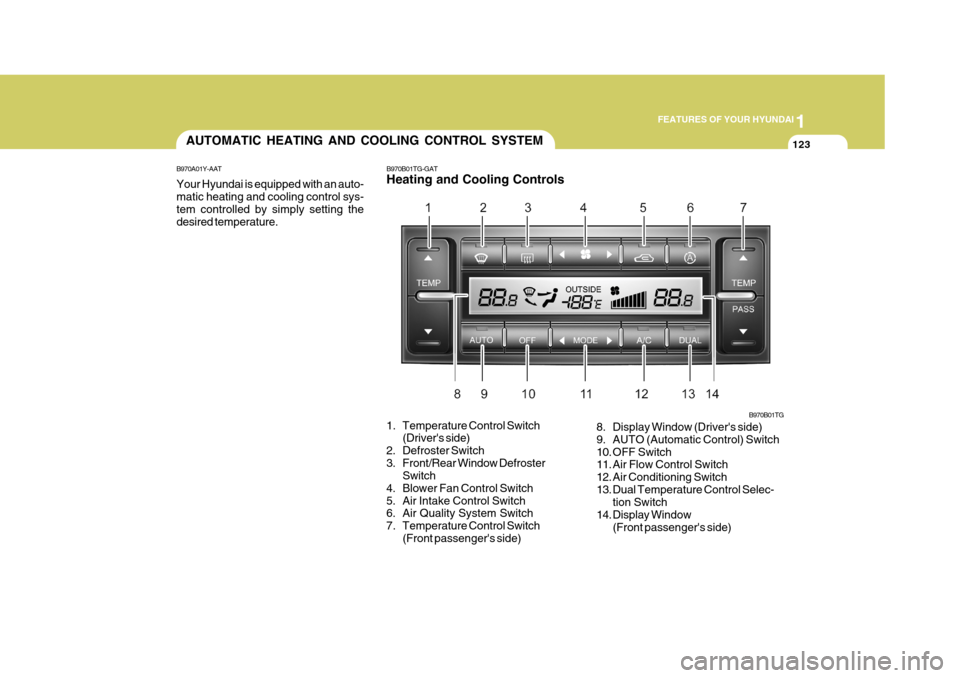

123AUTOMATIC HEATING AND COOLING CONTROL SYSTEM
B970A01Y-AAT Your Hyundai is equipped with an auto- matic heating and cooling control sys- tem controlled by simply setting the desired temperature. B970B01TG-GAT Heating and Cooling Controls
1. Temperature Control Switch (Driver's side)
2. Defroster Switch
3. Front/Rear Window Defroster Switch
4. Blower Fan Control Switch
5. Air Intake Control Switch
6. Air Quality System Switch
7. Temperature Control Switch (Front passenger's side) B970B01TG
8. Display Window (Driver's side)
9. AUTO (Automatic Control) Switch
10. OFF Switch
11. Air Flow Control Switch
12. Air Conditioning Switch
13. Dual Temperature Control Selec- tion Switch
14. Display Window
(Front passenger's side)

1FEATURES OF YOUR HYUNDAI
124
2. Push the "TEMP" button to set the
desired temperature. The temperature will increase to the maximum 32 °C(90 °F) by pushing on the
button. Each push of the
button will cause the temperature to increase by 0.5 °C(1 °F). The temperature will decrease to theminimum 17 °C(62 °F) by pushing on the
button. Each push of the button
will cause the temperature to de- crease by 0.5 °C(1 °F).
NOTE: If the battery has been discharged or disconnected, the temperature mode will reset to 23 °C (73 °F).
The FATC (Full Automatic Tempera- ture Control) system automatically con- trols the heating and cooling by doing as follows:
1. Push the "AUTO" switch. The indi-
cator light will illuminate confirming that the Face, Floor and/or Bi-Level modes as well as the blower speed and, air conditioner will be controlledautomatically. Photo sensor
HTG2140
B970C01TG-GAT Automatic Operation
NOTE: Never place things over the sensor which is located on the instrumentpanel to ensure better control of the heating and cooling system.
B970C01TG
HTG2095-1
This is a normal condition and you can adjust the temperature modefrom Centigrade to Farenheit as fol- lows; Press the DUAL button 3 seconds
or more with the MODE button held
down. The display shows that theunit of temperature is adjusted toCentigrade or Fahrenheit. ( C

F or F


C)

1
FEATURES OF YOUR HYUNDAI
137
CLASSIC POPS ROCK JAZZ DEFEAT
M445B01TG-GAT
1. POWER ON-OFF Control Knob
o The radio unit may be operated when
the ignition key is in the "ACC" or "ON" position. Press the knob to switch the power on. The display shows the radio frequency in theradio mode or CD/MP3 track in either the CD/MP3 mode. To switch the power off, press the knob again.
o Push the FM/AM or CD/MP3 to turn on that function without pushingPower ON-OFF control knob.
VOLUME Control Rotate the knob clockwise to increase the volume and turn the knob counter- clockwise to reduce the volume.
2. BAND Selector Pressing the band selector FM/AM changes the AM (MW, LW), FM1 and FM2 bands.The mode selected is shown on the display. 3. TUNE (Manual) Select Knob Rotate the knob clockwise to increase the frequency and turn the knob coun-terclockwise to reduce the frequency.
4. SEEK Select Button (Automatic Channel Selection) Press the SEEK select button. When the (
) side is pressed, the unit will
automatically tune to the next higher frequency and when the (
) side is
pressed, it will automatically tune to the next lower frequency.
5. Best Station Memory (BSM)
Button
When the BSM button is pressed the six channels from the highest field in- tensity are selected next and stored in memory. The stations selected arestored in the sequence frequency from the first preset key. 6. EQ Button Press the EQ button to select the CLAS- SIC, POPS, ROCK, JAZZ and DE-FEAT MODE for the desired tone qual-
ity. Each press of the button changes the display as follows;
7. Adjustment Mode
Select (A.MODE) Button
Pressing the A.MODE button changes the BASS, MIDDLE, TREBLE, FADER
and BALANCE mode. The mode se-
lected is shown on the display. Afterselecting the each mode, rotate the VOLUME control knob clockwise or counterclockwise. BASS Control To increase the bass, rotate the knob clockwise, while to decrease the bass, rotate the knob counterclockwise.

1
FEATURES OF YOUR HYUNDAI
141
6. BOOKMARK (MARK) Button When the CD player unit is operating, the desired track on the disc can bebookmarked by using the MARK but- ton.
o Press the MARK button to bookmark the desired track for more than one second. This will display the "
"
symbol on the LCD for five seconds with sequential number. To play the
bookmarked tracks, press the MARK button within a second.
o Press the MARK button to erase the
bookmarked tracks for more than
one second. This will erase the book- mark with beep sound.
7. SCROLL When the CD is playing, you can scroll the long file name more than 16 charac-
ters (including the space and the file extension) by pressing the SCROLL
button. Press the SCROLL button forone second or more, and each16 char-
acter of file name is displayed in English only on the LCD at intervals of3 seconds. 8. EQUALIZER (EQ) Button Press the EQ button to select the CLAS-
SIC, POPS, ROCK, JAZZ and DE-FEAT MODE for the desired tone qual- ity. Each press of the button changes the display as follows;
o To playback the first 10 seconds of
each track in the selected folder,press the button within one second. If it pressed for more than one sec- ond, it will playback the first secondsof each track in the all folder with beep sound. Press the button again within one second when reached thedesired track, the searching function is released and the track you desired will be played in the selected folder.(MP3 CD only)
11. FILE SEARCH Knob (TUNE Select Knob)
o You can skip the track by turning the FILE SEARCH knob to counterclock- wise or clockwise.
After selecting the desired track, press the FILE SEARCH knob to playback the track. If you do not press the FILE SEARCH knob within 5 seconds, thefile searching function will be released.
12. CHANGE DIRECTORY(DIR)
Button
o You can move through the folder by pushing the DIR button to up (
)
and down (
).
CLASSIC
POPS ROCK JAZZ DEFEAT
9. CD EJECT Button When the (
)button is pressed with a
CD loaded, the CD will eject. Forcing to eject : To force to eject a CD, press thisbutton for more than 3 seconds. (Do this only when a CD is jammed and you can not eject it in the normal way - e.g.)in case that you have inserted 2 CDs by mistake) 10. SCAN
o To playback the first 10 seconds of each track, press the button with the beep sound for more than one sec-ond. Press the button again when reached the desired track.
