2005 HONDA PILOT roof

Your Vehicle at a Glance
Your Vehicle at a Glance
5
HEADLIGHTS/TURN SIGNALS
LIGHT CONTROL
SWITCH
REMOTE AUDIO
CONTROLS STEERING WHEEL
ADJUSTMENT CRUISE CONTROL
WINDSHIELD WIPERS/
WASHERS REAR WINDOW
DEFOGGER VTM-4
LOCK
HORN
CRUISE
CONTROL
MASTER
SWITCH HAZARD WARNING
BUTTON
VSA OFF
SWITCH PASSENGER AIRBAG
OFF INDICATOR
(P.
71) (P.73)
(P.164 )
(P. 31)
(P. 73)
(P. 70)
(P.
138)
(P. 74)
(P. 122)
(P.
138)
(P.
172)
(P.
97)
(P.
92)
MOONROOF BUTTONS

µ
During a crash, the
belt could press deep into the child
and cause serious or fatal injuries.
If they do, they
could be very seriously injured in a
crash. If you are not wearing a
seat belt in crash, you could be
thrown f orward and crush the
child against the dashboard or a
seat-back. If you are wearing a
seat belt, the child can be torn
from your arms and be seriously
hurt or killed. This can prevent children
f rom accidentally f alling out (see
page ).
Leaving children without
adult supervision is illegal in most
states and Canadian provinces,
and can be very hazardous.
For example, infants and small
childrenleftinavehicleonahot
day can die f rom heatstroke. A
child lef t alone with the key in the
ignition can accidentally set the
vehicle in motion, possibly injuring
themselves or others. Children who play in vehicles can
accidentally get trapped inside.
Teach your children not to play in
or around vehicles.
Even very young
children learn how to unlock
vehicle doors, turn on the ignition
switch, and open the trunk, which
can lead to accidental injury or
death.
79
Additional Saf ety Precautions
Protecting Children General Guidelines
Never put a seat belt over yourself
and a child.
Never let two children use thesame seat belt .
Neverholdaninfantorchildon
your lap. Use childproof door locks t o
prevent children f rom opening t hedoors.
Do not leave children alone in avehicle. Lock all doors and the tailgate
when your vehicle is not in use.
K eep vehicle keys and remot etransmitters out of the reach ofchildren.
38

This section gives inf ormation about
the controls and displays that
contribute to the daily operation of
your vehicle. All the essential
controls are within easy reach............................
Control Locations .56
............................
Instrument Panel .57
.............................................
Gauges .66
...............
Odometer/Trip Meter . 66
..................................
Fuel Gauge .66
...................
Temperature Gauge . 67
....
Outside Temperature Gauge . 67
..........
Check Fuel Cap Indicator . 68
Controls Near the Steering ...........................................
Wheel .69
.
Windshield Wipers and Washers . 70
...........
Turn Signal and Headlights . 71
................
Daytime Running Lights . 72
........
Instrument Panel Brightness . 72
.................
Hazard Warning Button . 73
.................
Rear Window Def ogger . 73
..........
Steering Wheel Adjustment . 74
...............................
Keys and Locks .75
........................
Immobilizer System .75
................................
Ignition Switch .77
......................................
Door Locks .78
......................
Power Door Locks .78
..............
Childproof Door Locks . 79
.......................
Remote Transmitter .79
..................................
Seats Heaters .82
.................................................
Seats .83 ......
Detachable Seat Belt Anchors . 88
.............................................
Mirrors .88
..............................
Power Windows .90
.........................................
Moonroof .92
.................................
Parking Brake .93
...........
Interior Convenience Items . 94
.......................
Beverage Holders .95
..........
Accessory Power Sockets . 95
...............
Console Compartment . 95
......................
Sunglasses Holder .96
....................................
Glove Box .96
......................................
Sun Visor .96
...............................................
Lights .97
Instruments and Controls
Inst rument s and Cont rols
55

ÎTo use the horn, press the pad around the ‘‘H’’ logo.
Controls Near the Steering Wheel
Inst rument s and Cont rols
69
VTM-4LOCK
LIGHT CONTROL
SWITCH
CRUISE CONTROLHAZARD WARNING BUTTON
HEADLIGHTS/TURN SIGNALS
REAR WINDOW
DEFOGGER
CRUISE CONTROL
MASTER SWITCH
REMOTE AUDIO
CONTROLS WINDSHIELD WIPERS/
WASHERS
VSA OFF SWITCH
MOON ROOF
STEERING WHEEL
ADJUSTMENT HORN
PASSENGER AIRBAG
OFF INDICATOR
(P.92)
(P.97) (P.172)
(P.138)
(P.122) (P.74) (P.138) (P.70)(P.
73)
(P.
31)
(P.164)
(P.73)
(P.71)

µ
µ
The childproof door locks are
designed to prevent children seated
in the rear f rom accidentally opening
the rear doors. Each rear door has a
lock lever near the edge. With the
lever in the LOCK position, the door
cannot be opened f rom the inside
regardless of the position of the lock
tab. To open the door, pull the lock
tab up, and use the outside door
handle. Pressthisbuttononce
to unlock the driver’s door. Push it
twice to unlock the other doors and
the tailgate. Some exterior lights will
f lash twice each time you press the
button.
The ceiling light (if the ceiling light
switch is in the center position) will
come on when you press the
UNLOCK button. If you do not open
any door, the light stays on f or about
30 seconds, then f ades out. If you
relock the doors with the remote
transmitter before 30 seconds have
elapsed, the light will go of f
immediately.
If you do not open any door within 30
seconds, the doors automatically
relock and the security system sets.
Press this button once to
lock all doors and the tailgate. Some
exterior and interior lights will f lash.
When you push LOCK twice within 5
seconds, you will hear a beep to
verify that the security system has
set. You cannot lock it if any door is
not f ully closed or the key is in the
ignition switch.
Childproof Door L ocks
UNL OCK
LOCK Remote Transmitter
Childproof Door L ocks, Remot e T ransmit t er
Inst rument s and Cont rols
79
LOCK COVER PANIC
BUTTON
LOCK
BUTTON UNLOCK
BUTTON
LED

The moonroof has two positions: it
can be tilted up in the back f or
ventilation, or it can be slid back into
the roof . Use the switch under the
lef t dashboard vent to operate the
moonroof . The ignition switch must
be in the ON (II) position.To tilt up the back of the moonroof ,
press and hold the center button
( ). To close the moonroof ,
press and hold the upper button
( ). To open the moonroof ,
press and hold the lower button
( ). Release the button when
the moonroof gets to the desired
position. Make sure everyone’s
hands are away f rom the moonroof
bef ore opening or closing it.
The moonroof has a key-of f delay
f unction. You can still open and close
the moonroof f or up to 10 minutes
after you turn off the ignition switch.
The key-of f delay f unction cancels as
soon as you open either f ront door.
You must then turn the ignition
switch to ON (II) to operate the
moonroof .
If equipped
Moonroof
92
CLOSE BUTTON
OPEN BUTTON
TILT-UP
BUTTON
Opening or closing the
moonroof on someone’s hands
or fingers can cause serious
injury.
Make sure all hands and fingers
are clear of the moonroof
before opening or closing it. If you try to open the moonroof in
below-f reezing temperatures, or when
it is covered with snow or ice, you can
damage the moonroof panel or motor.

Your vehicle has several convenient
storage areas:Glove box
Front door and seat-back pockets
Rear cargo area, including the
second and third row seats when
folded flat
Console compartment
Rear compartment
Roof -rack (if installed)
However, carrying too much cargo,
or improperly storing it, can af f ect
your vehicle’s handling, stability,
stopping distance, and tires, and
make it unsaf e. Bef ore carrying any
type of cargo, be sure to read the
f ollowing pages.
Carrying Cargo
Bef ore Driving
153

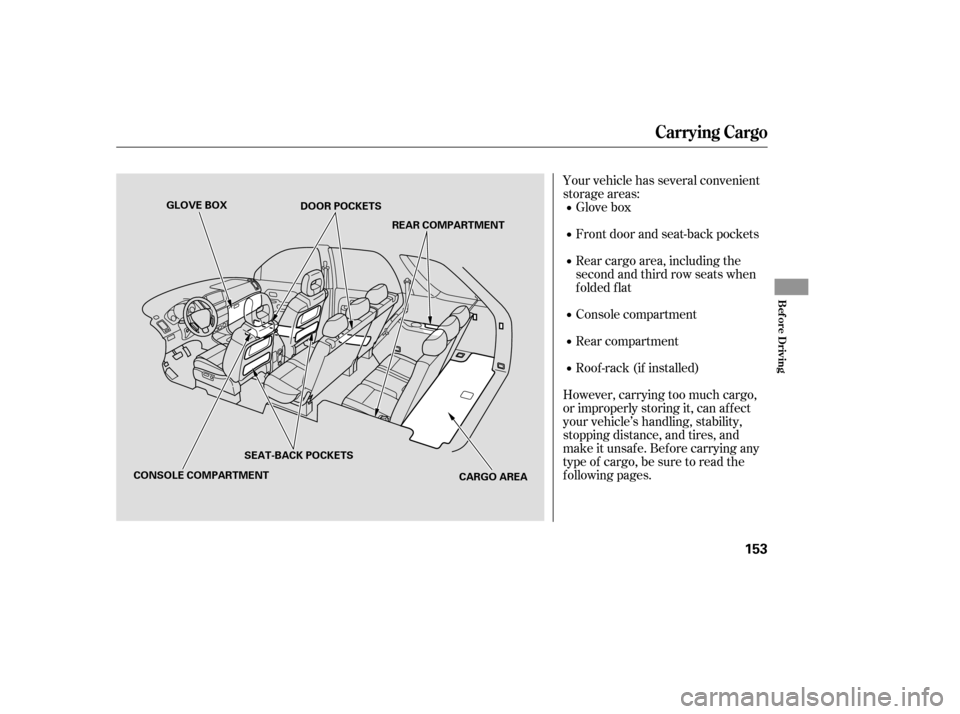

GLOVE BOX
CARGO AREA
CONSOLE COMPARTMENT DOOR POCKETS
SEAT-BACK POCKETS REAR COMPARTMENT

Store or secure all items that could
be thrown around and hurt
someone during a crash.
Keep the glove box closed while
driving. If it is open, a passenger
could injure their knees during a
crash or sudden stop.Distribute cargo evenly on the
f loor of the cargo area, placing the
heaviest items on the bottom and
as far forward as possible. Tie
down items that could be thrown
about the vehicle during a crash or
sudden stop.
If you carry large items that
prevent you f rom closing the
tailgate, exhaust gas can enter the
passenger area. To avoid the
possibility of
, f ollow the instructions
on page .
If you carry any items on a roof
rack,besurethetotalweightof
the rack and the items does not
exceed 165 lbs (75 kg). If you use an accessory roof rack,
the roof rack weight limit may be
lower. Ref er to the inf ormation that
came with your roof rack.
Theseparationnetcanbeusedto
hold back sof t, lightweight items
stored in the cargo area. Heavy
items should be properly secured on
the f loor of the cargo area. The net
may not prevent heavy items f rom
being thrown f orward in a crash or a
sudden stop.
The cargo cover can be used over
the cargo area behind the third row
seats. When the third row seats are
f olded down, the cargo cover can be
installed in a f orward position and
extended over the larger cargo area.
Be sure items placed on the f loor
behind the f ront seats cannot roll
under the seats and interf ere with
the pedals or seat operation.
53
Carrying Cargo
Carrying Items in the Passenger
CompartmentCarrying Cargo in the Cargo A rea
or on a Roof Rack
carbon monoxide
poisoning Optional Separation Net
Optional Cargo Cover
Bef ore Driving
155
