2005 HONDA PILOT ECO mode

If itcomesonandstaysonatany
other time, or it does not come on
when you turn the ignition switch to
ON (II), there is a problem with the
VSA system. Have your vehicle
checked by your dealer. Without
VSA, your vehicle still has normal
driving ability, but will not have VSA
traction and stability enhancement.
See page f or more inf ormation
on the VSA system.This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). For more
inf ormation, see page .It comes on along with the VSA
system indicator if there is a
problem with the VSA system. It flashes when VSA is active (see
page ). Itcomesonasareminderthatyou
have turned of f the Vehicle
Stability Assist (VSA) system.
This indicator has three f unctions:
This indicator normally comes on f or
a f ew seconds when you turn the
ignition switch to ON (II). 1.
2.
3. 171
171
171
On EX-L models
On EX-L models
Vehicle Stability Assist
(VSA ) System IndicatorVSA A ctivation Indicator
Instrument Panel Indicators
60

¶¶µµµµ
µ µµµ
This shows the temperature of the
engine’s coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle white mark. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to the
upper white mark. If it reaches the
red (Hot) mark, pull saf ely to the
side of the road. Turn to page f or
instructions and precautions on
checking the engine’s cooling
system.
The temperature sensor is in the
f ront bumper. Theref ore, the
temperature reading can be af f ected
by heat ref lection f rom the road
surf ace, engine heat, and the
exhaust f rom surrounding traf f ic.
This can cause an incorrect
temperature reading when your
speed is under 19 mph (30 km/h). This indicator displays the outside
temperature in Fahrenheit (U.S.
models) or Centigrade (Canadian
models). To see the outside
temperature, press and release the
Select/Reset button until the
temperature is displayed.
The sensor delays the display update
until it reaches the correct outside
temperature. This may take several
minutes.If the outside temperature is
incorrectly displayed, you can adjust
it up to 5°F ( 3°C) warmer or
cooler.
NOTE: The temperature must be
stabilized bef ore doing this
procedure.
Select the outside temperature
display, then press the Select/Reset
knob f or 10 seconds. The f ollowing
sequences appear, 1 second at a
time:0,1,2,3,4,5, 5, 4, 3, 2,
1, 0, 1 (0, 1, 2, 3, 3, 2, 1, 0, 1).
When the temperature reaches the
desired value, release the Select/
Reset knob. You should see the new
outside temperature displayed.
In certain weather conditions,
temperature readings near f reezing
(32°F, 0°C) could mean that ice is
f orming on the road surf ace.
204
On EX and EX-L models
Temperature Gauge
Outside Temperature Indicator
Gauges
Inst rument s and Cont rols
67

The knob on the instrument panel
controls the brightness of the instru-
ment panel lights. Turn the knob to
adjust the brightness.
The lights will turn on again when
you unlock or open the driver’s door.
With the headlight switch off, the
high beam headlights come on with
reduced brightness when you turn
the ignition switch to ON (II) and
release the parking brake. They
remain on until you turn the ignition
switch of f , even if you set the
parking brake.
The headlights revert to normal
operation when you turn the switch
to the ‘‘ ’’ position. If you unlock the door, but do not
open it within 15 seconds, the lights
will go off. With the driver’s door
open, you will hear a lights-on
reminder chime.
This f eature turns of f the headlights,
parking lights, taillights, side marker
lights, license plate lights, and
instrument panel lights within 15
seconds of removing the key f rom
the ignition switch and closing the
driver’s door.
This feature activates if you leave
the headlight switch in the ‘‘ ’’
or ‘‘ ’’ position, remove the key,
then open and close the driver’s door.
If you remove the key f rom the
ignition switch with the headlight
switch on, but do not open the door
and get out, the lights will turn of f
af ter 10 minutes.
On EX and EX-L model
Instrument Panel Brightness
Daytime Running L ights
(Canadian Models)
Automatic Lighting Of f Feature
Headlights, Instrument Panel Brightness
72
INSTRUMENT PANEL BRIGHTNESS
CONTROL KNOB

µTo replace the battery:Remove the screw at the base of
the transmitter with a small
Phillips-head screwdriver.
Separate the transmitter by prying
its middle seam with your
f ingernail.
Battery type: CR1616 If it takes several pushes on the
button to lock or unlock the doors,
replace the battery as soon as
possible.
Pressthisbuttonfor
about 1 second to attract attention;
thehornwillsoundandtheexterior
lights will f lash f or about 30 seconds.
To cancel panic mode, press any
other button on the remote
transmitter, or turn the ignition
switch to ON (II).
Avoid dropping or throwing the
transmitter.
If you lose a transmitter, the
replacement needs to be
reprogrammed by your dealer. Do not immerse the transmitter in
any liquid. Protect the transmitter from
extreme temperature. 1.
2.Replacing the Transmitter Battery
Remote Transmitter CarePA NIC
Remote Transmitter
80
SCREW

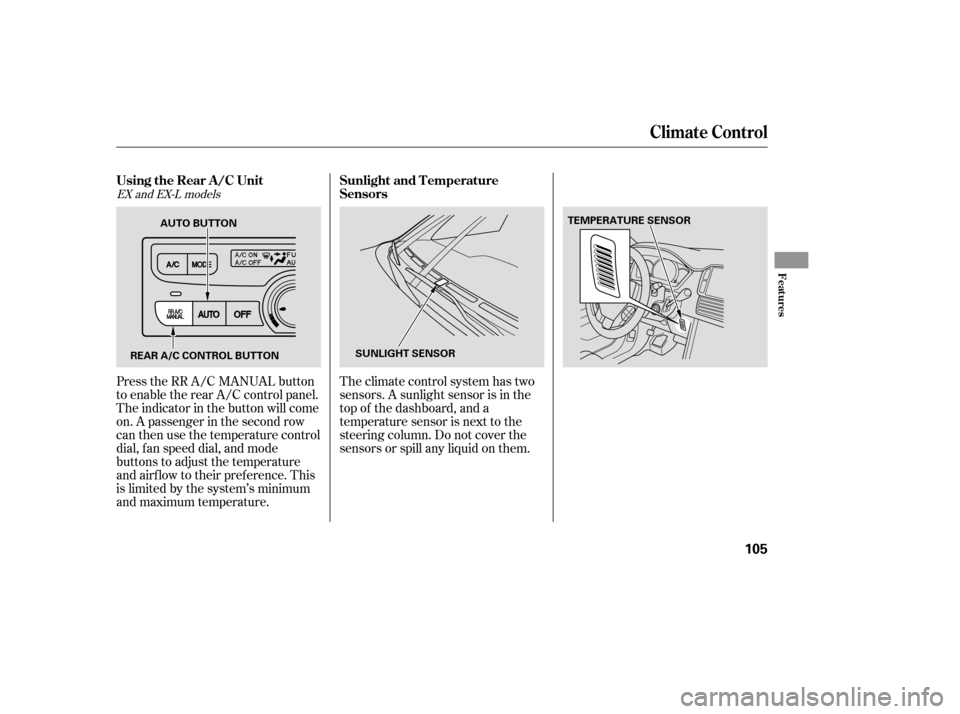

Theclimatecontrolsystemhastwo
sensors. A sunlight sensor is in the
top of the dashboard, and a
temperature sensor is next to the
steering column. Do not cover the
sensors or spill any liquid on them.
Press the RR A/C MANUAL button
to enable the rear A/C control panel.
The indicator in the button will come
on. A passenger in the second row
can then use the temperature control
dial, f an speed dial, and mode
buttons to adjust the temperature
and airflow to their preference. This
is limited by the system’s minimum
and maximum temperature.
EX and EX-L models
Climat e Cont rol
Using the Rear A /C Unit
Sunlight and T emperature
Sensors
Features
105
REAR A/C CONTROL BUTTON SUNLIGHT SENSORTEMPERATURE SENSOR
AUTO BUTTON

µµ
µ
If you are
traveling far from home and can no
longer receive your preset stations,
you can use the auto select feature to
find stations in the local area. Use the TRE/BAS
modes to adjust the tone to your
liking.
You can use the instrument panel
brightness control knob to adjust the
illumination of the audio system (see
page ). The audio system
illuminates when the parking lights
are on, even if the radio is of f .
These two
modes adjust the strength of the
sound coming f rom each speaker.
BAL adjusts the side-to-side strength,
while FAD adjusts the f ront-to-back
strength. Eachmodeisshowninthedisplayas
it changes. Turn the MODE knob to
adjust the setting to your liking.
When the level reaches the center,
you will see ‘‘C’’ in the display. The
system will automatically return the
display to the selected audio mode
about f ive seconds af ter you stop
adjusting a mode. Press the MODE knob repeatedly to
display the Bass (BAS), Treble
(TRE), Balance (BAL), and Fader
(FAD) settings. press the
A. SEL button. This restores the
presets you originally set.
Press the A. SEL button. ‘‘A.SEL’’
f lashes in the display, and the system
goes into scan mode f or several
seconds. It stores the f requencies of
six AM, and twelve FM stations in
the preset buttons.
You will see a ‘‘0’’ displayed af ter
pressing a preset button if Auto
Select cannot f ind a strong station
f or every preset button.
If you do not like the stations Auto
Select has stored, you can store
other f requencies on the preset
buttons. Use the TUNE, SEEK, or
SCAN f unction to f ind stations, then
store them in the preset buttons as
described previously. 72To turn of f Auto Select,
Playing the Radio
AUTO SELECT
A udio System L ighting Treble/Bass
Balance/Fader Adjusting the Sound
108

µ´
Press the eject button ( ) to
remove the CD. If you eject the CD,
but do not remove it f rom the slot,
the system will automatically reload
the CD af ter 15 seconds and put it in
pause mode. To begin playing, press
the CD button.
Press the AM/FM button to switch
to the radio while a CD is playing.
Press the CD button to play the CD.
If you turn the system of f while a CD
is playing, either with the PWR/VOL
knob or by turning off the ignition,
the CD will stay in the drive. When
youturnthesystembackon,theCD
will begin playing where it lef t of f . Load the desired CDs in the
magazine, and load the magazine in
the changer according to the
instructions that came with the unit.
To select the CD changer, press the
CD button. The CD and track
numbers will be displayed. To select
a dif f erent CD, use the preset 5
(DISC ) or preset 6 (DISC )
button. If you select an empty slot in
the magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot.
Standard on EX-L model with Navigation
SystemOptional on LX model
T o Stop Playing a CD Operating the CD Changer
Playing a CD, CD Changer
Features
113

µ
µ
´
If you select an empty slot in the
magazine, the changer will, af ter
f inding that slot empty, try to load
the CD in the next slot. This
continues until it f inds a CD to load
and play. To select the CD changer, press the
CD button. The disc and track
numbers will be displayed. To select
a dif f erent disc, use the appropriate
preset buttons (1 6). On the model
with Navigation System, use the
preset 5 (DISC ) button to select
previous disc, or the preset 6 (DISC ) button to select the next disc in
sequence. The audio system has an in-dash CD
changer that holds up to six discs.
To load CDs or operate CD changer,
the ignition switch must be in the
ACCESSORY (I) or ON (II) position.
You cannot load and play 3-inch
(8-cm)discsinthissystem. Press and release any of the
numbered buttons on the CD
changer. The indicator over the
button begins to blink green.
When the indicator blinks green
and red insert a CD into the slot.
Insert it only about halfway; the
drive will pull it in the rest of the
way. If you do not load a CD
within 10 seconds, the indicator
stops f lashing, and system selects
the next CD in the changer.
To load another CD, repeat steps 1
and 2. Do this again until all six
positions are loaded. The system
will begin playing the last CD
loaded.
1.
2.
3.
EX and EX-L modelsOperating the In-Dash CD
Changer
L oading CDs in the Changer
CD Changer
114
