2005 GMC YUKON XL DENALI navigation system

If the radio is on while the navigation system is in use,
a smaller band menu will appear, located on the left
side of the map screen. This audio screen will display
the current audio information, such as band and station.
You can touch this smaller band menu screen button
to bring up the full band menu.e(Audio):Press this hard key to display the audio
menu. Several options are available for adjustment from
this menu.
FM1 Source shown, Other Sources similar
Base Audio Menu
3-4

Playing a CD
Remove the navigation map DVD from the slot and
return it to its case. Insert a CD partway into the slot,
label side up. The player will pull it in.
There will be a 12 to 15 second delay while the CD is
read, before it begins to play. When the player begins to
read a CD, the Disc Check in Process message will
appear briey to remind you of the delay. When the
map DVD is reinserted and read, the DVD Check
in Process message will appear briey to remind you
of the delay.
While playing a CD in the CD player, the navigation
system is not available. A message will display
if the NAV key is pressed. If your vehicle is equipped
with Rear Seat Entertainment (RSE), you can play
an audio CD while using the navigation system.
SeeRear Seat Entertainment System on page 3-14
for more information.
B(CD):Press this hard key to play a CD when
listening to the radio. The CD screen will be displayed.
Y(Eject):Press this hard key to eject a CD.
Random:Touch this screen button to play the tracks in
random, rather than sequential, order. Touch it again
to turn off random play.
Repeat:Touch this screen button to repeat the track
that is currently being played. Touch it again to turn this
feature off.
3-11

Rear Seat Entertainment System
Your vehicle may have a DVD Rear Seat Entertainment
(RSE) system. While playing a DVD or audio CD
in the RSE, press the CD key to view the RSE screen
and to switch to DVD as your main audio source.
At this point, you will hear what is being played in the
RSE system through all of the vehicle’s speakers.
From the RSE screen you can mute the Front or Rear
speakers, mute RSE entirely, or turn off RSE.
RSE Messages
CD ERROR:If this message appears on the navigation
screen, the DVD or CD is not being read by the system.
The DVD or CD could be dirty, scratched, wet, or
upside down. You may also be driving on a very rough
road. When the road becomes smoother, the DVD
or CD should play.
RSE ERROR:If this message appears on the
navigation screen, the RSE system is not working
properly. See “DVD Messages” under “Rear Seat
Entertainment System” in the index of your vehicle’s
owner manual for more information.
NO DISC:If this message appears on the navigation
screen, the DVD slot is empty. Insert a DVD or CD.
The DVD or CD should play.
See “Rear Seat Entertainment System”, “Rear Seat
Audio (RSA)”, “DVD Distortion”, “Care of Your CDs and
DVDs”, “Care of Your CD and DVD Player”, “Cleaning
Your DVD Player”, and “Cleaning the Video Screen”
in the index of your vehicle’s owner manual for
more information.
3-14

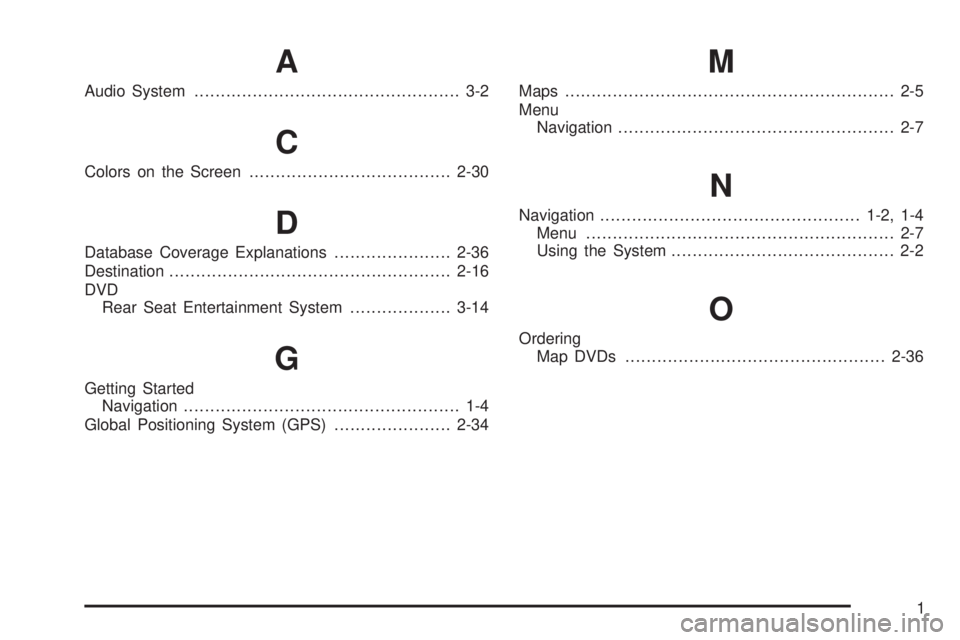

A
Audio System.................................................. 3-2
C
Colors on the Screen......................................2-30
D
Database Coverage Explanations......................2-36
Destination.....................................................2-16
DVD
Rear Seat Entertainment System...................3-14
G
Getting Started
Navigation.................................................... 1-4
Global Positioning System (GPS)......................2-34
M
Maps.............................................................. 2-5
Menu
Navigation.................................................... 2-7
N
Navigation.................................................1-2, 1-4
Menu.......................................................... 2-7
Using the System.......................................... 2-2
O
Ordering
Map DVDs.................................................2-36
1

P
Problems with Route Guidance.........................2-36
R
Radio............................................................. 3-2
Rear Seat Entertainment System.......................3-14
S
Symbols.......................................................... 2-6
System Needs Service, If.................................2-36
System Overview
Navigation System......................................... 1-2
V
Vehicle Positioning..........................................2-35
2
