Brake Wear
Your vehicle has front disc brakes and may have rear
drum brakes or rear disc brakes.
Disc brake pads have built-in wear indicators that make
a high-pitched warning sound when the brake pads
are worn and new pads are needed. The sound
may come and go or be heard all the time your vehicle
is moving, except when you are pushing on the
brake pedal rmly.
{CAUTION:
The brake wear warning sound means that
soon your brakes will not work well. That
could lead to an accident. When you hear the
brake wear warning sound, have your vehicle
serviced.
Notice:Continuing to drive with worn-out brake
pads could result in costly brake repair.
Some driving conditions or climates may cause a brake
squeal when the brakes are rst applied or lightly
applied. This does not mean something is wrong with
your brakes.Properly torqued wheel nuts are necessary to help
prevent brake pulsation. When tires are rotated, inspect
brake pads for wear and evenly tighten wheel nuts in
the proper sequence to GM torque specications.
If you have rear drum brakes, they do not have wear
indicators, but if you ever hear a rear brake rubbing
noise, have the rear brake linings inspected immediately.
Rear brake drums should be removed and inspected
each time the tires are removed for rotation or changing.
Drum brakes have an inspection hole to inspect lining
wear during scheduled maintenance. When you
have the front brake pads replaced, have the rear
brakes inspected, too.
Brake linings should always be replaced as complete
axle sets.
Brake Pedal Travel
See your dealer if the brake pedal does not return to
normal height, or if there is a rapid increase in
pedal travel. This could be a sign of brake trouble.
Brake Adjustment
Every time you make a brake stop, your brakes adjust
for wear.
5-51

Scheduled Maintenance
Service MaintenanceIMaintenanceII
Change engine oil and lter. SeeEngine Oil (Gasoline Engine) on page 5-20.
Reset oil life system. SeeEngine Oil Life System (Gasoline Engine) on
page 5-23.An Emission Control Service.••
Allison Transmission
®only: Replace external control-main lter only at the rst
maintenance service performed on the vehicle.
Lubricate chassis components.See footnote #.••
Visually check for any leaks or damage.See footnote (j).••
Inspect engine air cleaner lter or change indicator (if equipped). If necessary,
replace lter. SeeEngine Air Cleaner/Filter on page 5-25.An Emission Control
Service. See footnotes † and (p).•
Rotate tires and check ination pressures and wear. SeeTires on page 5-72.••
Inspect brake system.See footnote (a).••
Check engine coolant and windshield washer uid levels and add uid as
needed.••
Perform any needed additional services. See “Additional Required Services” in
this section.••
Inspect suspension and steering components.See footnote (b).•
Inspect engine cooling system.See footnote (c).•
Inspect wiper blades.See footnote (d).•
Inspect restraint system components.See footnote (e).•
Lubricate body components.See footnote (f).•
6-5

Scheduled Maintenance (cont’d)
Service MaintenanceIMaintenanceII
Check transmission uid level and add uid as needed.•
Inspect shields, vehicles with diesel engine or with GVWR above 10,000 lbs
(4 536 kg) only.See footnote (n).•
Additional Required Services
The following services should be performed at the rst maintenance service (IorII) after the indicated miles
(kilometers) shown for each item.
Additional Required Services
Service and Miles (Kilometers)25,000
(41 500)50,000
(83 000)75,000
(125 000)100,000
(166 000)125,000
(207 500)150,000
(240 000)
Inspect fuel system for damage
or leaks.••••••
Inspect exhaust system for loose or
damaged components.••••••
Vehicles without a lter restriction
indicator: Replace engine air cleaner
lter. SeeEngine Air Cleaner/Filter on
page 5-25.An Emission Control
Service.•••
6-speed manual transmission only:
Change clutch uid.See footnote (l).••••••
6-6

(j)A uid loss in any vehicle system could indicate a
problem. Have the system inspected and repaired and
the uid level checked. Add uid if needed.
(k)Inspect system. Check all fuel and vapor lines and
hoses for proper hook-up, routing and condition.
Check that the purge valve works properly (if equipped).
Replace as needed.
(l)Change clutch uid (or every 24 months, whichever
occurs rst).
(m)Change automatic transmission uid and lter if the
vehicle is mainly driven under one or more of these
conditions:
In heavy city traffic where the outside temperature
regularly reaches 90°F (32°C) or higher.
In hilly or mountainous terrain.
When doing frequent trailer towing.
Uses such as found in taxi, police or delivery
service.(n)Vehicles with diesel engine or with GVWR above
10,000 lbs (4 536 kg) only: Inspect shields for damage or
looseness. Adjust or replace as required. This is a
Noise Emission Control Service. Applicable only
to vehicles sold in the United States.
(p)If you drive regularly under dusty conditions, inspect
the lter or change indicator (if equipped) at each
engine oil change.
Owner Checks and Services
These owner checks and services should be performed
at the intervals specied to help ensure the safety,
dependability and emission control performance of your
vehicle. Your GM Goodwrench
®dealer can assist
you with these checks and services.
Be sure any necessary repairs are completed at once.
Whenever any uids or lubricants are added to your
vehicle, make sure they are the proper ones, as shown
inRecommended Fluids and Lubricants on page 6-14.
6-10

Light (cont.)
Traction Off................................................3-41
Up-Shift.....................................................3-39
Lighting
Entry.........................................................3-18
Exit...........................................................3-18
Locking Rear Axle...........................................4-11
Lockout Protection..........................................2-13
Locks
Delayed Locking..........................................2-10
Door........................................................... 2-8
Lockout Protection.......................................2-13
Power Door.................................................. 2-9
Programmable Automatic Door Locks.............2-10
Rear Door Security Locks.............................2-13
Loss of Control...............................................4-19
Low Fuel Warning Light...................................3-50
Lumbar
Power Controls............................................. 1-5
M
Maintenance Schedule
Additional Required Services........................... 6-6
At Each Fuel Fill.........................................6-11
At Least Once a Month................................6-11
At Least Once a Year..................................6-12
At the First 100, 1,000 and 6,000 Miles
(160, 1 600 and 10 000km).......................6-11Maintenance Schedule (cont.)
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-8
Maintenance Record....................................6-18
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-17
Owner Checks and Services.........................6-10
Recommended Fluids and Lubricants.............6-14
Scheduled Maintenance................................. 6-4
Using Your................................................... 6-2
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-44
Manual Seats................................................... 1-3
Manual Selectable Ride...................................4-10
Manual Transmission
Fluid..........................................................5-33
Operation...................................................2-32
Manual Windows............................................2-16
Memory Seat.................................................2-74
Message
DIC Warnings and Messages........................3-54
Mirrors
Automatic Dimming Rearview with Compass
and Temperature Display...........................2-58
Automatic Dimming Rearview with OnStar
®,
Compass and Temperature Display.............2-55
Manual Rearview Mirror................................2-55
Outside Automatic Dimming Mirror.................2-63
Outside Camper-Type Mirrors........................2-61
Outside Convex Mirror.................................2-64
8

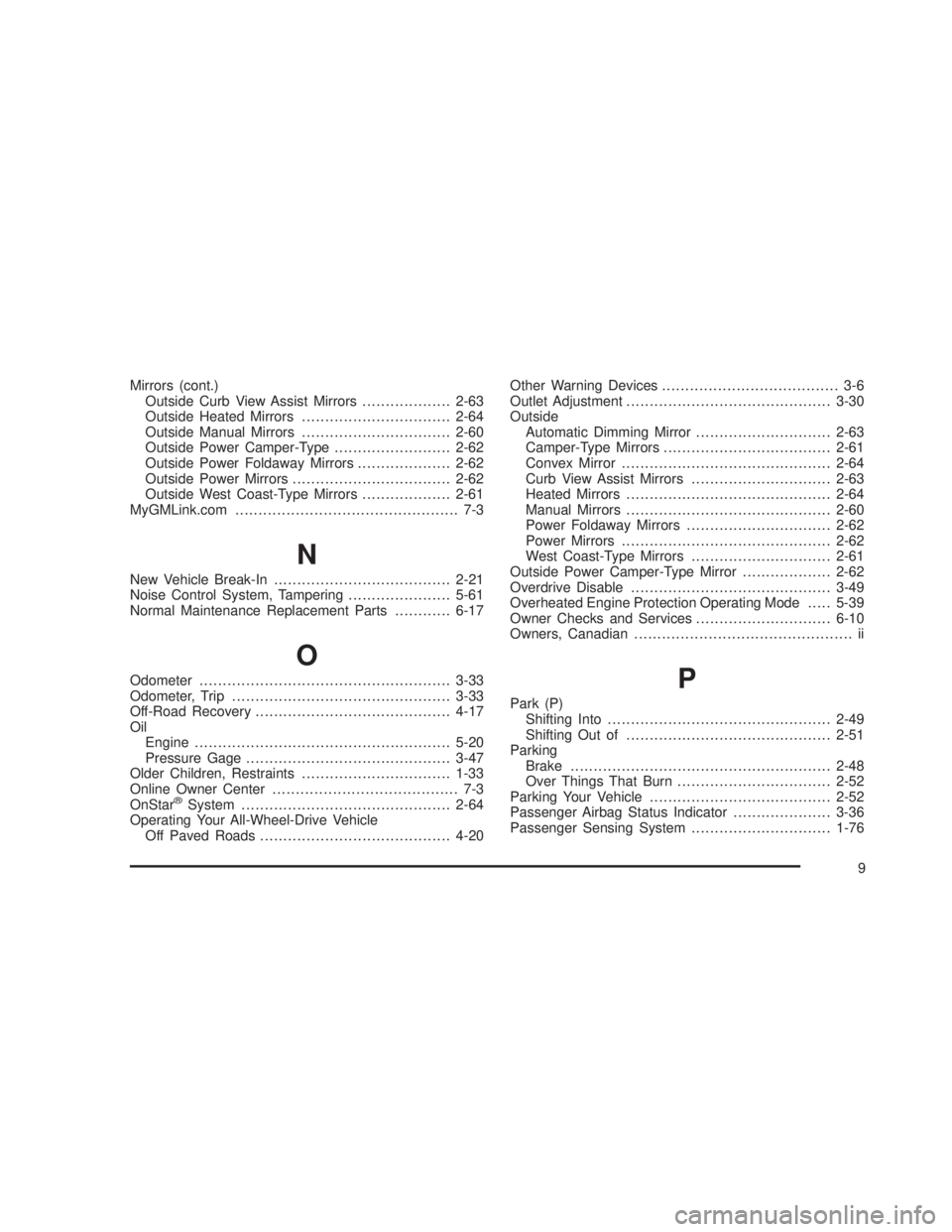

Mirrors (cont.)
Outside Curb View Assist Mirrors...................2-63
Outside Heated Mirrors................................2-64
Outside Manual Mirrors................................2-60
Outside Power Camper-Type.........................2-62
Outside Power Foldaway Mirrors....................2-62
Outside Power Mirrors..................................2-62
Outside West Coast-Type Mirrors...................2-61
MyGMLink.com................................................ 7-3
N
New Vehicle Break-In......................................2-21
Noise Control System, Tampering......................5-61
Normal Maintenance Replacement Parts............6-17
O
Odometer......................................................3-33
Odometer, Trip...............................................3-33
Off-Road Recovery..........................................4-17
Oil
Engine.......................................................5-20
Pressure Gage............................................3-47
Older Children, Restraints................................1-33
Online Owner Center........................................ 7-3
OnStar
®System.............................................2-64
Operating Your All-Wheel-Drive Vehicle
Off Paved Roads.........................................4-20Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-30
Outside
Automatic Dimming Mirror.............................2-63
Camper-Type Mirrors....................................2-61
Convex Mirror.............................................2-64
Curb View Assist Mirrors..............................2-63
Heated Mirrors............................................2-64
Manual Mirrors............................................2-60
Power Foldaway Mirrors...............................2-62
Power Mirrors.............................................2-62
West Coast-Type Mirrors..............................2-61
Outside Power Camper-Type Mirror...................2-62
Overdrive Disable...........................................3-49
Overheated Engine Protection Operating Mode.....5-39
Owner Checks and Services.............................6-10
Owners, Canadian............................................... ii
P
Park (P)
Shifting Into................................................2-49
Shifting Out of............................................2-51
Parking
Brake........................................................2-48
Over Things That Burn.................................2-52
Parking Your Vehicle.......................................2-52
Passenger Airbag Status Indicator.....................3-36
Passenger Sensing System..............................1-76
9

Vehicle Identication
Number (VIN)............................................5-120
Service Parts Identication Label..................5-121
Vehicle Personalization
Memory Seat..............................................2-74
Ventilation Adjustment......................................3-30
Visors...........................................................2-18
Voltmeter Gage..............................................3-38
W
Warning Lights, Gages and Indicators................3-31
Warnings
DIC Warnings and Messages........................3-54
Hazard Warning Flashers............................... 3-6
Other Warning Devices.................................. 3-6
Safety and Symbols......................................... iii
Vehicle Damage.............................................. iv
Wheels
Alignment and Tire Balance..........................5-88
Replacement...............................................5-88
Where to Put the Restraint...............................1-42
Windows.......................................................2-16
Manual......................................................2-16
Power........................................................2-17
Sliding Rear................................................2-18
Swing-Out Windows.....................................2-18Windshield
Wiper Blades, Cleaning..............................5-117
Windshield Washer.........................................3-10
Fluid..........................................................5-48
Windshield Wiper
Blade Replacement......................................5-72
Fuses......................................................5-121
Windshield Wipers......................................... 3-9
Winter Driving................................................4-44X
XM™ Satellite Radio Antenna System..............3-127
Y
Your Vehicle and the Environment....................... 6-2
14
