Windshield Washer Fluid
What to Use
When you need windshield washer uid, be sure to read
the manufacturer’s instructions before use. If you will
be operating your vehicle in an area where the
temperature may fall below freezing, use a uid that has
sufficient protection against freezing.
Adding Washer Fluid
Your vehicle has a low washer uid message that
comes on when the washer uid is low. The message is
displayed for 15 seconds at the start of each ignition
cycle. When the CHECK WASHER FLUID message is
displayed, you will need to add washer uid to the
windshield washer uid reservoir.
Open the cap with the
washer symbol on it. Add
washer uid until the
tank is full. SeeEngine
Compartment Overview on
page 5-12for reservoir
location.Notice:
When using concentrated washer uid, follow
the manufacturer’s instructions for adding
water.
Do not mix water with ready-to-use washer uid.
Water can cause the solution to freeze and
damage your washer uid tank and other parts
of the washer system. Also, water does not
clean as well as washer uid.
Fill your washer uid tank only three-quarters
full when it is very cold. This allows for
expansion if freezing occurs, which could
damage the tank if it is completely full.
Do not use engine coolant (antifreeze) in your
windshield washer. It can damage your washer
system and paint.
5-36

Recommended Fluids and
Lubricants
Fluids and lubricants identied below by name, part
number or specication may be obtained from your
dealer.
Usage Fluid/Lubricant
Engine OilEngine oil which meets GM
Standard GM6094M and displays
the American Petroleum Institute
Certied for Gasoline Engines
starburst symbol. GM
Goodwrench
®oil meets all the
requirements for your vehicle. To
determine the proper viscosity for
your vehicle’s engine, seeEngine
Oil on page 5-14.
Engine Coolant50/50 mixture of clean, drinkable
water and use only
DEX-COOL
®Coolant. SeeEngine
Coolant on page 5-24.
Hydraulic Brake
SystemDelco Supreme 11 Brake Fluid or
equivalent DOT-3 brake uid.
Windshield
Washer SolventGM Optikleen
®Washer Solvent.
Power Steering
SystemGM Power Steering Fluid (GM Part
No. U.S. 89021184, in
Canada 89021186).
Usage Fluid/Lubricant
Automatic
TransmissionDEXRON®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Key Lock
CylindersMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Floor Shift
LinkageLubriplate Lubricant Aerosol (GM
Part No. U.S. 12346293, in
Canada 992723) or lubricant
meeting requirements of NLGI #2
Category LB or GC-LB.
Chassis
LubricationChassis Lubricant (GM Part No.
U.S. 12377985, in
Canada 88901242) or lubricant
meeting requirements of NLGI #2,
Category LB or GC-LB.
Front AxleSAE 75W-90 Synthetic Axle
Lubricant (GM Part No.
U.S. 12378261, in
Canada 10953455) meeting
GM Specication 9986115.
Rear Axle
(Steerable)Synthetic Axle Lubricant; use only
GM Part No. U. S. 12378557, in
Canada 88901362.Do not add
friction modier.
6-12

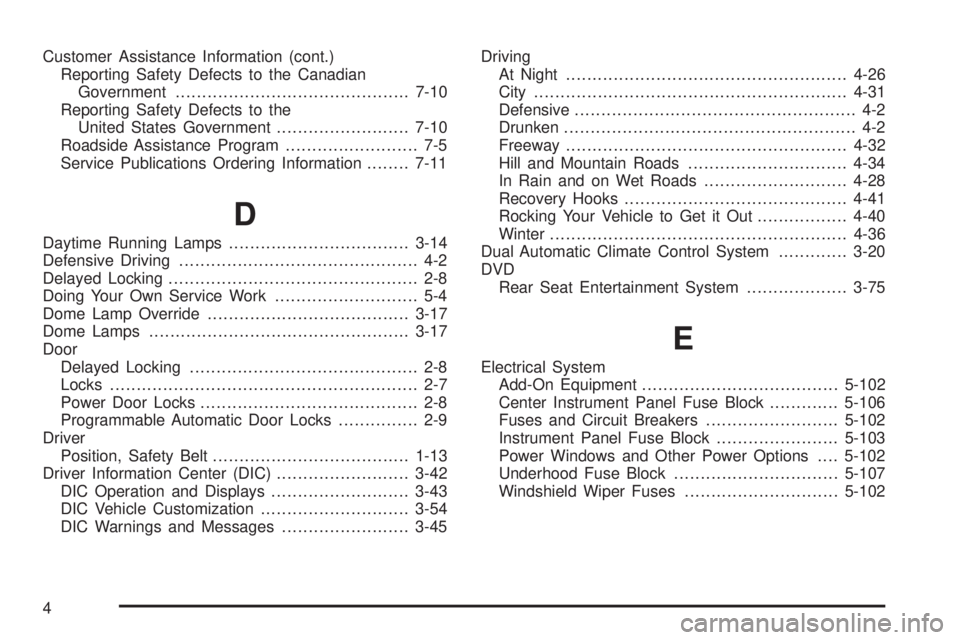

Customer Assistance Information (cont.)
Reporting Safety Defects to the Canadian
Government............................................7-10
Reporting Safety Defects to the
United States Government.........................7-10
Roadside Assistance Program......................... 7-5
Service Publications Ordering Information........7-11
D
Daytime Running Lamps..................................3-14
Defensive Driving............................................. 4-2
Delayed Locking............................................... 2-8
Doing Your Own Service Work........................... 5-4
Dome Lamp Override......................................3-17
Dome Lamps.................................................3-17
Door
Delayed Locking........................................... 2-8
Locks.......................................................... 2-7
Power Door Locks......................................... 2-8
Programmable Automatic Door Locks............... 2-9
Driver
Position, Safety Belt.....................................1-13
Driver Information Center (DIC).........................3-42
DIC Operation and Displays..........................3-43
DIC Vehicle Customization............................3-54
DIC Warnings and Messages........................3-45Driving
At Night.....................................................4-26
City...........................................................4-31
Defensive..................................................... 4-2
Drunken....................................................... 4-2
Freeway.....................................................4-32
Hill and Mountain Roads..............................4-34
In Rain and on Wet Roads...........................4-28
Recovery Hooks..........................................4-41
Rocking Your Vehicle to Get it Out.................4-40
Winter........................................................4-36
Dual Automatic Climate Control System.............3-20
DVD
Rear Seat Entertainment System...................3-75
E
Electrical System
Add-On Equipment.....................................5-102
Center Instrument Panel Fuse Block.............5-106
Fuses and Circuit Breakers.........................5-102
Instrument Panel Fuse Block.......................5-103
Power Windows and Other Power Options....5-102
Underhood Fuse Block...............................5-107
Windshield Wiper Fuses.............................5-102
4

Maintenance Schedule (cont.)
Introduction.................................................. 6-2
Maintenance Footnotes.................................. 6-7
Maintenance Record....................................6-15
Maintenance Requirements............................. 6-2
Normal Maintenance Replacement Parts.........6-14
Owner Checks and Services........................... 6-9
Recommended Fluids and Lubricants.............6-12
Scheduled Maintenance................................. 6-4
Using Your................................................... 6-2
Your Vehicle and the Environment................... 6-2
Malfunction Indicator Light................................3-36
Memory Seat.................................................2-44
Message
DIC Warnings and Messages........................3-45
Mirrors
Automatic Dimming Rearview with OnStar
®,
Compass and Temperature Display.............2-29
Outside Automatic Dimming Mirror.................2-33
Outside Convex Mirror.................................2-34
Outside Curb View Assist Mirrors...................2-33
Outside Heated Mirrors................................2-34
Outside Power Foldaway Mirrors....................2-32
Outside Power Mirrors..................................2-32
MyGMLink.com................................................ 7-3
N
Navigation/Radio System..................................3-86
New Vehicle Break-In......................................2-16
Normal Maintenance Replacement Parts............6-14
O
Odometer......................................................3-28
Odometer, Trip...............................................3-28
Off-Road Recovery..........................................4-10
Oil
Engine.......................................................5-14
Pressure Gage............................................3-39
Older Children, Restraints................................1-27
Online Owner Center........................................ 7-3
OnStar
®System.............................................2-34
Operating Your All-Wheel-Drive Vehicle Off
Paved Roads..............................................4-13
Other Warning Devices...................................... 3-6
Outlet Adjustment............................................3-25
Outside
Automatic Dimming Mirror.............................2-33
Convex Mirror.............................................2-34
8

Rear Seat Entertainment System.......................3-75
Rear Seat Operation......................................... 1-6
Rear Seat Passengers, Safety Belts..................1-22
Rearview Mirror, Automatic Dimming with
OnStar
®, Compass and Temperature Display.....2-29
Reclining Seatbacks.......................................... 1-4
Recommended Fluids and Lubricants.................6-12
Recovery Hooks.............................................4-41
Recreational Vehicle Towing.............................4-51
Remote Keyless Entry System............................ 2-3
Remote Keyless Entry System, Operation............ 2-4
Removing the Flat Tire and Installing the
Spare Tire..................................................5-76
Removing the Spare Tire and Tools...................5-73
Replacement Bulbs.........................................5-54
Reporting Safety Defects
Canadian Government..................................7-10
General Motors...........................................7-11
United States Government............................7-10
Restraint System Check
Checking Your Restraint Systems...................1-61
Replacing Restraint System Parts After
a Crash..................................................1-61
Restraint Systems
Checking....................................................1-61
Replacing Parts...........................................1-61
Retained Accessory Power (RAP)......................2-17
Right Front Passenger Position, Safety Belts......1-22Roadside
Assistance Program....................................... 7-5
Rocking Your Vehicle to Get it Out....................4-40
Running Your Engine While You Are Parked.......2-28
S
Safety Belt
Reminder Light............................................3-28
Safety Belts
Care of......................................................5-95
Driver Position............................................1-13
How to Wear Safety Belts Properly................1-13
Questions and Answers About Safety Belts.....1-12
Rear Safety Belt Comfort Guides for
Children and Small Adults.........................1-24
Rear Seat Passengers.................................1-22
Right Front Passenger Position......................1-22
Safety Belt Extender....................................1-26
Safety Belt Use During Pregnancy.................1-21
Safety Belts Are for Everyone......................... 1-8
Safety Warnings and Symbols.............................. iii
Scheduled Maintenance..................................... 6-4
Seats
Head Restraints............................................ 1-6
Heated Seats............................................... 1-3
Memory.....................................................2-44
