2005 GMC JIMMY tailgate

You will also nd a soda pop/gallon jug holder (D) on
the passenger side of the convenience system.
Some vehicles do not have this feature, but instead
include a smaller storage area.
To remove the entire convenience system, do the
following:
1. Remove the convenience net if it is in place. See
Convenience Net on page 2-54for more
information. You may also want to remove the
partitions (C) and fold the collapsible dividers (A) to
make the convenience system easier to handle.
2. Grasp the sides of the convenience system and
push the sides together while sliding the unit out
until it clears the sides of the tailgate opening.
To reinstall the convenience system, reverse the
removal procedure.Sunroof
A. Rear
B. Front
If the vehicle has a sunroof, the switch is located
between the sun visors.
To open or close the sunroof, the ignition needs to
be in RUN or ACCESSORY or Retained Accessory
Power (RAP) needs to be active. SeeRetained
Accessory Power (RAP) on page 2-23.
2-57

A. Air Outlets. SeeOutlet Adjustment on page 3-22for
more information.
B. Turn Signal/Multifunction Lever. SeeTurn
Signal/Multifunction Lever on page 3-7for more
information.
C. Instrument Panel Cluster. SeeInstrument Panel
Cluster on page 3-24for more information.
D. Transfer Case Button (If Equipped). SeeFour-Wheel
Drive on page 2-30for more information.
E. Exterior Lamps Control. SeeExterior Lamps on
page 3-14for more information.
F. Fog Lamp Button (If Equipped). SeeFog Lamps on
page 3-17for more information.
G. Brake Release. SeeParking Brake on page 2-36for
more information.
H. Horn. SeeHorn on page 3-6for more information.I. Rear Window Washer/Wiper. See “Rear Window
Washer/Wiper” underWindshield Wipers on page 3-9
for more information.
J. Liftgate/Tailgate Release. See “Liftgate/Tailgate
Release” underLiftgate/Tailgate on page 2-12for
more information.
K. Climate Control System. SeeClimate Control
System on page 3-20for more information.
L. Rear Window Defogger. See “Rear Window
Defogger” underClimate Control System on
page 3-20for more information.
M. Audio System. SeeAudio System(s) on page 3-41
for more information.
N. Glove Box. SeeGlove Box on page 2-49for more
information.
3-5

Check Gages Warning Light
The CHECK GAGES light will come on briey when you
start the engine.
If this light comes and stays on while you are driving,
check your coolant temperature and engine oil pressure
gages to see if they are in the warning zones.
Gate Ajar Light
If this light comes on, your endgate or liftglass is ajar.
Try closing the tailgate or liftglass again. Never
drive with the tailgate or liftglass even partially open. United States
CanadaUnited StatesCanada
3-37

Taillamps
1. Open the tailgate. SeeLiftgate/Tailgate on
page 2-12for more information.
2. Remove the
two screws from the
lamp assembly.
3. Pull the assembly away from the vehicle.
4. Turn the socket counterclockwise to remove it.
Push the tab in while you turn the socket
counterclockwise.5. Holding the base of the bulb, pull the bulb straight
out of the socket.
6. Push the new bulb straight into the socket
until it clicks.
7. Reverse Steps 1 through 5 to reinstall.
Replacement Bulbs
Exterior Lamp Bulb Number
Headlamps
Composite High-Beam 9005 HB3
Composite Low-Beam9006 HB4 or
9006LL
Taillamps 3057
Turn Signal Lamps 3457A
For replacement bulbs not listed here, contact
your dealer.
5-50

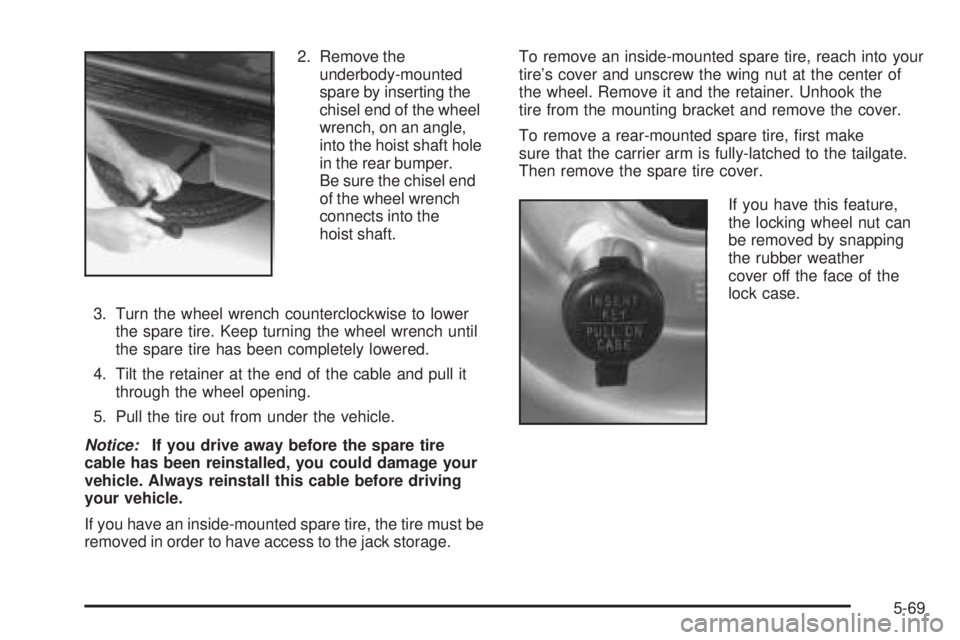

2. Remove the
underbody-mounted
spare by inserting the
chisel end of the wheel
wrench, on an angle,
into the hoist shaft hole
in the rear bumper.
Be sure the chisel end
of the wheel wrench
connects into the
hoist shaft.
3. Turn the wheel wrench counterclockwise to lower
the spare tire. Keep turning the wheel wrench until
the spare tire has been completely lowered.
4. Tilt the retainer at the end of the cable and pull it
through the wheel opening.
5. Pull the tire out from under the vehicle.
Notice:If you drive away before the spare tire
cable has been reinstalled, you could damage your
vehicle. Always reinstall this cable before driving
your vehicle.
If you have an inside-mounted spare tire, the tire must be
removed in order to have access to the jack storage.To remove an inside-mounted spare tire, reach into your
tire’s cover and unscrew the wing nut at the center of
the wheel. Remove it and the retainer. Unhook the
tire from the mounting bracket and remove the cover.
To remove a rear-mounted spare tire, rst make
sure that the carrier arm is fully-latched to the tailgate.
Then remove the spare tire cover.
If you have this feature,
the locking wheel nut can
be removed by snapping
the rubber weather
cover off the face of the
lock case.
5-69

At Least Once a Year
Key Lock Cylinders Service
Lubricate the key lock cylinders with the lubricant
specied in Part D.
Body Lubrication Service
Lubricate all hood hinges, hood latch assembly,
secondary latch, pivots, spring anchor, release pawl,
door hinges, fuel door hinge, endgate hinges, outer
tailgate handle pivot points, tailgate hinges, tailgate
mounted spare tire (if equipped), glove box and console
doors, moving seat hardware and folding seat
hardware. Part D tells you what to use. More frequent
lubrication may be required when exposed to a corrosive
environment.
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the vehicle
moves, you or others could be injured.
1. Before you start, be sure you have enough room
around the vehicle.
2. Firmly apply both the parking brake and the regular
brake. SeeParking Brake on page 2-36if
necessary.
Do not use the accelerator pedal, and be ready to
turn off the engine immediately if it starts.
3. On automatic transmission vehicles, try to start the
engine in each gear. The starter should work only
in PARK (P) or NEUTRAL (N). If the starter works in
any other position, your vehicle needs service.
On manual transmission vehicles, put the shift lever
in NEUTRAL (N), push the clutch down halfway and
try to start the engine. The starter should work only
when the clutch is pushed down all the way to the
oor. If the starter works when the clutch is not
pushed all the way down, your vehicle needs service.
6-28

Usage Fluid/Lubricant
Rear Axle
(Locking
Differential)Axle Lubricant; use only GM Part
No. U.S. 1052271, in Canada
10950849.Do not add friction
modier.
Electronic
Transfer CaseDEXRON
®-III Automatic
Transmission Fluid. Look for
“Approved for the H-Specication”
on the label.
Automatic
Transfer CaseAUTO-TRAK II Fluid (GM Part No.
U.S. 12378508, in Canada
10953626).
Rear Driveline
Center Spline
and Universal
JointsChassis Lubricant (GM Part No.
U.S. 12377985, in Canada
88901242) or lubricant meeting
requirements of NLGI #2, Category
LB or GC-LB.
Constant
Velocity
Universal JointChassis Lubricant (GM Part No.
U.S. 12377985, in Canada
88901242) or lubricant meeting
requirements of NLGI #2, Category
LB or GC-LB.
Clutch Pushrod
to Clutch Fork
JointChassis Lubricant (GM Part No.
U.S. 12377985, in Canada
88901242) or lubricant meeting
requirements of NLGI #2, Category
LB or GC-LB.
Usage Fluid/Lubricant
Hood Latch
Assembly,
Secondary
Latch, Pivots,
Spring Anchor
and Release
PawlLubriplate Lubricant Aerosol (GM
Part No. U.S. 12346293, in Canada
992723) or lubricant meeting
requirements of NLGI #2, Category
LB or GC-LB.
Hood and Door
HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Tailgate
Mounted Spare
Tire Carrier (if
equipped),
Outer Tailgate
Handle Pivot
Points and
HingesMulti-Purpose Lubricant, Superlube
(GM Part No. U.S. 12346241, in
Canada 10953474).
Weatherstrip
ConditioningDielectric Silicone Grease (GM Part
No. U.S. 12345579, in Canada
992887).
Weatherstrip
SqueaksSynthetic Grease with Teon,
Superlube (GM Part No. U.S.
12371287, in Canada 10953437).
6-34

L
Labelling, Tire Sidewall....................................5-54
Lamps
Battery Run-Down Protection.........................3-19
Dome........................................................3-18
Exterior......................................................3-14
Fog ...........................................................3-17
Front Reading.............................................3-19
Map ..........................................................3-19
LATCH System
Child Restraints...........................................1-42
Securing a Child Restraint Designed
for the LATCH System..............................1-44
Liftgate/Tailgate...............................................2-12
Light
Airbag Readiness........................................3-27
Anti-Lock Brake System Warning...................3-30
Brake System Warning.................................3-29
Charging System.........................................3-28
Check Gages Warning.................................3-37
Gate Ajar...................................................3-37
Highbeam On.............................................3-35
Low Fuel Warning.......................................3-38
Malfunction Indicator....................................3-31
Safety Belt Reminder...................................3-26
Security.....................................................3-35
Service Four-Wheel-Drive Warning Light.........3-36
Tow/Haul Mode...........................................3-36
Up-Shift.....................................................3-29Lighting
Entry.........................................................3-18
Exit...........................................................3-18
Lockout Protection..........................................2-11
Locks
Door........................................................... 2-8
Lockout Protection.......................................2-11
Power Door.................................................. 2-9
Programmable Automatic Door Locks............... 2-9
Rear Door Security Locks.............................2-11
Long Trip/Highway Scheduled Maintenance........6-18
Loss of Control...............................................4-13
Low Fuel Warning Light...................................3-38
Luggage Carrier..............................................2-53
Lumbar
Power Controls............................................. 1-3
M
Maintenance Schedule
At Each Fuel Fill.........................................6-26
At Least Once a Month................................6-26
At Least Once a Year..................................6-28
At Least Twice a Year..................................6-27
Brake System Inspection..............................6-32
Engine Cooling System Inspection.................6-31
Exhaust System Inspection...........................6-31
Fuel System Inspection................................6-31
How This Section is Organized....................... 6-3
7
