2005 FORD MUSTANG change time

from 01–01 to 99–99. The first two digits denote the folder number and
the last two digits denote the track number within that folder.
•Creating discs with only one level of folders will help with navigation
through the disc files.
ACCESSORY DELAY
With accessory delay, the window switches, moon roof (if equipped) and
audio system may be used for up to ten minutes after the ignition switch
is turn to the OFF position or until any door is opened.
RADIO FREQUENCIES
AM and FM frequencies are established by the Federal Communications
Commission (FCC) and the Canadian Radio and Telecommunications
Commission (CRTC). Those frequencies are:
AM - 530, 540–1600, 1710 kHz
FM- 87.7, 87.9–107.7, 107.9 MHz
RADIO RECEPTION FACTORS
There are three factors that can affect radio reception:
•Distance/strength: The further you travel from an FM station, the
weaker the signal and the weaker the reception.
•Terrain: Hills, mountains, tall buildings, power lines, electric fences,
traffic lights and thunderstorms can interfere with your reception.
•Station overload: When you pass a broadcast tower, a stronger signal
may overtake a weaker one and play while the weak station frequency
is displayed.
CD PLAYER CARE
Do:
•Handle discs by their edges only. Never touch the playing surface.
•Inspect discs before playing. Clean only with an approved CD cleaner
and wipe from the center out.
Don’t:
•Expose discs to direct sunlight or heat sources for extended periods
of time.
•Insert more than one disc into each slot of the CD changer magazine.
•Clean using a circular motion.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Entertainment Systems
27

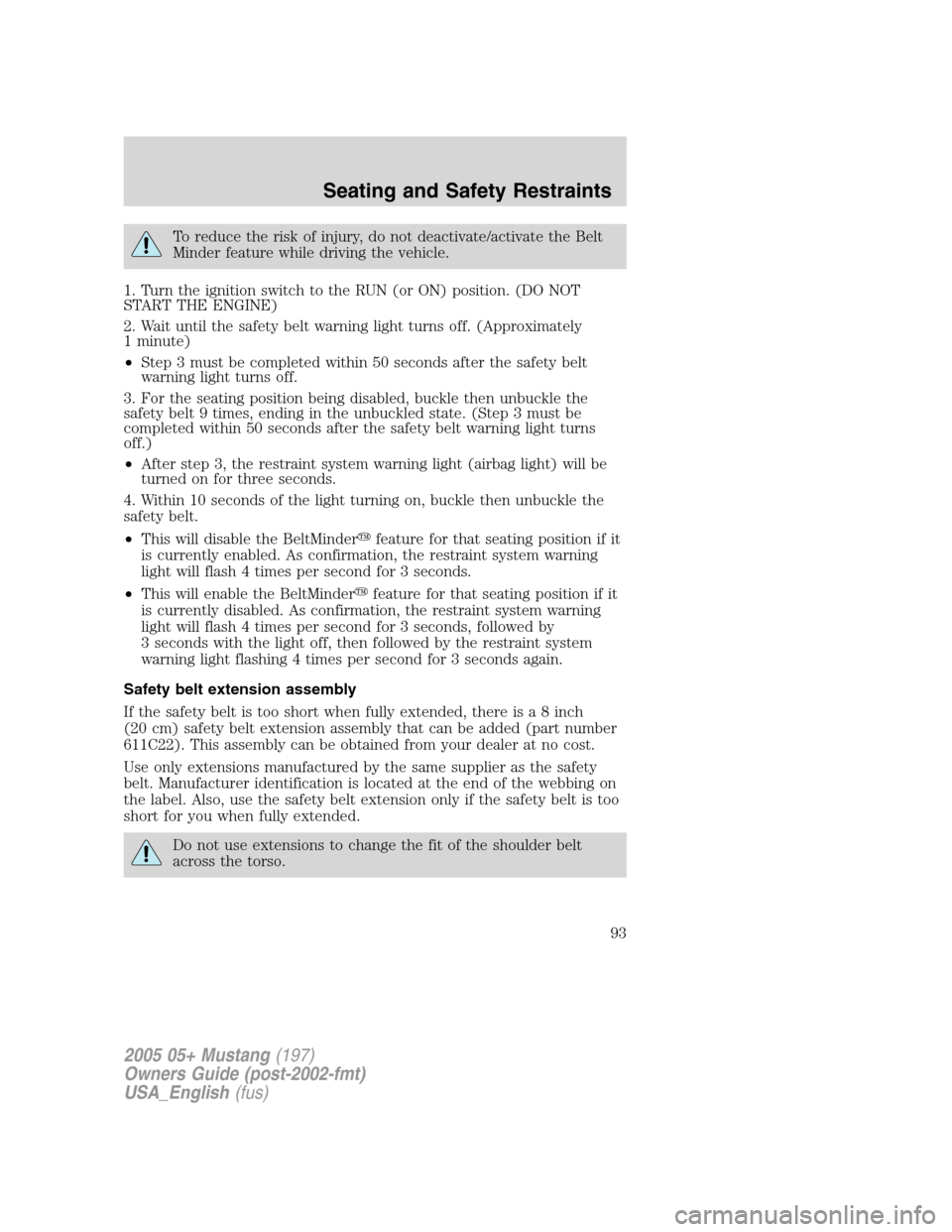

To reduce the risk of injury, do not deactivate/activate the Belt
Minder feature while driving the vehicle.
1. Turn the ignition switch to the RUN (or ON) position. (DO NOT
START THE ENGINE)
2. Wait until the safety belt warning light turns off. (Approximately
1 minute)
•Step 3 must be completed within 50 seconds after the safety belt
warning light turns off.
3. For the seating position being disabled, buckle then unbuckle the
safety belt 9 times, ending in the unbuckled state. (Step 3 must be
completed within 50 seconds after the safety belt warning light turns
off.)
•After step 3, the restraint system warning light (airbag light) will be
turned on for three seconds.
4. Within 10 seconds of the light turning on, buckle then unbuckle the
safety belt.
•This will disable the BeltMinder
feature for that seating position if it
is currently enabled. As confirmation, the restraint system warning
light will flash 4 times per second for 3 seconds.
•This will enable the BeltMinder
feature for that seating position if it
is currently disabled. As confirmation, the restraint system warning
light will flash 4 times per second for 3 seconds, followed by
3 seconds with the light off, then followed by the restraint system
warning light flashing 4 times per second for 3 seconds again.
Safety belt extension assembly
If the safety belt is too short when fully extended, there is a 8 inch
(20 cm) safety belt extension assembly that can be added (part number
611C22). This assembly can be obtained from your dealer at no cost.
Use only extensions manufactured by the same supplier as the safety
belt. Manufacturer identification is located at the end of the webbing on
the label. Also, use the safety belt extension only if the safety belt is too
short for you when fully extended.
Do not use extensions to change the fit of the shoulder belt
across the torso.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Seating and Safety Restraints
93

Information on“P”type tires
P215/65R15 95H is an example of a
tire size, load index and speed
rating. The definitions of these
items are listed below. (Note that
the tire size, load index and speed
rating for your vehicle may be
different from this example.)
1.P:Indicates a tire, designated by
the Tire and Rim Association
(T&RA), that may be used for
service on cars, SUVs, minivans and
light trucks.
Note:If your tire size does not
begin with a letter this may mean it
is designated by either ETRTO
(European Tire and Rim Technical Organization) or JATMA (Japan Tire
Manufacturing Association).
2.215:Indicates the nominal width of the tire in millimeters from
sidewall edge to sidewall edge. In general, the larger the number, the
wider the tire.
3.65:Indicates the aspect ratio which gives the tire’s ratio of height to
width.
4.R:Indicates a“radial”type tire.
5.15:Indicates the wheel or rim diameter in inches. If you change your
wheel size, you will have to purchase new tires to match the new wheel
diameter.
6.95:Indicates the tire’s load index. It is an index that relates to how
much weight a tire can carry. You may find this information in your
Owner’s Guide.If not, contact a local tire dealer.
Note:You may not find this information on all tires because it is not
required by federal law.
7.H:Indicates the tire’s speed rating. The speed rating denotes the
speed at which a tire is designed to be driven for extended periods of
time under a standard condition of load and inflation pressure. The tires
on your vehicle may operate at different conditions for load and inflation
pressure. These speed ratings may need to be adjusted for the difference
in conditions. The ratings range from 81 mph (130 km/h) to 186 mph
(299 km/h). These ratings are listed in the following chart.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Tires, Wheels and Loading
126

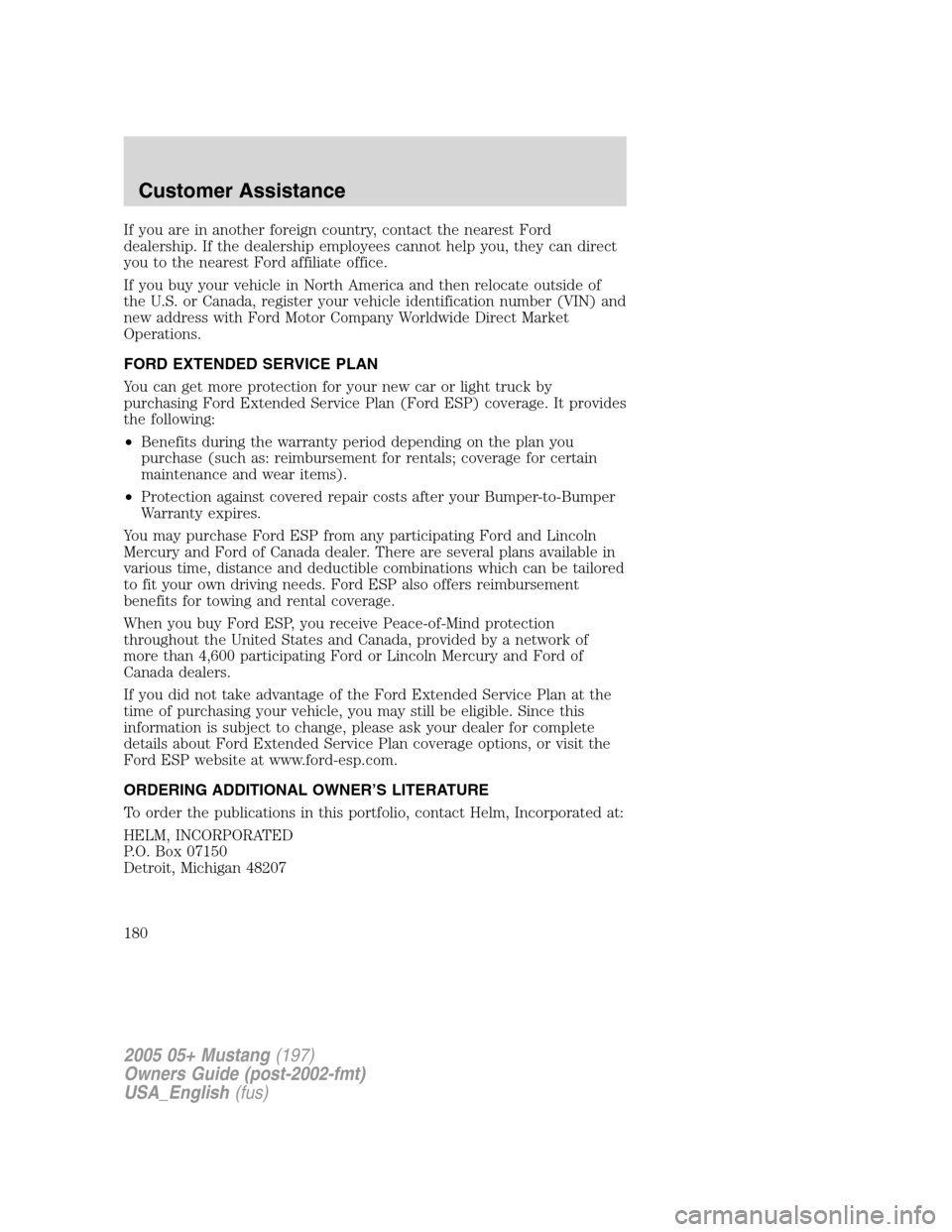

If you are in another foreign country, contact the nearest Ford
dealership. If the dealership employees cannot help you, they can direct
you to the nearest Ford affiliate office.
If you buy your vehicle in North America and then relocate outside of
the U.S. or Canada, register your vehicle identification number (VIN) and
new address with Ford Motor Company Worldwide Direct Market
Operations.
FORD EXTENDED SERVICE PLAN
You can get more protection for your new car or light truck by
purchasing Ford Extended Service Plan (Ford ESP) coverage. It provides
the following:
•Benefits during the warranty period depending on the plan you
purchase (such as: reimbursement for rentals; coverage for certain
maintenance and wear items).
•Protection against covered repair costs after your Bumper-to-Bumper
Warranty expires.
You may purchase Ford ESP from any participating Ford and Lincoln
Mercury and Ford of Canada dealer. There are several plans available in
various time, distance and deductible combinations which can be tailored
to fit your own driving needs. Ford ESP also offers reimbursement
benefits for towing and rental coverage.
When you buy Ford ESP, you receive Peace-of-Mind protection
throughout the United States and Canada, provided by a network of
more than 4,600 participating Ford or Lincoln Mercury and Ford of
Canada dealers.
If you did not take advantage of the Ford Extended Service Plan at the
time of purchasing your vehicle, you may still be eligible. Since this
information is subject to change, please ask your dealer for complete
details about Ford Extended Service Plan coverage options, or visit the
Ford ESP website at www.ford-esp.com.
ORDERING ADDITIONAL OWNER’S LITERATURE
To order the publications in this portfolio, contact Helm, Incorporated at:
HELM, INCORPORATED
P.O. Box 07150
Detroit, Michigan 48207
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Customer Assistance
180

vehicle after the fuel gauge indicates empty, you might not be
able to refuel the full amount of the advertised capacity of the
fuel tank due to the empty reserve still present in the tank.
For consistent results when filling the fuel tank:
•Turn the engine/ignition switch to the off position prior to refueling,
an error in the reading will result if the engine is left running.
•Use the same filling rate setting (low—medium—high) each time
the tank is filled.
•Allow no more than 2 automatic click-offs when filling.
•Always use fuel with the recommended octane rating.
•Use a known quality gasoline, preferably a national brand.
•Use the same side of the same pump and have the vehicle facing the
same direction each time you fill up.
•Have the vehicle loading and distribution the same every time.
Your results will be most accurate if your filling method is consistent.
Calculating fuel economy
1. Fill the fuel tank completely and record the initial odometer reading
(in miles or kilometers).
2. Each time you fill the tank, record the amount of fuel added (in
gallons or liters).
3. After at least three to five tank fill-ups, fill the fuel tank and record
the current odometer reading.
4. Subtract your initial odometer reading from the current odometer
reading.
5. Follow one of the simple calculations in order to determine fuel
economy:
Calculation 1:Divide total miles traveled by total gallons used.
Calculation 2:Multiply liters used by 100, then divide by total
kilometers traveled.
Keep a record for at least one month and record the type of driving (city
or highway). This will provide an accurate estimate of the vehicle’s fuel
economy under current driving conditions. Additionally, keeping records
during summer and winter will show how temperature impacts fuel
economy. In general, lower temperatures give lower fuel economy.
Driving style—good driving and fuel economy habits
Give consideration to the lists that follow and you may be able to change
a number of variables and improve your fuel economy.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
211

Fluid Ford Part
NameApplication Capacity
Engine coolant
1Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.0L V6 engine 12.5 quarts
(11.8L)
4.6L V8 engine 12.72 quarts
(13.4L)
Power steering
fluidMotorcraft
MERCONAT F4.0L V6 engine Fill to between
MIN and MAX
lines on
reservoir 4.6L V8 engine
Rear axle
lubricant
2Motorcraft SAE
75W-140
Synthetic Rear
Axle Lubricant7.5 inch axle
(V6)3.25 pints (1.5L)
8.8 inch axle
(V8)4.25 pints (2.0L)
Fuel tank N/A All 16.0 gallons
(60.6L)
Transmission
fluid–
Automatic
3
Motorcraft
MERCONV
AT FAll 11.9 quarts
(11.2L)4
Transmission
fluid–Manual3Motorcraft
MERCONAT F4.0L V6 engine 2.75 quarts
(2.6L)5
4.6L V8 engine 3.2 quarts
(3.0L)5
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.0 quarts
(3.8L)
1Add the coolant type originally equipped in your vehicle.
2Rear axle lubricants do not need to be checked or changed unless a
leak is suspected, service is required or the axle assembly has been
submerged in water. The axle lubricant should be changed any time the
rear axle has been submerged in water. Fill 1/4 inch to 9/16 inch (6 mm
to 14 mm) below bottom of fill hole. Add 4 oz. (118 ml) of Additive
Friction Modifier XL-3 or equivalent meeting Ford specification
EST-M2C118–A for complete refill of Traction-Lok axles.
2005 05+ Mustang(197)
Owners Guide (post-2002-fmt)
USA_English(fus)
Maintenance and Specifications
221

L
Lampsbulb replacement
specifications chart ..................36
daytime running light ...............32
fog lamps ...................................32
headlamps ...........................32, 36
headlamps, flash to pass ..........33
instrument panel, dimming .....33
interior lamps ...........................35
replacing bulbs ...................35 –41
Lane change indicator
(see Turn signal) ........................35
Lights, warning and indicator ....10 anti-lock brakes (ABS) ..........148
Limited slip axle
(see Traction Loc) ....................151
Load limits .................................135
Locks autolock .....................................63
Lubricant specifications ...222, 224
Lug nuts ....................................125
Lumbar support, seats ...............78
M
Manual transmission .................156 fluid capacities ........................220
lubricant specifications ..........224
reverse .....................................157
Message center .....................50 –51
english/metric button .........54 –55
system check button ................54
warning messages .....................56
Mirrors side view mirrors (power) .......47
Motorcraft parts ................210, 219 O
Octane rating ............................209
Oil (see Engine oil) ..................193
P
Parking brake ............................149
Parts (see Motorcraft parts) ....219
Passenger Occupant
Classification Sensor ...................82
Power distribution box
(see Fuses) ...............................163
Power door locks ........................63
Power mirrors .............................47
Power point .................................44
Power steering ..........................149
fluid, checking and adding ....216
fluid, refill capacity ................220
fluid, specifications .........222, 224
Power Windows ...........................44
R
Radio ......................................19, 22
Relays ........................................160
Remote entry system .................67 illuminated entry ......................70
opening the trunk .....................68
Roadside assistance ..................158
S
Safety Belt Maintenance ............94
Safety belts
(see Safety restraints) ...80, 84 –88
Safety defects, reporting ..........181
2005 05+ Mustang (197)
Owners Guide (post-2002-fmt)
USA_English (fus)
Index
234
