Page 1 of 200
Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 12
Entertainment Systems 15
AM/FM stereo with CD 15
Climate Controls 19
Manual heating and air conditioning 19
Rear window defroster 20
Lights 21
Headlamps 21
Turn signal control 22
Bulb replacement 23
Driver Controls 24
Windshield wiper/washer control 24
Steering wheel adjustment 25
Power windows 26
Mirrors 26
Locks and Security 28
Keys 28
Locks 28
Anti-theft system 33
Seating and Safety Restraints 38
Seating 38
Safety restraints 39
Air bags 48
Child restraints 55
Table of Contents
1
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English(fus)
Table of Contents
Page 5 of 200

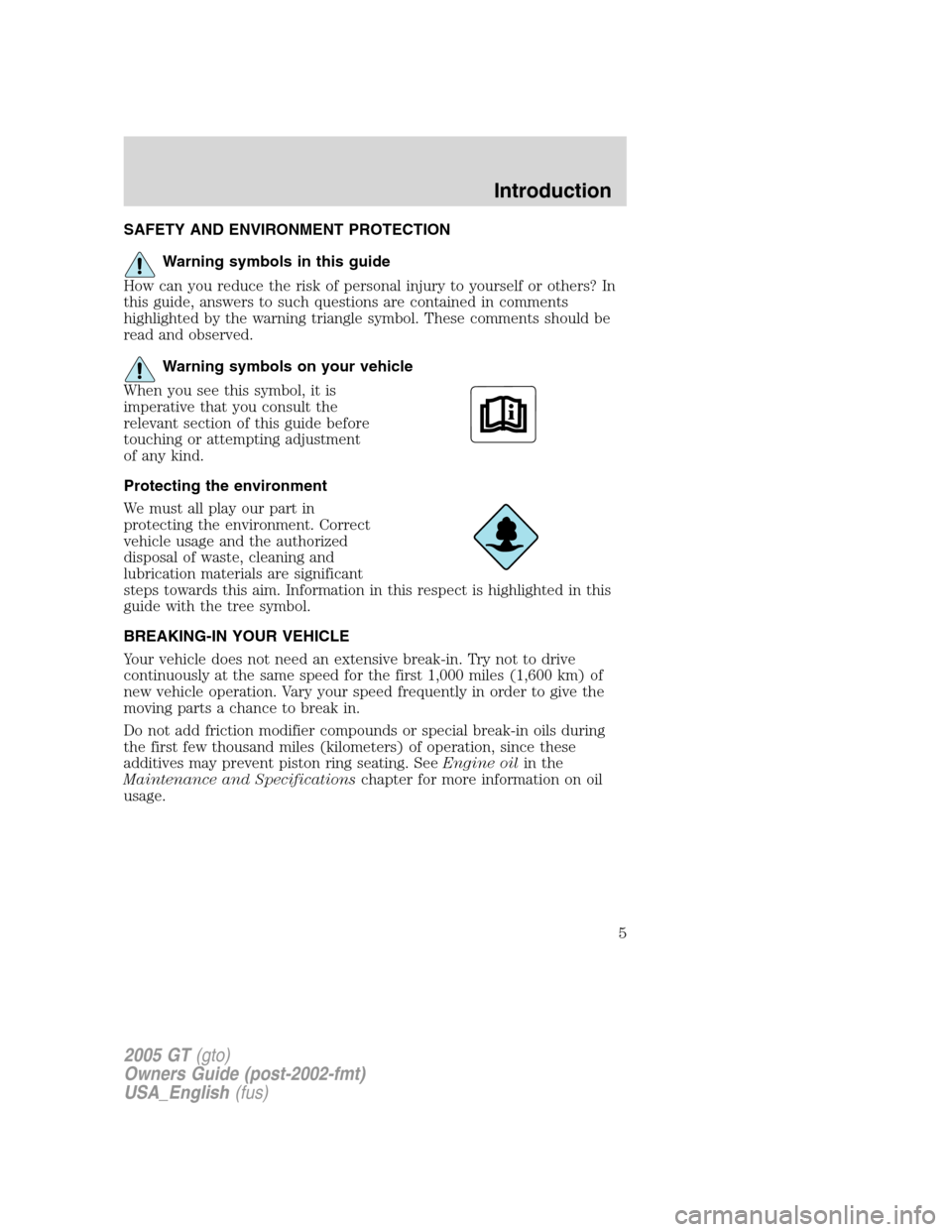

SAFETY AND ENVIRONMENT PROTECTION
Warning symbols in this guide
How can you reduce the risk of personal injury to yourself or others? In
this guide, answers to such questions are contained in comments
highlighted by the warning triangle symbol. These comments should be
read and observed.
Warning symbols on your vehicle
When you see this symbol, it is
imperative that you consult the
relevant section of this guide before
touching or attempting adjustment
of any kind.
Protecting the environment
We must all play our part in
protecting the environment. Correct
vehicle usage and the authorized
disposal of waste, cleaning and
lubrication materials are significant
steps towards this aim. Information in this respect is highlighted in this
guide with the tree symbol.
BREAKING-IN YOUR VEHICLE
Your vehicle does not need an extensive break-in. Try not to drive
continuously at the same speed for the first 1,000 miles (1,600 km) of
new vehicle operation. Vary your speed frequently in order to give the
moving parts a chance to break in.
Do not add friction modifier compounds or special break-in oils during
the first few thousand miles (kilometers) of operation, since these
additives may prevent piston ring seating. See Engine oilin the
Maintenance and Specifications chapter for more information on oil
usage.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Introduction
5
Page 8 of 200

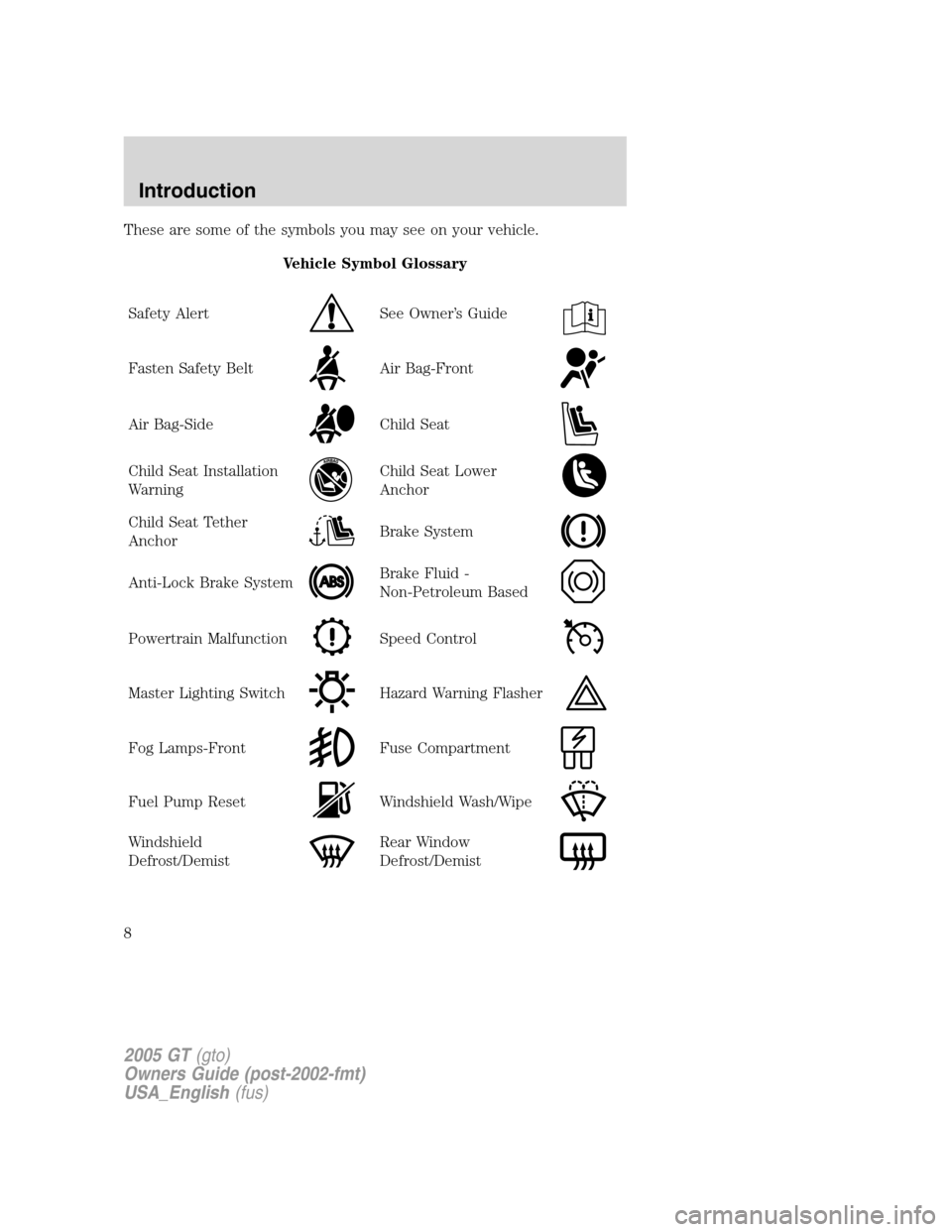

These are some of the symbols you may see on your vehicle.Vehicle Symbol Glossary
Safety Alert
See Owner ’s Guide
Fasten Safety BeltAir Bag-Front
Air Bag-SideChild Seat
Child Seat Installation
WarningChild Seat Lower
Anchor
Child Seat Tether
AnchorBrake System
Anti-Lock Brake SystemBrake Fluid -
Non-Petroleum Based
Powertrain MalfunctionSpeed Control
Master Lighting SwitchHazard Warning Flasher
Fog Lamps-FrontFuse Compartment
Fuel Pump ResetWindshield Wash/Wipe
Windshield
Defrost/DemistRear Window
Defrost/Demist
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Introduction
8
Page 10 of 200
WARNING LIGHTS AND CHIMES
Warning lights and gauges can alert you to a vehicle condition that may
become serious enough to cause expensive repairs. A warning light may
illuminate when a problem exists with one of your vehicle’s functions.
Many lights will illuminate when you start your vehicle to make sure the
lights work. If any light remains on after starting the vehicle, have the
respective system inspected immediately.
Service engine soon: TheService
engine soon indicator light
illuminates when the ignition is first
turned to the ON position to check
the light function. Solid illumination after the engine is started indicates
the On Board Diagnostics System (OBD-II) has detected a malfunction.
Refer to On board diagnostics (OBD-II) in theMaintenance and
Specifications chapter. If the light is blinking, engine misfire is occurring
which could damage your catalytic converter. Drive in a moderate
fashion (avoid heavy acceleration and deceleration) and have your
vehicle serviced immediately.
Under engine misfire conditions, excessive exhaust temperatures
could damage the catalytic converter, the fuel system, interior
floor coverings or other vehicle components, possibly causing a fire.
Brake system warning light: To
confirm the brake system warning
light is functional, it will
momentarily illuminate when the
ignition is turned to the ON position
when the engine is not running or by applying the parking brake when
the ignition is turned to the ON position. If the brake system warning
light does not illuminate at this time, seek service immediately from your
dealership. Illumination after releasing the parking brake indicates low
brake fluid level and the brake system should be inspected immediately
by your servicing dealership.
!
BRAKE
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Instrument Cluster
Instrument Cluster
10
Page 11 of 200
Driving a vehicle with the brake system warning light on is
dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your dealer immediately.
Anti-lock brake system:
Illuminates indicating an ABS fault.
If the lamp stays on for more than a
few seconds, then an ABS fault is
indicated, have the system serviced
immediately. Normal braking is still functional unless the brake warning
light also is illuminated.
Check gage: Illuminates when any
of the following conditions has
occurred:
• The engine coolant temperature
is high.
• The engine oil pressure is low.
• The fuel gauge is at or near empty.
• The charging system is malfunctioning.
Air bag readiness: If this light fails
to illuminate when ignition is turned
to ON, continues to flash or remains
on, have the system serviced
immediately. A chime will also
sound when a malfunction in the supplemental restraint system has been
detected.
Safety belt: Reminds you to fasten
your safety belt. A chime will also
sound to remind you to fasten your
safety belt.
Anti-theft system: Flashes when
the Securilock Passive Anti-theft
System has detected a fault.
ABS
CHECK
GAGE
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Instrument Cluster
11
Page 12 of 200
Door ajar:Illuminates when the
ignition is in the ON position and
any door, trunk or the engine cover
is ajar.
Turn signal: Illuminates when the
left or right turn signal or the hazard
lights are turned on. If the indicators
stay on or flash faster, check the tail lamps for proper function.
High beams: Illuminates when the
high beam headlamps are turned on.
Defrost: Illuminates when the rear
window defroster is turned on.
Key-in-ignition warning chime: Sounds when the key is left in the
ignition in the OFF/LOCK or ACCESSORY position and the driver ’s door
is opened.
Headlamps on warning chime: Sounds when the headlamps or parking
lamps are on, the ignition is off (the key is not in the ignition) and the
driver ’s door is opened.
GAUGES
Engine coolant temperature
gauge: Indicates engine coolant
temperature. At normal operating
temperature, the needle will be
outside the red section. If it enters
the red section, the engine is
overheating. Stop the vehicle as
soon as safely possible, switch
off the engine and let the engine cool.
DOOR
AJAR
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Instrument Cluster
12
Page 14 of 200
Boost/Vac gauge:Boost VAC shows
that supercharger boost and engine
vacuum are functioning properly. If
no boost or reduced boost is shown,
have engine checked.
Fuel gauge: Indicates
approximately how much fuel is left
in the fuel tank (when the ignition
is in the ON position). The fuel
gauge may vary slightly when the
vehicle is in motion or on a grade.
Refer to Filling the tank in the
Maintenance and Specifications
chapter for more information.
Speedometer: Indicates the
current vehicle speed.
Odometer: Registers the total miles
of the vehicle.
Trip odometer: Registers the miles
of individual journeys. To reset,
press and hold the button.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Instrument Cluster
14
Page 15 of 200
AM/FM MCINTOSH CD SYSTEM
A flashing anti-theft indicator (Disc in lamp), may be activated
and de-activated by pressing and holding the CD Eject control for
two seconds or more with the radio turned off.
1.CD door: Insert a CD label side up. Once loaded, the “Disc in ”
indicator light will illuminate and playback begins automatically.
2. Eject: Press to eject a CD when
the power is on or off.
3. Listen/Tune: In radio mode, turn
and release the inner ring right or
left to incrementally tune radio
frequency up or down. Hold the ring
at the right or left tune position for
over a second to seek-up or
seek-down. In CD mode, turn and release the inner ring to select a
desired track. To change modes (Radio, CD, AUX), turn and release the
outer ring. Each time you turn and release the outer ring, the mode will
change and appear on the display. The AUX mode is inoperative for this
application.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Entertainment Systems
Entertainment Systems
15
