2005 FORD GT ECU

Introduction 4
Instrument Cluster 10
Warning and control lights 10
Gauges 12
Entertainment Systems 15
AM/FM stereo with CD 15
Climate Controls 19
Manual heating and air conditioning 19
Rear window defroster 20
Lights 21
Headlamps 21
Turn signal control 22
Bulb replacement 23
Driver Controls 24
Windshield wiper/washer control 24
Steering wheel adjustment 25
Power windows 26
Mirrors 26
Locks and Security 28
Keys 28
Locks 28
Anti-theft system 33
Seating and Safety Restraints 38
Seating 38
Safety restraints 39
Air bags 48
Child restraints 55
Table of Contents
1
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English(fus)
Table of Contents

Driving a vehicle with the brake system warning light on is
dangerous. A significant decrease in braking performance may
occur. It will take you longer to stop the vehicle. Have the vehicle
checked by your dealer immediately.
Anti-lock brake system:
Illuminates indicating an ABS fault.
If the lamp stays on for more than a
few seconds, then an ABS fault is
indicated, have the system serviced
immediately. Normal braking is still functional unless the brake warning
light also is illuminated.
Check gage: Illuminates when any
of the following conditions has
occurred:
• The engine coolant temperature
is high.
• The engine oil pressure is low.
• The fuel gauge is at or near empty.
• The charging system is malfunctioning.
Air bag readiness: If this light fails
to illuminate when ignition is turned
to ON, continues to flash or remains
on, have the system serviced
immediately. A chime will also
sound when a malfunction in the supplemental restraint system has been
detected.
Safety belt: Reminds you to fasten
your safety belt. A chime will also
sound to remind you to fasten your
safety belt.
Anti-theft system: Flashes when
the Securilock
Passive Anti-theft
System has detected a fault.
ABS
CHECK
GAGE
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Instrument Cluster
11

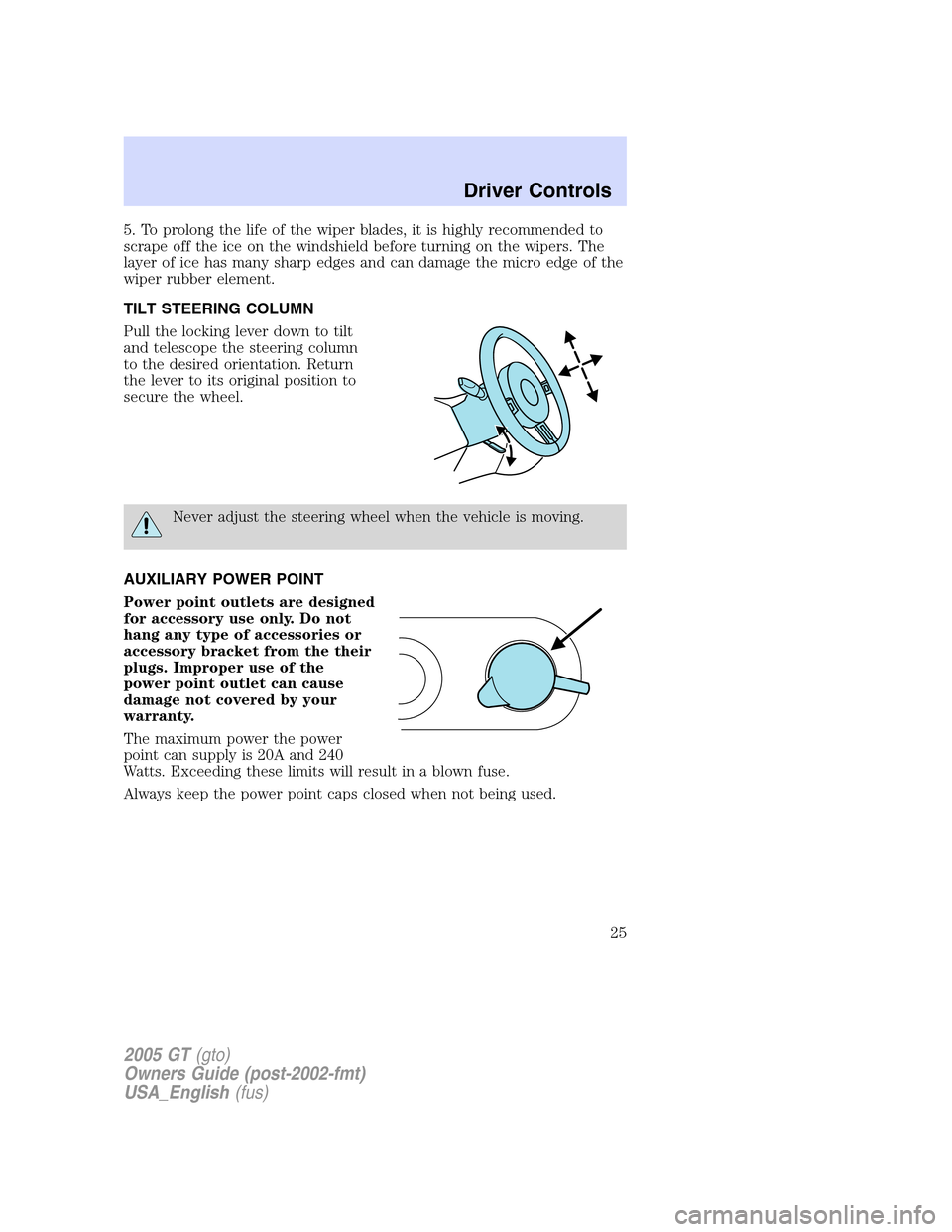

5. To prolong the life of the wiper blades, it is highly recommended to
scrape off the ice on the windshield before turning on the wipers. The
layer of ice has many sharp edges and can damage the micro edge of the
wiper rubber element.
TILT STEERING COLUMN
Pull the locking lever down to tilt
and telescope the steering column
to the desired orientation. Return
the lever to its original position to
secure the wheel.
Never adjust the steering wheel when the vehicle is moving.
AUXILIARY POWER POINT
Power point outlets are designed
for accessory use only. Do not
hang any type of accessories or
accessory bracket from the their
plugs. Improper use of the
power point outlet can cause
damage not covered by your
warranty.
The maximum power the power
point can supply is 20A and 240
Watts. Exceeding these limits will result in a blown fuse.
Always keep the power point caps closed when not being used.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Driver Controls
25

POWER WINDOWS
Do not leave children unattended in the vehicle and do not let
children play with the power windows. They may seriously injure
themselves.
When closing the power windows, you should verify they are free
of obstructions and ensure that children and/or pets are not in
the proximity of the window openings.
Press and hold the bottom part of
the rocker switch to open the
window. Press and hold the top part
of the rocker switch to close the
window.
POWER SIDE VIEW MIRRORS
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to
lock mirrors in place.
CELL PHONE USE
The use of Mobile Communications Equipment has become increasingly
important in the conduct of business and personal affairs. However,
drivers must not compromise their own or others ’safety when using
such equipment. Mobile Communications can enhance personal safety
and security when appropriately used, particularly in emergency
situations. Safety must be paramount when using mobile communications
equipment to avoid negating these benefits.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Driver Controls
26

KEYS
The key operates all locks on your vehicle. You should always carry a
second key with you in a safe place in case you require it in an
emergency.
Your keys are programmed to your vehicle; using a non-programmed key
will not permit your vehicle to start. If you lose your dealer supplied
keys, replacement keys are available through your authorized dealer.
POWER DOOR LOCKS
The power door lock controls are located on the driver and front
passenger door panels.
•Pressing the
portion of the
control will unlock both doors.
• Pressing the
portion of the
control will lock both doors.
The power door lock controls are
disabled 20 seconds after the ignition is turned to the 1 (OFF/LOCK)
position. Note:The door chime will sound once when the doors are
locked and twice when the doors are unlocked.
Autolock
The autolock feature will lock the vehicle ’s doors when:
• both doors are closed,
• the ignition is in the 3 (ON) position,
• you shift into forward or reverse, and
• the vehicle speed is greater than 4 mph (7 km/h).
Note: The door chime will sound once to indicate the doors are locked.
Relock
The autolock feature repeats when:
• either door is opened then closed while the ignition is in the 3 (ON)
position, and
• you shift into forward or reverse, and
• the vehicle speed is greater than 4 mph (7 km/h).
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
Locks and Security
28

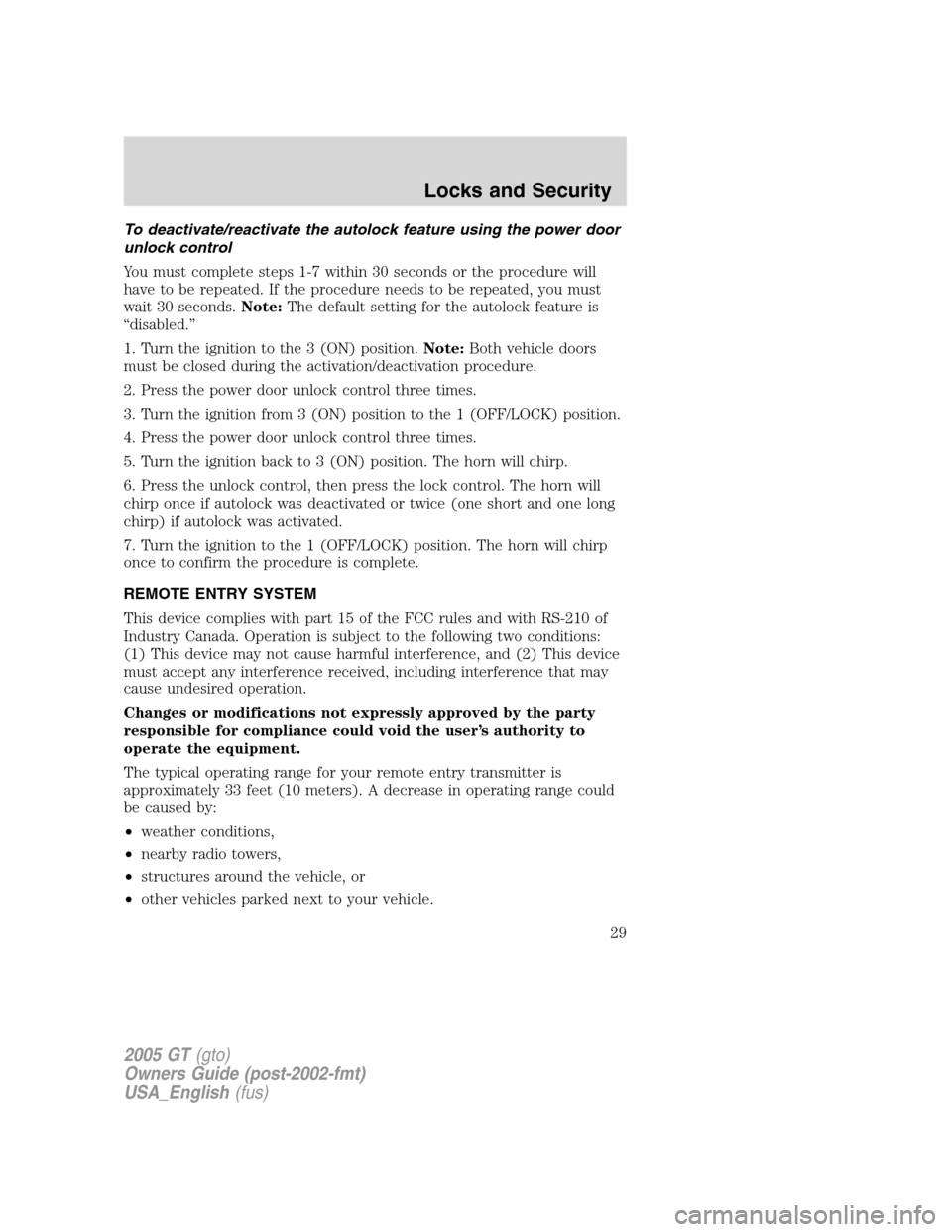

To deactivate/reactivate the autolock feature using the power door
unlock control
You must complete steps 1-7 within 30 seconds or the procedure will
have to be repeated. If the procedure needs to be repeated, you must
wait 30 seconds.Note:The default setting for the autolock feature is
“ disabled. ”
1. Turn the ignition to the 3 (ON) position. Note:Both vehicle doors
must be closed during the activation/deactivation procedure.
2. Press the power door unlock control three times.
3. Turn the ignition from 3 (ON) position to the 1 (OFF/LOCK) position.
4. Press the power door unlock control three times.
5. Turn the ignition back to 3 (ON) position. The horn will chirp.
6. Press the unlock control, then press the lock control. The horn will
chirp once if autolock was deactivated or twice (one short and one long
chirp) if autolock was activated.
7. Turn the ignition to the 1 (OFF/LOCK) position. The horn will chirp
once to confirm the procedure is complete.
REMOTE ENTRY SYSTEM
This device complies with part 15 of the FCC rules and with RS-210 of
Industry Canada. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) This device
must accept any interference received, including interference that may
cause undesired operation.
Changes or modifications not expressly approved by the party
responsible for compliance could void the user’s authority to
operate the equipment.
The typical operating range for your remote entry transmitter is
approximately 33 feet (10 meters). A decrease in operating range could
be caused by:
• weather conditions,
• nearby radio towers,
• structures around the vehicle, or
• other vehicles parked next to your vehicle.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
29

Your vehicle has an all-door remote entry system.
The all-door remote entry system
allows you to:
•lock or unlock both vehicle doors
without a key.
• arm and disarm the anti-theft
system. For more information on
the anti-theft system, refer to
SecuriLock
Passive Anti-theft
System in this chapter.
• open the luggage compartment
without a key.
• activate the panic alarm.
If there are problems with the remote entry system, make sure to take
ALL remote entry transmitters with you to the dealership in order to
aid in troubleshooting the problem.
Unlocking the doors
1. Pressand release to unlock the driver ’s door. Note:The interior
lamps will illuminate, the door chime will sound twice and the park
lamps will flash twice.
2. Press
and release again within three seconds to unlock both doors.
The door chime will again sound twice and the park lamps will again
flash twice.
The remote entry system activates the illuminated entry feature. This
feature turns on the interior lamps for 25 seconds or until the ignition is
turned to the 3 (ON) position.
Note: The vehicle doors may be unlocked by using the remote entry
transmitter, however, in the event of a low battery charge, the door can
be manually unlocked and opened by inserting the key into the driver ’s
door lock cylinder and turning counter clockwise.
Locking the doors
• Pressand release to lock both doors. Note:The parking lamps will
flash once.
If either of the doors, the luggage compartment or the engine cover are
not properly closed, the horn will make two quick chirps if you press
a second time and release.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
30

This process will also activate the vehicle’s anti-theft system. For more
information on arming the anti-theft system, refer to SecuriLock

Passive Anti-theft System in this chapter.
Opening the luggage compartment
Pressonce to open the luggage compartment. Note:This feature
is inoperative with the ignition in the 1 (OFF/LOCK) position.
• The luggage compartment can be released using the remote entry
transmitter. It can also be unlatched manually by inserting the key
into the lock on the driver ’s side front fender. Once the key is turned,
the aluminum release handle may be gently pulled to unlatch the
trunk. Use care when loading items into the luggage compartment to
ensure that the lid can be closed without binding.
• Ensure that the luggage compartment is closed and latched before
driving your vehicle. Failure to properly latch the luggage
compartment may cause objects to fall out or block the driver ’s
forward view.
Sounding a panic alarm
Press
to activate the alarm. Press the control again, or turn the
ignition to the 3 (ON) position to deactivate.
Note: The panic alarm will only operate when the ignition is in the 1
(OFF/LOCK) position.
Replacing the battery
The remote entry transmitter uses one coin type three-volt lithium
battery CR2032 or equivalent.
To replace the battery:
1. Twist a thin coin between the two
halves of the remote entry
transmitter near the key ring. DO
NOT TAKE THE RUBBER COVER
AND CIRCUIT BOARD OFF THE
FRONT HOUSING OF THE
REMOTE ENTRY TRANSMITTER.
2005 GT(gto)
Owners Guide (post-2002-fmt)
USA_English (fus)
Locks and Security
31
