2005 FORD FREESTYLE clock

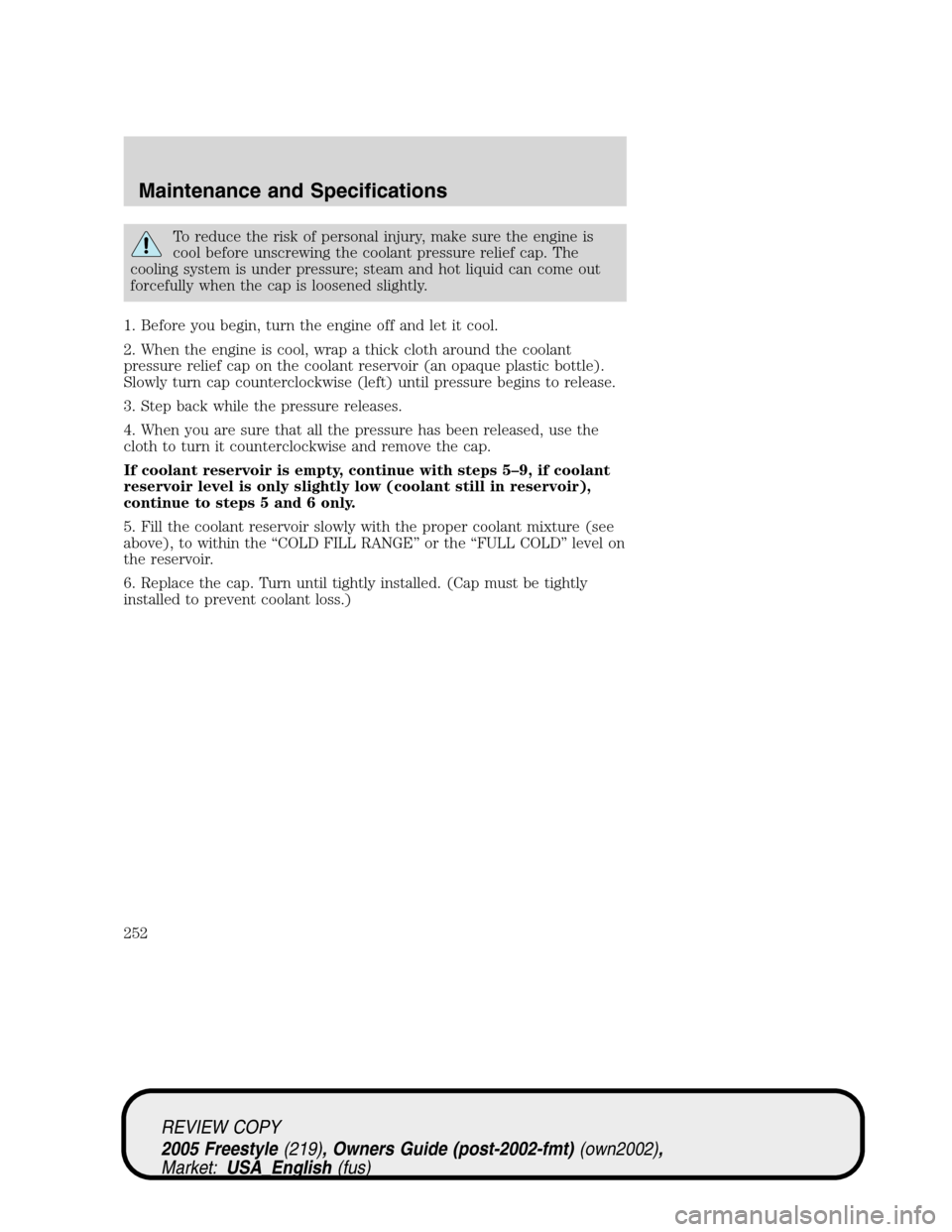

To reduce the risk of personal injury, make sure the engine is
cool before unscrewing the coolant pressure relief cap. The
cooling system is under pressure; steam and hot liquid can come out
forcefully when the cap is loosened slightly.
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (an opaque plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
If coolant reservoir is empty, continue with steps 5–9, if coolant
reservoir level is only slightly low (coolant still in reservoir),
continue to steps 5 and 6 only.
5. Fill the coolant reservoir slowly with the proper coolant mixture (see
above), to within the“COLD FILL RANGE”or the“FULL COLD”level on
the reservoir.
6. Replace the cap. Turn until tightly installed. (Cap must be tightly
installed to prevent coolant loss.)
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
252

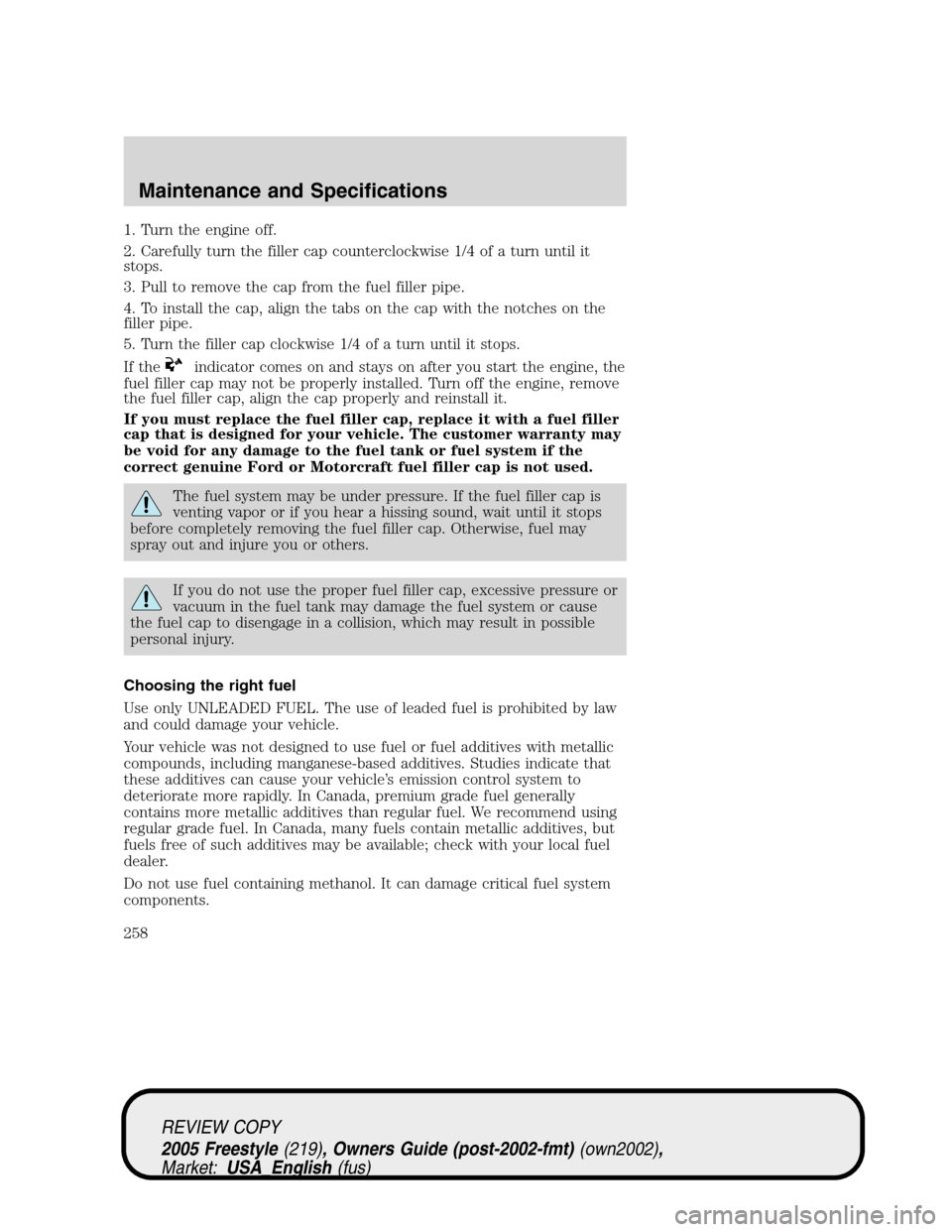

1. Turn the engine off.
2. Carefully turn the filler cap counterclockwise 1/4 of a turn until it
stops.
3. Pull to remove the cap from the fuel filler pipe.
4. To install the cap, align the tabs on the cap with the notches on the
filler pipe.
5. Turn the filler cap clockwise 1/4 of a turn until it stops.
If the
indicator comes on and stays on after you start the engine, the
fuel filler cap may not be properly installed. Turn off the engine, remove
the fuel filler cap, align the cap properly and reinstall it.
If you must replace the fuel filler cap, replace it with a fuel filler
cap that is designed for your vehicle. The customer warranty may
be void for any damage to the fuel tank or fuel system if the
correct genuine Ford or Motorcraft fuel filler cap is not used.
The fuel system may be under pressure. If the fuel filler cap is
venting vapor or if you hear a hissing sound, wait until it stops
before completely removing the fuel filler cap. Otherwise, fuel may
spray out and injure you or others.
If you do not use the proper fuel filler cap, excessive pressure or
vacuum in the fuel tank may damage the fuel system or cause
the fuel cap to disengage in a collision, which may result in possible
personal injury.
Choosing the right fuel
Use only UNLEADED FUEL. The use of leaded fuel is prohibited by law
and could damage your vehicle.
Your vehicle was not designed to use fuel or fuel additives with metallic
compounds, including manganese-based additives. Studies indicate that
these additives can cause your vehicle’s emission control system to
deteriorate more rapidly. In Canada, premium grade fuel generally
contains more metallic additives than regular fuel. We recommend using
regular grade fuel. In Canada, many fuels contain metallic additives, but
fuels free of such additives may be available; check with your local fuel
dealer.
Do not use fuel containing methanol. It can damage critical fuel system
components.
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
258

plastic parts ............................236
washing ....................................234
waxing .....................................234
wheels ......................................235
wiper blades ............................236
Climate control
(see Air conditioning or
Heating) .....................41, 43, 45, 47
Clock adjust
6-CD in dash .............................21
Compass, electronic
set zone adjustment .................79
Console ..................................87–88
overhead ..............................63–64
Controls
power seat ...............................108
steering column ........................71
Coolant
checking and adding ..............249
refill capacities ................255, 268
specifications ..................270, 272
Cruise control
(see Speed control) ....................68
Customer Assistance ................209
Ford accessories for your
vehicle .....................................239
Ford Extended Service
Plan ..........................................231
Getting assistance outside
the U.S. and Canada ..............232
Getting roadside assistance ...209
Getting the service
you need .................................225
Ordering additional owner’s
literature .................................233
The Dispute Settlement
Board .......................................228
Utilizing the Mediation/
Arbitration Program ...............231D
Daytime running lamps
(see Lamps) ................................52
Dipstick
automatic transmission
fluid ..........................................267
engine oil .................................243
Doors
lubricant specifications ..........270
Driving under special
conditions ..........................203, 206
sand .........................................204
snow and ice ...........................206
through water .................205, 207
E
Electronic message center .........76
Emergencies, roadside
jump-starting ..........................218
Emission control system ..........263
Engine ........................................272
cleaning ...................................235
coolant .....................................249
idle speed control ...................247
lubrication
specifications ..................270, 272
refill capacities ........................268
service points ..........................242
starting after a collision .........210
Engine block heater .................193
Engine oil ..................................243
change oil soon warning,
message center .......................243
checking and adding ..............243
dipstick ....................................243
filter, specifications ........246, 267
recommendations ...................246
refill capacities ........................268
specifications ..................270, 272
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
280

Roadside assistance ..................209
Roof rack .....................................90
S
Safety Belt Maintenance ..........130
Safety belts (see
Safety restraints) ......118, 121–125
Safety Canopy ...........................141
Safety defects, reporting ..........233
Safety restraints ........118, 121–125
belt minder .............................126
extension assembly ................130
for adults .........................122–124
for children .....................144–145
Occupant Classification
Sensor ......................................119
safety belt maintenance .........130
warning light and chime ........125
Safety seats for children ..........148
Seat belts
(see Safety restraints) .............118
Seats ..........................................106
child safety seats ....................148
front seats .......................106, 109
heated ............................43, 45, 47
memory seat .....................94, 110
second row seats ............111, 114
third row seats ................114–116
Servicing your vehicle ..............240
Setting the clock
AM/FM/In-dash 6 CD ................21
Spare tire (see
Changing the Tire) ...........163, 165
Spark plugs,
specifications .....................267, 272
Specification chart,
lubricants ...........................270, 272Speed control ..............................68
Starting your
vehicle ........................190–191, 193
jump starting ..........................218
Steering wheel
controls ......................................71
tilting .........................................63
T
Tilt steering wheel ......................63
Tires ...........................158–159, 163
alignment ................................177
care ..........................................176
changing ..................163, 165–166
checking the pressure ............161
inspecting and inflating .........160
label .........................................175
replacing ..................................163
rotating ....................................178
safety practices .......................177
sidewall information ...............170
snow tires and chains ............179
spare tire .................................164
terminology .............................159
tire grades ...............................159
treadwear ........................158, 176
Towing .......................................186
recreational towing .................189
trailer towing ..........................186
wrecker ....................................223
Traction control ........................196
Transaxle
fluid, refill capacities ..............268
lubricant specifications ..........272
Transmission .............................197
brake-shift interlock (BSI) ....197
fluid, checking and adding
(automatic) .............................267
lubricant specifications ..........270
REVIEW COPY
2005 Freestyle(219), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
283
