2005 FORD FIVE HUNDRED rear view mirror

MIRRORS
Power side view mirrors
To adjust your mirrors:
1. Rotate the control clockwise to
adjust the right mirror and rotate
the control counterclockwise to
adjust the left mirror.
2. Move the control in the direction
you wish to tilt the mirror.
3. Return to the center position to
lock mirrors in place.
Fold-away mirrors
Pull the side mirrors in carefully
when driving through a narrow
space, like an automatic car wash.
Automatic dimming inside rear view mirror (if equipped)
Your vehicle may be equipped with
an inside rear view mirror with an
auto-dimming function. The
electronic day/night mirror will
change from the normal (high
reflective) state to the non-glare
(darkened) state when bright lights (glare) reach the mirror. When the
mirror detects bright light from behind the vehicle, it will automatically
adjust (darken) to minimize glare.
The mirror will automatically return to the normal state whenever the
vehicle is placed in R (Reverse) to ensure a bright clear view when
backing up.
Do not block the sensor on the backside of the inside rear view mirror
since this may impair proper mirror performance.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Driver Controls
49

2. Pressand release again within three seconds to unlock all the
doors.
The remote entry system activates the illuminated entry feature; this
feature turns on the lamps for 25 seconds or until the ignition is turned
to the 3 (RUN) position.
The inside lights will not turn off if:
•they have been turned on using the dimmer control or
•any door is open.
The battery saver feature will turn off the interior lamps 30 minutes after
the ignition is turned to the 1 (LOCK) position.
Locking the doors
1. Pressand release to lock all the doors. The turn lamps will flash.
Note:If any door is not closed properly, the lamps will not flash.
2. Press
and release again within three seconds to confirm that all the
doors are closed.Note:The doors will lock again, the horn will chirp and
the turn lamps will flash once if all the doors and trunk are closed. If any
door or the trunk is not closed, or if the hood is not closed in vehicles
equipped with the perimeter alarm feature, the horn will chirp twice and
the lamps will not flash
Sounding a panic alarm
Press
to activate the alarm. The horn will sound and the turn lamps
will flash for a maximum of 3 minutes. Press again or turn the ignition to
the 3 (RUN) position to deactivate, or wait for the alarm to timeout in 3
minutes.
Note:The panic alarm will only operate when the ignition is in the 1
(LOCK) or 2 (ACC) position.
Opening the trunk
Pressonce to open the trunk.
•Ensure that the trunk is closed and latched before driving your
vehicle. Failure to properly latch the trunk may cause objects to fall
out or block the driver’s rear view.
Memory seats/power mirrors/adjustable pedals (if equipped)
The remote entry system can also control the memory seat /power
mirrors/adjustable pedals feature.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Locks and Security
76

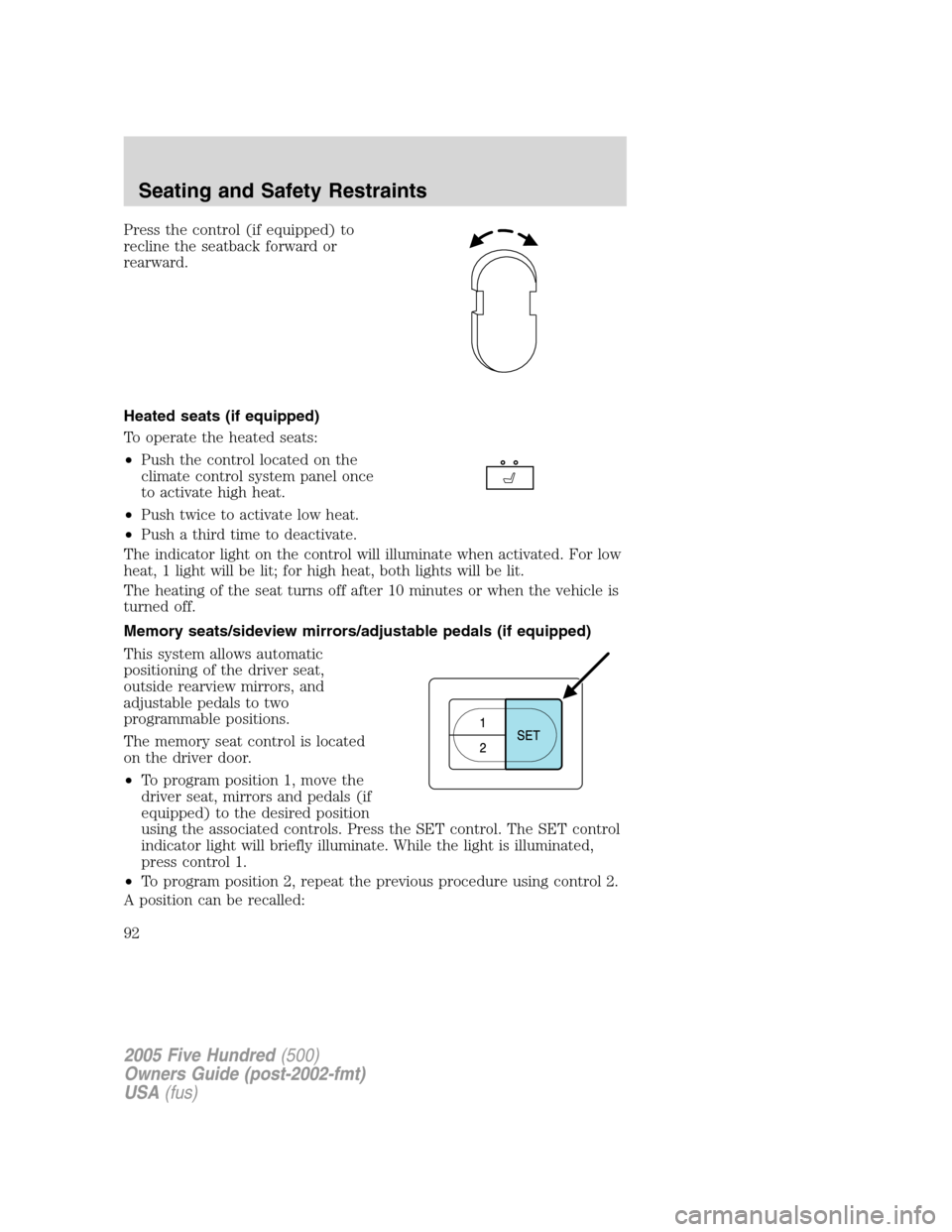

Press the control (if equipped) to
recline the seatback forward or
rearward.
Heated seats (if equipped)
To operate the heated seats:
•Push the control located on the
climate control system panel once
to activate high heat.
•Push twice to activate low heat.
•Push a third time to deactivate.
The indicator light on the control will illuminate when activated. For low
heat, 1 light will be lit; for high heat, both lights will be lit.
The heating of the seat turns off after 10 minutes or when the vehicle is
turned off.
Memory seats/sideview mirrors/adjustable pedals (if equipped)
This system allows automatic
positioning of the driver seat,
outside rearview mirrors, and
adjustable pedals to two
programmable positions.
The memory seat control is located
on the driver door.
•To program position 1, move the
driver seat, mirrors and pedals (if
equipped) to the desired position
using the associated controls. Press the SET control. The SET control
indicator light will briefly illuminate. While the light is illuminated,
press control 1.
•To program position 2, repeat the previous procedure using control 2.
A position can be recalled:
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
92

K
Keyless entry system .................80
autolock .....................................82
Keys
positions of the ignition .........165
L
Lamps
autolamp system .......................33
bulb replacement
specifications chart ..................38
daytime running light ...............34
fog lamps ...................................34
headlamps .....................33, 38–39
headlamps, flash to pass ..........35
instrument panel, dimming .....35
interior lamps ...........................37
replacing bulbs ...................37–42
Lane change indicator
(see Turn signal) ........................37
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........169
Load limits .................................155
Locks
autolock .....................................82
childproof ..................................73
doors ..........................................72
Lubricant specifications ...248, 250
Lug nuts ....................................145
Lumbar support, seats ...............89
M
Message center ...........................59
english/metric button ...............63
system check button ................64
warning messages .....................64
Mirrors ...................................45, 49automatic dimming rearview
mirror ........................................49
fold away ...................................49
side view mirrors (power) .......49
Moon roof ....................................54
Motorcraft parts ................235, 245
O
Octane rating ............................234
Oil (see Engine oil) ..................219
P
Parking brake ............................170
Parts (see Motorcraft parts) ....245
Passenger Occupant
Classification Sensor ...................96
Power adjustable foot pedals .....50
Power distribution box
(see Fuses) ...............................190
Power door locks ........................72
Power mirrors .............................49
Power point .................................46
Power steering ..........................172
fluid, checking and adding ....241
fluid, refill capacity ................246
fluid, specifications .........248, 250
Power Windows ...........................46
R
Radio ......................................17, 20
Relays ........................................187
Remote entry system .................75
illuminated entry ................79–80
opening the trunk .....................76
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
259
