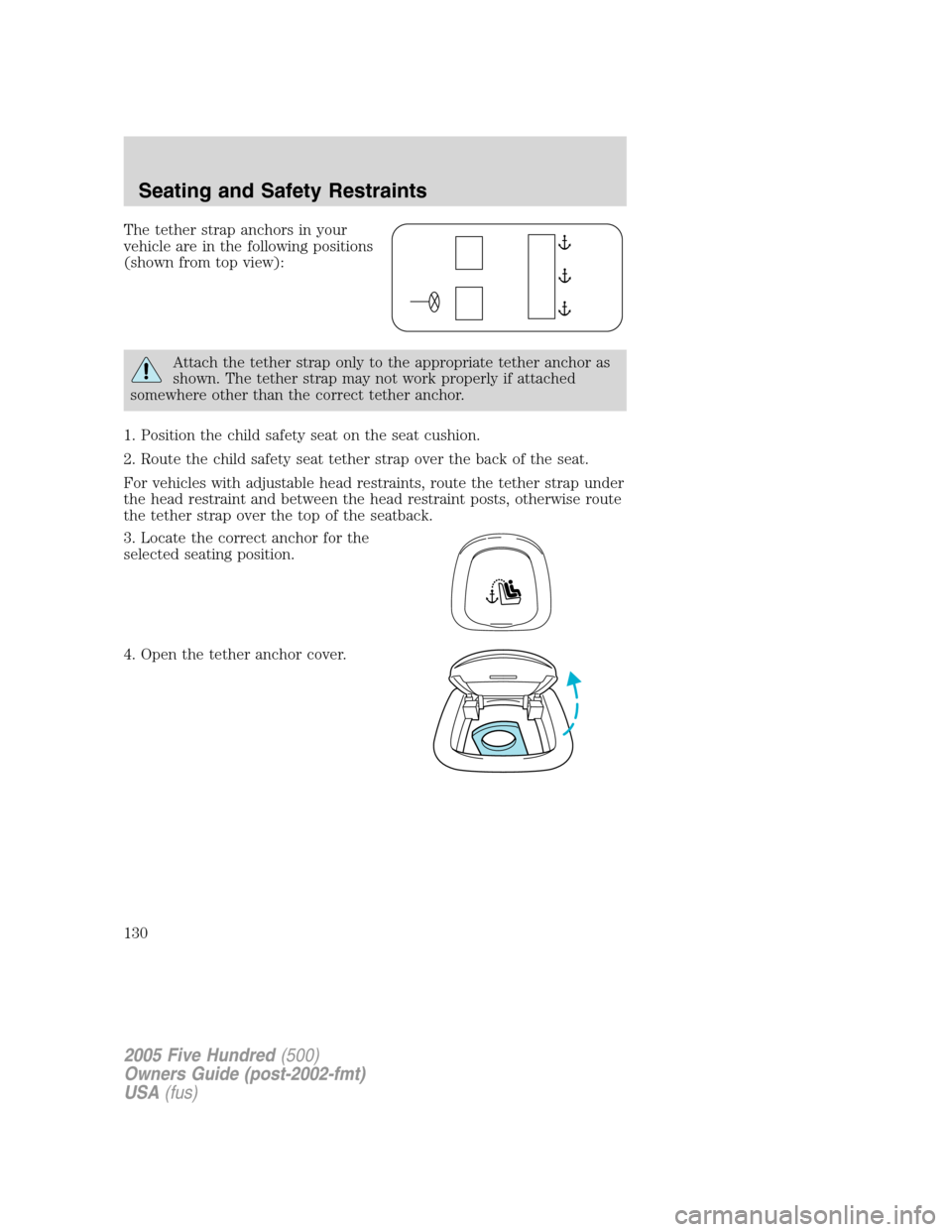

The tether strap anchors in your
vehicle are in the following positions
(shown from top view):
Attach the tether strap only to the appropriate tether anchor as
shown. The tether strap may not work properly if attached
somewhere other than the correct tether anchor.
1. Position the child safety seat on the seat cushion.
2. Route the child safety seat tether strap over the back of the seat.
For vehicles with adjustable head restraints, route the tether strap under
the head restraint and between the head restraint posts, otherwise route
the tether strap over the top of the seatback.
3. Locate the correct anchor for the
selected seating position.
4. Open the tether anchor cover.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
130

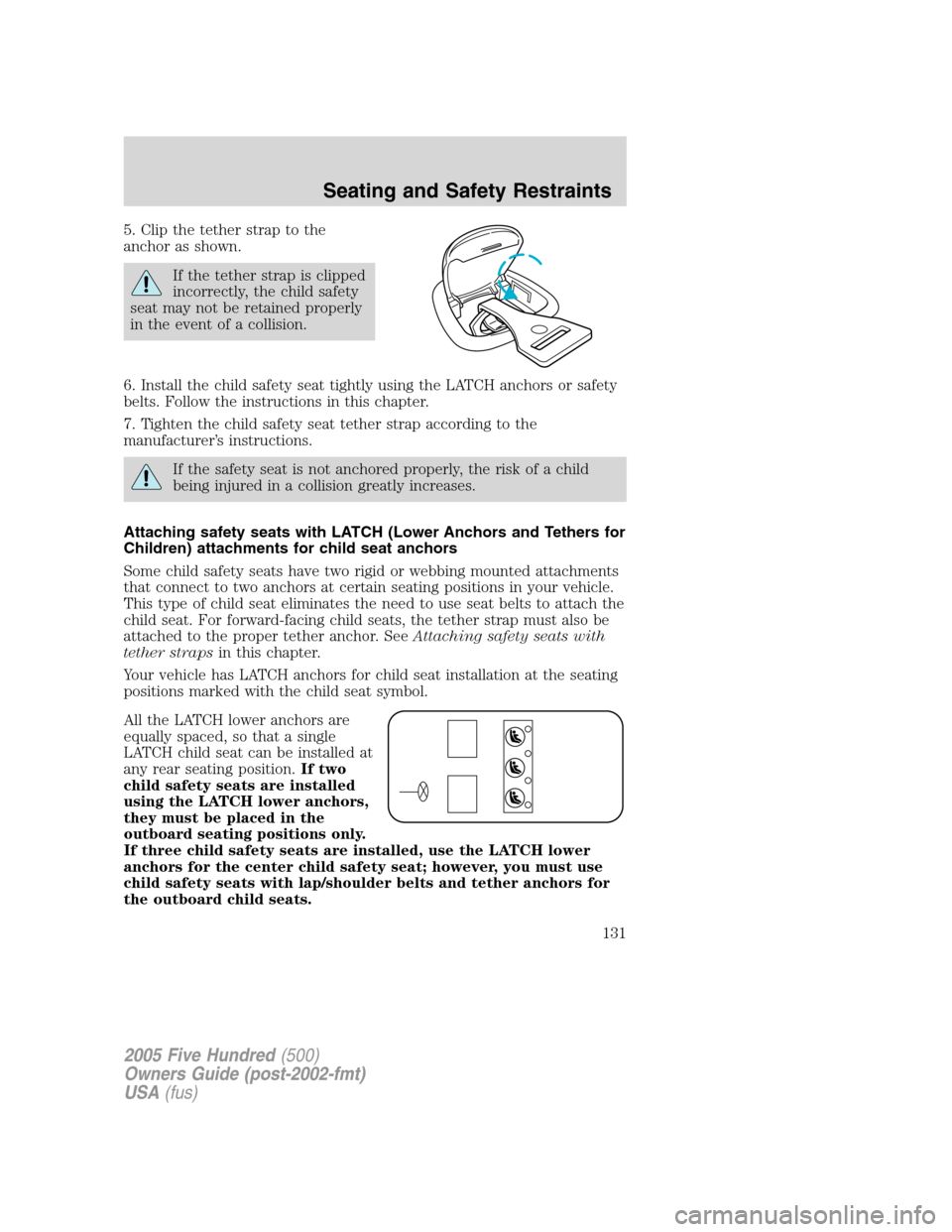

5. Clip the tether strap to the
anchor as shown.
If the tether strap is clipped
incorrectly, the child safety
seat may not be retained properly
in the event of a collision.
6. Install the child safety seat tightly using the LATCH anchors or safety
belts. Follow the instructions in this chapter.
7. Tighten the child safety seat tether strap according to the
manufacturer’s instructions.
If the safety seat is not anchored properly, the risk of a child
being injured in a collision greatly increases.
Attaching safety seats with LATCH (Lower Anchors and Tethers for
Children) attachments for child seat anchors
Some child safety seats have two rigid or webbing mounted attachments
that connect to two anchors at certain seating positions in your vehicle.
This type of child seat eliminates the need to use seat belts to attach the
child seat. For forward-facing child seats, the tether strap must also be
attached to the proper tether anchor. SeeAttaching safety seats with
tether strapsin this chapter.
Your vehicle has LATCH anchors for child seat installation at the seating
positions marked with the child seat symbol.
All the LATCH lower anchors are
equally spaced, so that a single
LATCH child seat can be installed at
any rear seating position.If two
child safety seats are installed
using the LATCH lower anchors,
they must be placed in the
outboard seating positions only.
If three child safety seats are installed, use the LATCH lower
anchors for the center child safety seat; however, you must use
child safety seats with lap/shoulder belts and tether anchors for
the outboard child seats.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
131

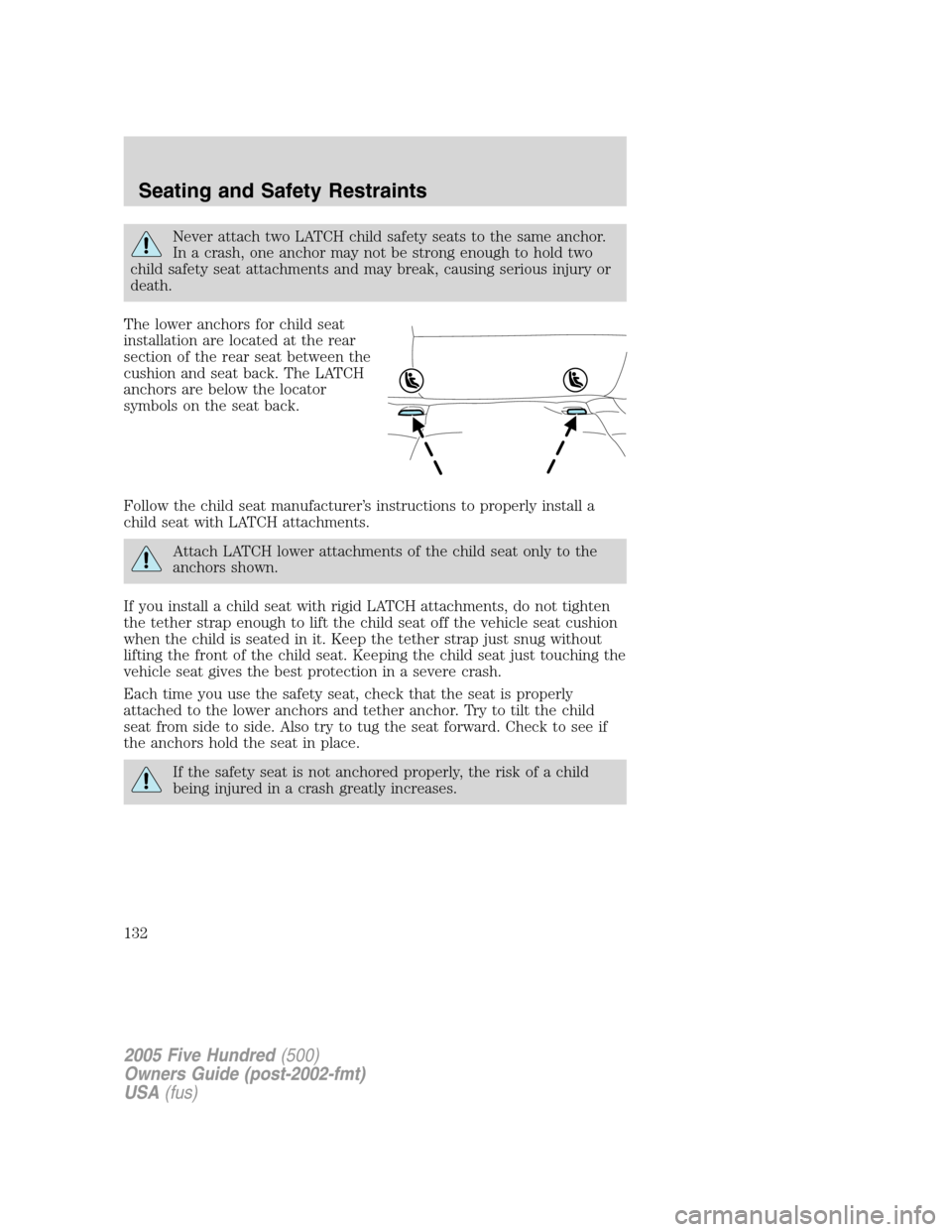

Never attach two LATCH child safety seats to the same anchor.
In a crash, one anchor may not be strong enough to hold two
child safety seat attachments and may break, causing serious injury or
death.
The lower anchors for child seat
installation are located at the rear
section of the rear seat between the
cushion and seat back. The LATCH
anchors are below the locator
symbols on the seat back.
Follow the child seat manufacturer’s instructions to properly install a
child seat with LATCH attachments.
Attach LATCH lower attachments of the child seat only to the
anchors shown.
If you install a child seat with rigid LATCH attachments, do not tighten
the tether strap enough to lift the child seat off the vehicle seat cushion
when the child is seated in it. Keep the tether strap just snug without
lifting the front of the child seat. Keeping the child seat just touching the
vehicle seat gives the best protection in a severe crash.
Each time you use the safety seat, check that the seat is properly
attached to the lower anchors and tether anchor. Try to tilt the child
seat from side to side. Also try to tug the seat forward. Check to see if
the anchors hold the seat in place.
If the safety seat is not anchored properly, the risk of a child
being injured in a crash greatly increases.
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
132

A
Accessory delay ..........................48
Air cleaner filter .......................245
Air conditioning ....................27, 29
Airbag supplemental restraint
system ........................109, 116, 119
and child safety seats ............111
description ..............109, 116, 119
disposal ....................................122
driver airbag ............111, 117, 120
indicator light .................116, 121
operation .................111, 117, 120
passenger airbag .....111, 117, 120
side airbag ...............................116
All Wheel Drive (AWD),
driving off road .........................178
Antifreeze
(see Engine coolant) ................225
Anti-lock brake system
(see Brakes) ..............................169
Anti-theft system ........................86
arming the system ....................86
disarming a triggered system ..87
Audio system (see Radio) ...17, 20
Automatic transaxle
fluid, adding ....................242–243
fluid, checking ................242–243
fluid, refill capacities ..............246
fluid, specification ..................250
Automatic transmission
driving an automatic
overdrive .........................174–175
Axle
lubricant specifications ..........248
B
Battery .......................................223acid, treating emergencies .....223
jumping a disabled battery ....194
maintenance-free ....................223
replacement, specifications ...245
servicing ..................................223
BeltMinder .................................103
Brakes ........................................169
anti-lock ...................................169
anti-lock brake system (ABS)
warning light ...........................169
fluid, checking and adding ....242
fluid, refill capacities ..............246
fluid, specifications .........248, 250
lubricant specifications ..248, 250
parking ....................................170
shift interlock ..........................172
Bulbs ............................................37
C
Capacities for refilling fluids ....246
Cargo net .....................................71
Cassette tape player ...................17
Cell phone use ............................70
Changing a tire .........................138
Child safety restraints ..............123
child safety belts ....................123
Child safety seats ......................125
attaching with tether straps ..129
in front seat ............................127
in rear seat ..............................127
Cleaning your vehicle
engine compartment ..............211
instrument panel ....................213
interior .....................................213
interior trim ............................213
plastic parts ............................212
washing ....................................210
waxing .....................................210
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
256

K
Keyless entry system .................80
autolock .....................................82
Keys
positions of the ignition .........165
L
Lamps
autolamp system .......................33
bulb replacement
specifications chart ..................38
daytime running light ...............34
fog lamps ...................................34
headlamps .....................33, 38–39
headlamps, flash to pass ..........35
instrument panel, dimming .....35
interior lamps ...........................37
replacing bulbs ...................37–42
Lane change indicator
(see Turn signal) ........................37
Lights, warning and indicator ....10
anti-lock brakes (ABS) ..........169
Load limits .................................155
Locks
autolock .....................................82
childproof ..................................73
doors ..........................................72
Lubricant specifications ...248, 250
Lug nuts ....................................145
Lumbar support, seats ...............89
M
Message center ...........................59
english/metric button ...............63
system check button ................64
warning messages .....................64
Mirrors ...................................45, 49automatic dimming rearview
mirror ........................................49
fold away ...................................49
side view mirrors (power) .......49
Moon roof ....................................54
Motorcraft parts ................235, 245
O
Octane rating ............................234
Oil (see Engine oil) ..................219
P
Parking brake ............................170
Parts (see Motorcraft parts) ....245
Passenger Occupant
Classification Sensor ...................96
Power adjustable foot pedals .....50
Power distribution box
(see Fuses) ...............................190
Power door locks ........................72
Power mirrors .............................49
Power point .................................46
Power steering ..........................172
fluid, checking and adding ....241
fluid, refill capacity ................246
fluid, specifications .........248, 250
Power Windows ...........................46
R
Radio ......................................17, 20
Relays ........................................187
Remote entry system .................75
illuminated entry ................79–80
opening the trunk .....................76
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
259

Reverse sensing system ...........176
Roadside assistance ..................185
S
Safety Belt Maintenance ..........108
Safety belts (see Safety
restraints) ......................95, 98–102
Safety Canopy ...........................119
Safety defects, reporting ..........209
Safety restraints ............95, 98–102
belt minder .............................103
extension assembly ................108
for adults ...........................99–101
for children .....................122–123
Occupant Classification
Sensor ........................................96
safety belt maintenance .........108
warning light and
chime ...............................102–103
Safety seats for children ..........125
Safety Compliance
Certification Label ....................252
Seat belts
(see Safety restraints) ...............95
Seats ............................................88
child safety seats ....................125
front seats .....................88, 90, 92
heated ........................................29
memory seat .......................76, 92
Servicing your vehicle ..............216
Setting the clock
AM/FM/In-dash 6 CD ................21
Spare tire (see Changing
the Tire) ............................139, 141
Spark plugs,
specifications .....................245, 250Specification chart,
lubricants ...........................248, 250
Speed control ..............................50
Starting your vehicle .......165–166,
168
jump starting ..........................194
Steering wheel
controls ......................................53
tilting .........................................44
T
Tilt steering wheel ......................44
Tires ...........................133–134, 138
alignment ................................152
care ..........................................151
changing ..................138–139, 141
checking the pressure ............136
inspecting and inflating .........135
label .........................................150
replacing ..................................138
rotating ....................................153
safety practices .......................152
sidewall information ...............145
snow tires and chains ............154
spare tire .................................139
terminology .............................134
tire grades ...............................134
treadwear ........................133, 151
Towing .......................................161
recreational towing .................164
trailer towing ..........................161
wrecker ....................................199
Traction control ........................171
Transaxle
fluid, refill capacities ..............246
lubricant specifications ..........250
Transmission .............................172
brake-shift interlock (BSI) ....172
2005 Five Hundred(500)
Owners Guide (post-2002-fmt)
USA(fus)
Index
260
