BRAKE FLUID RESERVOIR
The fluid level will drop slowly as
the brakes wear, and will rise when
the brake components are replaced.
Fluid levels below the “MAX” line
that do not trigger the brake system
warning lamp are within the normal
operating range, there is no need to
add fluid. If the fluid levels are
outside of the normal operating
range, the performance of your
brake system could be
compromised, seek service from your dealer immediately.
TRANSMISSION FLUID
Checking automatic transmission fluid
The automatic transmission does not have a transmission fluid dipstick.
Refer to yourScheduled Maintenance Guidefor scheduled intervals for
fluid checks and changes. Your transmission does not consume fluid.
However, the fluid level should be checked if the transmission is not
working properly, (i.e., if the transmission slips or shifts slowly) or if you
notice some sign of fluid leakage.
Transmission fluid should be checked and, if required, fluid
should be added by a qualified technician.
Do not use supplemental transmission fluid additives, treatments or
cleaning agents. The use of these materials may affect transmission
operation and result in damage to internal transmission components.
AIR FILTER MAINTENANCE
Refer to the scheduled maintenance guide for the appropriate intervals
for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.
CHANGING THE AIR FILTER ELEMENT
1. Release the clamps that secure the air filter housing cover.
2. Carefully separate the two halves of the air filter housing.
REVIEW COPY
2005 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
299

Fluid Ford Part
NameApplication Capacity
Transmission
fluid
1Motorcraft
MERCONV
AT FAutomatic
transmissions12.7 quarts
(12.0L)2
Transfer case Motorcraft
MERCONAT F4WD 1.5 quarts
(1.4L)
Engine coolant
3Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.0L SOHC V6
enginewithout
auxiliary climate
control16.3 quarts
(15.4L)
4.0L SOHC V6
enginewith
auxiliary climate
control18.2 quarts
(17.2L)
4.6L V8 engine
without
auxiliary climate
control18.6 quarts
(17.6L)
4.6L V8 engine
withauxiliary
climate control20.1 quarts
(19.0L)
Front axle
lubricantMotorcraft SAE
80W-90
Premium Rear
Axle Lubricant4x4 vehicles 1.8 quarts
(1.7L)
Rear axle
lubricantMotorcraft SAE
75W-140
Synthetic Rear
Axle LubricantConventional
Axle3.5 pints (1.7L)
Limited slip axle
43.25 pints (1.5L)
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.2 quarts
(4.0L)
REVIEW COPY
2005 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
303

1Ensure the correct automatic transmission fluid is used. MERCONand
MERCONV are not interchangeable. DO NOT mix MERCONand
MERCONV. Refer to yourScheduled Maintenance Guideto
determine the correct service interval.
2Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be checked by a qualified
technician.
3Add the coolant type originally equipped in your vehicle.
4Limited Slip differentials must add 4 oz (118ml) of Additive Friction
Modifier XL-3 or equivalent to the rear axle whenever the axle has been
serviced.
5Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification and the API
Certification mark.
5Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only have the API Certification mark and meet the requirements
of Ford specification WSS-M2C929-A (4.0L) or WSS-M2C930-A (4.6L).
LUBRICANT SPECIFICATIONS
ItemFord Part
Name or
equivalentFord Part
NumberFord
Specification
Body hinges,
latches, door
striker plates
and rotors, seat
tracks, fuel filler
door hinge and
spring, hood
latch, auxiliary
latch, seat
tracksMulti-Purpose
Grease or
Multi-Purpose
Grease SprayXG–4 or XL–5ESR-M1C159-A or
ESB-M1C93–B
Hydraulic brake
fluid and Clutch
Fluid (if
equipped)Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1ESA-M6C25-A,
DOT 3
REVIEW COPY
2005 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
304

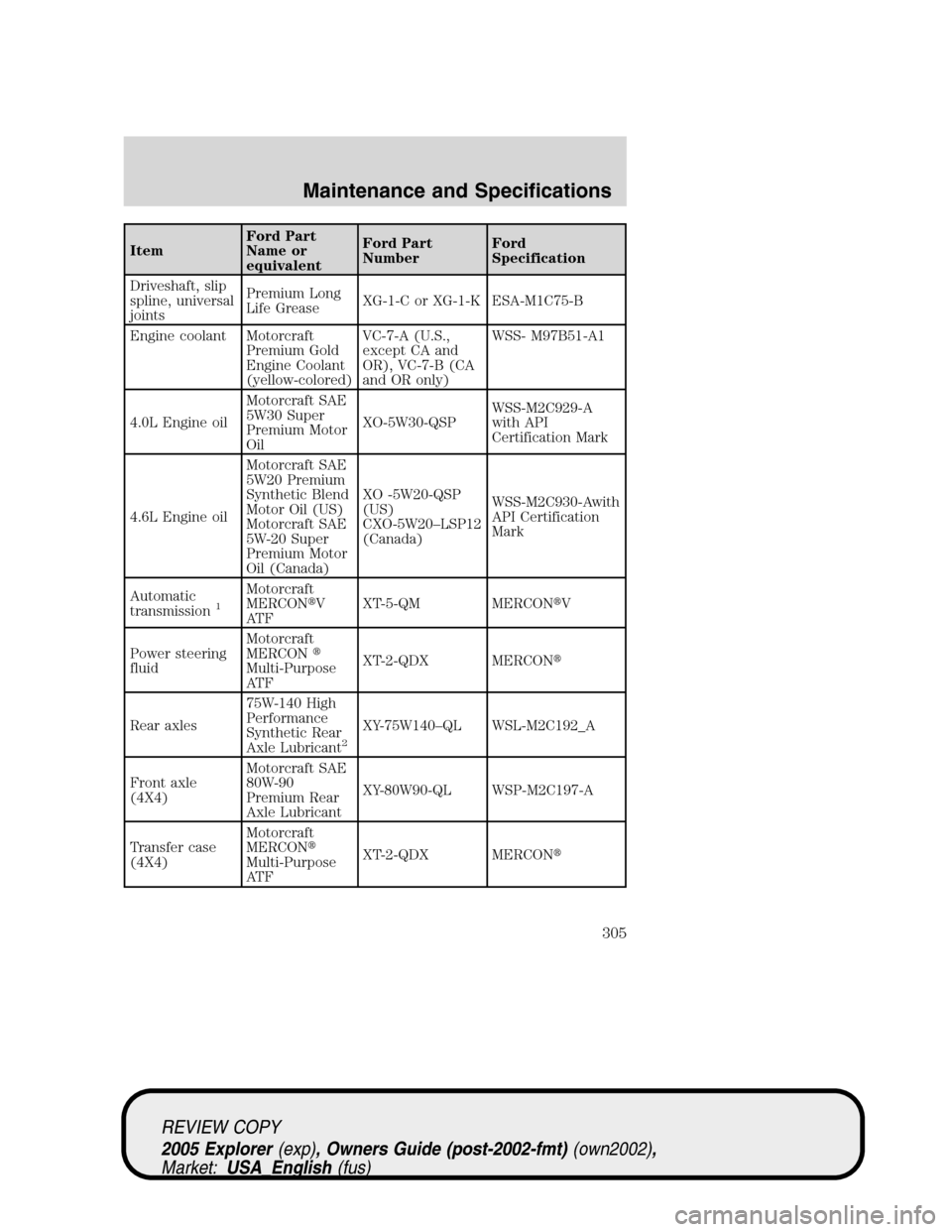

ItemFord Part
Name or
equivalentFord Part
NumberFord
Specification
Driveshaft, slip
spline, universal
jointsPremium Long
Life GreaseXG-1-C or XG-1-K ESA-M1C75-B
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA and
OR), VC-7-B (CA
and OR only)WSS- M97B51-A1
4.0L Engine oilMotorcraft SAE
5W30 Super
Premium Motor
OilXO-5W30-QSPWSS-M2C929-A
with API
Certification Mark
4.6L Engine oilMotorcraft SAE
5W20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO -5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C930-Awith
API Certification
Mark
Automatic
transmission
1
Motorcraft
MERCONV
AT FXT-5-QM MERCONV
Power steering
fluidMotorcraft
MERCON
Multi-Purpose
AT FXT-2-QDX MERCON
Rear axles75W-140 High
Performance
Synthetic Rear
Axle Lubricant
2
XY-75W140–QL WSL-M2C192_A
Front axle
(4X4)Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Transfer case
(4X4)Motorcraft
MERCON
Multi-Purpose
AT FXT-2-QDX MERCON
REVIEW COPY
2005 Explorer(exp), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
305

ItemFord Part
Name or
equivalentFord Part
NumberFord
Specification
Transfer case
Front Output
Slip ShaftPremium
Long-Life
GreaseXG-1-C or XG-1-K ESA-M1C75-B
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC—32–A WSB-M8B16–A2
1Ensure the correct automatic transmission fluid is used. MERCONand
MERCONV are not interchangeable. DO NOT mix MERCONand
MERCONV. Refer to yourScheduled Maintenance Guideto
determine the correct service interval.
2Limited slip differentials must add 4 oz (118 ml) of Additive Friction
Modifier XL–3 or equivalent to the rear axle whenever the axle has been
serviced.
ENGINE DATA
Engine 4.0L SOHC V6
engine4.6L V8 engine
Cubic inches 245 281
Required fuel 87 octane 87 octane
Firing order 1-4-2-5-3-6 1-3-7-2-6-5-4-8
Ignition system EDIS EDIS
Spark plug gap 0.051–0.056 inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42 mm)
Compression ratio 9.7:1 9.4:1
