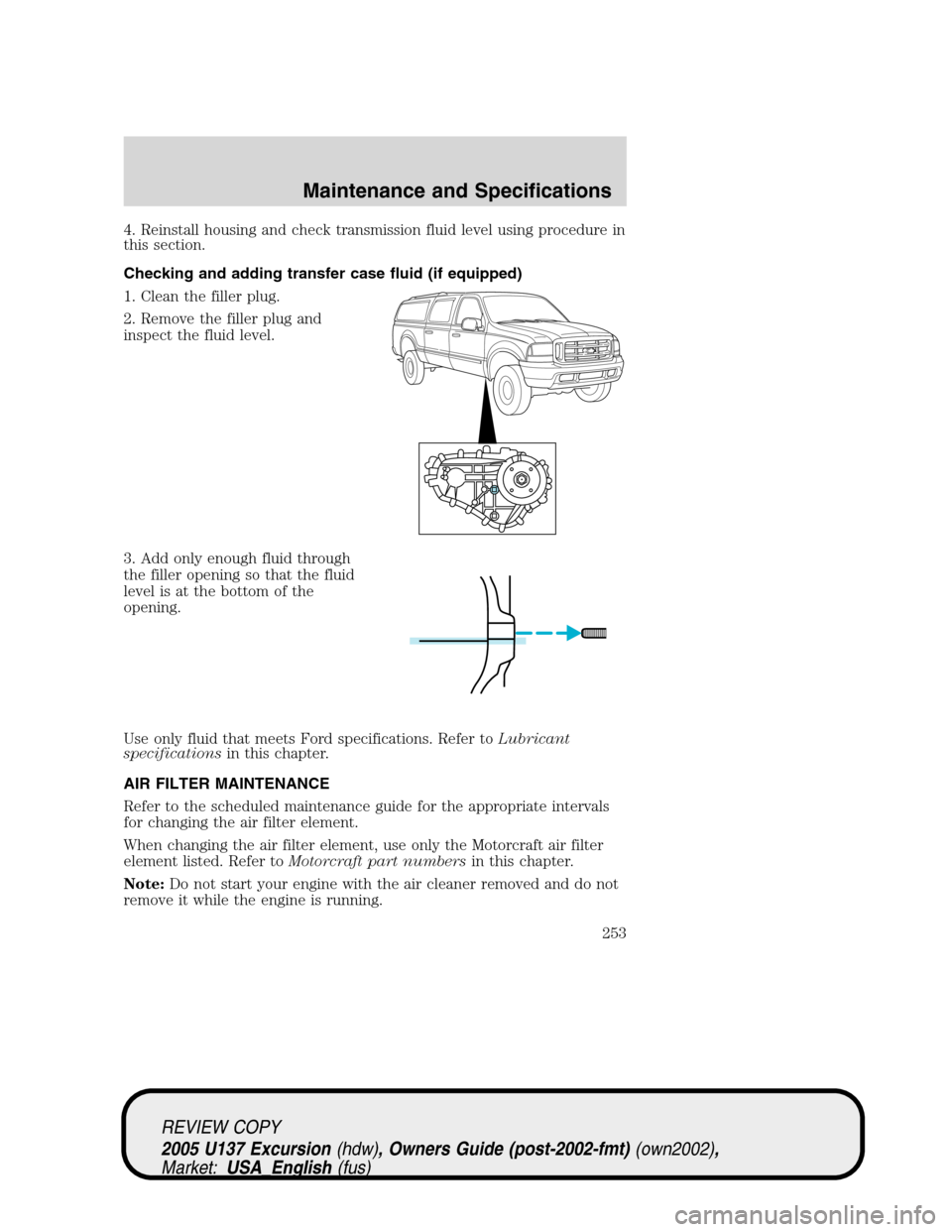

2005 FORD EXCURSION check engine

4. Reinstall housing and check transmission fluid level using procedure in
this section.
Checking and adding transfer case fluid (if equipped)
1. Clean the filler plug.
2. Remove the filler plug and
inspect the fluid level.
3. Add only enough fluid through
the filler opening so that the fluid
level is at the bottom of the
opening.
Use only fluid that meets Ford specifications. Refer toLubricant
specificationsin this chapter.
AIR FILTER MAINTENANCE
Refer to the scheduled maintenance guide for the appropriate intervals
for changing the air filter element.
When changing the air filter element, use only the Motorcraft air filter
element listed. Refer toMotorcraft part numbersin this chapter.
Note:Do not start your engine with the air cleaner removed and do not
remove it while the engine is running.

REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
253

3Add the coolant type originally equipped in your vehicle.
4If equipped with auxiliary rear heater, add an additional 1.4 L (1.5
quarts).
5Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the end of the dipstick. Check the
container to verify the fluid being added is of the correct type. Refer to
yourScheduled Maintenance Guideto determine the correct service
interval.
Some transmission fluids may be labeled as dual usage, such as
MERCONand MERCONV. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCONtype
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCONV type fluid.
MERCON, MERCONV and MERCONSP are not
interchangeable. DO NOT mix MERCON, MERCONV and
MERCONSP. Use of dual usage fluids in an automatic
transmission application requiring MERCONSP may cause
transmission damage. Use of a transmission fluid other than the
recommended fluid may cause transmission damage.
6Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size and if equipped with an in-tank cooler. The amount
of transmission fluid and fluid level should be set by the indication on
the dipstick’s normal operating range.
7Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
258

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission, frame and
transfer case (if equipped).
XXXXXXXXXXXXXXXXX
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
264

A
Accessory delay ..........................66
Air bag supplemental restraint
system ........................................117
and child safety seats ............119
description ..............................117
disposal ....................................121
driver air bag ..........................119
indicator light .........................121
operation .................................119
passenger air bag ...................119
Air cleaner filter ...............253–255
Air conditioning ..........................45
Antifreeze
(see Engine coolant) ................233
Anti-lock brake system
(see Brakes) ......................172–173
Audio system (see Radio) ...17, 21
Automatic transmission
driving an automatic
overdrive .........................177, 179
fluid, adding ............................250
fluid, checking ........................250
fluid, refill capacities ..............256
fluid, specification ..................262
Auxiliary power point .................64
Axle
lubricant specifications ..259, 262
refill capacities ........................256
traction lok ..............................175
B
Battery .......................................231
acid, treating emergencies .....231
jumping a disabled battery ....204
maintenance-free ....................231
replacement, specifications ...255servicing ..................................231
BeltMinder .................................112
Brakes ........................................172
anti-lock ...........................172–173
anti-lock brake system (ABS)
warning light ...........................172
fluid, checking and adding ....250
fluid, refill capacities ..............256
fluid, specifications .........259, 262
lubricant specifications ..259, 262
parking ....................................173
shift interlock ..........................176
Break-in period .............................5
Bulbs ............................................54
C
Capacities for refilling fluids ....256
Cargo net .....................................82
Cell phone use ............................81
Certification Label ....................263
Changing a tire .........................140
Child safety restraints ..............122
child safety belts ....................122
Child safety seats ......................124
attaching with tether straps ..128
in front seat ............................126
in rear seat ..............................126
Cleaning your vehicle
engine compartment ..............220
instrument panel ....................222
interior .....................................222
interior trim ............................222
plastic parts ............................221
safety belts ..............................222
washing ....................................219
waxing .....................................219
wheels ......................................220
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
Index
268

wiper blades ............................221
Climate control (see Air
conditioning or Heating) ......45, 47
Clock adjust
6-CD in dash .............................23
AM/FM/Tape/CD .......................19
Compass, electronic ....................75
calibration .................................76
set zone adjustment .................76
Console ........................................81
overhead ..............................62–63
Controls
power seat .................................99
steering column ........................73
Coolant
checking and adding ..............233
refill capacities ................237, 256
specifications ..................259, 262
Cruise control
(see Speed control) ....................70
Customer Assistance ................196
Ford accessories for your
vehicle .....................................223
Ford Extended Service
Plan ..........................................216
Getting assistance outside the
U.S. and Canada .....................217
Getting roadside assistance ...196
Getting the service you
need .........................................210
Ordering additional owner’s
literature .................................217
The Dispute Settlement
Board .......................................212
Utilizing the
Mediation/Arbitration
Program ...................................215D
Daytime running lamps
(see Lamps) ................................50
Dipstick
automatic transmission fluid .250
engine oil .................................228
Doors
lubricant specifications ..........259
Driving under special
conditions ..................182, 189, 192
sand .........................................191
snow and ice ...........................193
through water .................191, 195
E
Emergencies, roadside
jump-starting ..........................204
Emergency Flashers .................197
Emission control system ..........247
Engine ........................................262
cleaning ...................................220
coolant .....................................233
diesel ...........................................6
fail-safe coolant ......................237
idle speed control ...................231
lubrication
specifications ..................259, 262
refill capacities ........................256
service points ..........................226
starting after a collision .........197
Engine block heater .................171
Engine oil ..................................228
checking and adding ..............228
dipstick ....................................228
filter, specifications ........230, 255
recommendations ...................230
refill capacities ........................256
specifications ..................259, 262
REVIEW COPY
2005 U137 Excursion(hdw), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
269
