2005 FORD ESCAPE check engine

Illumination of theindicator, charging system warning light or the
temperature warning light, fluid leaks, strange odors, smoke or loss of
engine power, could indicate that the emission control system is not
working properly.
Exhaust leaks may result in entry of harmful and potentially
lethal fumes into the passenger compartment.
Do not make any unauthorized changes to your vehicle or engine. By
law, vehicle owners and anyone who manufactures, repairs, services,
sells, leases, trades vehicles, or supervises a fleet of vehicles are not
permitted to intentionally remove an emission control device or prevent
it from working. Information about your vehicle’s emission system is on
the Vehicle Emission Control Information Decal located on or near the
engine. This decal identifies engine displacement and gives some tune up
specifications.
Please consult yourWarranty Guidefor complete emission warranty
information.
On board diagnostics (OBD-II)
Your vehicle is equipped with a computer that monitors the engine’s
emission control system. This system is commonly known as the On
Board Diagnostics System (OBD-II). This OBD-II system protects the
environment by ensuring that your vehicle continues to meet
government emission standards. The OBD-II system also assists the
service technician in properly servicing your vehicle. When theCheck
engine/Service engine soonlight illuminates, the OBD-II system has
detected a malfunction. Temporary malfunctions may cause yourCheck
engine/Service engine soonlight to illuminate. Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run
poorly.)
2. Poor fuel quality or water in the fuel.
3. The fuel cap may not have been securely tightened.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel and/or properly tightening the fuel cap. After three
driving cycles without these or any other temporary malfunctions
present, theCheck engine/Service engine soonlight should turn off. (A
driving cycle consists of a cold engine startup followed by mixed
city/highway driving.) No additional vehicle service is required.
If theCheck engine/Service engine soonlight remains on, have your
vehicle serviced at the first available opportunity.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
233

Readiness for Inspection/Maintenance (I/M) testing
In some localities, it may be a legal requirement to pass an I/M test of
the on-board diagnostics system. If your
indicator is on, refer to the
description in theWarning lights and chimessection of the
Instrument Clusterchapter. Your vehicle may not pass the I/M test with
the
indicator on.
If the vehicle’s powertrain system or its battery has just been serviced,
the on-board diagnostics system is reset to a“not ready for I/M test”
condition. To ready the on-board diagnostics system for I/M testing, a
minimum of 30 minutes of city and highway driving is necessary as
described below:
•First, at least 10 minutes of driving on an expressway or highway.
•Next, at least 20 minutes driving in stop-and-go, city-type traffic with
at least four idle periods.
Allow the vehicle to sit for at least eight hours without starting the
engine. Then, start the engine and complete the above driving cycle. The
engine must warm up to its normal operating temperature. Once started,
do not turn off the engine until the above driving cycle is complete.
CHECKING AND ADDING POWER STEERING FLUID
Check the power steering fluid.
Refer to the scheduled maintenance
guide for the service interval
schedules.If adding fluid is
necessary, use only MERCON
AT F.
1. Start the engine and let it run until it reaches normal operating
temperature (the engine coolant temperature gauge indicator will be
near the center of the normal area between H and C).
2. While the engine idles, turn the steering wheel left and right several
times.
3. Turn the engine off.
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
234

during hot weather or pulling a trailer, the vehicle should be
turned off for about 30 minutes to allow fluid to cool before
checking.
1. Drive the vehicle 30 km (20 miles) or until it reaches normal operating
temperature.
2. Park the vehicle on a level surface and engage the parking brake.
3. With the parking brake engaged and your foot on the brake pedal,
start the engine and move the gearshift lever through all of the gear
ranges. Allow sufficient time for each gear to engage.
4. Latch the gearshift lever in P (Park) and leave the engine running.
5. Remove the dipstick, wiping it clean with a clean, dry lint free rag. If
necessary, refer toIdentifying components in the engine compartment
in this chapter for the location of the dipstick.
6. Install the dipstick making sure it is fully seated in the filler tube.
7. Remove the dipstick and inspect the fluid level. The fluid should be in
the crosshatch zone for normal operating temperature.
Low fluid level
Do not drive the vehicle if the fluid
level is at the bottom of the dipstick
and the outside temperatures are
above 10°C (50°F).
Correct fluid level
The transmission fluid should be checked at normal operating
temperatures 66°C-77°C (150°F-170°F) on a level surface. The normal
operating temperature can be reached after approximately 30 km (20
miles) of driving.
The transmission fluid should be in
the crosshatch zone if at normal
operating temperature (66°C-77°C
[150°F-170°F]).
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
236

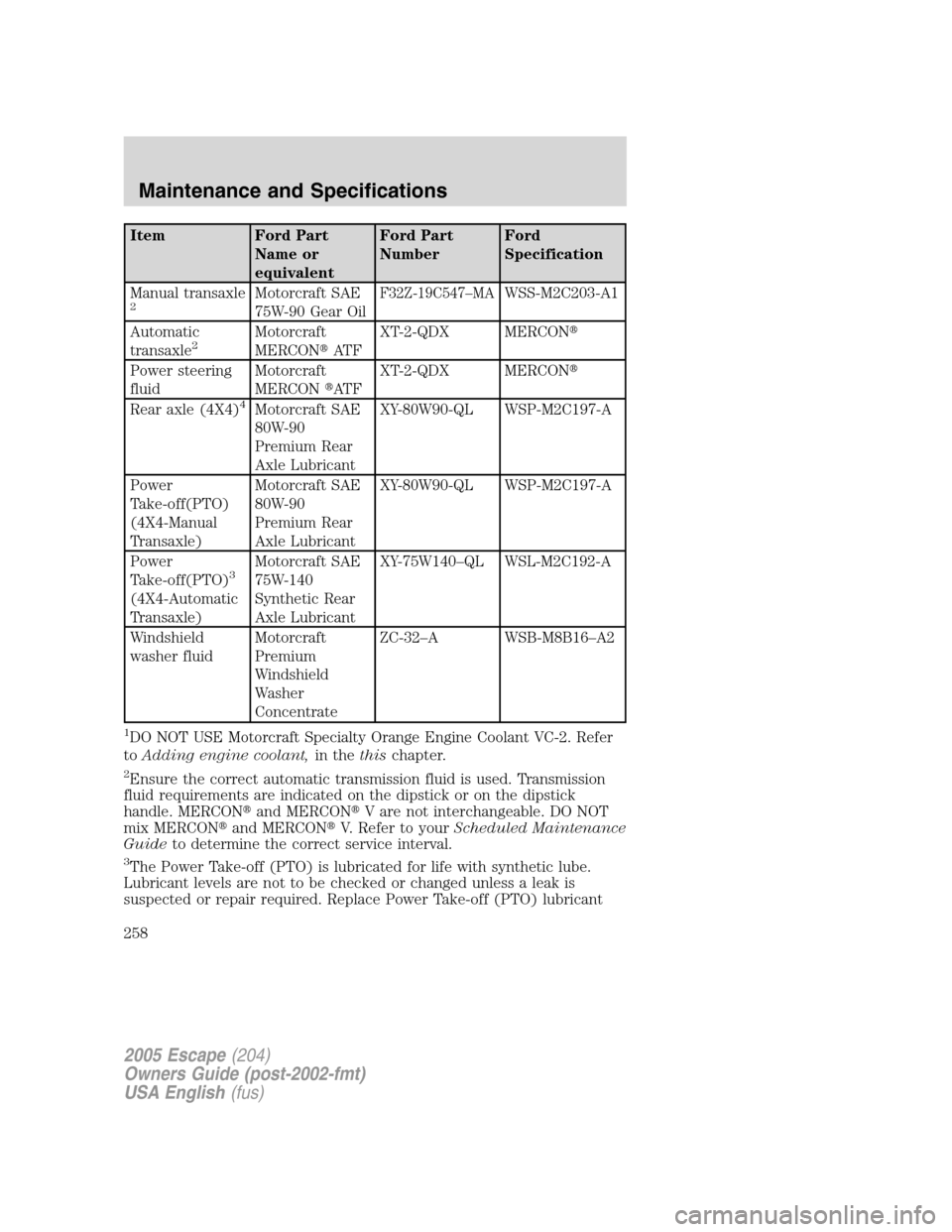

Item Ford Part
Name or
equivalentFord Part
NumberFord
Specification
Manual transaxle
2Motorcraft SAE
75W-90 Gear OilF32Z-19C547–MAWSS-M2C203-A1
Automatic
transaxle
2Motorcraft
MERCONAT FXT-2-QDX MERCON
Power steering
fluidMotorcraft
MERCONAT FXT-2-QDX MERCON
Rear axle (4X4)
4Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Power
Take-off(PTO)
(4X4-Manual
Transaxle)Motorcraft SAE
80W-90
Premium Rear
Axle LubricantXY-80W90-QL WSP-M2C197-A
Power
Take-off(PTO)
3
(4X4-Automatic
Transaxle)Motorcraft SAE
75W-140
Synthetic Rear
Axle LubricantXY-75W140–QL WSL-M2C192-A
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateZC-32–A WSB-M8B16–A2
1DO NOT USE Motorcraft Specialty Orange Engine Coolant VC-2. Refer
toAdding engine coolant,in thethischapter.
2Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. MERCONand MERCONV are not interchangeable. DO NOT
mix MERCONand MERCONV. Refer to yourScheduled Maintenance
Guideto determine the correct service interval.
3The Power Take-off (PTO) is lubricated for life with synthetic lube.
Lubricant levels are not to be checked or changed unless a leak is
suspected or repair required. Replace Power Take-off (PTO) lubricant
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
258

Vehicle identification number (VIN)
The vehicle identification number is
attached to a metal tag and is
located on the driver side
instrument panel. (Please note that
in the graphic XXXX is
representative of your vehicle
identification number.)
1. World manufacturer identifier
2. Brake type and gross vehicle
weight rating (GVWR)
3. Vehicle line, series, body type
4. Engine type
5. Check digit
6. Model year
7. Assembly plant
8. Production sequence number
Engine number
The engine number (the last eight numbers of the vehicle identification
number) is stamped on the engine block, transmission and frame.
XXXXXXXXXXXXXXXXX
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Maintenance and Specifications
262

A
Accessory delay ..........................53
Air bag supplemental
restraint system ........109–110, 116
and child safety seats ............111
description ......................110, 116
disposal ....................................119
driver air bag ..................112, 117
indicator light .................115, 118
operation .........................112, 117
passenger air bag ...........112, 117
Air cleaner filter ...............238, 253
All Wheel Drive (AWD),
driving off road .........................145
Ambulance packages ....................7
Antifreeze
(see Engine coolant) ................219
Anti-lock brake system
(see Brakes) ......................134–135
Anti-theft system ........................87
arming the system ....................87
disarming a triggered
system .......................................88
Audio system
(see Radio) ......................16, 19, 23
Automatic transaxle
fluid, adding ............................235
fluid, checking ........................235
Automatic transmission ............137
driving an automatic
overdrive .................................139
fluid, refill capacities ..............254
fluid, specification ..................259
Auxiliary power point .................52
Axle
lubricant specifications ..257, 259
refill capacities ........................254B
Battery .......................................217
acid, treating emergencies .....217
jumping a disabled battery ....186
maintenance-free ....................217
replacement, specifications ...253
servicing ..................................217
BeltMinder .................................105
Brakes ........................................134
anti-lock ...........................134–135
anti-lock brake system
(ABS) warning light ...............135
fluid, checking and adding ....235
fluid, refill capacities ..............254
fluid, specifications .........257, 259
lubricant specifications ..257, 259
parking ....................................135
shift interlock ..........................137
Bulbs ............................................43
C
Calculating load ........................161
Capacities for refilling fluids ....254
Cargo area shade ........................67
Cassette tape player ...................23
Cell phone use ............................58
Certification Label ....................261
Changing a tire .........................177
Child safety restraints ..............119
child safety belts ....................119
Child safety seats ......................122
attaching with tether straps ..126
in front seat ............................123
in rear seat ..............................123
Cigar lighter
Power Point ..............................52
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
Index
267

Cleaning your vehicle
engine compartment ..............204
instrument panel ....................206
interior .....................................207
interior trim ............................206
plastic parts ............................205
safety belts ..............................207
washing ....................................203
waxing .....................................203
wheels ......................................204
wiper blades ............................206
Climate control (see Air
conditioning or Heating) ......33–34
Clock adjust
6-CD in dash .......................25, 29
AM/FM/CD .................................16
AM/FM/Tape/CD .......................21
Clutch
fluid ..................................235, 238
operation while driving ..........142
recommended shift speeds ....143
Console ........................................57
overhead ....................................50
Controls
power seat .................................90
Coolant
checking and adding ..............219
refill capacities ................222, 254
specifications ..................257, 259
Cruise control
(see Speed control) ....................55
Customer Assistance ................168
Ford accessories for your
vehicle .....................................208
Ford Extended Service Plan .196
Getting assistance outside
the U.S. and Canada ..............200
Getting roadside assistance ...168
Getting the service
you need .................................194Ordering additional
owner’s literature ...................201
The Dispute Settlement
Board .......................................196
Utilizing the Mediation/
Arbitration Program ...............199
D
Daytime running lamps
(see Lamps) ................................37
Defrost
rear window ..............................35
Dipstick
automatic transmission
fluid ..........................................235
engine oil .................................213
Doors
lubricant specifications ..........257
Driving under special
conditions ..................141, 148, 150
sand .........................................149
snow and ice ...........................151
through water .................149, 156
E
Electronic message center .........59
Emergencies, roadside
jump-starting ..........................186
Emission control system ..........232
Engine ........................................259
cleaning ...................................204
coolant .....................................219
fail-safe coolant ......................223
idle speed control ...................217
lubrication
specifications ..................257, 259
refill capacities ........................254
service points ..................211–212
starting after a collision .........170
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
268

Engine block heater .................133
Engine oil ..................................213
checking and adding ..............213
dipstick ....................................213
filter, specifications ........216, 253
recommendations ...................216
refill capacities ........................254
specifications ..................257, 259
Exhaust fumes ..........................133
F
Fail safe cooling ........................223
Fluid capacities .........................254
Foglamps .....................................37
Four-Wheel Drive vehicles
driving off road .......................146
indicator light .........................146
preparing to drive your
vehicle .....................................137
Fuel ............................................225
calculating fuel
economy ............................60, 229
cap ...........................................226
capacity ...................................254
choosing the right fuel ...........227
comparisons with EPA fuel
economy estimates .................232
detergent in fuel .....................228
filling your vehicle
with fuel ..................225–226, 229
filter, specifications ........229, 253
fuel pump shut-off switch .....170
improving fuel economy ........229
octane rating ...................228, 259
quality ......................................228
running out of fuel .................228
safety information relating
to automotive fuels ................225
Fuses ..................................170, 172G
Garage door opener ....................51
Gas cap (see Fuel cap) ............226
Gas mileage
(see Fuel economy) .................229
Gauges .........................................14
GAWR (Gross Axle
Weight Rating)
calculating ...............................161
GVWR (Gross Vehicle
Weight Rating)
calculating ...............................161
H
Hazard flashers .........................169
Head restraints .....................89, 91
Headlamps ...................................36
aiming ........................................39
autolamp system .......................36
bulb specifications ....................43
daytime running lights .............37
flash to pass ..............................38
high beam .................................38
replacing bulbs .........................44
turning on and off ....................36
Heating
heater only system ...................33
Hood ..........................................210
I
Ignition ...............................130, 259
Infant seats
(see Safety seats) .....................122
Inspection/maintenance
(I/M) testing ..............................234
2005 Escape(204)
Owners Guide (post-2002-fmt)
USA English(fus)
Index
269
