2005 FORD E SERIES engine coolant

For vehicles with overflow coolant systems with a non-pressurized cap
on the coolant recovery system, add coolant to the coolant recovery
reservoir when the engine is cool. Add the proper mixture of coolant and
water to the “FULL COLD” level. For all other vehicles which have a
coolant degas system with a pressurized cap, or if it is necessary to
remove the coolant pressure relief cap on the radiator of a vehicle with
an overflow system, follow these steps to add engine coolant.
To reduce the risk of personal injury, make sure the engine is
cool before unscrewing the coolant pressure relief cap. The
cooling system is under pressure; steam and hot liquid can come out
forcefully when the cap is loosened slightly.
1. Before you begin, turn the engine off and let it cool.
2. When the engine is cool, wrap a thick cloth around the coolant
pressure relief cap on the coolant reservoir (a translucent plastic bottle).
Slowly turn cap counterclockwise (left) until pressure begins to release.
3. Step back while the pressure releases.
4. When you are sure that all the pressure has been released, use the
cloth to turn it counterclockwise and remove the cap.
5. Fill the coolant reservoir slowly with the proper coolant mixture (see
above), to within the “COLD FILL RANGE” or the “FULL COLD” level on
the reservoir. If you removed the radiator cap in an overflow system, fill
the radiator until the coolant is visible and radiator is almost full.
6. Replace the cap. Turn until tightly installed. (Cap must be tightly
installed to prevent coolant loss.)
After any coolant has been added, check the coolant concentration (refer
toChecking engine coolant). If the concentration is not 50/50
(protection to –34° F/–36° C), drain some coolant and adjust the
concentration. It may take several drains and additions to obtain a 50/50
coolant concentration.
Whenever coolant has been added, the coolant level in the coolant
reservoir should be checked the next few times you drive the vehicle. If
necessary, add enough 50/50 concentration of engine coolant and
distilled water to bring the liquid level to the proper level.
If you have to add more than 1.0 quart (1.0 liter) of engine coolant per
month, have your dealer check the engine cooling system. Your cooling
system may have a leak. Operating an engine with a low level of coolant
can result in engine overheating and possible engine damage.
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
208

Recycled engine coolant
Ford Motor Company does NOT recommend the use of recycled engine
coolant in vehicles originally equipped with Motorcraft Premium Gold
Engine Coolant since a Ford-approved recycling process is not yet
available.
Used engine coolant should be disposed of in an appropriate
manner. Follow your community’s regulations and standards for recycling
and disposing of automotive fluids.
Coolant refill capacity
To find out how much fluid your vehicle’s cooling system can hold, refer
toRefill capacitiesin this section.
Fill your engine coolant reservoir as outlined inAdding engine coolant
in this section.
Severe climates
If you drive in extremely cold climates (less than –34° F [–36° C ]):
•It may be necessary to increase the coolant concentration
above 50%.
•NEVER increase the coolant concentration above 60%.
•Increased engine coolant concentrations above 60% will
decrease the overheat protection characteristics of the engine
coolant and may cause engine damage.
•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
freeze protection at the temperatures in which you drive in the
winter months.
If you drive in extremely hot climates:
•It is still necessary to maintain the coolant concentration
above 40%.
•NEVER decrease the coolant concentration below 40%.
•Decreased engine coolant concentrations below 40% will
decrease the corrosion protection characteristics of the engine
coolant and may cause engine damage.
•Decreased engine coolant concentrations below 40% will
decrease the freeze protection characteristics of the engine
coolant and may cause engine damage.
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
209

•Refer to the chart on the coolant container to ensure the
coolant concentration in your vehicle will provide adequate
protection at the temperatures in which you drive.
Vehicles driven year-round in non-extreme climates should use a 50/50
mixture of engine coolant and distilled water for optimum cooling system
and engine protection.
What you should know about fail-safe cooling (if equipped)
If the engine coolant supply is depleted, this feature allows the vehicle to
be driven temporarily before incremental component damage is incurred.
The “fail-safe” distance depends on ambient temperatures, vehicle load
and terrain.
How fail-safe cooling works
If the engine begins to overheat:
•The engine coolant temperature
gauge will move to the red (hot)
area.
•The “CHECK GAGE” indicator
light will illuminate.
•The “CHECK GAGE” indicator light will flash when fail-safe cooling
mode has been activated.
If the engine reaches a preset over-temperature condition, the engine
will automatically switch to alternating cylinder operation. Each disabled
cylinder acts as an air pump and cools the engine.
When this occurs the vehicle will still operate. However:
•The engine power will be limited.
•The air conditioning system will be disabled.
Continued operation will increase the engine temperature and the engine
will completely shut down, causing steering and braking effort to
increase.
Once the engine temperature cools, the engine can be re-started. Take
your vehicle to a service facility as soon as possible to minimize engine
damage.
When fail-safe mode is activated
You have limited engine power when in the fail-safe mode, so drive the
vehicle with caution. The vehicle will not be able to maintain high-speed
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
210

operation and the engine will run rough. Remember that the engine is
capable of completely shutting down automatically to prevent engine
damage, therefore:
1. Pull off the road as soon as safely possible and turn off the engine.
2. Arrange for the vehicle to be taken to a service facility.
3. If this is not possible, wait a short period for the engine to cool.
4. Check the coolant level and replenish if low.
Never remove the coolant reservoir cap while the engine is
running or hot.
5. Re-start the engine and take your vehicle to a service facility.
Driving the vehicle without repairing the engine problem
increases the chance of engine damage. Take your vehicle to a
service facility as soon as possible.
WHAT YOU SHOULD KNOW ABOUT AUTOMOTIVE FUELS
Important safety precautions
Do not overfill the fuel tank. The pressure in an overfilled tank
may cause leakage and lead to fuel spray and fire.
The fuel system may be under pressure. If the fuel filler cap is
venting vapor or if you hear a hissing sound, wait until it stops
before completely removing the fuel filler cap. Otherwise, fuel may
spray out and injure you or others.
If you do not use the proper fuel filler cap, excessive pressure or
vacuum in the fuel tank may damage the fuel system or cause
the fuel cap to disengage in a collision, which may result in possible
personal injury.
Automotive fuels can cause serious injury or death if misused or
mishandled.
Gasoline may contain benzene, which is a cancer-causing agent.
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
211

Fluid Ford Part
NameApplication Capacity
Engine
coolant-gasoline
engine
1
Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)4.6L V8 engine 25.0 quarts
(23.7L)
1 row – 23.8
quarts (22.6L)
8
4.6L V8 engine
with aux rear
heat27.2 quarts
(25.7L)
1 row – 26.0
quarts (24.6L)
8
5.4L V8 engine 29.0 quarts
(27.4L)
1 row – 27.8
quarts (26.3L)
8
5.4L V8 engine
with aux rear
heat31.0 quarts
(29.4L)
1 row – 29.8
quarts (28.3L)
8
6.8L V10 engine 30.6 quarts
(29.0L)
1 row – 29.4
quarts (27.9L)
8
6.8L V10 engine
with aux rear
heat32.8 quarts
(31.0L)
1 row – 31.6
quarts (29.9L)
8
Engine
coolant-diesel
engineRefer to thePower Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement.1
Power steering
fluidMotorcraft
MERCON
AT FAll Keep in FULL
range on
dipstick
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
229

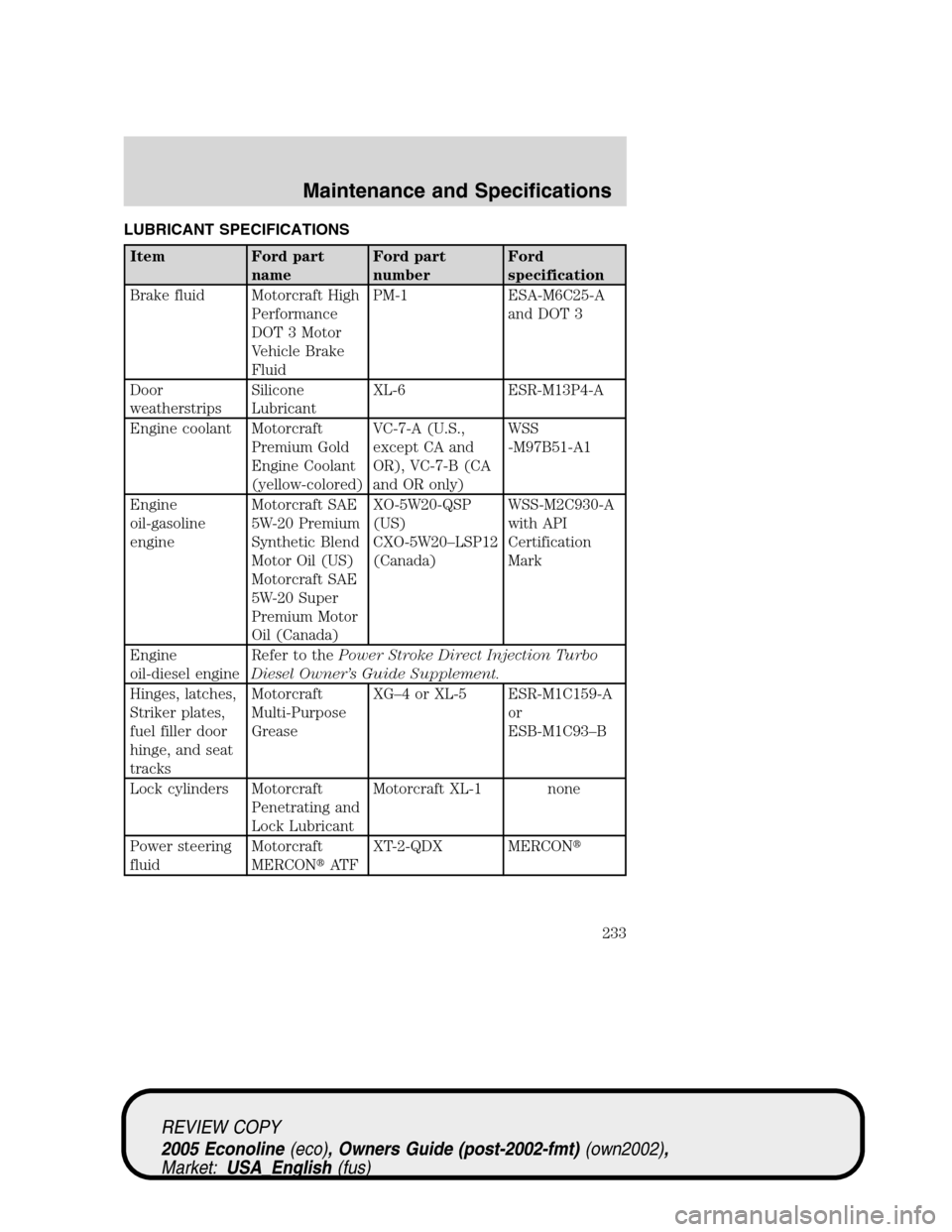

LUBRICANT SPECIFICATIONS
Item Ford part
nameFord part
numberFord
specification
Brake fluid Motorcraft High
Performance
DOT 3 Motor
Vehicle Brake
FluidPM-1 ESA-M6C25-A
and DOT 3
Door
weatherstripsSilicone
LubricantXL-6 ESR-M13P4-A
Engine coolant Motorcraft
Premium Gold
Engine Coolant
(yellow-colored)VC-7-A (U.S.,
except CA and
OR), VC-7-B (CA
and OR only)WSS
-M97B51-A1
Engine
oil-gasoline
engineMotorcraft SAE
5W-20 Premium
Synthetic Blend
Motor Oil (US)
Motorcraft SAE
5W-20 Super
Premium Motor
Oil (Canada)XO-5W20-QSP
(US)
CXO-5W20–LSP12
(Canada)WSS-M2C930-A
with API
Certification
Mark
Engine
oil-diesel engineRefer to thePower Stroke Direct Injection Turbo
Diesel Owner’s Guide Supplement.
Hinges, latches,
Striker plates,
fuel filler door
hinge, and seat
tracksMotorcraft
Multi-Purpose
GreaseXG–4 or XL-5 ESR-M1C159-A
or
ESB-M1C93–B
Lock cylinders Motorcraft
Penetrating and
Lock LubricantMotorcraft XL-1 none
Power steering
fluidMotorcraft
MERCON
AT FXT-2-QDX MERCON

REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
233

A
Accessory delay ..........................57
Air bag supplemental restraint
system ..........................................83
and child safety seats ..............85
description ................................83
disposal ......................................87
driver air bag ............................85
indicator light ...........................87
operation ...................................85
passenger air bag .....................85
Air cleaner filter ...............226–227
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................205
Anti-lock brake system
(see Brakes) ..............................151
Audio system
(see Radio) ....18, 20, 22, 25, 28, 33
Automatic transmission
driving an automatic
overdrive .................156, 158, 161
fluid, adding ............................222
fluid, checking ........................222
fluid, refill capacities ..............228
fluid, specification ..................236
Auxiliary power point .................56
Axle
lubricant specifications ..233, 236
refill capacities ........................228
traction lok ..............................153
B
Battery .......................................203
acid, treating emergencies .....203
jumping a disabled battery ....176
maintenance-free ....................203replacement, specifications ...227
servicing ..................................203
BeltMinder ...................................78
Brakes ........................................151
anti-lock ...................................151
anti-lock brake system (ABS)
warning light ...........................151
fluid, checking and adding ....222
fluid, refill capacities ..............228
fluid, specifications .........233, 236
lubricant specifications ..233, 236
parking ....................................152
shift interlock ..........................155
Break-in period .............................5
Bulbs ............................................47
C
Capacities for refilling fluids ....228
Cell phone use ............................56
Child safety restraints ................88
child safety belts ......................88
Child safety seats ........................91
in front seat ..............................92
in rear seat ................................92
tether anchorage hardware .....95
Cleaning your vehicle
engine compartment ..............193
exterior ....................................195
instrument panel ....................194
interior .....................................195
interior trim ............................194
plastic parts ............................193
safety belts ..............................195
washing ....................................191
waxing .....................................191
wheels ......................................192
wiper blades ............................194
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
Index
243

Climate control (see Air
conditioning or Heating) ......39, 41
Clock adjust
6-CD in dash .................27, 30, 34
AM/FM .......................................19
AM/FM/CD .................................23
AM/FM/Tape ..............................20
Compass, electronic ....................54
calibration .................................55
set zone adjustment .................55
Console
overhead ....................................53
Controls
power seat .................................68
Coolant
checking and adding ..............205
refill capacities ................209, 228
specifications ..................233, 236
Cruise control
(see Speed control) ....................59
Customer Assistance ................165
Ford accessories for your
vehicle .....................................196
Ford Extended Service
Plan ..........................................188
Getting assistance outside the
U.S. and Canada .....................188
Getting roadside assistance ...165
Getting the service you
need .........................................182
Ordering additional owner’s
literature .................................189
The Dispute Settlement
Board .......................................184
Utilizing the
Mediation/Arbitration
Program ...................................187D
Daytime running lamps
(see Lamps) ................................42
Dipstick
automatic transmission
fluid ..........................................222
engine oil .................................200
Doors
lubricant specifications ..........233
Driveline universal joint and
slip yoke ....................................222
Driving under special
conditions
through water .........................164
E
Emergencies, roadside
jump-starting ..........................176
Emergency Flashers .................166
Emission control system ..........219
Engine ................................236–237
cleaning ...................................193
coolant .....................................205
diesel ...........................................7
fail-safe coolant ......................210
idle speed control ...................203
lubrication
specifications ..................233, 236
refill capacities ........................228
service points ..........................199
starting after a collision .........166
Engine block heater .................150
Engine oil ..................................200
checking and adding ..............200
dipstick ....................................200
filter, specifications ........202, 227
recommendations ...................202
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
244
