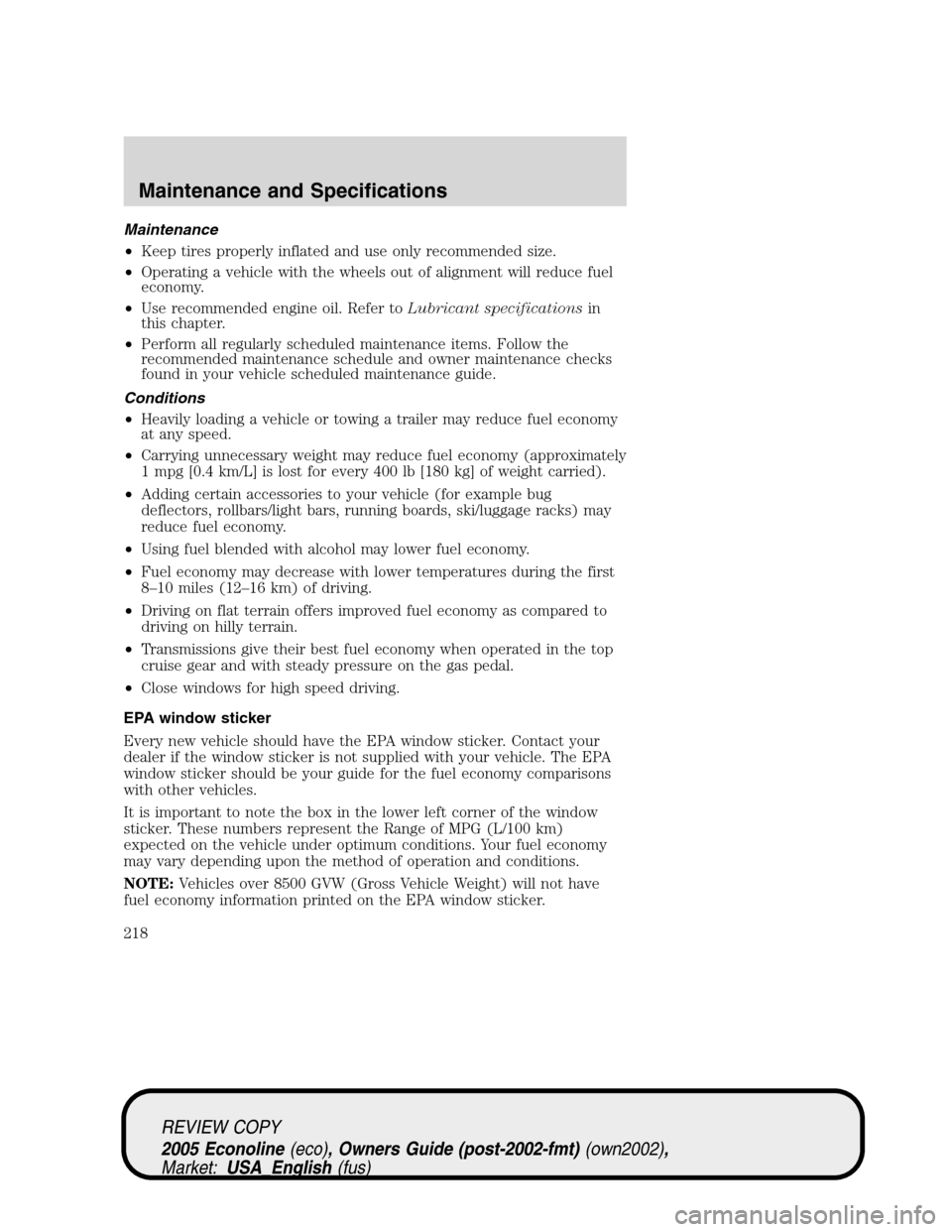

Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toLubricant specificationsin
this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found in your vehicle scheduled maintenance guide.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
•Close windows for high speed driving.
EPA window sticker
Every new vehicle should have the EPA window sticker. Contact your
dealer if the window sticker is not supplied with your vehicle. The EPA
window sticker should be your guide for the fuel economy comparisons
with other vehicles.
It is important to note the box in the lower left corner of the window
sticker. These numbers represent the Range of MPG (L/100 km)
expected on the vehicle under optimum conditions. Your fuel economy
may vary depending upon the method of operation and conditions.
NOTE:Vehicles over 8500 GVW (Gross Vehicle Weight) will not have
fuel economy information printed on the EPA window sticker.
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
218

Please consult yourWarranty Guidefor complete emission warranty
information.
On board diagnostics (OBD-II)
Your vehicle is equipped with a computer that monitors the engine’s
emission control system. This system is commonly known as the On
Board Diagnostics System (OBD-II). This OBD-II system protects the
environment by ensuring that your vehicle continues to meet
government emission standards. The OBD-II system also assists the
service technician in properly servicing your vehicle. When theCheck
engine/Service engine soonlight illuminates, the OBD-II system has
detected a malfunction. Temporary malfunctions may cause yourCheck
engine/Service engine soonlight to illuminate. Examples are:
1. The vehicle has run out of fuel. (The engine may misfire or run
poorly.)
2. Poor fuel quality or water in the fuel.
These temporary malfunctions can be corrected by filling the fuel tank
with good quality fuel. After three driving cycles without these or any
other temporary malfunctions present, theCheck engine/Service engine
soonlight should turn off. (A driving cycle consists of a cold engine
startup followed by mixed city/highway driving.) No additional vehicle
service is required.
If theCheck engine/Service engine soonlight remains on, have your
vehicle serviced at the first available opportunity.
Readiness for Inspection/Maintenance (I/M) testing
In some localities, it may be a legal requirement to pass an I/M test of
the on-board diagnostics system. If yourCheck engine/Service engine
soonlight is on, refer to the description in theWarning lights and
chimessection of theInstrument Clusterchapter. Your vehicle may not
pass the I/M test with theCheck engine/Service engine soonlight on.
If the vehicle’s powertrain system or its battery has just been serviced,
the on-board diagnostics system is reset to a “not ready for I/M test”
condition. To ready the on-board diagnostics system for I/M testing, a
minimum of 30 minutes of city and highway driving is necessary as
described below:
•First, at least 10 minutes of driving on an expressway or highway.
•Next, at least 20 minutes driving in stop-and-go, city-type traffic with
at least four idle periods.
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Maintenance and Specifications
220

A
Accessory delay ..........................57
Air bag supplemental restraint
system ..........................................83
and child safety seats ..............85
description ................................83
disposal ......................................87
driver air bag ............................85
indicator light ...........................87
operation ...................................85
passenger air bag .....................85
Air cleaner filter ...............226–227
Ambulance packages ....................8
Antifreeze
(see Engine coolant) ................205
Anti-lock brake system
(see Brakes) ..............................151
Audio system
(see Radio) ....18, 20, 22, 25, 28, 33
Automatic transmission
driving an automatic
overdrive .................156, 158, 161
fluid, adding ............................222
fluid, checking ........................222
fluid, refill capacities ..............228
fluid, specification ..................236
Auxiliary power point .................56
Axle
lubricant specifications ..233, 236
refill capacities ........................228
traction lok ..............................153
B
Battery .......................................203
acid, treating emergencies .....203
jumping a disabled battery ....176
maintenance-free ....................203replacement, specifications ...227
servicing ..................................203
BeltMinder ...................................78
Brakes ........................................151
anti-lock ...................................151
anti-lock brake system (ABS)
warning light ...........................151
fluid, checking and adding ....222
fluid, refill capacities ..............228
fluid, specifications .........233, 236
lubricant specifications ..233, 236
parking ....................................152
shift interlock ..........................155
Break-in period .............................5
Bulbs ............................................47
C
Capacities for refilling fluids ....228
Cell phone use ............................56
Child safety restraints ................88
child safety belts ......................88
Child safety seats ........................91
in front seat ..............................92
in rear seat ................................92
tether anchorage hardware .....95
Cleaning your vehicle
engine compartment ..............193
exterior ....................................195
instrument panel ....................194
interior .....................................195
interior trim ............................194
plastic parts ............................193
safety belts ..............................195
washing ....................................191
waxing .....................................191
wheels ......................................192
wiper blades ............................194
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
Index
243

headlamps, flash to pass ..........43
instrument panel, dimming .....43
interior lamps ...........................46
replacing bulbs ...................47–51
Lane change indicator
(see Turn signal) ........................46
Lights, warning and indicator ....12
anti-lock brakes (ABS) ..........151
Load limits .................................129
Loading instructions .................134
Lubricant specifications ...233, 236
Lug nuts ....................................119
Lumbar support, seats ...............68
M
Mirrors
fold away ...................................58
side view mirrors (power) .......57
Motorcraft parts ................215, 227
O
Octane rating ............................214
Oil (see Engine oil) ..................200
P
Parking brake ............................152
Parts (see Motorcraft parts) ....227
Power distribution box
(see Fuses) ...............................171
Power door locks ........................62
Power mirrors .............................57
Power point .................................56
Power steering ..........................152
fluid, checking and adding ....221fluid, refill capacity ................228
fluid, specifications .........233, 236
Power Windows ...........................57
Preparing to drive your
vehicle ........................................153
R
Radio ..............18, 20, 22, 25, 28, 33
Relays ................................168, 174
Remote entry system
illuminated entry ................42, 66
locking/unlocking doors ...........62
Roadside assistance ..................165
S
Safety Belt Maintenance ............82
Safety belts
(see Safety restraints) .........73–77
Safety defects, reporting ..........190
Safety restraints ....................73–77
belt minder ...............................78
extension assembly ..................82
for adults .............................74–76
for children .........................87–88
lap belt ......................................77
safety belt maintenance ...........82
warning light and chime ..........78
Safety seats for children ............91
Seat belts
(see Safety restraints) ...............73
Seats ............................................67
child safety seats ......................91
front seats .................................67
Servicing your vehicle ..............197
Setting the clock
AM/FM stereo ...........................19
REVIEW COPY
2005 Econoline(eco), Owners Guide (post-2002-fmt)(own2002),
Market:USA_English(fus)
Index
246
