HEATER ONLY SYSTEM
(IF EQUIPPED)
1.Fan speed adjustment:Controls
the volume of air circulated in the
vehicle.
2.Temperature selection:
Controls the temperature of the
airflow in the vehicle.
3.Air flow selections:Controls the direction of the airflow in the
vehicle. See the following for a brief description on each control.
VENT:Distributes outside air through the instrument panel vents.
FLR:Distributes outside air through the floor vents.
OFF:Outside air is shut out and the climate system is turned off.
MIX:Distributes outside air through the windshield defroster vents and
the floor vents.
:Distributes outside air through the windshield defroster vents.
Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle during cold or warm
weather, do not drive with the air flow selector in the OFF position.
•Do not put objects under the front seats that will interfere with the air
flow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
38
ProCarManuals.com

Operating tips
•To reduce fog build up on the windshield during humid weather, place
the air flow selector in the
position.
•To reduce humidity build up inside the vehicle: do not drive with the
air flow selector in the OFF position.
•Do not put objects under the front seats that will interfere with the
airflow to the back seats.
•Remove any snow, ice or leaves from the air intake area at the base of
the windshield.
To aid in side window defogging/demisting in cold weather:
1. Select MIX.
2. Set the temperature control to maintain comfort.
3. Set the fan speed to HI.
Do not place objects on top of the instrument panel as these
objects may become projectiles in a collision or sudden stop.
REAR FAN SPEED ADJUSTMENT (IF EQUIPPED)
The rear fan controls adjust the
volume of air circulated in the rear
of the vehicle.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Climate Controls
40
ProCarManuals.com

Safety belts and seats can become hot in a vehicle that has been
closed up in sunny weather; they could burn a small child. Check
seat covers and buckles before you place a child anywhere near them.
Combination lap and shoulder belts
1. Insert the belt tongue into the
proper buckle (the buckle closest to
the direction the tongue is coming
from) until you hear a snap and feel
it latch. Make sure the tongue is
securely fastened in the buckle.
2. To unfasten, push the release
button and remove the tongue from
the buckle.
The front outboard and rear outboard safety restraints in the vehicle are
combination lap and shoulder belts. The front passenger outboard and
rear outboard safety belts have two types of locking modes described
below:
Vehicle sensitive mode
This is the normal retractor mode, which allows free shoulder belt length
adjustment to your movements and locking in response to vehicle
movement. For example, if the driver brakes suddenly or turns a corner
sharply, or the vehicle receives an impact of approximately 5 mph
(8 km/h) or more, the combination safety belts will lock to help reduce
forward movement of the driver and passengers.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
73
ProCarManuals.com

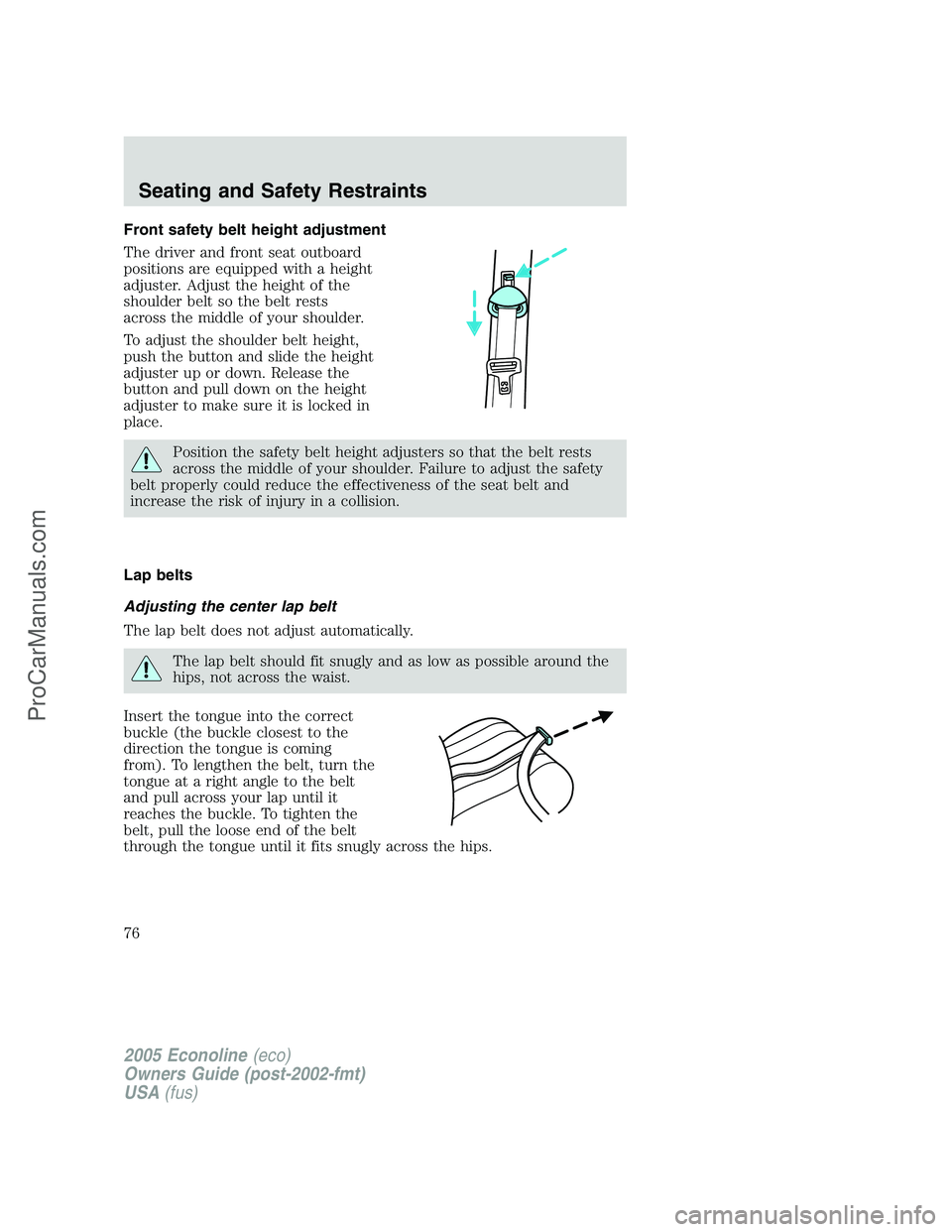

Front safety belt height adjustment
The driver and front seat outboard
positions are equipped with a height
adjuster. Adjust the height of the
shoulder belt so the belt rests
across the middle of your shoulder.
To adjust the shoulder belt height,
push the button and slide the height
adjuster up or down. Release the
button and pull down on the height
adjuster to make sure it is locked in
place.
Position the safety belt height adjusters so that the belt rests
across the middle of your shoulder. Failure to adjust the safety
belt properly could reduce the effectiveness of the seat belt and
increase the risk of injury in a collision.
Lap belts
Adjusting the center lap belt
The lap belt does not adjust automatically.
The lap belt should fit snugly and as low as possible around the
hips, not across the waist.
Insert the tongue into the correct
buckle (the buckle closest to the
direction the tongue is coming
from). To lengthen the belt, turn the
tongue at a right angle to the belt
and pull across your lap until it
reaches the buckle. To tighten the
belt, pull the loose end of the belt
through the tongue until it fits snugly across the hips.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Seating and Safety Restraints
76
ProCarManuals.com

Climate control (see Air
conditioning or Heating) ......38, 40
Clock adjust
6-CD in dash .................26, 30, 34
AM/FM .......................................19
AM/FM/Cassette ........................20
AM/FM/CD .................................22
Compass, electronic ....................53
calibration .................................54
set zone adjustment .................54
Console
overhead ....................................52
Controls
power seat .................................67
Coolant
checking and adding ..............203
refill capacities ................207, 226
specifications ..................230, 233
Cruise control
(see Speed control) ....................58
Customer Assistance ................163
Ford accessories for your
vehicle .....................................193
Ford Extended Service
Plan ..........................................186
Getting assistance outside
the U.S. and Canada ..............186
Getting roadside assistance ...163
Getting the service you
need .........................................180
Ordering additional owner’s
literature .................................187
The Dispute Settlement
Board .......................................182
Utilizing the
Mediation/Arbitration
Program ...................................185D
Daytime running lamps
(see Lamps) ................................42
Dipstick
automatic transmission
fluid ..........................................220
engine oil .................................198
Doors
lubricant specifications ..........230
Driveline universal joint and
slip yoke ....................................220
Driving under special
conditions
through water .........................162
E
Emergencies, roadside
jump-starting ..........................174
Emergency Flashers .................164
Emission control system ..........217
Engine ................................233–234
cleaning ...................................190
coolant .....................................203
diesel ...........................................8
fail-safe cooling .......................208
idle speed control ...................201
lubrication
specifications ..................230, 233
refill capacities ........................226
service points ..........................197
starting after a collision .........164
Engine block heater .................148
Engine oil ..................................198
change oil soon warning,
message center .......................198
checking and adding ..............198
dipstick ....................................198
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Index
241
