2005 FORD E-450 fuel type

Notice to owners of diesel-powered vehicles
Read the6.0 Liter Power Stroke Direct Injection Turbo Diesel Owner’s
GuideSupplement for information regarding correct operation and
maintenance of your Diesel-powered light truck.
Notice to owners of pickup trucks and utility type vehicles
Utility vehicles have a significantly higher rollover rate than
other types of vehicles.
Before you drive your vehicle, please read thisOwner’s Guidecarefully.
Your vehicle is not a passenger car. As with other vehicles of this type,
failure to operate this vehicle correctly may result in loss of vehicle
control, vehicle rollover, personal injury or death.
Using your vehicle as an ambulance
If your light truck is equipped with the Ford Ambulance Preparation
Package, it may be utilized as an ambulance. Ford urges ambulance
manufacturers to follow the recommendations of theFord Incomplete
Vehicle Manual, Ford Truck Body Builder’s Layout Bookand the
Qualified Vehicle Modifiers (QVM) Guidelinesas well as pertinent
supplements. For additional information, please contact the Truck Body
Builders Advisory Service at 1–877–840–4338.
Use of your Ford light truck as an ambulance, without the Ford
Ambulance Preparation Package voids the Ford New Vehicle Limited
Warranty and may void the Emissions Warranties. In addition, ambulance
usage without the preparation package could cause high underbody
temperatures, overpressurized fuel and a risk of spraying fuel which
could lead to fires.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Introduction
8
ProCarManuals.com

•Have the vehicle loading and distribution the same every time.
Your results will be most accurate if your filling method is consistent.
Calculating fuel economy
1. Fill the fuel tank completely and record the initial odometer reading
(in miles or kilometers).
2. Each time you fill the tank, record the amount of fuel added (in
gallons or liters).
3. After at least three to five tank fill-ups, fill the fuel tank and record
the current odometer reading.
4. Subtract your initial odometer reading from the current odometer
reading.
5. Follow one of the simple calculations in order to determine fuel
economy:
Calculation 1:Divide total miles traveled by total gallons used.
Calculation 2:Multiply liters used by 100, then divide by total
kilometers traveled.
Keep a record for at least one month and record the type of driving (city
or highway). This will provide an accurate estimate of the vehicle’s fuel
economy under current driving conditions. Additionally, keeping records
during summer and winter will show how temperature impacts fuel
economy. In general, lower temperatures give lower fuel economy.
Driving style — good driving and fuel economy habits
Give consideration to the lists that follow and you may be able to change
a number of variables and improve your fuel economy.
Habits
•Smooth, moderate operation can yield up to 10% savings in fuel.
•Steady speeds without stopping will usually give the best fuel
economy.
•Idling for long periods of time (greater than one minute) may waste
fuel.
•Anticipate stopping; slowing down may eliminate the need to stop.
•Sudden or hard accelerations may reduce fuel economy.
•Slow down gradually.
•Driving at reasonable speeds (traveling at 55 mph [88 km/h] uses 15%
less fuel than traveling at 65 mph [105 km/h]).
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
215
ProCarManuals.com

•Revving the engine before turning it off may reduce fuel economy.
•Using the air conditioner or defroster may reduce fuel economy.
•You may want to turn off the speed control in hilly terrain if
unnecessary shifting between third and fourth gear occurs.
Unnecessary shifting of this type could result in reduced fuel
economy.
•Warming up a vehicle on cold mornings is not required and may
reduce fuel economy.
•Resting your foot on the brake pedal while driving may reduce fuel
economy.
•Combine errands and minimize stop-and-go driving.
Maintenance
•Keep tires properly inflated and use only recommended size.
•Operating a vehicle with the wheels out of alignment will reduce fuel
economy.
•Use recommended engine oil. Refer toLubricant specificationsin
this chapter.
•Perform all regularly scheduled maintenance items. Follow the
recommended maintenance schedule and owner maintenance checks
found inscheduled maintenance information.
Conditions
•Heavily loading a vehicle or towing a trailer may reduce fuel economy
at any speed.
•Carrying unnecessary weight may reduce fuel economy (approximately
1 mpg [0.4 km/L] is lost for every 400 lb [180 kg] of weight carried).
•Adding certain accessories to your vehicle (for example bug
deflectors, rollbars/light bars, running boards, ski/luggage racks) may
reduce fuel economy.
•Using fuel blended with alcohol may lower fuel economy.
•Fuel economy may decrease with lower temperatures during the first
8–10 miles (12–16 km) of driving.
•Driving on flat terrain offers improved fuel economy as compared to
driving on hilly terrain.
•Transmissions give their best fuel economy when operated in the top
cruise gear and with steady pressure on the gas pedal.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
216
ProCarManuals.com

Fluid Ford Part
NameApplication Capacity
Fuel tank N/A All regular and
extended length
vans and wagons35.0 gallons
(132.4L)
138 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
158 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
5
176 inch
wheelbase (except
E-Super Duty)37.0 gallons
(140.0L)
158 inch and 176
inch wheelbase
(E-Super Duty)55 .0 gallons
(208.0L)
Transmission
fluid
6Motorcraft
MERCON
V
AT FAutomatic
(4R70/75 E)13.9 quarts
(13.1L)7
Motorcraft
MERCON
SP
AT FTorqShift
(5–speed)17.5 quarts
(16.6L)7
Windshield
washer fluidMotorcraft
Premium
Windshield
Washer
ConcentrateAll 4.2 quarts
(4.0L)
1Add the coolant type originally equipped in your vehicle.
2If your vehicle’s rear axle is filled with a synthetic rear axle lubricant it
is considered lubricated for life. These lubricants do not need to be
checked or changed unless a leak is suspected, service is required or the
axle assembly has been submerged in water. The axle lubricant should
be changed any time the rear axle has been submerged in water.
Fill 1/4 inch to 9/16 inch (6 mm to 14 mm) below bottom of fill hole.
Add 4 oz. (118 ml) of Additive Friction Modifier XL–3 or equivalent
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
228
ProCarManuals.com

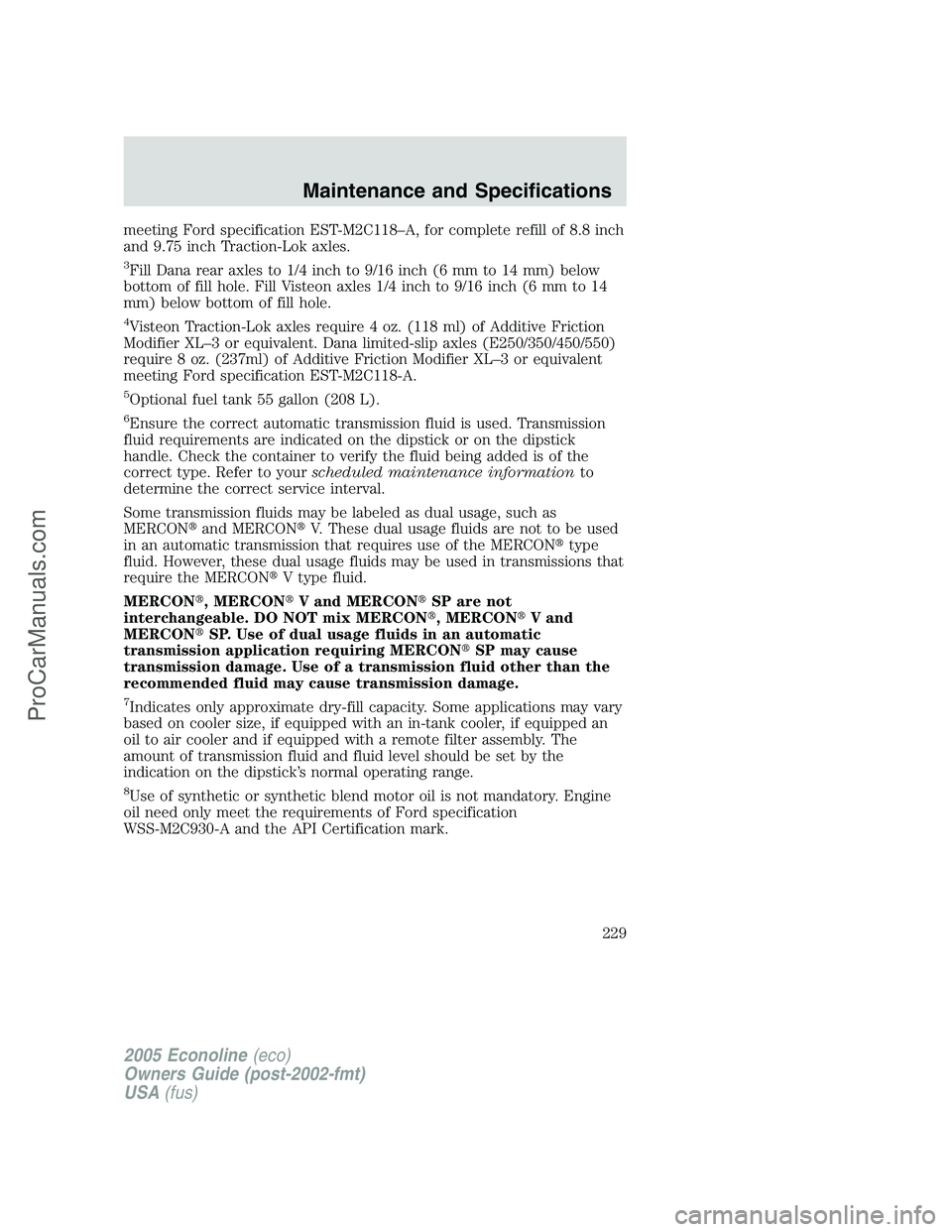

meeting Ford specification EST-M2C118–A, for complete refill of 8.8 inch
and 9.75 inch Traction-Lok axles.
3Fill Dana rear axles to 1/4 inch to 9/16 inch (6 mm to 14 mm) below
bottom of fill hole. Fill Visteon axles 1/4 inch to 9/16 inch (6 mm to 14
mm) below bottom of fill hole.
4Visteon Traction-Lok axles require 4 oz. (118 ml) of Additive Friction
Modifier XL–3 or equivalent. Dana limited-slip axles (E250/350/450/550)
require 8 oz. (237ml) of Additive Friction Modifier XL–3 or equivalent
meeting Ford specification EST-M2C118-A.
5Optional fuel tank 55 gallon (208 L).
6Ensure the correct automatic transmission fluid is used. Transmission
fluid requirements are indicated on the dipstick or on the dipstick
handle. Check the container to verify the fluid being added is of the
correct type. Refer to yourscheduled maintenance informationto
determine the correct service interval.
Some transmission fluids may be labeled as dual usage, such as
MERCON
and MERCON
V. These dual usage fluids are not to be used
in an automatic transmission that requires use of the MERCON
type
fluid. However, these dual usage fluids may be used in transmissions that
require the MERCON
V type fluid.
MERCON
, MERCON
V and MERCON
SP are not
interchangeable. DO NOT mix MERCON
, MERCON
V and
MERCON
SP. Use of dual usage fluids in an automatic
transmission application requiring MERCON
SP may cause
transmission damage. Use of a transmission fluid other than the
recommended fluid may cause transmission damage.
7Indicates only approximate dry-fill capacity. Some applications may vary
based on cooler size, if equipped with an in-tank cooler, if equipped an
oil to air cooler and if equipped with a remote filter assembly. The
amount of transmission fluid and fluid level should be set by the
indication on the dipstick’s normal operating range.
8Use of synthetic or synthetic blend motor oil is not mandatory. Engine
oil need only meet the requirements of Ford specification
WSS-M2C930-A and the API Certification mark.
2005 Econoline(eco)
Owners Guide (post-2002-fmt)
USA(fus)
Maintenance and Specifications
229
ProCarManuals.com

MERCON
and MERCON
V type fluids are not interchangeable.
DO NOT mix MERCON
and MERCON
V. Use of a transmission
fluid that indicates dual usage (MERCON
and MERCON
V) in
an automatic transmission application requiring MERCON
may
cause transmission damage. Use of any fluid other than the
recommended fluid may cause transmission damage.
2Add 4 oz. (118 ml) of Additive Friction Modifier XL-3 or equivalent for
complete refill of Visteon Traction-Lok rear axles.
3Add 8 oz. (237 ml) of Additive Friction Modifier XL-3 or equivalent
meeting Ford specification EST-M2C118-A for complete refill of Dana
Limited Slip rear axles.
ENGINE DATA
Engine*4.6L V8
engine5.4L V8
engine6.8L V10 engine
Cubic inches 281 330 415
Required fuel 87 octane 87 octane 87 octane
Firing order 1-3-7-2-6-5-4-8 1-3-7-2-6-5-4-8 1-6-5-10-2-7-3-8-4-9
Ignition system Coil on plug Coil on plug Coil on plug
Spark plug gap0.052–0.056
inch
(1.32–1.42mm)0.052–0.056
inch
(1.32–1.42mm)0.052–0.056 inch
(1.32–1.42mm)
Compression
ratio9.4:1 9.0:1 9.0:1
*Refer to thePower Stroke Direct Injection Turbo Diesel Owner’s
Guide Supplementfor diesel engine information.
