Page 12 of 82
11
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
REPEAT function on/off
Menu on/off
CD playing pauseon/off
TA ON/OFF
TPM function on/off
PTY ON/OFF
Store automatically in
FMT station range
AF ON/OFF
Clear selected CD track
storage
Store required trackREPEAT function on/off
Menu on/off
CD playing pause
on/off
TA ON/OFF
PTY ON/OFFStore automatically in
FMT station range
AF ON/OFF
CD mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)CD Changer mode
Short-push function (less than 2 sec.) Long-push function (over 2 sec.)
Page 13 of 82
12
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
GENERAL
The set possesses the following functions:
RADIO SECTION
❒PLL tuning with FM/AM/MW/LW frequency bands;
❒RDS (Radio Data System)with TA (traffic
information) - PTY (Program Type) - EON
(Enhanced Other Network) - REG (Regional
programmes);
❒AF: alternative frequency search selection in RDS
mode;
❒emergency alarm presetting;
❒automatic/manual station tuning;❒manual storage of 36 stations: 18 in the FM band (6
in FM1, 6 in FM2, 6 in FMT), 6 in the MW band and
6 in the LW band and 6 PTY (only in FM);
❒automatic storage (AUTOSTORE function) of 6
stations in FM band;
❒DX function (Distant: maximum sensitivity in
searching radio stations) and LO (Local) manual;
❒Scan function (scanning stored stations);
❒SVC function:automatic volume adjustment with
car speed
❒automatic Stereo/Mono switching.
For installation and connection of a Lineaccessori Fiat CD Changer apply only to Fiat Dealership.
On multimedia CDs in addition to sound tracks also data tracks are recorded.
Playing one of these CDs may cause rustling and such a volume as to compromise road safety, as
well as causing damage to the final stages and speakers.
Page 14 of 82
13
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER

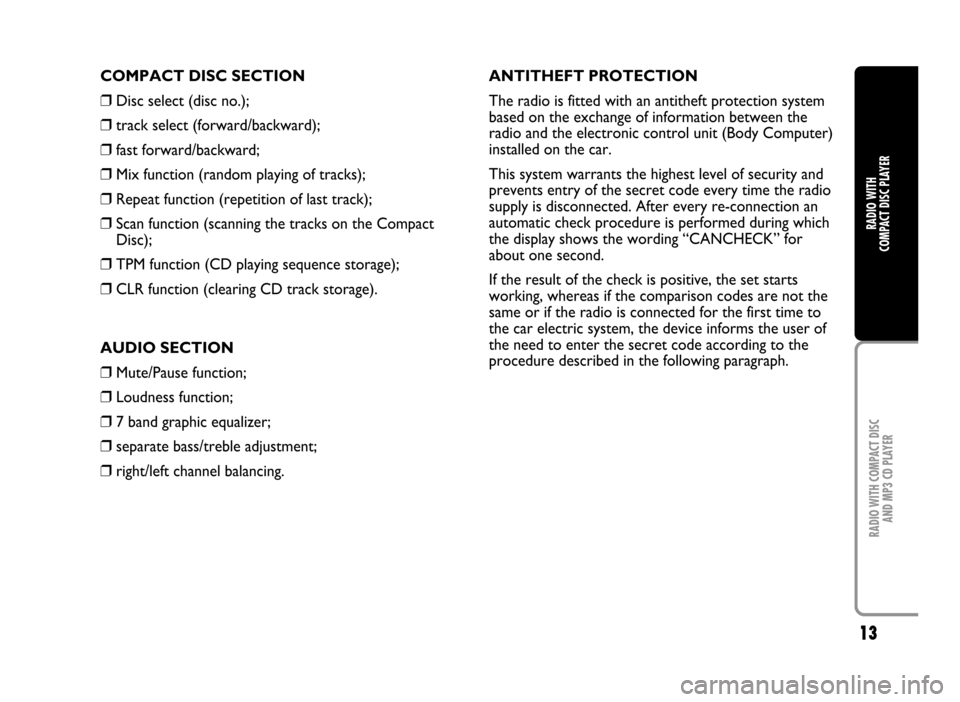

COMPACT DISC SECTION
❒Disc select (disc no.);
❒track select (forward/backward);
❒fast forward/backward;
❒Mix function (random playing of tracks);
❒Repeat function (repetition of last track);
❒Scan function (scanning the tracks on the Compact
Disc);
❒TPM function (CD playing sequence storage);
❒CLR function (clearing CD track storage).
AUDIO SECTION
❒Mute/Pause function;
❒Loudness function;
❒7 band graphic equalizer;
❒separate bass/treble adjustment;
❒right/left channel balancing.ANTITHEFT PROTECTION
The radio is fitted with an antitheft protection system
based on the exchange of information between the
radio and the electronic control unit (Body Computer)
installed on the car.
This system warrants the highest level of security and
prevents entry of the secret code every time the radio
supply is disconnected. After every re-connection an
automatic check procedure is performed during which
the display shows the wording “CANCHECK” for
about one second.
If the result of the check is positive, the set starts
working, whereas if the comparison codes are not the
same or if the radio is connected for the first time to
the car electric system, the device informs the user of
the need to enter the secret code according to the
procedure described in the following paragraph.
Page 15 of 82
14
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Entering the secret code
Entry of the secret code is required to allow the radio
to work after the first connection to the car electric
system.
Connecting the radio to the car supply, the display
shows the word “CODE” for about 2 seconds,
followed by “ENTER CODE: ----”.
The secret code comprises four figures from 1 to 6,
each corresponding to one of the dashes.
To enter the first digit of the code, press the
corresponding key of the preset stations (from 1 to 6).
Enter the other code digits in the same way.
If the four figures are not entered within 20 seconds,
the display shows the word “CODE” for 2 seconds
and then “ENTER CODE: ----”. This is not to be
considered as an incorrect code entry.
After entering the fourth digit (within 20 seconds), the
radio starts working.If a wrong code is entered,the radio sounds a “beep”,
the display shows the word “CODE” for 2 seconds
and then “ENTER CODE: ----” to warn the user that it
is necessary to enter the correct code.
Every time the user enters a wrong code,the waiting
time increases gradually (1 min, 2 min, 4 min, 8 min, 16
min, 30 min, 1h, 2h, 4h, 8h, 16h, 24h) until reaching a
maximum of 24 hours.
The waiting time will be shown on the display with the
word “RADIO BLOCKED/WAIT”. When this goes off
it is possible to start the new code entry procedure.
CODE Card
This the document that certifies possession of the
radio. The Code Card contains the radio model, serial
number and secret code.
IMPORTANT Keep the Code Card carefully to be
able to give the related data to the competent
authorities in the event of theft.
Page 16 of 82
15
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
GLOSSARY
AF (Alternative Frequency)
Function that allows the radio to stay tuned on the FM
station selected also passing through areas served by
transmitters with different frequencies.
The RDS system actually keeps the intensity and
quality of the signal received under control,
automatically switching tuning on the frequency of the
transmitter that is sending the strongest signal.
AutoSTore
Function with which it is possible to store
automatically radio stations.
Balance (Channel balancing)
Function with which it is possible to suitably adjust the
sound from the right or left speakers.
Bass (Bass tones)
This function adjusts the bass tones.CD Changer
Multiple Compact Disc player.
CLR (Clear)
Function with which it is possible to clear one or all
the tracks of the CD stored with the TPM function.
Distant/Local (Sens Dx/Lo)
These are two levels of reception sensitivity.
1) Distant (maximum sensitivity), which makes it
possible to tune all the stations that can be
received.
2) Local (minimum sensitivity), which makes it possible
to tune only those stations with sufficiently strong
signals, such as for example local stations.
EON (Enhanced Other Network)
Function that allows the radio to tune automatically on
a different station than the one being listened to which
broadcasts traffic information.
Page 17 of 82
16
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Fader
Function with which it is possible to suitably adjust the
sound from the front or rear speakers.
Hicut (treble reduction)
Function with which it is possible to reduce the treble
tones, in accordance with the signal transmitted.
Loudness
Function that emphasises the bass and treble tones
when listening at low level. It is cut off with the
volume set to maximum (level 66).
Mix
This function is used to randomly select a Compact
Disc among those present in the CD Changer and all
the tracks on this Compact Disc are played in random
sequence.
Mute
This function enables to mute the active source. This
function is activated automatically, if a cell phone is
connected to the radio, when a phone call is being
received.Presettings
Number of radio stations that can be stored manually
or automatically.
PTY (Program Type)
This function allows the presetting of a category of
programmes such as for instance, news bulletins,
music, sport, etc.
RDS (Radio Data System)
This is an additional radio information system which
uses the 57 kHz subcarrier of normal FM broadcasts.
With this function it is possible to receive different
types of information such as station names, alternative
frequencies, automatic tuning to traffic bulletins or
special programmes selected through the PTY
function.
REG (Regional transmission reception function)
Function with which it is possible to tune only to local
(regional) stations.
Page 18 of 82
17
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
Repeat (Repetition of the track)
Function with which it is possible to listen
continuously to the last track played on the Compact
Disc.
Scan
Function with which it is possible to listen, for approx.
10 seconds, to all the radio stations stored, or the
beginning of all the tracks contained on a Compact
Disc.
Scrolling
Function with which it is possible to receive different
programmes in the same network (in the FM band
only).
PLL tuning
Digital tuning with Phase Lock Loop circuit to obtain
the best radio channel tuning.
Soft Mute
Function that gradually highers and lowers the volume
when Mute is turned on or off.Sound Flavour
A function that sets the best equalizing possible
depending on the type of music selected (Classic, Jazz,
Rock, etc).
SVC
Function that automatically adjusts the level of the
volume to the speed of the car to maintain the ratio
with the noise level in the passenger compartment.
TA (Traffic information)
Function with which it is possible to receive the traffic
information broadcast by the stations enabled, also
when tuned to another station or listening to a CD.
TPM (Track Program Memory)
Function with which it is possible to store the
sequence for playing the tracks of a CD, to be able to
play them later in the sequence set.
Treble (Treble tones)
This adjusts the treble tones.
Page 19 of 82
18
RADIO WITH COMPACT DISC
AND MP3 CD PLAYER
RADIO WITH
COMPACT DISC PLAYER
OPERATION
CONTROLS ON STEERING WHEEL
(where provided)
The main radio function controls are repeated on the
steering wheel, to allow easier control.
(1) Mute function button;
(2) Volume increase button;
(3) Volume decrease button;
(4) Radio frequency range select button (FM1, FM2,
FMT, MW, LW) and available listening sources
(Radio - Compact Disc - CD Changer).(5) Multifunction button:
❒Radio: call preset stations
(from 1 to 6);
❒Compact Disc player: search next track;
❒CD Changer: select next track.
(6) Multifunction button:
❒Radio: call preset stations
(from 6 to 1);
❒Compact Disc player: search previous track;
❒CD Changer: select previous track.
F0H0008m
