171VEHICLE MAINTENANCE

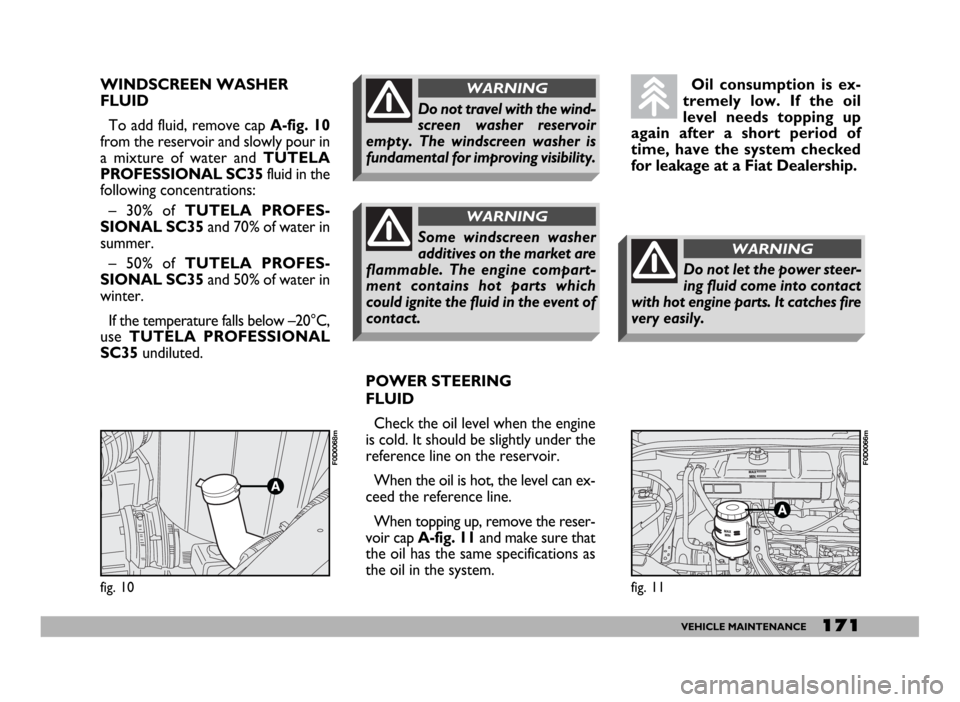

WINDSCREEN WASHER
FLUID
To add fluid, remove cap A-fig. 10
from the reservoir and slowly pour in
a mixture of water and TUTELA
PROFESSIONAL SC35fluid in the
following concentrations:
– 30% ofTUTELA PROFES-
SIONAL SC35and 70% of water in
summer.
– 50% ofTUTELA PROFES-
SIONAL SC35and 50% of water in
winter.
If the temperature falls below –20°C,
useTUTELA PROFESSIONAL
SC35undiluted.
POWER STEERING
FLUID
Check the oil level when the engine
is cold. It should be slightly under the
reference line on the reservoir.
When the oil is hot, the level can ex-
ceed the reference line.
When topping up, remove the reser-
voir cap A-fig. 11 and make sure that
the oil has the same specifications as
the oil in the system.Oil consumption is ex-
tremely low. If the oil
level needs topping up
again after a short period of
time, have the system checked
for leakage at a Fiat Dealership.
fig. 10
F0D0068m
fig. 11
F0D0066m
Do not let the power steer-
ing fluid come into contact
with hot engine parts. It catches fire
very easily.
WARNINGSome windscreen washer
additives on the market are
flammable. The engine compart-
ment contains hot parts which
could ignite the fluid in the event of
contact.
WARNING
Do not travel with the wind-
screen washer reservoir
empty. The windscreen washer is
fundamental for improving visibility.
WARNING

174VEHICLE MAINTENANCE
REPLACING THE BATTERY
If required, replace the battery with
a genuine spare part presenting the
same specifications. If a battery with
different specifications is fitted, the fre-
quencies shown in the “Service Sched-
ule” will no longer be valid. Refer to
the instructions provided by the bat-
tery manufacturer.
Batteries contain sub-
stances that are very
harmful for the environ-
ment. You are advised to have the
battery changed at a Fiat Dealer-
ship. It is properly equipped for
disposing of used batteries in an
environmentally-friendly way that
complies with the law.
Incorrect fitting of elec-
trical and electronic ac-
cessories can seriously
damage the vehicle. If you want
to add accessories after buying
the vehicle antitheft system, ra-
dio, free-hand phone kit, etc.) vis-
it a Fiat Dealership. They can sug-
gest the most suitable acces-
sories to get and check whether
the electric system can support
the required load or whether a
higher capacity battery is re-
quired.
The liquid in the battery is
poisonous and corrosive.
Do not let it touch the skin or eyes.
Do not bring naked flames or pos-
sible sources or sparks near the bat-
tery: risk of fire and explosion.
WARNING
fig. 15
F0D0244m
BATTERY
Fiat Ducato battery is of the “Limit-
ed maintenance” and is fitted with in-
dicator A-fig. 15to check the elec-
trolyte level and the charge.
Under normal conditions of use it
does not require topping up with dis-
tilled water. However, check it peri-
odically through the control optical in-
dicator that is placed on the battery
cover and must be dark with a cen-
tral green area.
If the indicator is a bright colour, or
dark without the green central area,
contact a Fiat Dealership.

182VEHICLE MAINTENANCE
– the use of zinc-plated sheet steel
which is highly resistant to rust;
– the spraying of the underbody, en-
gine compartment, inside the wheel-
houses and other parts with wax-
based products with a high protective
capacity;
– spraying plastic-coating materials
to protect the most exposed points:
under the door, inside the wings, the
edges, etc.;
– the use of “open” box sections to
prevent condensation and water from
building up and rusting the inside of
the parts.
BODY AND UNDERBODY
WARRANTY
Your Ducato is covered by warranty
against any original structural or body
part being perforated by rust. Refer to
the Warranty Booklet for the general
terms.TIPS FOR KEEPING THE BODY
IN GOOD CONDITIONS
Paintwork
The paintwork is not only to make
your vehicle look attractive but also
to protect the steel.
If the paint is scuffed or scratched
deeply you are therefore advised to
touch up as necessary to prevent rust
from forming.
Only use genuine products when
touching up the paintwork (see sec-
tion “Technical Specifications”).
Ordinary maintenance of the paint-
work means washing it. The frequency
you should do this depends on the
conditions and the environment the
vehicle is driven in.
For example:
– areas with a high level of air-pollu-
tion;
– roads sprinkled with road saltwash;
– parking under trees which drop
resin. In these cases, wash your vehi-
cle more frequently.To wash the vehicle properly:
1)wash the body using a low pres-
sure jet of water;
2) wipe a sponge with a slightly
soapy solution over the bodywork,
frequently rinsing the sponge;
3) rinse well with water and dry
with a jet of air or a chamois leather.
When drying the vehicle, be careful
to get at those parts which are not so
easily seen, e.g. the door frames, bon-
net and around the headlights where
water can most readily collect. You
should leave the vehicle out in the
open so that any water remaining can
evaporate more easily.

185TECHNICAL SPECIFICATIONS
T T
E E
C C
H H
N N
I I
C C
A A
L L
S S
P P
E E
C C
I I
F F
I I
C C
A A
T T
I I
O O
N N
S S
VEHICLE
IDENTIFICATION
DATA
CHASSIS MARKING fig. 1
This is stamped on the wheelhouse
near the passenger seat. It can be
reached by lifting the special plastic
flap in the carpeting over the wheel
arch and it includes:
– vehicle model ZFA 244.000
– chassis serial number.ENGINE MARKING
The marking is stamped on the cylin-
der block and includes the model and
the serial number.
See the following pages for the en-
gine codes together with the body-
work codes.MODEL PLATE
The model plate fig. 2includes the
following identification data:
A - Manufacturer’s name
B - Homologation number
C - Vehicle type code
D- Vehicle ID code (Chassis serial
number)
fig. 1
F0D0126m
fig. 2
F0D0026m

186TECHNICAL SPECIFICATIONS
E- Maximum vehicle weight fully
loaded
F - Maximum vehicle weight fully
loaded with trailer
G - Maximum vehicle weight on
front axle
H - Maximum vehicle weight on rear
axle
I - Engine type
L - Body version code
M - Smoke opacity index (for diesel
engines).
This plate is fastened to the front
crossmember in the engine compart-
ment A-fig. 3.BODYWORK PAINT
IDENTIFICATION PLATE
The plateA-fig. 4 is set on the left-
hand inner side of the bonnet.It bears the following data fig. 5:
A - Paint manufacturer
B - Colour name
C - Fiat colour code
D- Respray and touch up code.
fig. 3
F0D0188m
fig. 4
F0D0189m
fig. 5
F0D0025m

187TECHNICAL SPECIFICATIONS
ENGINE CODES - BODYWORK VERSIONS
Version 11
Van short wheelbase
Van short wheelbase
Van medium wheelbase
Van high sided medium wheelbase
Van high sided medium wheelbase
Truck medium wheelbase
Truck short wheelbase
Chassis cab short wheelbase
Chassis cab short wheelbase Camping Car
Chassis cab medium wheelbase
Chassis cab medium wheelbase Camping Car
Transport ambulance short wheelbase
Panorama short wheelbase
Combi 6 seater short wheelbase
Chassis cab with load bed short wheelbase
Chassis cab with load bed short wheelbase Camping Car
Chassis cab with load bed medium wheelbase
Chassis cab with load bed medium wheelbase Camping Car
Van short wheelbase
Van short wheelbase
Van medium wheelbaseEngine
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0
2.0 JTD
2.0 JTD
2.0 JTDEngine
code
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RFL
RHV
RHV
RHVBodywork
version
244ATMFA AX
244ATMFA BX
244ATMFB AX
244ATMNB AX
244ATMNB BX
244ATMDB AX
244ATMDA AX
244ATMAA AX
244ATMAA AXC
244ATMAB AX
244ATMAB AXC
244ATMTA AX
244ATMPA 00
244ATMRA 01
244ATMCA AX
244ATMCA AXC
244ATMCB AX
244ATMCB AXC
244AAMFA AX
244AAMFA BX
244AAMFB AX

188TECHNICAL SPECIFICATIONS
Version 11
Van high sided medium wheelbase
Van high sided medium wheelbase
Chassis cab short wheelbase
Chassis cab short wheelbase Camping Car
Truck short wheelbase
Chassis cab with load bed short wheelbase
Chassis cab with load bed short wheelbase Camping Car
Chassis cowl short wheelbase
Chassis cowl short wheelbase Camping Car
Chassis cab medium wheelbase
Chassis cab medium wheelbase Camping Car
Truck medium wheelbase
Chassis cab with load bed medium wheelbase
Chassis cab with load bed medium wheelbase Camping Car
Panorama short wheelbase
Combi 6 seater short wheelbase
Combi short wheelbase low roof
Combi medium wheelbase low roof
Chassis cowl short wheelbase “city centre”
Chassis cab with load bed short wheelbase “city centre”
Truck short wheelbase “city centre”
Chassis cab with load bed medium wheelbase “city centre”
Truck medium wheelbase “city centre”
Van short wheelbase low roof “city centre”
Van short wheelbase high roof “city centre”
Van medium wheelbase low roof “city centre”
Van medium wheelbase high sided “city centre”
Van medium wheelbase extra high “city centre”
Van short wheelbase low roof (9 q)Engine
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTDEngine
code
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHV
RHVBodywork
version
244AAMNB AX
244AAMNB BX
244AAMAA AX
244AAMAA AXC
244AAMDA AX
244AAMCA AX
244AAMCA AXC
244AAMBA AX
244AAMBA AXC
244AAMAB AX
244AAMAB AXC
244AAMDB AX
244AAMCB AX
244AAMCB AXC
244AAMPA 02
244AAMRA 03
244AAMFA ZX
244AAMRB 26
244AAMRA 03
244DAMBA AX
244DAMCA AX
244DAMDA AX
244DAMCB AX
244DAMDB AX
244DAMFA AX
244DAMFA BX
244DAMFB AX
244DAMNB AX
244DAMNB BX

189TECHNICAL SPECIFICATIONS
Version 11
Van short wheelbase high roof (9 q)
Van medium wheelbase low roof (9 q)
Van medium wheelbase high sided (9 q)
Van medium wheelbase extra high (9 q)
Van short wheelbase low roof without EGR (9 q)
Van short wheelbase high roof without EGR (9 q)
Van short wheelbase high sided without EGR (9 q)
Van short wheelbase extra high without EGR (9 q)
Van short wheelbase without EGR
Van short wheelbase without EGR
Van short wheelbase
Van short wheelbase
Van medium wheelbase without EGR
Van high sided medium wheelbase without EGR
Van high sided medium wheelbase without EGR
Van long wheelbase high sided without EGR
Van long wheelbase extra high without EGR
Transport ambulance short wheelbase
Panorama short wheelbase
Combi 6 seater short wheelbase
Combi short wheelbase
Combi medium wheelbase
Van short wheelbase without EGR
Van short wheelbase without EGR
Van medium wheelbase without EGR
Van high sided medium wheelbase without EGR
Van high sided medium wheelbase without EGR
Van short wheelbase
Van short wheelbase
Van medium wheelbase Engine
2.0 JTD
2.0 JTD
2.0 JTD
2.0 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.3 JTD
2.8 JTD
2.8 JTD
2.8 JTD
2.8 JTD
2.8 JTD
2.8 JTD
2.8 JTD
2.8 JTDEngine
code
RHV
RHV
RHV
RHV
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
F1AE0481C
8140.43S
8140.43S
8140.43S
8140.43S
8140.43S
8140.43S
8140.43S
8140.43SBodywork
version
244EAMFA AX
244EAMFA BX
244EAMNB AX
244EAMNB BX
244ESMFA AY
244ESMFA BY
244ESMNB AY
244ESMNB BY
244ASMFA AY
244ASMFA BY
244ASMFA AX
244ASMFA BX
244ASMFB AY
244ASMNB AY
244ASMNB BY
244ASMNC AY
244ASMNC BY
244ASMTA AX
244ASMPA 04
244ASMRA 05
244ASMFA ZX
244ASMRB 31
244APMFA AY
244APMFA BY
244APMFB AY
244APMNB AY
244APMNB BY
244APMFA AX
244APMFA BX
244APMFB AX
