Use Factory Settings
If “ Ye s ” is selected, all of the customer programmable
features will be set to the factory default and not dis-
played. If “ No ” is selected you can program the Vehicle
Information Center to your own personal preferences.
Auto Door Locks
When this feature is selected, all doors and the liftgate
lock automatically when the speed of the vehicle reaches
18 mph (29 km/h). Pressing the “ STEP ” button when in
this display will select “ Ye s ” or “ No. ”
Auto Unlock On Exit (Available Only When the
AUTO DOOR LOCKS Feature is Turned On)
When this feature is selected all the vehicle ’ s doors will
unlock whenever any door is opened if the vehicle is
stopped and the transmission is in “ P ” (Park) or “ N ”
(Neutral) position. Pressing the “ STEP ” button when in
this display will select “ Ye s ” or “ No. ” Remote Unlock Driver ’ s Door 1st
When this feature is selected only the driver ’ s door will
unlock on the first press of the remote keyless entry
unlock button and require a second press to unlock the
remaining locked doors and liftgate. When “ REMOTE
UNLOCK ALL DOORS ” is selected all of the doors and
the liftgate will unlock at the first press of the remote
keyless entry unlock button. Pressing the “ STEP ” button
when in this display will select “ DRIVER ’ S DOOR 1ST ”
or “ ALL DOORS ” .
Remote Linked To Memory (Available with
Memory Seat and Pedals Only)
When this feature is selected, pressing the Unlock button
on any Remote Keyless Entry transmitter already linked
to memory will return the driver ’ s seat, driver ’ s outside
mirror, adjustable brake and accelerator pedals, and
radio station presets to their memory set positions. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 157
3

If this feature is not selected, the driver ’ s seat, driver ’ s
mirror, adjustable pedals, and radio settings can only
return to their memory set positions using the memory
recall buttons (1or 2) on the driver ’ s door panel.
Any transmitter linked to memory will remain linked,
but will not recall the memory positions. The transmitter
memory recall function will operate again when this
feature is selected. Refer to Driver Memory System for
more information. Pressing the  STEP  button when in
this mode will select between  Ye s  or  No  .
Sound Horn On Lock
When this feature is selected a short horn sound will
occur when the remote keyless entry “ Lock ” button is
pressed. This feature may be selected with or without the
flash lights on LOCK/UNLOCK feature. Pressing the
“ STEP ” button when in this display will select “ Ye s ” or
“ No. ” Flash Lights On Lock/Unlock?
When this feature is selected, the front and rear turn
signals will flash when the doors are locked or unlocked
using the remote keyless entry transmitter. This feature
may be selected with or without the sound horn on lock
feature selected. Pressing the “ STEP ” button when in this
display will select “ Ye s ” or “ No. ”
Sliding Door Open Flash?
When this feature is selected, and the sliding door(s) are
opened, the left and right exterior hazard lights will flash
for 12 seconds to alert other drivers in the area that
passenger(s) could be entering or exiting the vehicle.
Pressing the  STEP  button when in this display will
select “ Ye s ” or “ No. ”
Headlamp Delay
When this feature is selected the driver can choose, when
exiting the vehicle, to have the headlamps remain on for158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

The washer fluid reservoir will hold a full gallon of fluid
when the Low Washer Fluid Light illuminates. Electric Rear Window Defroster — If Equipped
Press this button to turn on the rear window
defroster and the optional heated mirrors. A light
will show that the defroster is on. The defroster automati-
cally turns off after about 10 minutes of operation.
If your vehicle is equipped with Infrared Three-Zone
Automatic Temperature Control the rear defroster sym-
bol will show in the display screen when the rear
window defroster is on.
Washer Fluid Reservoir UNDERSTANDING YOUR INSTRUMENT PANEL 287
4

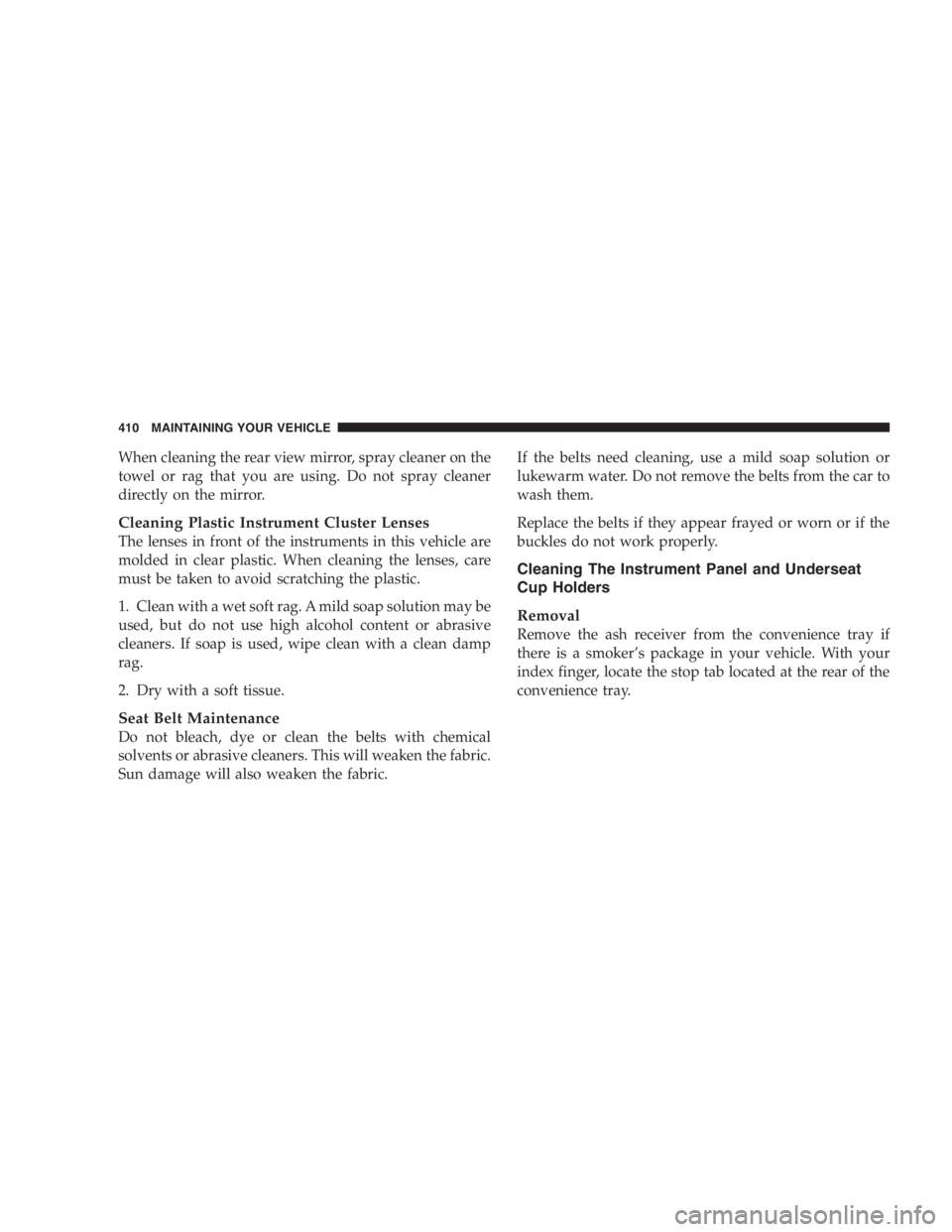

When cleaning the rear view mirror, spray cleaner on the
towel or rag that you are using. Do not spray cleaner
directly on the mirror.
Cleaning Plastic Instrument Cluster Lenses
The lenses in front of the instruments in this vehicle are
molded in clear plastic. When cleaning the lenses, care
must be taken to avoid scratching the plastic.
1. Clean with a wet soft rag. A mild soap solution may be
used, but do not use high alcohol content or abrasive
cleaners. If soap is used, wipe clean with a clean damp
rag.
2. Dry with a soft tissue.
Seat Belt Maintenance
Do not bleach, dye or clean the belts with chemical
solvents or abrasive cleaners. This will weaken the fabric.
Sun damage will also weaken the fabric. If the belts need cleaning, use a mild soap solution or
lukewarm water. Do not remove the belts from the car to
wash them.
Replace the belts if they appear frayed or worn or if the
buckles do not work properly.
Cleaning The Instrument Panel and Underseat
Cup Holders
Removal
Remove the ash receiver from the convenience tray if
there is a smoker ’ s package in your vehicle. With your
index finger, locate the stop tab located at the rear of the
convenience tray.410 MAINTAINING YOUR VEHICLE

The Heated Mirrors, Lower Instrument Panel Power
Outlet and Removable Floor Console, when in the front
position are fused with self resetting fuses that are only
serviceable by an authorized dealer. The power seats are
fused by a 30 Amp circuit breaker located under the
driver ’ s seat. The Power Windows are fused by a 25 Amp
circuit breaker located under the instrument panel near
the steering column. If you experience temporary or
permanent loss of these systems see your authorized
dealer for service.
VEHICLE STORAGE
If you are leaving your vehicle dormant for more than 21
days you may want to take steps to protect your battery.
You may:
• Remove the 20 Amp mini fuse in the Integrated Power
Module labeled Ignition-Off Draw (IOD).
• Or, disconnect the negative cable from the battery. • Anytime you store your vehicle, or keep it out of
service (i.e. vacation) for two weeks or more, run the
air conditioning system at idle for about five minutes
in the fresh air and high blower setting. This will
insure adequate system lubrication to minimize the
possibility of compressor damage when the system is
started again.
REPLACEMENT LIGHT BULBS
LIGHT BULBS — Interior Bulb Number
Center & Rear Dome Light .................. 578
Center & Rear Reading Lights ............... 578
Front Door Courtesy Light .................. 578
Front Header Reading Lights — If Equipped ..... 578
Instrument Cluster Lights ................. PC74
Liftgate Light(s) .......................... 578
Overhead Console Reading Lights .......... PC579
Removable Console Light — If Equipped ....... 194
Visor Vanity Lights .................... 6501966MAINTAINING YOUR VEHICLE 415
7

Adding Fuel ........................... 334
Adding Washer Fluid .................. 286,392
Additives, Fuel ......................... 332
Adjustable Pedals ....................... 146
Air Conditioner Maintenance ............... 388
Air Conditioning ..................... 262,267
Air Conditioning Controls ................. 262
Air Conditioning Filter ................. 284,389
Air Conditioning, Operating Tips ............ 284
Air Conditioning, Rear Zone ............. 270,279
Air Conditioning Refrigerant ............... 388
Air Conditioning System .......... 262,267,272,388
Air Conditioning System, Zone Control ........ 263
Air Pressure, Tires ....................... 317
Airbag ................................ 53
Airbag Deployment ....................... 65
Airbag Light ................... 57,58,68,84,199
Airbag Maintenance ....................... 67
Airbag, Window ......................... 54 Alarm Light ........................... 200
Alarm System ........................... 27
Alignment and Balance ................... 324
Alterations/Modifications, Vehicle ............. 7
Antenna, Satellite Radio ................... 257
Antifreeze (Engine Coolant) ........... 395,396,421
Disposal ............................ 397
Anti-Lock Brake System (ABS) .............. 303
Anti-Lock Warning Light .................. 199
Anti-Theft Security Alarm .................. 27
Appearance Care ........................ 406
Arming Theft System ...................... 27
Ashtray ............................... 171
Auto Down Power Windows ................ 40
Automatic Dimming Mirror ................. 92
Automatic Door Locks ................... 19,20
Automatic Headlights .................... 136
Automatic Temperature Control ............. 272
Automatic Transaxle ...................... 297458 INDEX

Door Locks, Automatic .................... 19
Door Opener, Garage ..................... 159
Drive Belts ............................ 383
Drive Shaft Universal Joints ................ 391
Driving
On Slippery Surfaces .................... 367
DVD Player ............................ 243
Electric Remote Mirrors .................... 94
Electrical Power Outlets ................... 168
Electronic Speed Control ................... 147
Electronic Vehicle Information Center ......... 155
Emergency, In Case of
Hazard Warning Flasher ................. 344
Jacking ........................ 346,347,359
Jump Starting ......................... 365
Overheating .......................... 345
Emission Control System Maintenance ...... 377,426
Engine ............................ 374,375 Air Cleaner .......................... 385
Air Cleaner Filter ...................... 384
Block Heater ......................... 296
Break-In Recommendations ................ 82
Checking Oil Level ..................... 379
Compartment ...................... 374,375
Coolant (Antifreeze) .................... 422
Cooling ............................. 394
Exhaust Gas Caution .................. 38,333
Fails to Start ....................... 293,295
Fuel Requirements .................. 330,421
Oil ........................... 379,421,422
Oil Change Interval .................... 381
Oil Disposal .......................... 383
Oil Filler Cap ......................... 382
Oil Filter Disposal ...................... 383
Oil Selection ....................... 381,421
Oil Synthetic ......................... 383
Overheating .......................... 345462 INDEX

Temperature Gauge ..................... 200
Exhaust Gas Caution .............. 38,83,333,393
Exhaust System ......................... 393
Extender, Seat Belt ........................ 52
Exterior Folding Mirrors ................... 93
Filters
Air Cleaner .......................... 384
Air Conditioning .................... 284,389
Automatic Transaxle .................... 405
Engine Oil ........................ 383,422
Engine Oil Disposal .................... 383
Flashers
Hazard Warning ....................... 344
Turn Signal ..................... 197,418,419
Flat Tire Stowage ........................ 355
Fluid Capacities ......................... 421
Fluid Leaks ............................. 85 Fluid Level Checks
Automatic Transmission ................. 404
Brake ............................... 401
Power Steering ........................ 390
Fog Light Service ........................ 419
Fog Lights .......................... 138,419
Freeing A Stuck Vehicle ................... 368
Fuel ................................. 330
Adding ............................. 334
Additives ............................ 332
Clean Air ............................ 331
Filler Cap ............................ 334
Gasoline ............................ 330
Gauge .............................. 196
Hoses .............................. 402
Light ............................... 197
Octane Rating ...................... 330,422
Requirements ...................... 330,421
Tank Capacity ........................ 421 INDEX 463
10
