2005 DODGE GRAND CARAVAN buttons

turns in an area free from large metal or metallic objects,
the “ CAL ” symbol will turn off and the compass will
function normally.
Manual Compass Calibration
If the compass appears erratic and the “ CAL ” symbol
does not appear, you must put the compass into the
Calibration Mode manually.
To put into a Calibration Mode: Turn on the ignition
switch and set the display to Comp/Temp. Press the
RESET button on vehicles equipped with a Compass/
Mini Trip Computer for at least 10 seconds until the
“ CAL ” symbol appears. On vehicles equipped with
Compass/Temp press and hold the C/T and US/M
buttons for 10 seconds. Release the RESET button and
complete three 360 ° turns in an area free from large metal
objects. The “ CAL ” symbol will turn off and the compass
will function normally. CAUTION!Do not place any external magnets, such as magnetic
roof mount antennas, in the vicinity of the compass.
Do not use magnetic tools when servicing the over-
head console.
Compass Variance
Compass Variance is the difference between magnetic
North and Geographic North. In some areas of the
country, the difference between magnetic and geographic
North is great enough to cause the compass to give false
readings. If this occurs, the compass variance must be set.
NOTE: Magnetic materials should be kept away from
the overhead console.152 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

To set the variance: Turn the ignition switch ON and set
the display to Comp/Temp. On vehicles equipped with a
Compass/Mini Trip Computer press the RESET button
for approximately 5 seconds. On vehicles equipped with
Compass/Temp press and hold the C/T and US/M
buttons for 5 seconds. The “ VA R ” symbol will light and
the last variance zone number will be displayed. Press
the STEP button on vehicles equipped with a Compass/
Mini Trip Computer or the US/M button on vehicles
equipped with Compass/Temp to select the proper vari-
ance zone as shown in the map. Press the RESET button
on vehicles equipped with a Compass/Mini Trip Com-
puter or the C/T button on vehicles equipped with
Compass/Temp to set the new variance zone and resume
normal operation. UNDERSTANDING THE FEATURES OF YOUR VEHICLE 153
3

If this feature is not selected, the driver ’ s seat, driver ’ s
mirror, adjustable pedals, and radio settings can only
return to their memory set positions using the memory
recall buttons (1or 2) on the driver ’ s door panel.
Any transmitter linked to memory will remain linked,
but will not recall the memory positions. The transmitter
memory recall function will operate again when this
feature is selected. Refer to Driver Memory System for
more information. Pressing the  STEP  button when in
this mode will select between  Ye s  or  No  .
Sound Horn On Lock
When this feature is selected a short horn sound will
occur when the remote keyless entry “ Lock ” button is
pressed. This feature may be selected with or without the
flash lights on LOCK/UNLOCK feature. Pressing the
“ STEP ” button when in this display will select “ Ye s ” or
“ No. ” Flash Lights On Lock/Unlock?
When this feature is selected, the front and rear turn
signals will flash when the doors are locked or unlocked
using the remote keyless entry transmitter. This feature
may be selected with or without the sound horn on lock
feature selected. Pressing the “ STEP ” button when in this
display will select “ Ye s ” or “ No. ”
Sliding Door Open Flash?
When this feature is selected, and the sliding door(s) are
opened, the left and right exterior hazard lights will flash
for 12 seconds to alert other drivers in the area that
passenger(s) could be entering or exiting the vehicle.
Pressing the  STEP  button when in this display will
select “ Ye s ” or “ No. ”
Headlamp Delay
When this feature is selected the driver can choose, when
exiting the vehicle, to have the headlamps remain on for158 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!A moving garage door can cause injury to people and
pets in the path of the door. People or pets could be
seriously or fatally injured. Only use this transceiver
with a garage door opener that has a “ stop and
reverse ” feature as required by federal safety stan-
dards. This includes most garage door opener mod-
els manufactured after 1982. Do not use a garage
door opener without these safety features it could
cause injury or death. Call toll-free 1 – 800 – 355 – 3515
or, on the Internet at www.homelink.com for safety
information or assistance. Programming HomeLink
NOTE: When programming a garage door opener, it is
advised to park outside the garage. Some vehicles may
require the ignition switch to be turned to the second (or
 accessories  ) position for programming and/or opera-
tion of HomeLink. It is also recommended that a new
battery be placed in the hand-held transmitter of the
device being programmed to HomeLink for quicker
training and accurate transmission of the radio-frequency
signal.
1. Press and hold the two outer HomeLink buttons, and
release only when the indicator light begins to flash (after
20 seconds). Do not hold the buttons for longer than 30
seconds and do not repeat step one to program a second
and/or third hand-held transmitter to the remaining two
HomeLink buttons.160 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

WARNING!Vehicle exhaust contains carbon monoxide, a danger-
ous gas. Do not run the vehicle ’ s exhaust while
training the transceiver. Exhaust gas can cause seri-
ous injury or death.
WARNING!Your motorized door or gate will open and close
while you are training the Universal Transceiver. Do
not train the transceiver if people or pets are in the
path of the door or gate. A moving door or gate can
cause serious injury or death to people and pets or
damage to objects.HomeLink Buttons UNDERSTANDING THE FEATURES OF YOUR VEHICLE 161
3

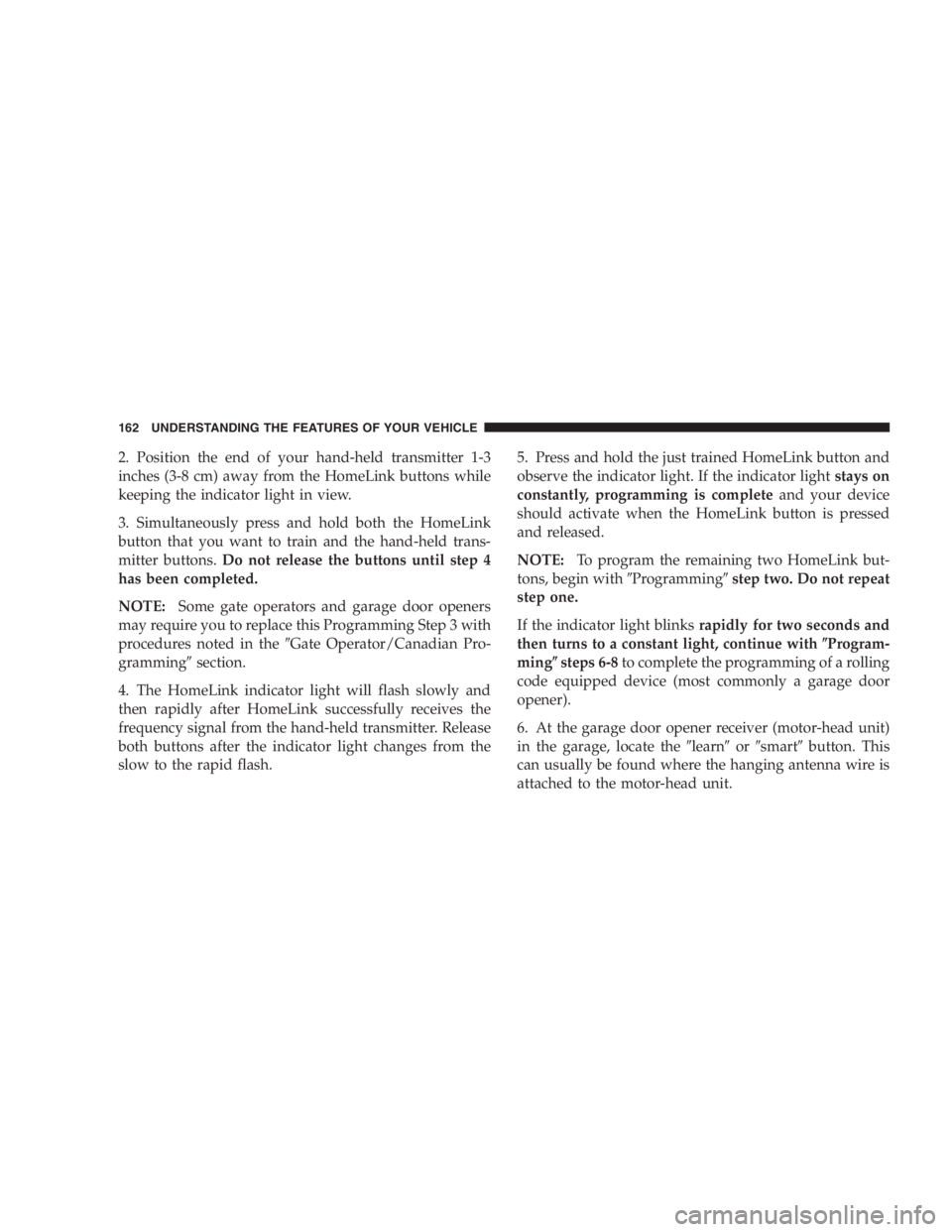

2. Position the end of your hand-held transmitter 1-3
inches (3-8 cm) away from the HomeLink buttons while
keeping the indicator light in view.
3. Simultaneously press and hold both the HomeLink
button that you want to train and the hand-held trans-
mitter buttons. Do not release the buttons until step 4
has been completed.
NOTE: Some gate operators and garage door openers
may require you to replace this Programming Step 3 with
procedures noted in the  Gate Operator/Canadian Pro-
gramming  section.
4. The HomeLink indicator light will flash slowly and
then rapidly after HomeLink successfully receives the
frequency signal from the hand-held transmitter. Release
both buttons after the indicator light changes from the
slow to the rapid flash. 5. Press and hold the just trained HomeLink button and
observe the indicator light. If the indicator light stays on
constantly, programming is complete and your device
should activate when the HomeLink button is pressed
and released.
NOTE: To program the remaining two HomeLink but-
tons, begin with  Programming  step two. Do not repeat
step one.
If the indicator light blinks rapidly for two seconds and
then turns to a constant light, continue with  Program-
ming  steps 6-8 to complete the programming of a rolling
code equipped device (most commonly a garage door
opener).
6. At the garage door opener receiver (motor-head unit)
in the garage, locate the  learn  or  smart  button. This
can usually be found where the hanging antenna wire is
attached to the motor-head unit.162 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

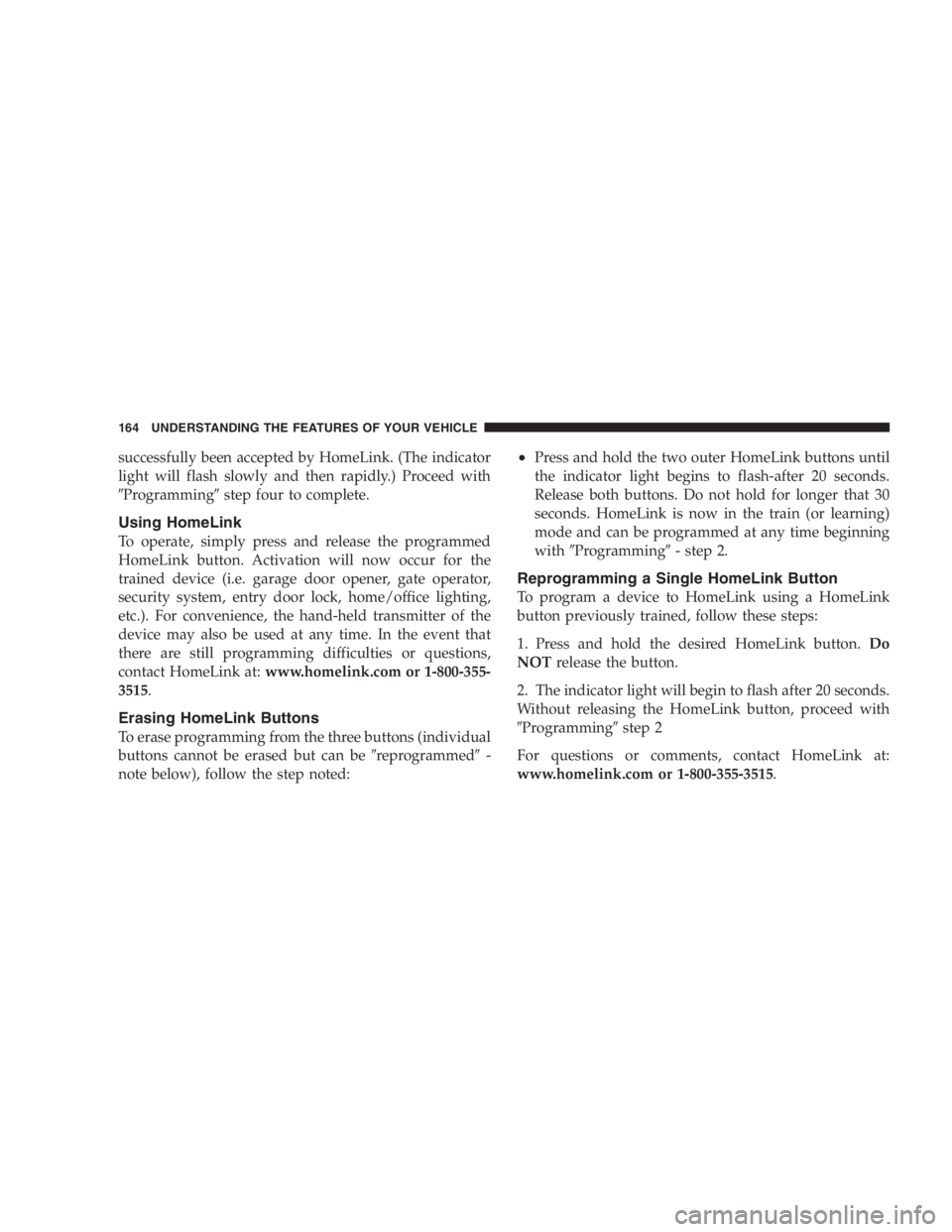

successfully been accepted by HomeLink. (The indicator
light will flash slowly and then rapidly.) Proceed with
 Programming  step four to complete.
Using HomeLink
To operate, simply press and release the programmed
HomeLink button. Activation will now occur for the
trained device (i.e. garage door opener, gate operator,
security system, entry door lock, home/office lighting,
etc.). For convenience, the hand-held transmitter of the
device may also be used at any time. In the event that
there are still programming difficulties or questions,
contact HomeLink at: www.homelink.com or 1-800-355-
3515 .
Erasing HomeLink Buttons
To erase programming from the three buttons (individual
buttons cannot be erased but can be  reprogrammed  -
note below), follow the step noted: • Press and hold the two outer HomeLink buttons until
the indicator light begins to flash-after 20 seconds.
Release both buttons. Do not hold for longer that 30
seconds. HomeLink is now in the train (or learning)
mode and can be programmed at any time beginning
with  Programming  - step 2.
Reprogramming a Single HomeLink Button
To program a device to HomeLink using a HomeLink
button previously trained, follow these steps:
1. Press and hold the desired HomeLink button. Do
NOT release the button.
2. The indicator light will begin to flash after 20 seconds.
Without releasing the HomeLink button, proceed with
 Programming  step 2
For questions or comments, contact HomeLink at:
www.homelink.com or 1-800-355-3515 .164 UNDERSTANDING THE FEATURES OF YOUR VEHICLE

Security
If you sell your vehicle, be sure to erase the frequencies
by following the “ Erasing HomeLink Buttons ” instruc-
tions in this section.
This device complies with part 15 of FCC rules and with
RSS-210 of Industry Canada. Operation is subject to the
following conditions:
• This device may not cause harmful interference.
• This device must accept any interference that may be
received including interference that may cause undes-
ired operation.
NOTE: Changes or modifications not expressly ap-
proved by the party responsible for compliance could
void the user ’ s authority to operate the equipment.
HomeLink  is a trademark owned by Johnson Controls,
Inc. POWER SUNROOF — IF EQUIPPED
The power sunroof control is located between the sun
visors on the overhead console.
Press and hold the switch rearward to fully open the
sunroof. The sunroof can be stopped at any position
between closed and full open. Momentarily pressing the Power Sunroof SwitchesUNDERSTANDING THE FEATURES OF YOUR VEHICLE 165
