2005 DODGE GRAND CARAVAN jacking

WHAT TO DO IN EMERGENCIESCONTENTS
Hazard Warning Flasher ..................344

If Your Engine Overheats .................345

Jacking And Tire Changing ................346
▫ Jacking Instructions — Fold-In-Floor Seating . . 347
▫ Jacking Instructions — Non Fold-In-Floor
Seating .............................359

Jump-Starting Procedures If Battery Is Low ....365

Driving On Slippery Surfaces ..............367
▫ Acceleration .........................367 ▫ Traction ............................367

Freeing A Stuck Vehicle ..................368

Towing A Disabled Vehicle ................369
▫ With Ignition Key .....................369
▫ Without The Ignition Key ...............370
▫ Towing This Vehicle Behind Another Vehicle
(Flat Towing With All Four Wheels On The
Ground) ............................370
▫ Towing This Vehicle Behind Another Vehicle
With A Tow Dolley ....................370
6

WARNING!A hot engine cooling system is dangerous. You or
others could be badly burned by steam or boiling
coolant. You may want to call a service center if your
vehicle overheats. If you decide to look under the
hood yourself, see Section 7, Maintenance, of this
manual. Follow the warnings under the Cooling
System Pressure Cap paragraph. JACKING AND TIRE CHANGING
WARNING!• Getting under a jacked-up vehicle is dangerous. The
vehicle could slip off the jack and fall on you. You
could be crushed. Never get any part of your body
under a vehicle that is on a jack. If you need to get
under a raised vehicle, take it to a service center
where it can be raised on a lift.
• The jack is designed to use as a tool for changing
tires only. The jack should not be used to lift the
vehicle for service purposes. The vehicle should be
jacked on a firm level surface only. Avoid ice or
slippery areas.
• For vehicles equipped with fold-in-floor seating, if it
is necessary to retrieve the spare tire from under the
vehicle on the side of the vehicle close to moving
traffic. Pull far enough off the road to avoid the
danger of being hit.346 WHAT TO DO IN EMERGENCIES

Jacking Instructions — Fold-in-Floor Seating
Preparations For Jacking
Park the vehicle on a firm level surface, avoid ice or
slippery areas, set the parking brake and place the gear
selector in PARK. Turn OFF the ignition.
WARNING!Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel. • Turn on the Hazard Warning Flasher.
• Block both the front and rear
of the wheel diagonally oppo-
site the jacking position. For
example, if changing the right
front tire, block the left rear
wheel.
• Passengers should not remain in the vehicle when the
vehicle is being jacked. WHAT TO DO IN EMERGENCIES 347
6

Jacking Instructions — Fold-in-Floor Seating
1. Loosen (but do not remove) the wheel lug nuts by
turning them to the left one turn while the wheel is still
on the ground.
2. To remove the compact spare tire/cover assembly,
assemble the winch handle extensions to form a “ T ’ and
fit the winch “ T ” handle over the drive nut. Rotate the
nut to the left approximately 33 turns until the winch
mechanism stops turning freely, this will allow enough
slack in the cable to allow you to pull the spare tire out
from under the vehicle. Spare Tire Removal350 WHAT TO DO IN EMERGENCIES

CAUTION!For vehicles equipped with fold-in-floor seating, the
Winch Mechanism is designed specifically to stow a
COMPACT Spare Tire ONLY. Do not attempt to use
the Winch to stow the Full Size ’ Flat ’ Tire, or any
other Full Size Tire. Vehicle damage may result.
Jacking Instructions — Non Fold-in-Floor Seating
Preparations For Jacking
Park the vehicle on a firm level surface, avoid ice or
slippery areas, set the parking brake and place the gear
selector in PARK. Turn OFF the ignition. WARNING!Do not attempt to change a tire on the side of the
vehicle close to moving traffic. Pull far enough off
the road to avoid the danger of being hit when
operating the jack or changing the wheel.
• Turn on the Hazard Warning Flasher.
• Block both the front and rear
of the wheel diagonally oppo-
site the jacking position. For
example, if changing the right
front tire, block the left rear
wheel.
• Passengers should not remain in the vehicle when the
vehicle is being jacked. WHAT TO DO IN EMERGENCIES 359
6

Jacking Instructions — Non Fold-in-Floor Seating
1. Loosen (but do not remove) the wheel lug nuts by
turning them to the left one turn while the wheel is still
on the ground. 2. Fit the jack handle over the drive nut. Rotate the nut to
the left until the spare is on the ground with enough slack
cable to allow you to pull the tire out from under the
vehicle.
CAUTION!The winch mechanism is designed for use with the
jack handle only. Use of an air wrench or other
power tools is not recommended and can damage the
winch.
3. When the spare is clear, tilt the retainer at the end of
the cable and pull it through the center of the wheel.
4. There are two jack engagement locations on each side
of the body — refer to the following illustration.Lowering Spare Tire WHAT TO DO IN EMERGENCIES 361
6

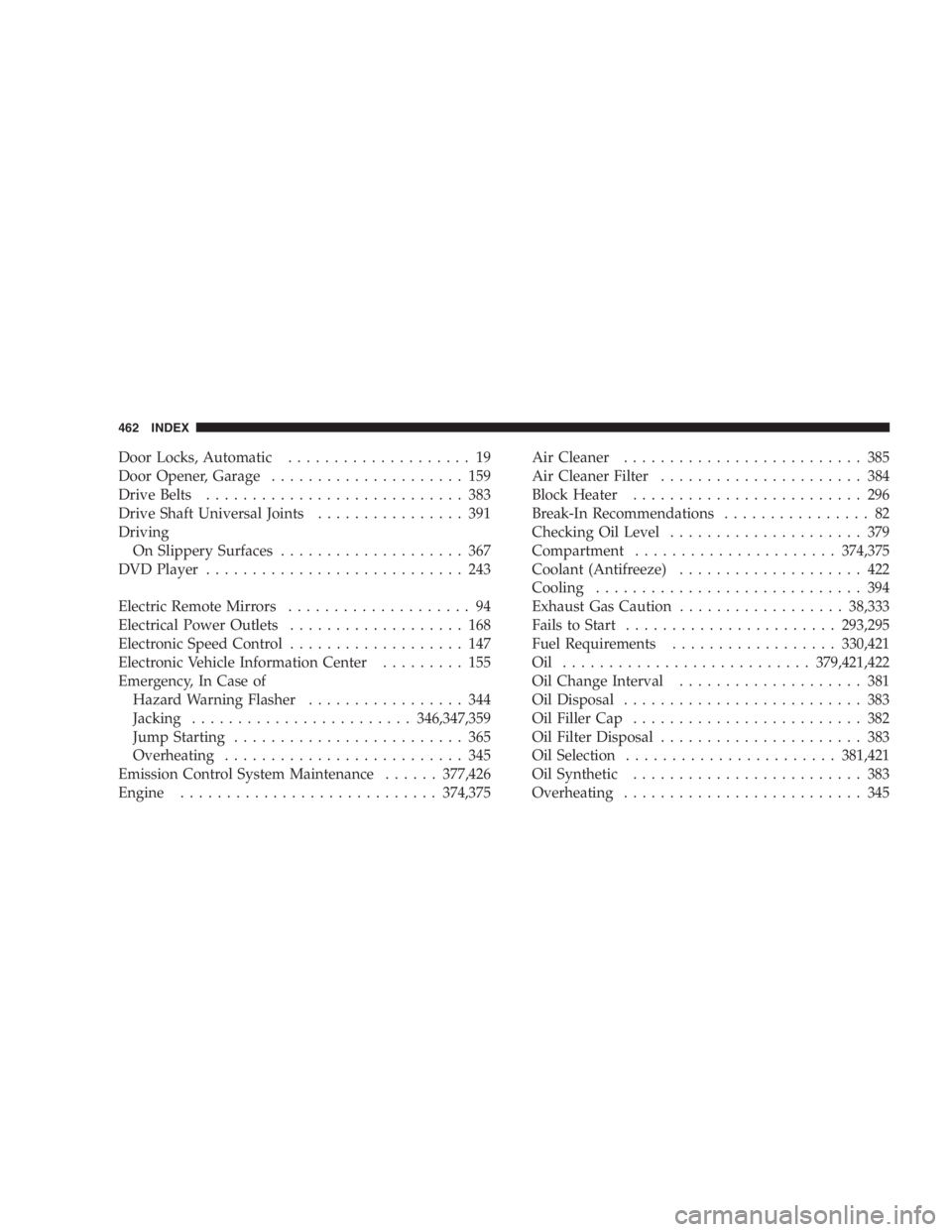

Door Locks, Automatic .................... 19
Door Opener, Garage ..................... 159
Drive Belts ............................ 383
Drive Shaft Universal Joints ................ 391
Driving
On Slippery Surfaces .................... 367
DVD Player ............................ 243
Electric Remote Mirrors .................... 94
Electrical Power Outlets ................... 168
Electronic Speed Control ................... 147
Electronic Vehicle Information Center ......... 155
Emergency, In Case of
Hazard Warning Flasher ................. 344
Jacking ........................ 346,347,359
Jump Starting ......................... 365
Overheating .......................... 345
Emission Control System Maintenance ...... 377,426
Engine ............................ 374,375 Air Cleaner .......................... 385
Air Cleaner Filter ...................... 384
Block Heater ......................... 296
Break-In Recommendations ................ 82
Checking Oil Level ..................... 379
Compartment ...................... 374,375
Coolant (Antifreeze) .................... 422
Cooling ............................. 394
Exhaust Gas Caution .................. 38,333
Fails to Start ....................... 293,295
Fuel Requirements .................. 330,421
Oil ........................... 379,421,422
Oil Change Interval .................... 381
Oil Disposal .......................... 383
Oil Filler Cap ......................... 382
Oil Filter Disposal ...................... 383
Oil Selection ....................... 381,421
Oil Synthetic ......................... 383
Overheating .......................... 345462 INDEX

Ignition
Key ................................. 12
Illuminated Entry ........................ 16
Immobilizer ............................ 13
Indicator, Traction Control ................. 203
Infant Restraint .......................... 70
Information Center ...................... 155
Information Center, Vehicle ................. 155
Inside Rearview Mirror .................... 92
Instrument Cluster ................. 194,195,196
Instrument Panel and Controls .............. 193
Instrument Panel Lens Cleaning ............. 410
Integrated Child Seat ...................... 68
Integrated Power Module .................. 412
Interior Appearance Care .................. 408
Interior Lights ....................... 134,135
Intermittent Wipers ................. 141,284,286
Introduction ............................. 4 Jack Location .................. 348,350,360,361
Jack Operation .................... 346,350,361
Jacking Instructions ................... 350,361
Jump Starting .......................... 365
Key, Programming ........................ 15
Key, Replacement ........................ 15
Key, Sentry ............................. 13
Key-In Reminder ......................... 13
Keyless Entry System ...................... 20
Keys ................................. 12
Knee Bolster ............................ 58
Lap/Shoulder Belts ....................... 42
LATCH (Lower Anchors and Tether
for CHildren) ........................... 74
Latches
Hood ............................... 132
Lead Free Gasoline ...................... 330 INDEX 465
10
