F R O N T S E A T S
Manual adjustments
Head restraint
To raise or lower the head restraint, pull it forwards at the same time as sliding it.
The adjustment is correct when the top edge of the head restraint is at the same height as the top of the head.
To remove it, bring it to the high position. Lift the tab with the aid of a coin and pull.
Backrest angle
Action the control rearwards and adjust the angle of the backrest.
It is possible to recline the backrest to an angle of 45° by tilting it until it locks. Press the control to unlock.
Seat height and rake adjustment
Lift the control and use the weight of your body to move th e seat to the desired position.
Reach
Lift the control bar and adjust to the desired position.
Access to the rear seat positions
To access the rear seat positions, action the control forwards to fold the backrest and slide the front seat.
Afterwards the front seat will revert to its initial position.
Make sure that the seat is secured in place (particularly if the rear seats are folded).
Heated seats
The front seats can be heated indi-vidually. Use the controls located at the side of the seats, and select one of the three heating levels:
0: Off.
1: Slight heat.
2: Medium heat.
3: Maximum heat.
The seat temperature adjusts auto-matically.Note: The heated seats only oper-ate when the engine is running.
Page 78 of 178
A
IV
94
Check that the bonnet is properly secured.
Avoid opening the bonnet in high winds.
Bonnet
This operation should only be performed while the vehicle is stationary.
To release the bonnet, pull the con-trol located under the dashboard towards you.
Operate the lever A, located above the grille, to the right of the chev-rons, then lift.Note: The panel may be hot after the vehicle has been in use.
Bonnet stay: Unclip the stay and pivot to lodge it in the notch.
To close
Return the bonnet stay to its initial position.
Check that nothing has been left on top of the engine and that any component that was moved has been correctly repositioned.
Lower the bonnet carefully, then let it drop shut.
B O N N E T R E L E A S E
Page 79 of 178
A
B
IV
95
L E V E L SREFER TO THE CHAPTER: USER PRECAUTIONS
A i r fi l t e r
Follow the requirements set out in the Maintenance Guide.
Windscreen/rear screen wash and h e a d l a m p w a s h fl u i d
Use CITROËN-approved products wherever possible.
Capacity: See "Capacities".
C h a r a c t e r i s t i c s o f fl u i dIn order to ensure optimum cleaning and to avoid freezing, you must n e v e r t o p u p o r r e p l a c e t h i s fl u i d with water.
Engine coolant
T h e fl u i d l e v e l s h o u l d b e between the marks MIN. and MAX. on the header tank.
Engine hot, wait at least 15 minutes.
Quality: See "Maintenance Guide".
Never do anything relating to the cooling system of an engine that is hot.
12 V battery
See "Starting with a slave battery".
Engine oil
Check the engine oil level on horizontal ground with the engine having been switched off for at least 10 minutes.
Quality: See "Maintenance Guide".
Pull out the manual dipstick.
The level should be between the marks MIN.and MAX. on the gauge.
It must never exceed the maximum.
MAX.
MIN.
B r a k e fl u i d
T h e l e v e l o f fl u i d s h o u l d b e between the marks MIN.and MAX. on the reservoir.
Quality: See "Maintenance Guide".
If the warning lamp comes on while you are driving, stop immediately and contact a CITROËN dealer.immediately and immediately
C a b i n p a r t i c l e fi l t e r / O d o u r fi l t e r
See "Maintenance Guide".
If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
Consult "User Precautions" at the end of this handbook.
Page 80 of 178
IV
101
L E V E L S
Engine oil
Check the engine oil level on horizontal ground with the engine having been switched off for at least 10 minutes.
Pull out the manual dipstick.
The level should be between the marks MIN. and MAX. on the gauge.
Topping up engine oil
B e f o r e fi l l i n g , p u l l o u t t h e d i p s t i c k .
C h e c k t h e d i p s t i c k a f t e r fi l l i n g .
It must never exceed the maxi-mum.
Screw the cap back on and close the bonnet.
Quality: See the Maintenance Guide.If opening the bonnet when the engine is hot, even if it is stopped and the ignition is switched off, remember that the cooling fan may operate at any moment.
R a d i a t o r – c o o l a n t fl u i d
Checking the level and topping up w i t h fl u i d m u s t a l w a y s b e d o n e w i t h the engine cold.
Engine hot
Release the protection cover.
Wait 15 minutes or for the tem-perature to be lower than 100 °C and then carefully unscrew the cap so as to allow the pressure to drop, protecting yourself with, say, a cloth.
Topping up the coolant
T h e fl u i d l e v e l s h o u l d b e b e t w e e n the marks MIN. and MAX. on the header tank.
Top up the level. If you have to put in more than 1 litre, have the cooling system checked by a CITROËN dealer.cooling system checked cooling system
Make sure that the cap is back on properly.Note: I f y o u n e e d t o t o p u p t h e fl u i d frequently, this indicates a malfunc-tion which you should get checked at the earliest opportunity.
Quality: See the Maintenance Guide.
Remark: The cooling fan may operate for around 10 minutes after the engine has stopped.
Page 86 of 178
IV
102
HDi 70 engine1.6 HDi engine
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a
D I E S E L I N J E C T I O N E Q U I P M E N T
Draining water from the fuel fi l t e r
Purge regularly (at each oil change).
To drain the water, slacken the bleed screw or the water-in-diesel-fuel sensor located at the base of t h e fi l t e r .
Operate until the water has com-pletely drained away.
Then retighten the bleed screw or the water in diesel fuel sensor.
Page 87 of 178
IV
103
HDi 70 engine1.6 HDi engine
Detach the protection cover to access the priming pump.
HDi engines are the result of advanced technology.
A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a CITROËN dealer can guarantee. A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a A n y i n t e r v e n t i o n r e q u i r e s s p e c i a l q u a l i fi c a t i o n s w h i c h o n l y a
D I E S E L I N J E C T I O N E Q U I P M E N T
Priming the fuel system
In the event of running out of fuel: A f t e r fi l l i n g ( 5 l i t r e s m i n i m u m ) , operate the manual priming pump until some resistance is felt.
Operate the starter motor while depressing the accelerator pedal slightly until the engine starts.
I f t h e e n g i n e f a i l s t o s t a r t a t t h e fi r s t attempt, wait 15 seconds before trying again.
If the engine fails to start after sev-eral attempts, repeat the procedure from the beginning.
When the engine is idling, accelerate slightly to complete the bleeding of the circuit.
Page 88 of 178
IV
104
C A P A C I T I E S
Engine typeEngine oil capacities (in litres)(1)
1.1i engine3.2
1.4i engine3.2
1.6i 16V 110 ch engine3.2
1.6i 16V 125 ch engine3.2
HDi 70 engine3.8
1.6 HDi 110 ch engine3.75
(1) D r a i n , r e fi l l a n d r e p l a c e o i l fi l t e r .
S c r e e n w a s h fl u i d ( i n l i t r e s )3.5
S c r e e n a n d h e a d l a m p w a s h fl u i d (in litres)6
Page 89 of 178
IV
105

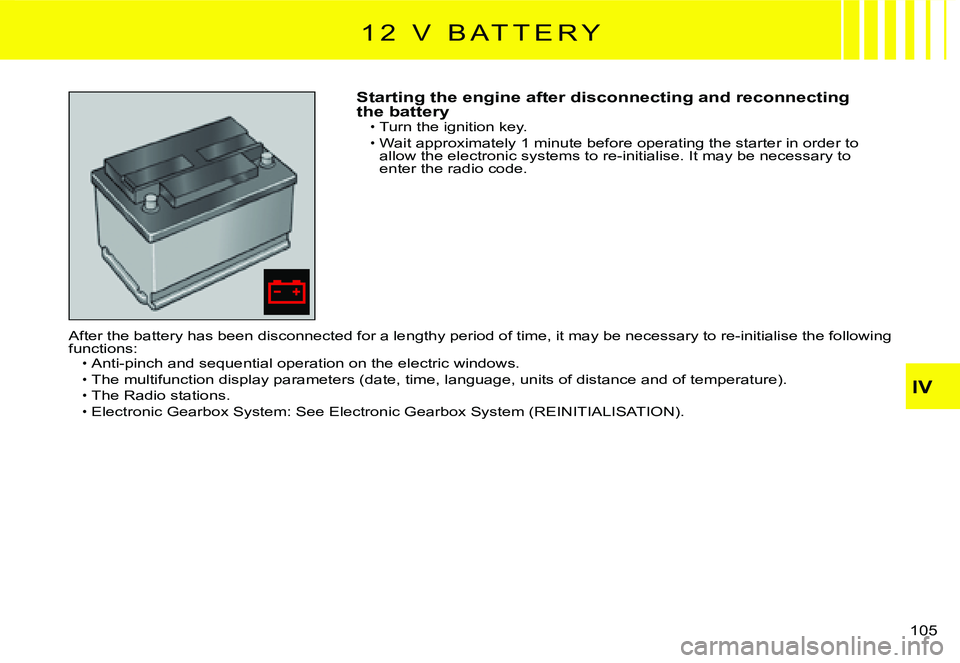

Starting the engine after disconnecting and reconnecting the batteryTurn the ignition key.
Wait approximately 1 minute before operating the starter in order to allow the electronic systems to re-initialise. It may be necessary to enter the radio code.
