8W-31 TRANSMISSION CONTROL SYSTEM
Component Page
Accelerator Pedal Position Sensor...... 8W-31-12
Battery................ 8W-31-2, 5, 6, 7, 10, 11
Brake Transmission Shift Interlock
Solenoid....................... 8W-31-3, 8
Data Link Connector................ 8W-31-12
Engine Control Module............. 8W-31-8, 12
Front Control Module.......... 8W-31-3, 6, 8, 12
Fuse 15.......................... 8W-31-2, 5
Fuselink..................... 8W-31-7, 10, 11
G101........................ 8W-31-2, 5, 6, 7Component Page
Input Speed Sensor................ 8W-31-4, 9
Integrated Power Module . . . 8W-31-2, 3, 5, 6, 8, 12
Output Speed Sensor............... 8W-31-4, 9
Powertrain Control Module..... 8W-31-2, 3, 4, 5, 6
Transmission Control
Module.............. 8W-31-7, 8, 9, 10, 11, 12
Transmission Control Relay . . 8W-31-2, 5, 7, 10, 11
Transmission Range Sensor...... 8W-31-3, 4, 8, 9
Transmission Solenoid/Pressure Switch
Assembly............. 8W-31-2, 5, 6, 7, 10, 11
RS8W-31 TRANSMISSION CONTROL SYSTEM8W-31-1

8W-33 VEHICLE SPEED CONTROL
Component Page
Brake Lamp Switch.................. 8W-33-3
Clockspring....................... 8W-33-2, 4
Engine Control Module................ 8W-33-4
G101.............................. 8W-33-3
Input Speed Sensor.................. 8W-33-2
Left Speed Control Switch........... 8W-33-2, 4
Output Speed Sensor................. 8W-33-2Component Page
Powertrain Control Module.......... 8W-33-2, 3
Right Speed Control Switch.......... 8W-33-2, 4
Speed Control Servo.................. 8W-33-3
Transmission Control Module........... 8W-33-4
Transmission Range Sensor............ 8W-33-4
Vehicle Speed Sensor................. 8W-33-2
RS8W-33 VEHICLE SPEED CONTROL8W-33-1

8W-35 ANTILOCK BRAKES
Component Page
Body Control Module................. 8W-35-2
Brake Fluid Level Switch.............. 8W-35-3
Brake Lamp Switch.................. 8W-35-3
Clutch Pedal Interlock Switch.......... 8W-35-3
Controller Antilock Brake.......... 8W-35-2, 3, 4
Engine Control Module................ 8W-35-3
Front Control Module................. 8W-35-3
Fuse 9............................ 8W-35-2
Fuse 21............................ 8W-35-2
Fuse 26............................ 8W-35-3
G100.............................. 8W-35-2Component Page
G200.............................. 8W-35-2
G300.............................. 8W-35-3
Integrated Power Module............ 8W-35-2, 3
Left Front Wheel Speed Sensor......... 8W-35-4
Left Rear Wheel Speed Sensor.......... 8W-35-4
Powertrain Control Module............ 8W-35-3
Right Front Wheel Speed Sensor........ 8W-35-4
Right Rear Wheel Speed Sensor......... 8W-35-4
Traction Control Switch............... 8W-35-2
Transmission Control Module........... 8W-35-3
RS8W-35 ANTILOCK BRAKES8W-35-1

8W-39 VEHICLE THEFT SECURITY SYSTEM
Component Page
Body Control Module........... 8W-39-2, 3, 6, 7,
8, 9, 10, 11, 12, 13
Clockspring........................ 8W-39-5
Driver Door Lock Switch........... 8W-39-11, 12
Front Control Module............. 8W-39-2, 3, 5
Front Intrusion Sensor................ 8W-39-4
Fuse 8............................ 8W-39-5
Fuse 14............................ 8W-39-2
G102.............................. 8W-39-5
G200.......................... 8W-39-2, 3, 5
G300.............. 8W-39-6, 7, 8, 10, 11, 12, 13
G301................. 8W-39-6, 7, 8, 10, 11, 12
G302............................. 8W-39-13
G303............................. 8W-39-13
High Note Horn..................... 8W-39-5
Hood Ajar Switch................... 8W-39-13
Horn Relay......................... 8W-39-5
Horn Switch........................ 8W-39-5
Ignition Switch.................... 8W-39-2, 3
Integrated Power Module.......... 8W-39-2, 3, 5
Left Cylinder Lock Switch......... 8W-39-11, 12
Left Front Door Ajar Switch............ 8W-39-6
Left Front Door Lock Motor/Ajar
Switch........................ 8W-39-6, 7Component Page
Left Sliding Door Control Module...... 8W-39-8, 9
Left Sliding Door Latch Sensing Switch . . . 8W-39-8
Left Sliding Door Lock Motor........... 8W-39-9
Left Sliding Door Lock Motor/Ajar
Switch......................... 8W-39-10
Liftgate Ajar Switch................. 8W-39-13
Liftgate Cinch/Release Motor.......... 8W-39-13
Passenger Door Lock Switch........ 8W-39-11, 12
Power Liftgate Module............... 8W-39-13
Rear Intrusion Sensor................ 8W-39-4
Right Cylinder Lock Switch........ 8W-39-11, 12
Right Front Door Ajar Switch........... 8W-39-6
Right Front Door Lock Motor/Ajar
Switch........................ 8W-39-6, 7
Right Sliding Door Control Module.... 8W-39-8, 9
Right Sliding Door Latch Sensing Switch . . 8W-39-8
Right Sliding Door Lock Motor.......... 8W-39-9
Right Sliding Door Lock Motor/Ajar
Switch......................... 8W-39-10
Sentry Key Remote Entry Module....... 8W-39-2
Siren............................. 8W-39-3
Thatcham Alarm Indicator............. 8W-39-4
Thatcham Alarm Module............ 8W-39-3, 4
RS8W-39 VEHICLE THEFT SECURITY SYSTEM8W-39-1

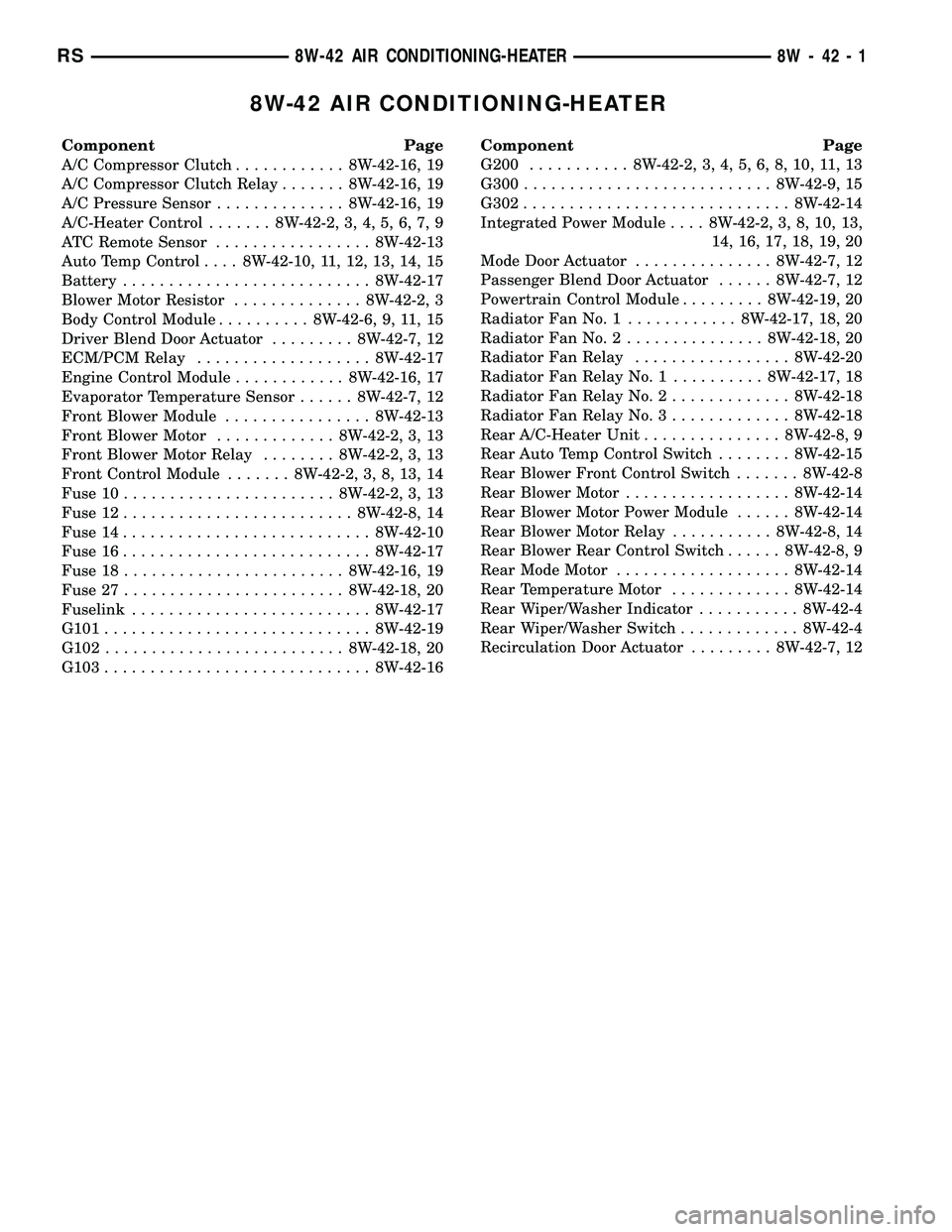

8W-42 AIR CONDITIONING-HEATER
Component Page
A/C Compressor Clutch............ 8W-42-16, 19
A/C Compressor Clutch Relay....... 8W-42-16, 19
A/C Pressure Sensor.............. 8W-42-16, 19
A/C-Heater Control....... 8W-42-2, 3, 4, 5, 6, 7, 9
ATC Remote Sensor................. 8W-42-13
Auto Temp Control.... 8W-42-10, 11, 12, 13, 14, 15
Battery........................... 8W-42-17
Blower Motor Resistor.............. 8W-42-2, 3
Body Control Module.......... 8W-42-6, 9, 11, 15
Driver Blend Door Actuator......... 8W-42-7, 12
ECM/PCM Relay................... 8W-42-17
Engine Control Module............ 8W-42-16, 17
Evaporator Temperature Sensor...... 8W-42-7, 12
Front Blower Module................ 8W-42-13
Front Blower Motor............. 8W-42-2, 3, 13
Front Blower Motor Relay........ 8W-42-2, 3, 13
Front Control Module....... 8W-42-2, 3, 8, 13, 14
Fuse 10....................... 8W-42-2, 3, 13
Fuse 12......................... 8W-42-8, 14
Fuse 14........................... 8W-42-10
Fuse 16........................... 8W-42-17
Fuse 18........................ 8W-42-16, 19
Fuse 27........................ 8W-42-18, 20
Fuselink.......................... 8W-42-17
G101............................. 8W-42-19
G102.......................... 8W-42-18, 20
G103............................. 8W-42-16Component Page
G200........... 8W-42-2, 3, 4, 5, 6, 8, 10, 11, 13
G300........................... 8W-42-9, 15
G302............................. 8W-42-14
Integrated Power Module.... 8W-42-2, 3, 8, 10, 13,
14, 16, 17, 18, 19, 20
Mode Door Actuator............... 8W-42-7, 12
Passenger Blend Door Actuator...... 8W-42-7, 12
Powertrain Control Module......... 8W-42-19, 20
Radiator Fan No. 1............ 8W-42-17, 18, 20
Radiator Fan No. 2............... 8W-42-18, 20
Radiator Fan Relay................. 8W-42-20
Radiator Fan Relay No. 1.......... 8W-42-17, 18
Radiator Fan Relay No. 2............. 8W-42-18
Radiator Fan Relay No. 3............. 8W-42-18
Rear A/C-Heater Unit............... 8W-42-8, 9
Rear Auto Temp Control Switch........ 8W-42-15
Rear Blower Front Control Switch....... 8W-42-8
Rear Blower Motor.................. 8W-42-14
Rear Blower Motor Power Module...... 8W-42-14
Rear Blower Motor Relay........... 8W-42-8, 14
Rear Blower Rear Control Switch...... 8W-42-8, 9
Rear Mode Motor................... 8W-42-14
Rear Temperature Motor............. 8W-42-14
Rear Wiper/Washer Indicator........... 8W-42-4
Rear Wiper/Washer Switch............. 8W-42-4
Recirculation Door Actuator......... 8W-42-7, 12
RS8W-42 AIR CONDITIONING-HEATER8W-42-1

8W-43 OCCUPANT RESTRAINT SYSTEM
Component Page
Belt Tension Sensor.................. 8W-43-8
Clockspring........................ 8W-43-4
Driver Airbag Squib 1................ 8W-43-4
Driver Airbag Squib 2................ 8W-43-4
Driver Knee Blocker Airbag Squib....... 8W-43-4
Driver Seat Belt Switch............... 8W-43-3
Driver Seat Belt Tensioner............. 8W-43-3
Front Control Module............... 8W-43-2, 8
G200.............................. 8W-43-2
G201.............................. 8W-43-2
G301.............................. 8W-43-8
Instrument Cluster................... 8W-43-2
Instrument Panel Switch Bank......... 8W-43-2
Integrated Power Module............ 8W-43-2, 8
Left Curtain Airbag Squib............. 8W-43-6
Left Front Impact Sensor.............. 8W-43-6Component Page
Left Side Impact Sensor 1............. 8W-43-6
Left Side Impact Sensor 2............. 8W-43-6
Left Side Impact Sensor 3............. 8W-43-6
Occupant Classification Module....... 8W-43-2, 8
Occupant Restraint
Controller............ 8W-43-2, 3, 4, 5, 6, 7, 8
Passenger Airbag.................... 8W-43-5
Passenger Airbag On/Off Indicator Lamp . . 8W-43-2
Passenger Seat Belt Switch............ 8W-43-5
Passenger Seat Belt Tensioner.......... 8W-43-5
Passenger Seat Weight Sensor.......... 8W-43-8
Right Curtain Airbag Squib............ 8W-43-7
Right Front Impact Sensor............. 8W-43-7
Right Side Impact Sensor 1............ 8W-43-7
Right Side Impact Sensor 2............ 8W-43-7
Right Side Impact Sensor 3............ 8W-43-7
RS8W-43 OCCUPANT RESTRAINT SYSTEM8W-43-1

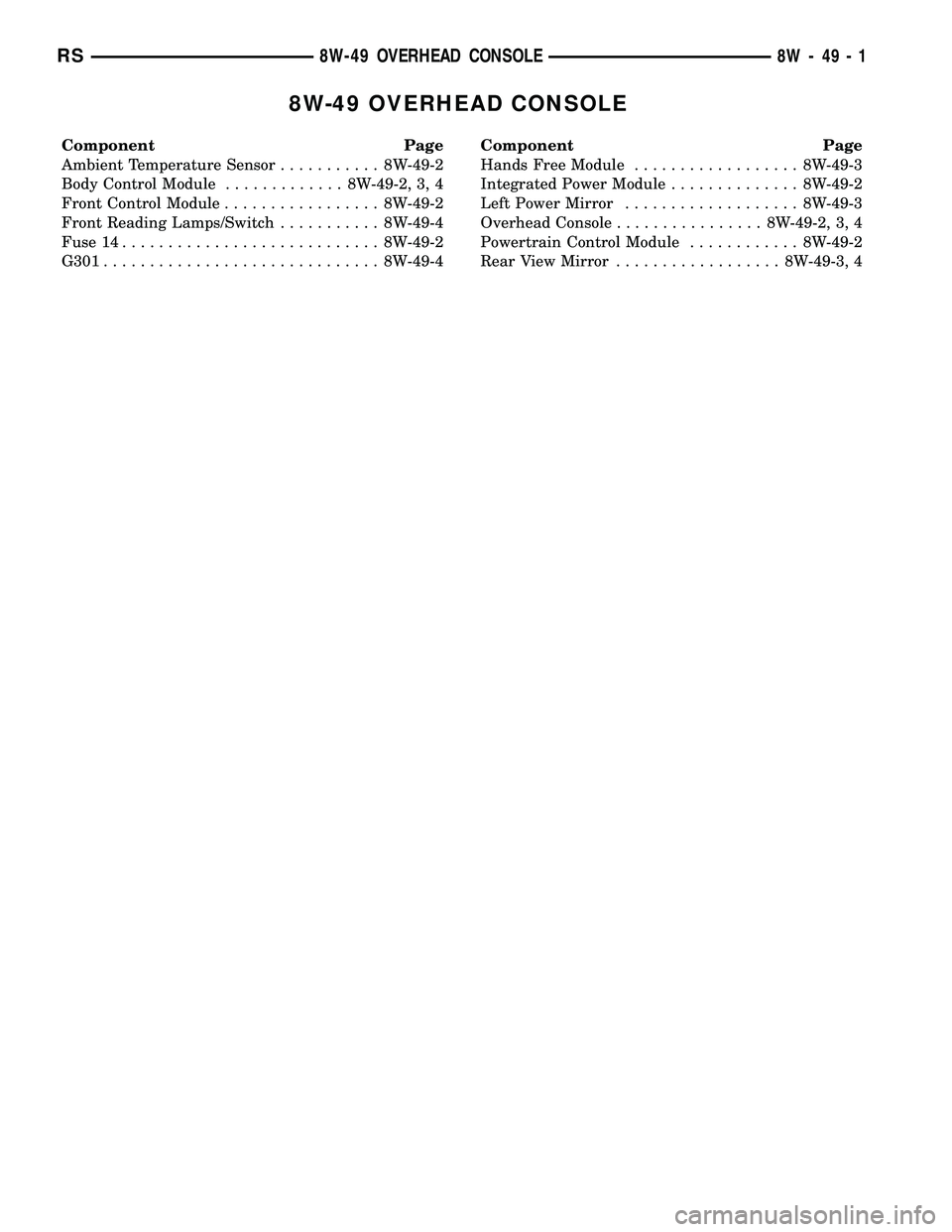

8W-49 OVERHEAD CONSOLE
Component Page
Ambient Temperature Sensor........... 8W-49-2
Body Control Module............. 8W-49-2, 3, 4
Front Control Module................. 8W-49-2
Front Reading Lamps/Switch........... 8W-49-4
Fuse 14............................ 8W-49-2
G301.............................. 8W-49-4Component Page
Hands Free Module.................. 8W-49-3
Integrated Power Module.............. 8W-49-2
Left Power Mirror................... 8W-49-3
Overhead Console................ 8W-49-2, 3, 4
Powertrain Control Module............ 8W-49-2
Rear View Mirror.................. 8W-49-3, 4
RS8W-49 OVERHEAD CONSOLE8W-49-1

8W-56 CONVENIENCE SYSTEMS
Component Page
Adjustable Pedals Motor............. 8W-56-2, 3
Adjustable Pedals Relay............... 8W-56-2
Adjustable Pedals Sensor.............. 8W-56-3
Adjustable Pedals Switch.............. 8W-56-2
Driver Heated Seat Module............ 8W-56-3
Front Control Module............... 8W-56-2, 4
Fuse 14............................ 8W-56-2
Fuse 18............................ 8W-56-2
Fuse 22............................ 8W-56-3
G200.............................. 8W-56-2
G300.............................. 8W-56-3
G302.............................. 8W-56-4
Ignition Switch...................... 8W-56-4Component Page
Integrated Power Module.......... 8W-56-2, 3, 4
Left Sliding Door Control Module........ 8W-56-2
Memory Seat/Mirror/Adjustable Pedals
Module........................ 8W-56-2, 3
Park Assist Display.................. 8W-56-4
Park Assist Module............... 8W-56-4, 5, 6
Park Assist Sensor No. 1............ 8W-56-5, 6
Park Assist Sensor No. 2............ 8W-56-5, 6
Park Assist Sensor No. 3............ 8W-56-5, 6
Park Assist Sensor No. 4............ 8W-56-5, 6
Power Seat Circuit Breaker............ 8W-56-3
Sentry Key Remote Entry Module....... 8W-56-4
RS8W-56 CONVENIENCE SYSTEMS8W-56-1
