2005 CHRYSLER CARAVAN body

Fig. 75 FRONT HINGE PILLAR REINFORCEMENT / COWL SIDE TAPPING PLATE
Fig. 76 UPPER COWL PLENUM / UPPER AND LOWER DASH PANEL - RIGHT HAND DRIVE ONLY
RSBODY STRUCTURE23 - 227
STRUCTURAL ADHESIVE LOCATIONS (Continued)

SPECIFICATIONS - STRUCTURAL ADHESIVE
LOCATIONS - FOLD-IN-FLOOR ONLY
INDEX
DESCRIPTION FIGURE
FRONT FLOOR PAN 77
LADDER COMPLETE (1 OF 3) 78
LADDER COMPLETE (2 OF 3) 79
LADDER COMPLETE (3 OF 3) 80
LOWER LADDER ASSEMBLY 81
MIDDLE FLOOR PAN (1 OF 2) 82
MIDDLE FLOOR PAN (2 OF 2) 83
SECOND AND THIRD ROW SEAT TUBS 84
Fig. 77 FRONT FLOOR PAN
23 - 228 BODY STRUCTURERS
STRUCTURAL ADHESIVE LOCATIONS (Continued)

Fig. 78 LADDER COMPLETE (1 OF 3)
RSBODY STRUCTURE23 - 229
STRUCTURAL ADHESIVE LOCATIONS (Continued)

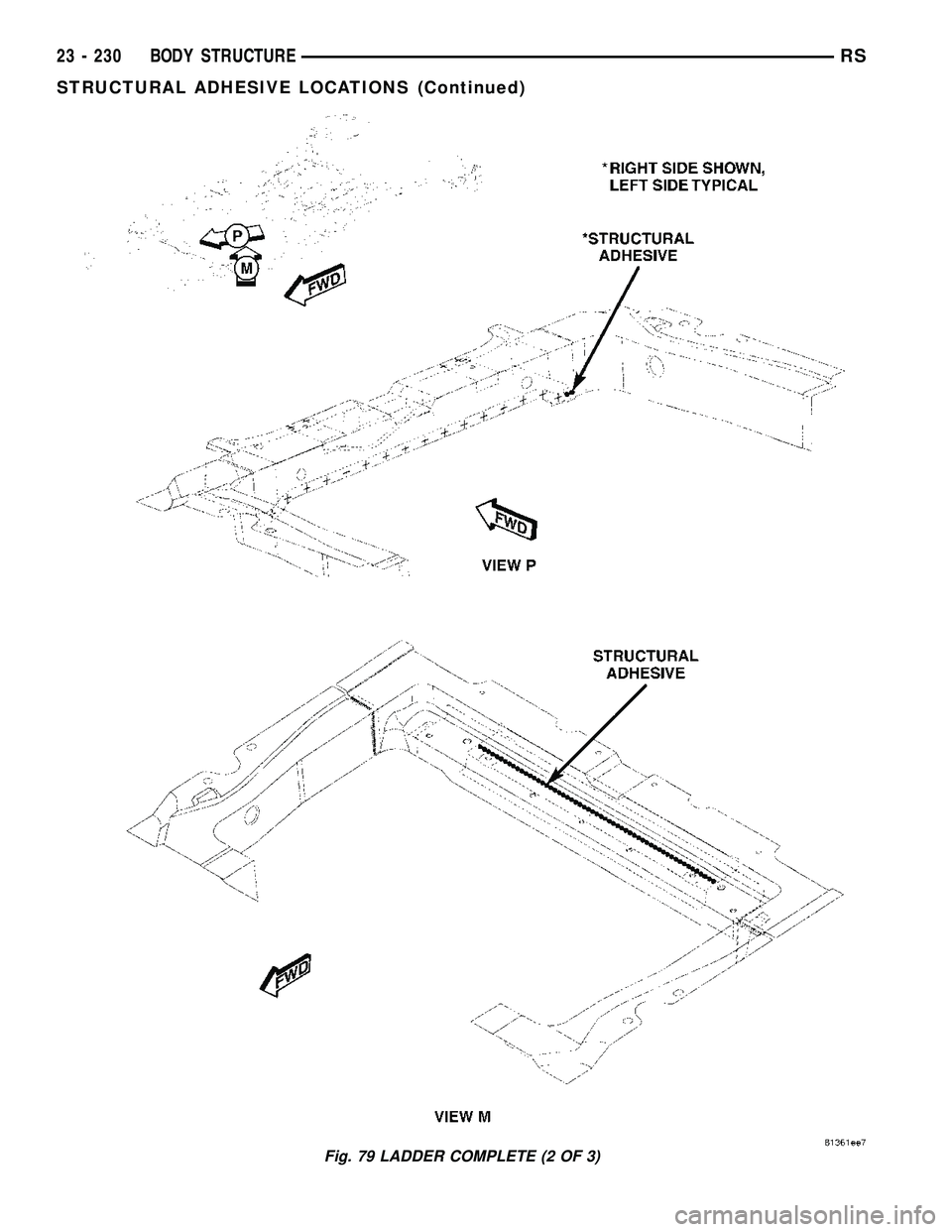

Fig. 79 LADDER COMPLETE (2 OF 3)
23 - 230 BODY STRUCTURERS
STRUCTURAL ADHESIVE LOCATIONS (Continued)

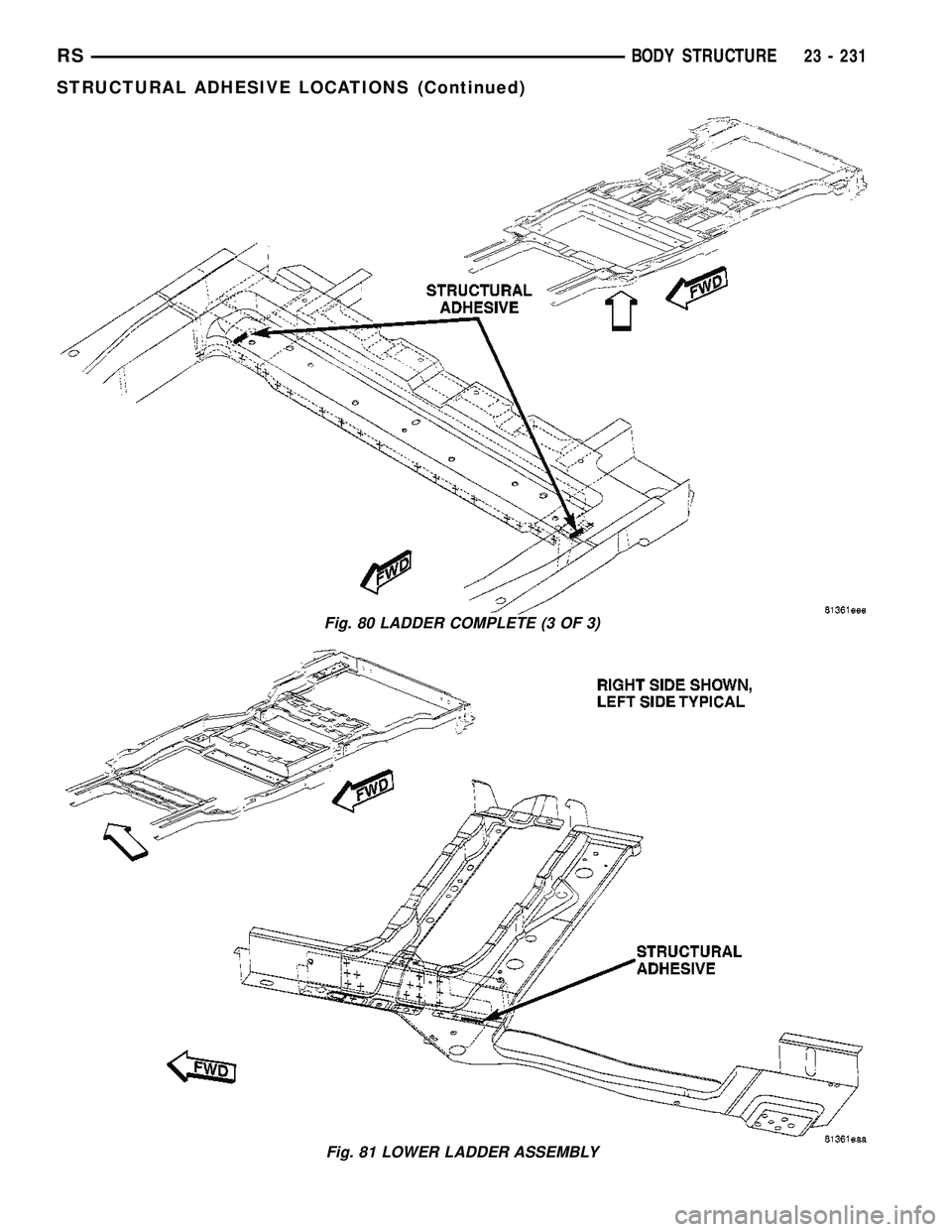

Fig. 80 LADDER COMPLETE (3 OF 3)
Fig. 81 LOWER LADDER ASSEMBLY
RSBODY STRUCTURE23 - 231
STRUCTURAL ADHESIVE LOCATIONS (Continued)

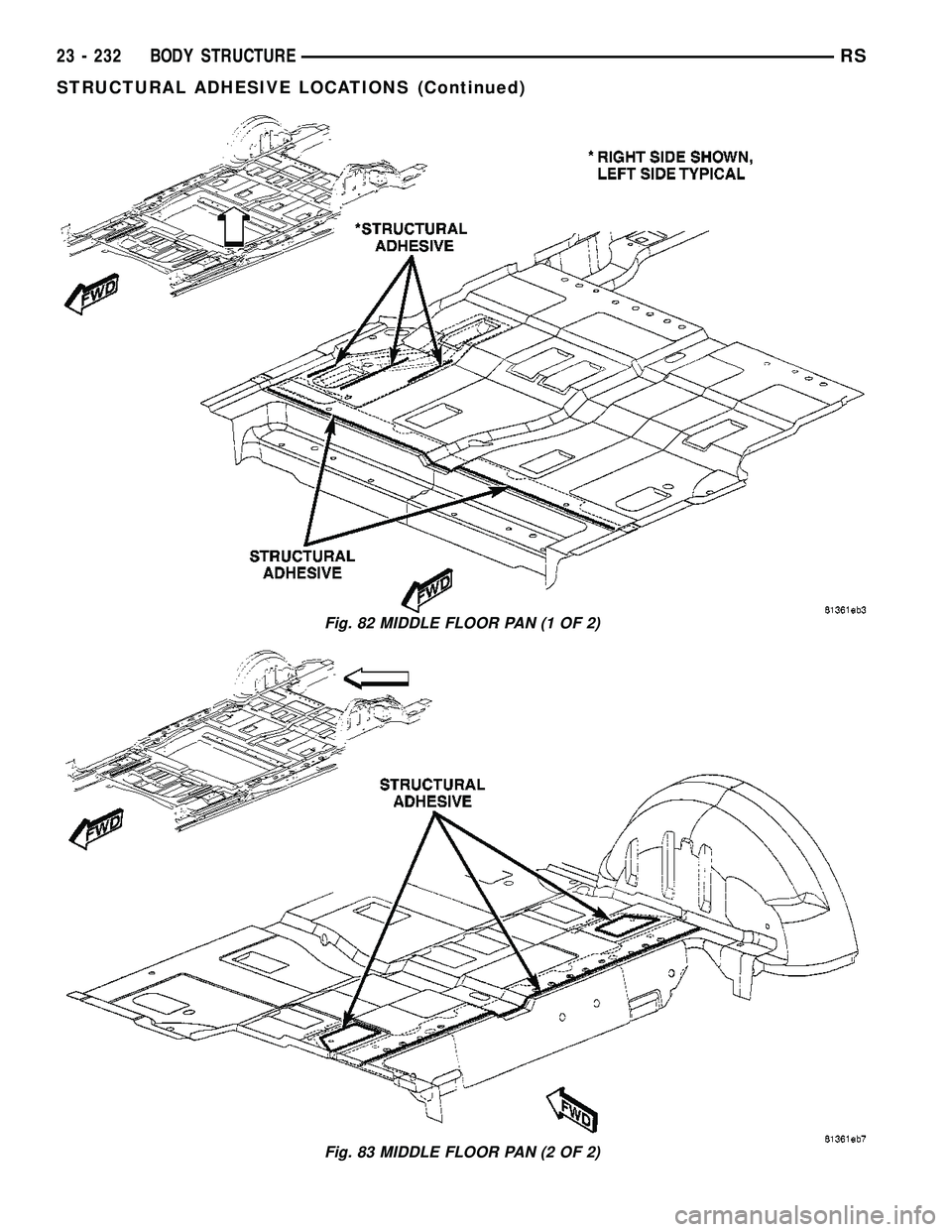

Fig. 82 MIDDLE FLOOR PAN (1 OF 2)
Fig. 83 MIDDLE FLOOR PAN (2 OF 2)
23 - 232 BODY STRUCTURERS
STRUCTURAL ADHESIVE LOCATIONS (Continued)

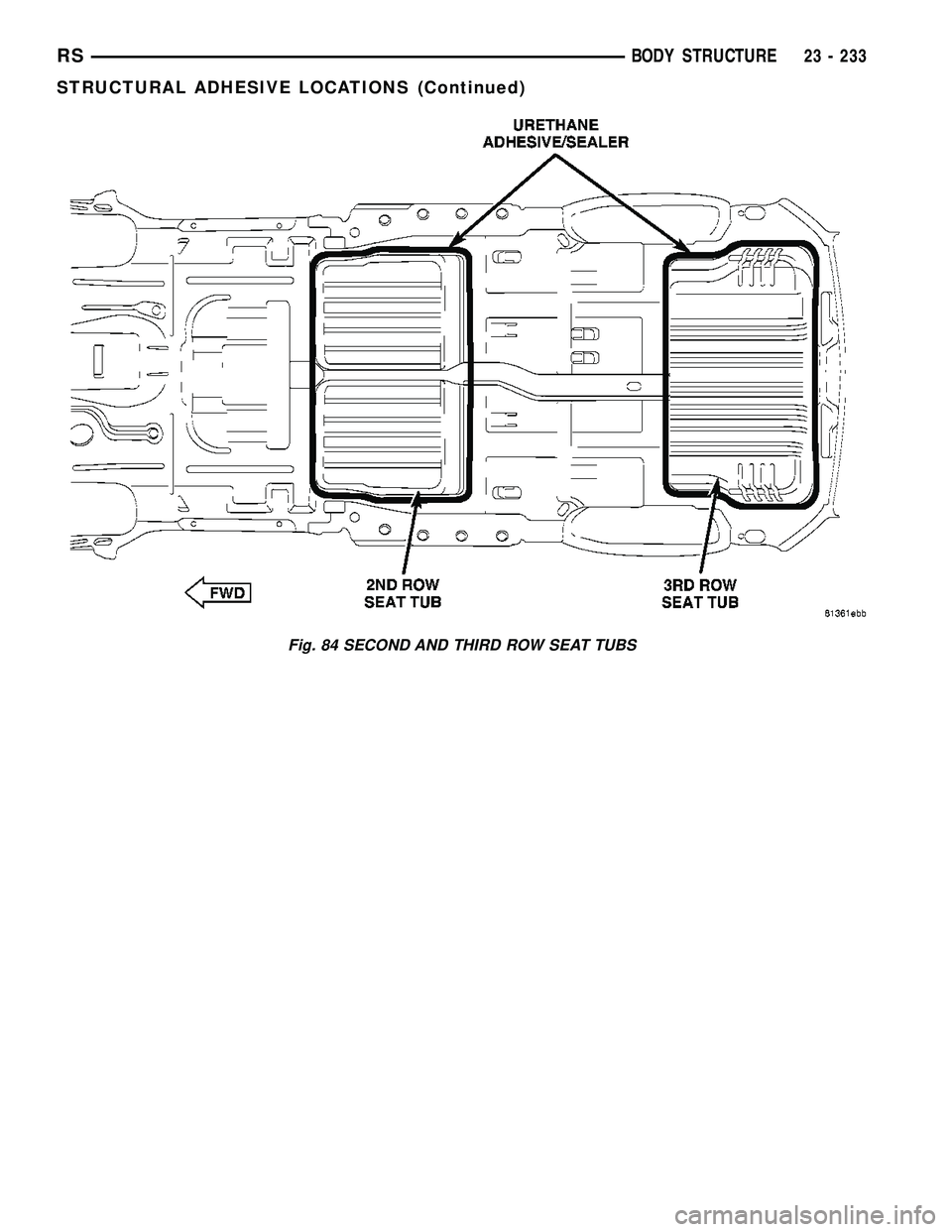

Fig. 84 SECOND AND THIRD ROW SEAT TUBS
RSBODY STRUCTURE23 - 233
STRUCTURAL ADHESIVE LOCATIONS (Continued)

WELD LOCATIONS
SPECIFICATIONS
SPECIFICATIONS - WELD LOCATIONS
INDEX
DESCRIPTION FIGURE
FRONT FENDER SHIELD - RIGHT 85
FRONT FENDER SHIELD - LEFT 86
STRUT TOWER AND REINFORCEMENTS - RIGHT 87
SUSPENSION RETAINERS AND REINFORCEMENTS - RIGHT 88
STRUT TOWER AND REINFORCEMENTS - LEFT 89
SUSPENSION RETAINERS AND REINFORCEMENTS - LEFT 90
FLOOR PAN REINFORCEMENTS - SIDE RAILS 91
REAR SUSPENSION BRACKETS 92
FLOOR PAN CROSS MEMBERS 93
SEAT REINFORCEMENTS - LONG WHEEL BASE ONLY 94
STRIKER REINFORCEMENTS - LONG WHEEL BASE ONLY 95
FUEL TANK MOUNTING/REAR SEAT AND SUSPENSION 96
REAR SUSPENSION HANGER BRACKETS - LONG WHEEL BASE 97
FRONT SEAT CROSS MEMBER 98
FLOOR PAN SIDE RAIL REINFORCEMENT 99
SILL BULKHEAD REINFORCEMENTS 100
FLOOR PAN CROSS MEMBER REINFORCEMENTS 101
FRONT SEAT CROSS MEMBER 102
SEAT REINFORCEMENT CROSS MEMBERS - SHORT WHEEL BASE 103
CENTER CONSOLE REINFORCEMENT - SHORT WHEEL BASE 104
REAR SUSPENSION HANGER BRACKETS - SHORT WHEEL BASE 105
LOWER LIFTGATE PANEL LATCH REINFORCEMENT 106
ENGINE MOUNTING PLATE AND TOW BRACKET 107
HEADLAMP MOUNTING PLATE 108
LOWER RADIATOR CROSS MEMBER BRACKETS 109
CROSS MEMBER EXTENSIONS 110
JACK MOUNTING BRACKET - LONG WHEEL BASE SHOWN, SHORT SIMILAR 111
FRONT SEAT CROSS MEMBER - LONG WHEELBASE ONLY 112
FRONT SEAT CROSS MEMBER - ALL WHEEL DRIVE ONLY 113
FUEL TANK SUPPORT CROSS MEMBERS - LONG WHEEL BASE ONLY 114
REAR SUPPORT AND TIRE STOWAGE CROSS MEMBERS - LONG WHEEL BASE
ONLY11 5
INNER SIDE SILLS - LONG WHEEL BASE ONLY 116
WHEELHOUSES, SIDE SILLS, SUSPENSION BRACKETS - LONG WHEEL BASE ONLY 117
REAR SEAT REINFORCEMENTS - SHORT WHEEL BASE ONLY 118
23 - 234 BODY STRUCTURERS
