2005 CHRYSLER CARAVAN headlamp

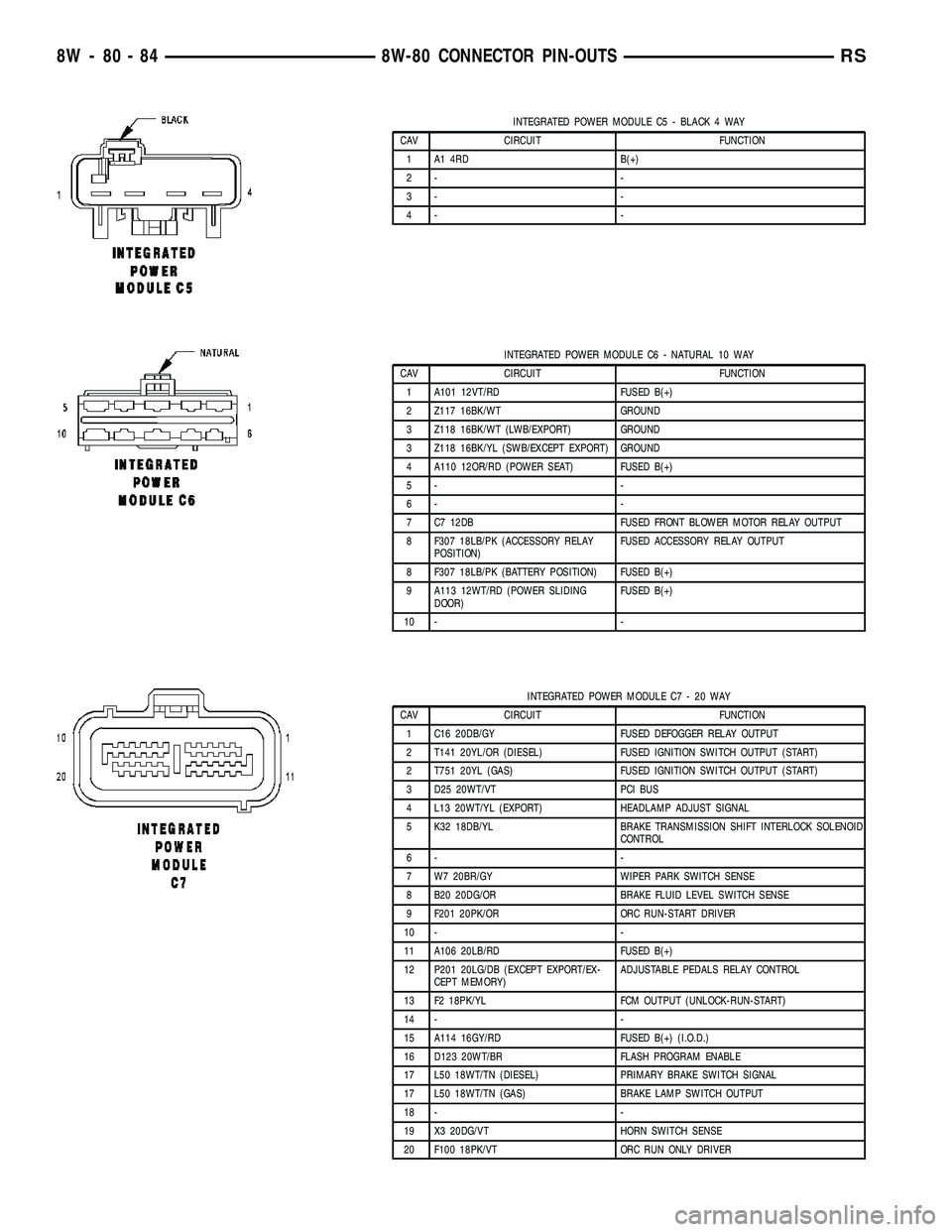

INTEGRATED POWER MODULE C5 - BLACK 4 WAY
CAV CIRCUIT FUNCTION
1 A1 4RD B(+)
2- -
3- -
4- -
INTEGRATED POWER MODULE C6 - NATURAL 10 WAY
CAV CIRCUIT FUNCTION
1 A101 12VT/RD FUSED B(+)
2 Z117 16BK/WT GROUND
3 Z118 16BK/WT (LWB/EXPORT) GROUND
3 Z118 16BK/YL (SWB/EXCEPT EXPORT) GROUND
4 A110 12OR/RD (POWER SEAT) FUSED B(+)
5- -
6- -
7 C7 12DB FUSED FRONT BLOWER MOTOR RELAY OUTPUT
8 F307 18LB/PK (ACCESSORY RELAY
POSITION)FUSED ACCESSORY RELAY OUTPUT
8 F307 18LB/PK (BATTERY POSITION) FUSED B(+)
9 A113 12WT/RD (POWER SLIDING
DOOR)FUSED B(+)
10 - -
INTEGRATED POWER MODULE C7 - 20 WAY
CAV CIRCUIT FUNCTION
1 C16 20DB/GY FUSED DEFOGGER RELAY OUTPUT
2 T141 20YL/OR (DIESEL) FUSED IGNITION SWITCH OUTPUT (START)
2 T751 20YL (GAS) FUSED IGNITION SWITCH OUTPUT (START)
3 D25 20WT/VT PCI BUS
4 L13 20WT/YL (EXPORT) HEADLAMP ADJUST SIGNAL
5 K32 18DB/YL BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID
CONTROL
6- -
7 W7 20BR/GY WIPER PARK SWITCH SENSE
8 B20 20DG/OR BRAKE FLUID LEVEL SWITCH SENSE
9 F201 20PK/OR ORC RUN-START DRIVER
10 - -
11 A106 20LB/RD FUSED B(+)
12 P201 20LG/DB (EXCEPT EXPORT/EX-
CEPT MEMORY)ADJUSTABLE PEDALS RELAY CONTROL
13 F2 18PK/YL FCM OUTPUT (UNLOCK-RUN-START)
14 - -
15 A114 16GY/RD FUSED B(+) (I.O.D.)
16 D123 20WT/BR FLASH PROGRAM ENABLE
17 L50 18WT/TN (DIESEL) PRIMARY BRAKE SWITCH SIGNAL
17 L50 18WT/TN (GAS) BRAKE LAMP SWITCH OUTPUT
18 - -
19 X3 20DG/VT HORN SWITCH SENSE
20 F100 18PK/VT ORC RUN ONLY DRIVER
8W - 80 - 84 8W-80 CONNECTOR PIN-OUTSRS

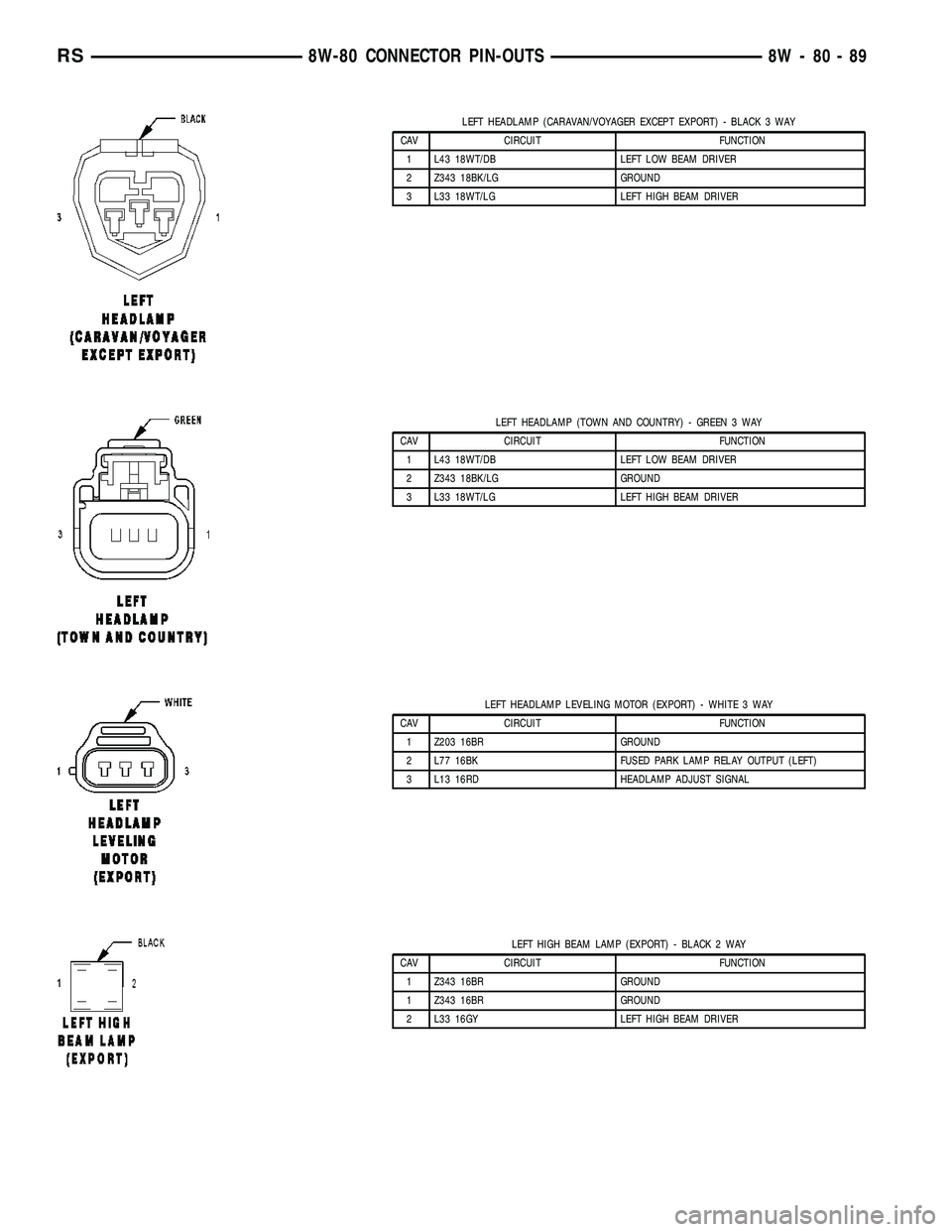

LEFT HEADLAMP (CARAVAN/VOYAGER EXCEPT EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L43 18WT/DB LEFT LOW BEAM DRIVER
2 Z343 18BK/LG GROUND
3 L33 18WT/LG LEFT HIGH BEAM DRIVER
LEFT HEADLAMP (TOWN AND COUNTRY) - GREEN 3 WAY
CAV CIRCUIT FUNCTION
1 L43 18WT/DB LEFT LOW BEAM DRIVER
2 Z343 18BK/LG GROUND
3 L33 18WT/LG LEFT HIGH BEAM DRIVER
LEFT HEADLAMP LEVELING MOTOR (EXPORT) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 Z203 16BR GROUND
2 L77 16BK FUSED PARK LAMP RELAY OUTPUT (LEFT)
3 L13 16RD HEADLAMP ADJUST SIGNAL
LEFT HIGH BEAM LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z343 16BR GROUND
1 Z343 16BR GROUND
2 L33 16GY LEFT HIGH BEAM DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W-80-89

OVERHEAD CONSOLE (EXCEPT BASE) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1 G23 22VT/DB SLIDING DOORS OVERHEAD SWITCH MUX
2 G25 22VT/TN LIFTGATE SWITCH MUX
3 D25 20WT/VT PCI BUS
4 Z113 20BK/DB GROUND
5 A114 20GY/RD FUSED B(+) (I.O.D.)
6 F503 20WT/PK FUSED IGNITION SWITCH OUTPUT (RUN)
7 Z13 20BK/WT GROUND
8 E15 20OR/DB ASH/RECEIVER LAMP FEED
9- -
10 - -
11 L24 20BK/GY (EXCEPT EXPORT/PRE-
MIUM/LUXURY)AUTOMATIC HEADLAMP SWITCH SENSOR
12 L1 20BK/WT (PREMIUM/LUXURY) BACK-UP LAMP FEED
OXYGEN SENSOR 1/1 UPSTREAM (GAS)-4WAY
CAV CIRCUIT FUNCTION
1 Z42 18BK/LG GROUND
2 K99 18BR/LG O2 1/1 HEATER CONTROL
3 K902 18BR/DG O2 RETURN (UP)
4 K41 18DB/LB O2 1/1 SIGNAL
OXYGEN SENSOR 1/2 DOWNSTREAM (GAS)-4WAY
CAV CIRCUIT FUNCTION
1 Z43 18BK/DB GROUND
2 K299 18BR/WT O2 1/2 HEATER CONTROL
3 K904 18DB/DG (2.4L) O2 RETURN (DOWN)
3 K904 18BR/DG (3.3L/3.8L) O2 RETURN (DOWN)
4 K141 18DB/YL O2 1/2 SIGNAL
PARK ASSIST DISPLAY-3WAY
CAV CIRCUIT FUNCTION
1 X777 20DG/GY PARK ASSIST DISPLAY SUPPLY
2 Z171 20GY/BK GROUND
3 D777 20WT/GY PARK ASSIST DISPLAY SIGNAL
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 105

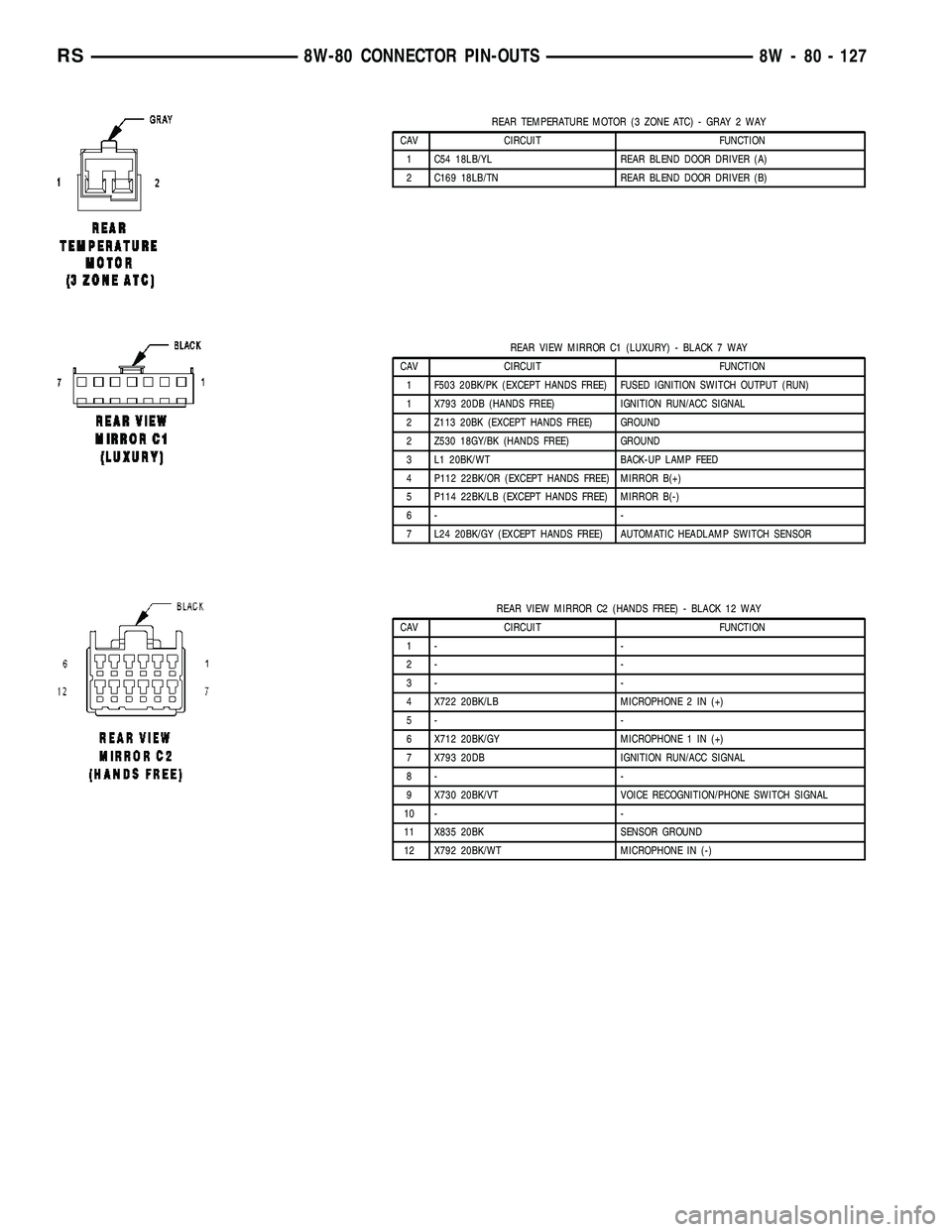

REAR TEMPERATURE MOTOR (3 ZONE ATC) - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 C54 18LB/YL REAR BLEND DOOR DRIVER (A)
2 C169 18LB/TN REAR BLEND DOOR DRIVER (B)
REAR VIEW MIRROR C1 (LUXURY) - BLACK 7 WAY
CAV CIRCUIT FUNCTION
1 F503 20BK/PK (EXCEPT HANDS FREE) FUSED IGNITION SWITCH OUTPUT (RUN)
1 X793 20DB (HANDS FREE) IGNITION RUN/ACC SIGNAL
2 Z113 20BK (EXCEPT HANDS FREE) GROUND
2 Z530 18GY/BK (HANDS FREE) GROUND
3 L1 20BK/WT BACK-UP LAMP FEED
4 P112 22BK/OR (EXCEPT HANDS FREE) MIRROR B(+)
5 P114 22BK/LB (EXCEPT HANDS FREE) MIRROR B(-)
6- -
7 L24 20BK/GY (EXCEPT HANDS FREE) AUTOMATIC HEADLAMP SWITCH SENSOR
REAR VIEW MIRROR C2 (HANDS FREE) - BLACK 12 WAY
CAV CIRCUIT FUNCTION
1- -
2- -
3- -
4 X722 20BK/LB MICROPHONE 2 IN (+)
5- -
6 X712 20BK/GY MICROPHONE 1 IN (+)
7 X793 20DB IGNITION RUN/ACC SIGNAL
8- -
9 X730 20BK/VT VOICE RECOGNITION/PHONE SWITCH SIGNAL
10 - -
11 X835 20BK SENSOR GROUND
12 X792 20BK/WT MICROPHONE IN (-)
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 127

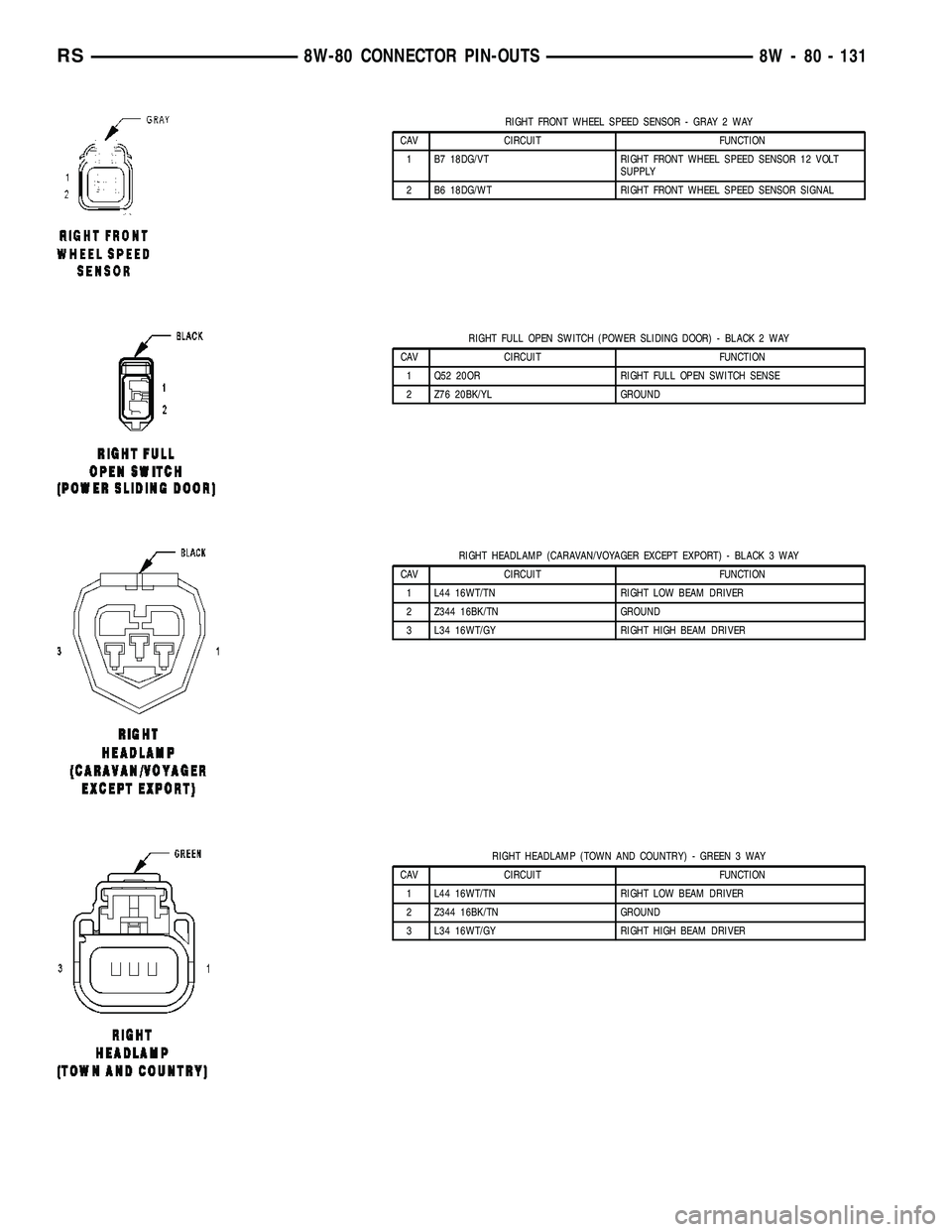

RIGHT FRONT WHEEL SPEED SENSOR - GRAY 2 WAY
CAV CIRCUIT FUNCTION
1 B7 18DG/VT RIGHT FRONT WHEEL SPEED SENSOR 12 VOLT
SUPPLY
2 B6 18DG/WT RIGHT FRONT WHEEL SPEED SENSOR SIGNAL
RIGHT FULL OPEN SWITCH (POWER SLIDING DOOR) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Q52 20OR RIGHT FULL OPEN SWITCH SENSE
2 Z76 20BK/YL GROUND
RIGHT HEADLAMP (CARAVAN/VOYAGER EXCEPT EXPORT) - BLACK 3 WAY
CAV CIRCUIT FUNCTION
1 L44 16WT/TN RIGHT LOW BEAM DRIVER
2 Z344 16BK/TN GROUND
3 L34 16WT/GY RIGHT HIGH BEAM DRIVER
RIGHT HEADLAMP (TOWN AND COUNTRY) - GREEN 3 WAY
CAV CIRCUIT FUNCTION
1 L44 16WT/TN RIGHT LOW BEAM DRIVER
2 Z344 16BK/TN GROUND
3 L34 16WT/GY RIGHT HIGH BEAM DRIVER
RS8W-80 CONNECTOR PIN-OUTS8W - 80 - 131

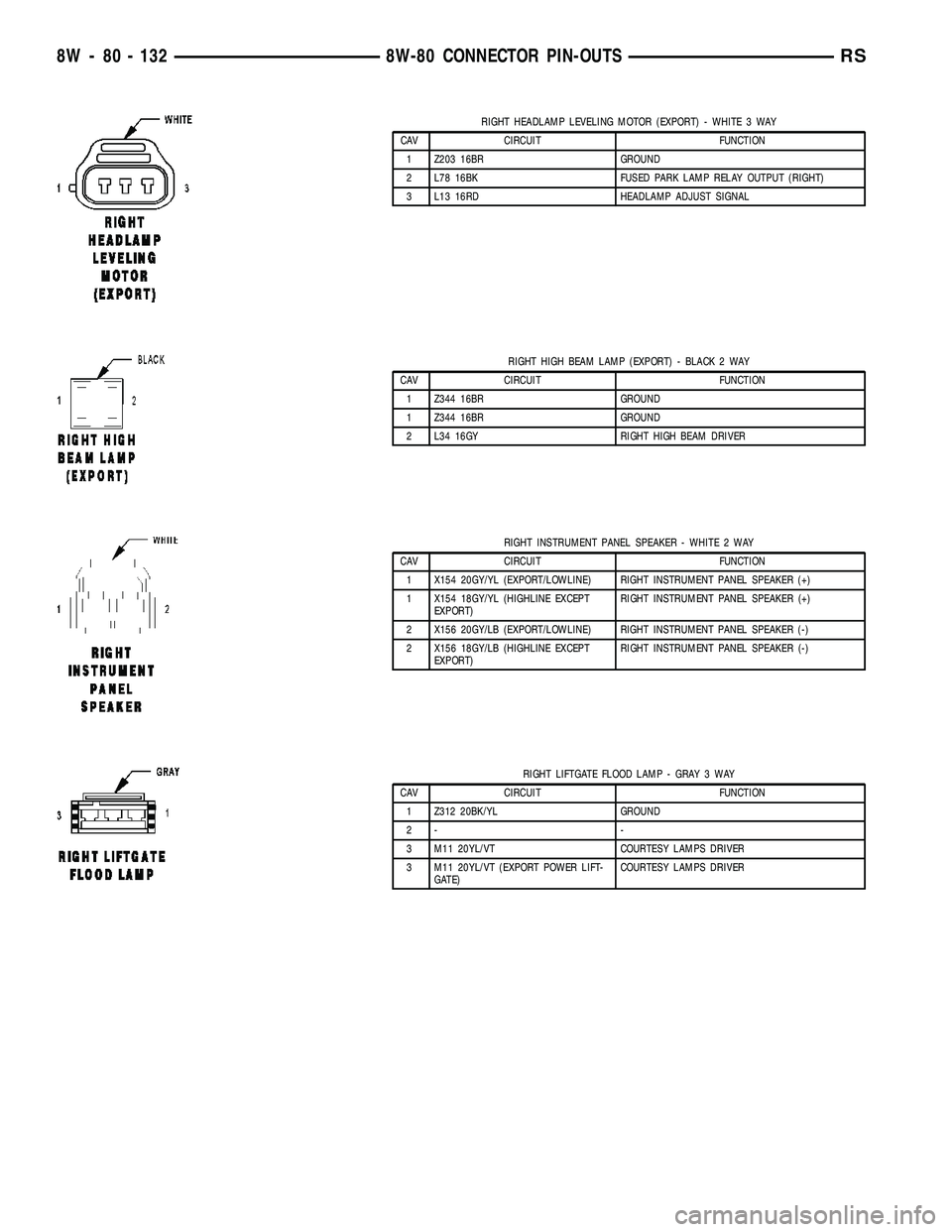

RIGHT HEADLAMP LEVELING MOTOR (EXPORT) - WHITE 3 WAY
CAV CIRCUIT FUNCTION
1 Z203 16BR GROUND
2 L78 16BK FUSED PARK LAMP RELAY OUTPUT (RIGHT)
3 L13 16RD HEADLAMP ADJUST SIGNAL
RIGHT HIGH BEAM LAMP (EXPORT) - BLACK 2 WAY
CAV CIRCUIT FUNCTION
1 Z344 16BR GROUND
1 Z344 16BR GROUND
2 L34 16GY RIGHT HIGH BEAM DRIVER
RIGHT INSTRUMENT PANEL SPEAKER - WHITE 2 WAY
CAV CIRCUIT FUNCTION
1 X154 20GY/YL (EXPORT/LOWLINE) RIGHT INSTRUMENT PANEL SPEAKER (+)
1 X154 18GY/YL (HIGHLINE EXCEPT
EXPORT)RIGHT INSTRUMENT PANEL SPEAKER (+)
2 X156 20GY/LB (EXPORT/LOWLINE) RIGHT INSTRUMENT PANEL SPEAKER (-)
2 X156 18GY/LB (HIGHLINE EXCEPT
EXPORT)RIGHT INSTRUMENT PANEL SPEAKER (-)
RIGHT LIFTGATE FLOOD LAMP - GRAY 3 WAY
CAV CIRCUIT FUNCTION
1 Z312 20BK/YL GROUND
2- -
3 M11 20YL/VT COURTESY LAMPS DRIVER
3 M11 20YL/VT (EXPORT POWER LIFT-
GATE)COURTESY LAMPS DRIVER
8W - 80 - 132 8W-80 CONNECTOR PIN-OUTSRS

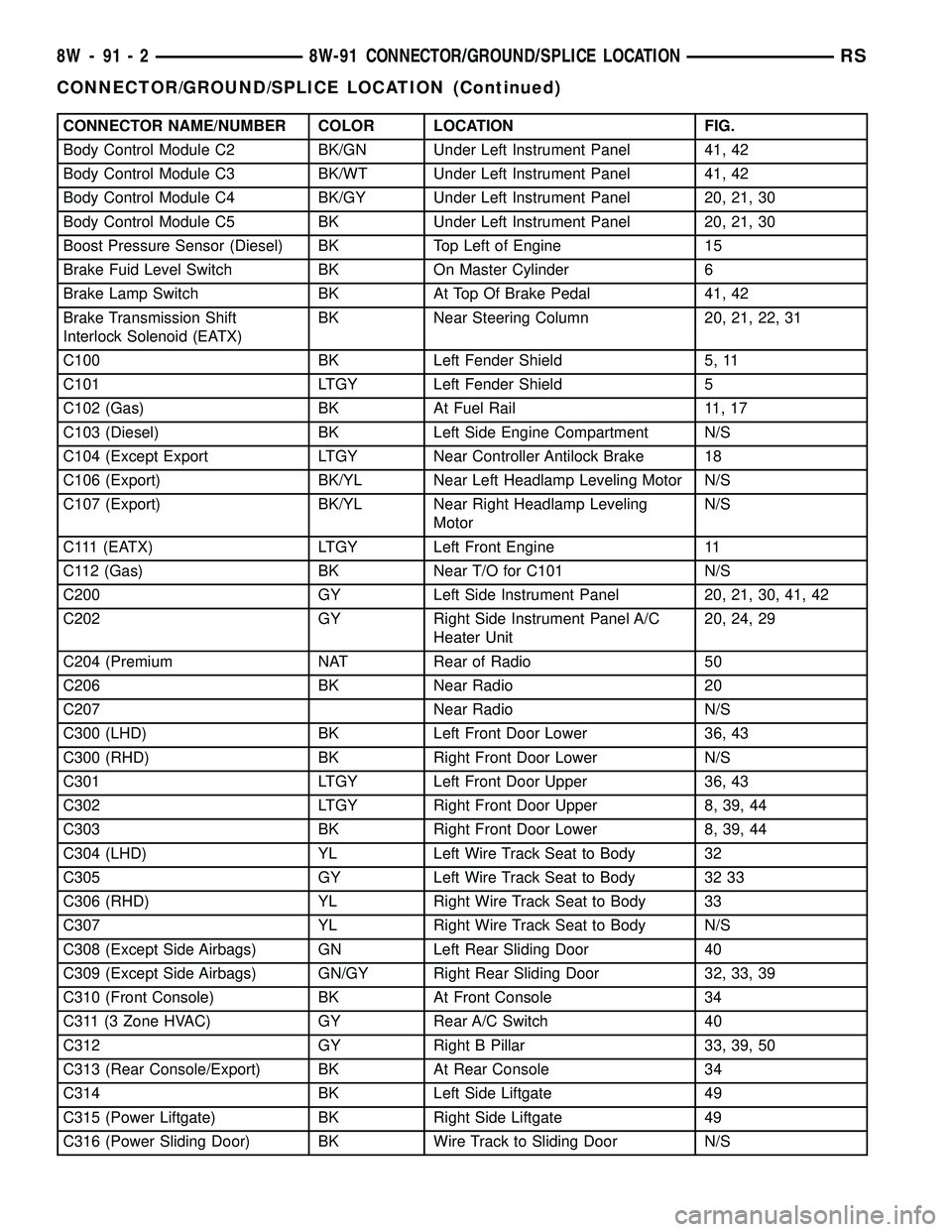

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Body Control Module C2 BK/GN Under Left Instrument Panel 41, 42
Body Control Module C3 BK/WT Under Left Instrument Panel 41, 42
Body Control Module C4 BK/GY Under Left Instrument Panel 20, 21, 30
Body Control Module C5 BK Under Left Instrument Panel 20, 21, 30
Boost Pressure Sensor (Diesel) BK Top Left of Engine 15
Brake Fuid Level Switch BK On Master Cylinder 6
Brake Lamp Switch BK At Top Of Brake Pedal 41, 42
Brake Transmission Shift
Interlock Solenoid (EATX)BK Near Steering Column 20, 21, 22, 31
C100 BK Left Fender Shield 5, 11
C101 LTGY Left Fender Shield 5
C102 (Gas) BK At Fuel Rail 11, 17
C103 (Diesel) BK Left Side Engine Compartment N/S
C104 (Except Export LTGY Near Controller Antilock Brake 18
C106 (Export) BK/YL Near Left Headlamp Leveling Motor N/S
C107 (Export) BK/YL Near Right Headlamp Leveling
MotorN/S
C111 (EATX) LTGY Left Front Engine 11
C112 (Gas) BK Near T/O for C101 N/S
C200 GY Left Side Instrument Panel 20, 21, 30, 41, 42
C202 GY Right Side Instrument Panel A/C
Heater Unit20, 24, 29
C204 (Premium NAT Rear of Radio 50
C206 BK Near Radio 20
C207 Near Radio N/S
C300 (LHD) BK Left Front Door Lower 36, 43
C300 (RHD) BK Right Front Door Lower N/S
C301 LTGY Left Front Door Upper 36, 43
C302 LTGY Right Front Door Upper 8, 39, 44
C303 BK Right Front Door Lower 8, 39, 44
C304 (LHD) YL Left Wire Track Seat to Body 32
C305 GY Left Wire Track Seat to Body 32 33
C306 (RHD) YL Right Wire Track Seat to Body 33
C307 YL Right Wire Track Seat to Body N/S
C308 (Except Side Airbags) GN Left Rear Sliding Door 40
C309 (Except Side Airbags) GN/GY Right Rear Sliding Door 32, 33, 39
C310 (Front Console) BK At Front Console 34
C311 (3 Zone HVAC) GY Rear A/C Switch 40
C312 GY Right B Pillar 33, 39, 50
C313 (Rear Console/Export) BK At Rear Console 34
C314 BK Left Side Liftgate 49
C315 (Power Liftgate) BK Right Side Liftgate 49
C316 (Power Sliding Door) BK Wire Track to Sliding Door N/S
8W - 91 - 2 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)

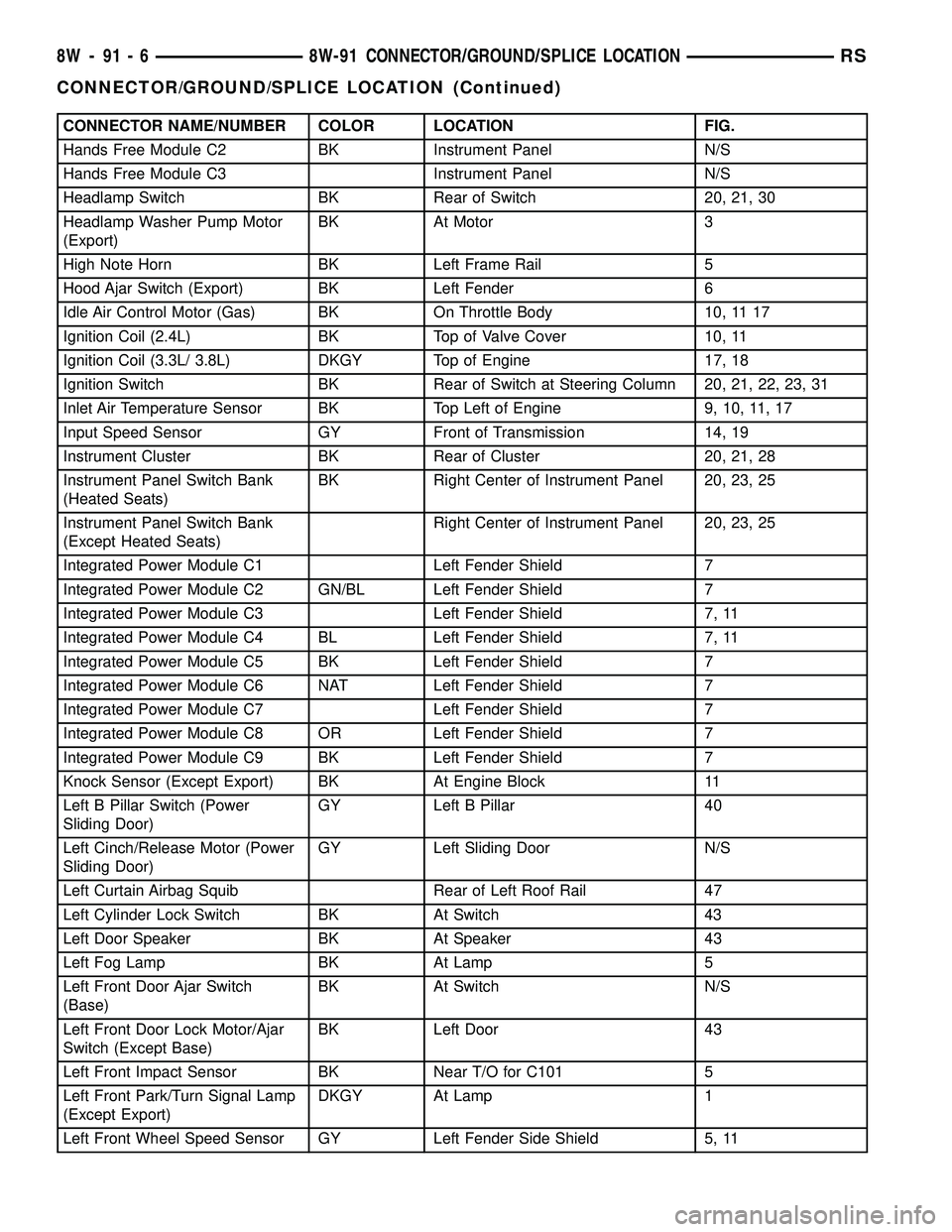

CONNECTOR NAME/NUMBER COLOR LOCATION FIG.
Hands Free Module C2 BK Instrument Panel N/S
Hands Free Module C3 Instrument Panel N/S
Headlamp Switch BK Rear of Switch 20, 21, 30
Headlamp Washer Pump Motor
(Export)BK At Motor 3
High Note Horn BK Left Frame Rail 5
Hood Ajar Switch (Export) BK Left Fender 6
Idle Air Control Motor (Gas) BK On Throttle Body 10, 11 17
Ignition Coil (2.4L) BK Top of Valve Cover 10, 11
Ignition Coil (3.3L/ 3.8L) DKGY Top of Engine 17, 18
Ignition Switch BK Rear of Switch at Steering Column 20, 21, 22, 23, 31
Inlet Air Temperature Sensor BK Top Left of Engine 9, 10, 11, 17
Input Speed Sensor GY Front of Transmission 14, 19
Instrument Cluster BK Rear of Cluster 20, 21, 28
Instrument Panel Switch Bank
(Heated Seats)BK Right Center of Instrument Panel 20, 23, 25
Instrument Panel Switch Bank
(Except Heated Seats)Right Center of Instrument Panel 20, 23, 25
Integrated Power Module C1 Left Fender Shield 7
Integrated Power Module C2 GN/BL Left Fender Shield 7
Integrated Power Module C3 Left Fender Shield 7, 11
Integrated Power Module C4 BL Left Fender Shield 7, 11
Integrated Power Module C5 BK Left Fender Shield 7
Integrated Power Module C6 NAT Left Fender Shield 7
Integrated Power Module C7 Left Fender Shield 7
Integrated Power Module C8 OR Left Fender Shield 7
Integrated Power Module C9 BK Left Fender Shield 7
Knock Sensor (Except Export) BK At Engine Block 11
Left B Pillar Switch (Power
Sliding Door)GY Left B Pillar 40
Left Cinch/Release Motor (Power
Sliding Door)GY Left Sliding Door N/S
Left Curtain Airbag Squib Rear of Left Roof Rail 47
Left Cylinder Lock Switch BK At Switch 43
Left Door Speaker BK At Speaker 43
Left Fog Lamp BK At Lamp 5
Left Front Door Ajar Switch
(Base)BK At Switch N/S
Left Front Door Lock Motor/Ajar
Switch (Except Base)BK Left Door 43
Left Front Impact Sensor BK Near T/O for C101 5
Left Front Park/Turn Signal Lamp
(Except Export)DKGY At Lamp 1
Left Front Wheel Speed Sensor GY Left Fender Side Shield 5, 11
8W - 91 - 6 8W-91 CONNECTOR/GROUND/SPLICE LOCATIONRS
CONNECTOR/GROUND/SPLICE LOCATION (Continued)
