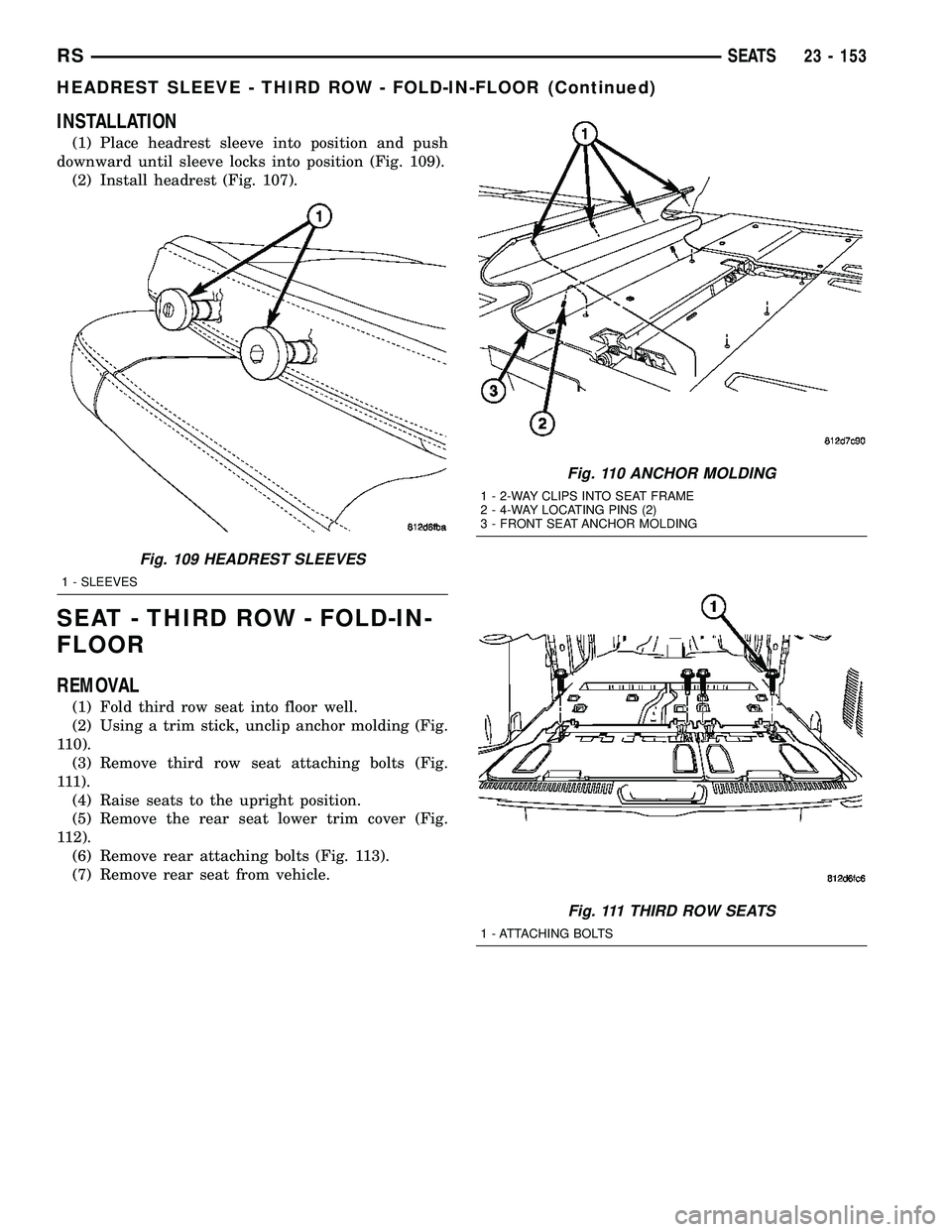

2005 CHRYSLER CARAVAN headrest

INSTALLATION
(1) Place headrest sleeve into position and push
downward until sleeve locks into position (Fig. 109).
(2) Install headrest (Fig. 107).
SEAT - THIRD ROW - FOLD-IN-
FLOOR
REMOVAL
(1) Fold third row seat into floor well.
(2) Using a trim stick, unclip anchor molding (Fig.
110).
(3) Remove third row seat attaching bolts (Fig.
111).
(4) Raise seats to the upright position.
(5) Remove the rear seat lower trim cover (Fig.
112).
(6) Remove rear attaching bolts (Fig. 113).
(7) Remove rear seat from vehicle.
Fig. 109 HEADREST SLEEVES
1 - SLEEVES
Fig. 110 ANCHOR MOLDING
1 - 2-WAY CLIPS INTO SEAT FRAME
2 - 4-WAY LOCATING PINS (2)
3 - FRONT SEAT ANCHOR MOLDING
Fig. 111 THIRD ROW SEATS
1 - ATTACHING BOLTS
RSSEATS23 - 153
HEADREST SLEEVE - THIRD ROW - FOLD-IN-FLOOR (Continued)
